204mm Plastic Air Filter Exit Air Filter (Jk6623)
CharacteristicsFrame material uses anti-flame and heat resistingABS plastic, of which fire resistance are accord with UL-94 Vo standard. Installation without screws are accord with standard of VDE 0113(EN 60204) Optional equips polyester fiber filter pad of 10Og/rrf ,150g/nf .350g/nf , built-in stan......
Send Inquiry
Product Description
Characteristics
Frame material uses anti-flame and heat resistingABS plastic, of which fire resistance are accord with UL-94 Vo standard.
Installation without screws are accord with standard of VDE 0113(EN 60204)
Optional equips polyester fiber filter pad of 10Og/rrf ,150g/nf .350g/nf , built-in standard is 150g/nf .Standard max static pressure 86Pa-62Pa max relative humidity 90%.
Temperature range : (unconcretionary) -20°C~+65°C (store temperature) -20°C~ + 70°C

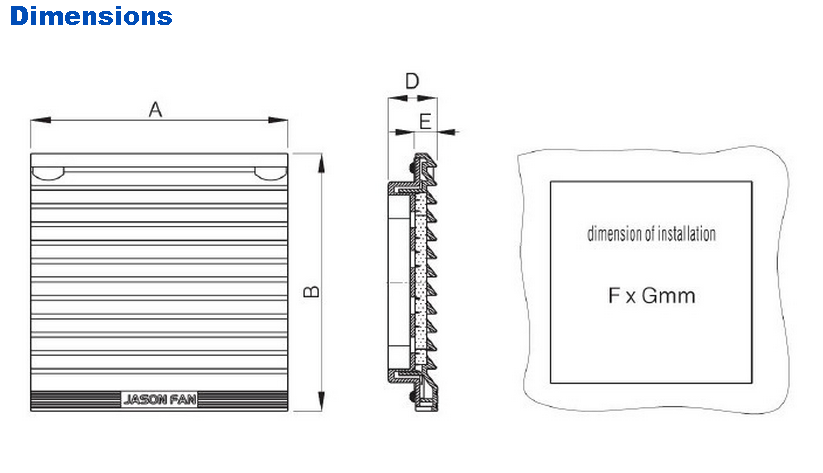

Specifications
Type | External dimensions | Opening size | IP | Filter pat | Related Info page | |||||
A | B | D | E | F | G | level | Size | |||
JK 6620 | 106.5 | 106.5 | 22 | 10 | 82.5 | 82.5 | 54 | G2 | 75x75 | 91/92 |
JK 6621 | 116.5 | 116.5 | 22 | 10 | 93 | 93 | 54 | G2 | 85x85 | 93/94 |
JK 6622 | 148.5 | 148.5 | 27.5 | 10 | 122.5 | 122.5 | 54 | G2 | 115x115 | 95/96 |
JK 6623 | 204.5 | 204.5 | 30 | 13.5 | 176 | 176 | 54 | G2 | 170x170 | 97/98 |
JK 6625 | 255 | 255 | 30.5 | 13.5 | 222 | 222 | 54 | G2 | 215x215 | 99/100 |
JK 6626 | 324 | 324 | 30.5 | 13.5 | 290 | 290 | 54 | G2 | 285x285 | 101/102 |
JK 6626D | 324 | 324 | 30.5 | 13.5 | 290 | 290 | 54 | G2 | 288x288 | 103/104 |
