2X20m G4 Pre Auto Polyester Sythetic Filter Media for Spray Booth
2X20m G4 Pre Auto Polyester Sythetic Filter Media for Spray BoothSpecification: TypeFilter ClassAverage ArrestanceInitial EfficiencyNominal Velocity (m/s)Rated Airflow (m³/h)Initial Resistance (Pa)Final Resistance (Pa)Dust Holding Capacity (g/m2)Thickness (mm)SizeAR-20G275%<20%2.0 m/s720......
Send Inquiry
Product Description
2X20m G4 Pre Auto Polyester Sythetic Filter Media for Spray Booth
Specification:
Speciality:
- Air intake filter is used for coarse filtration in the inlet of general ventilation and air conditioning equipment.
- It is processed by anti-break high performance synthetic fiber with gradual density.
- High dust holding capacity and low resistance, strong fire resistance, long working life which is economical.
- It conforms to the fire resistant standard and classification of European DIN53438-F1 and American UL900-Class2.
- It is widely used in plank filters, pleated filters.
Application:
- Filter fabric applies for many industries, such as: painting industry, pollution prevents and control, air conditioning, electronic, pharmaceutical factory, the food industry etc.

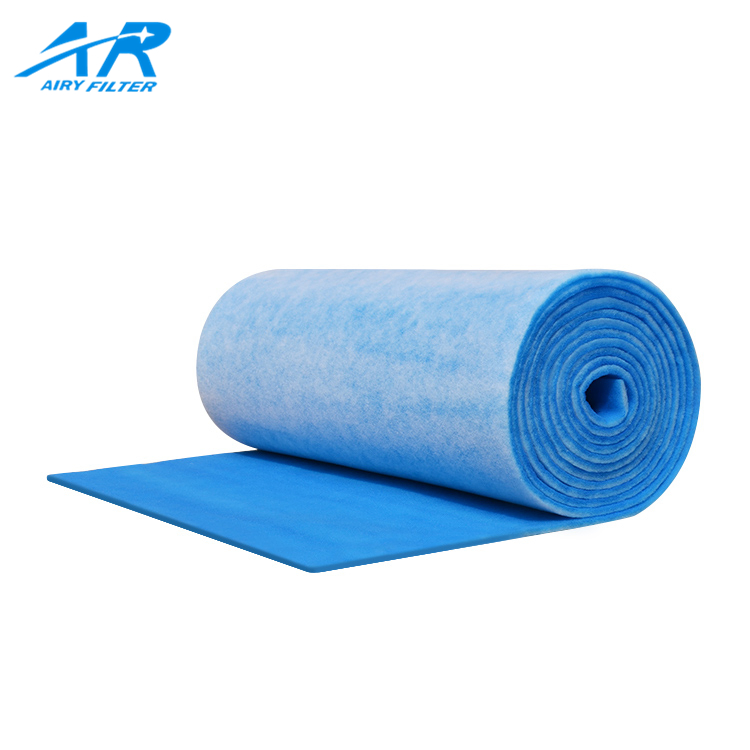

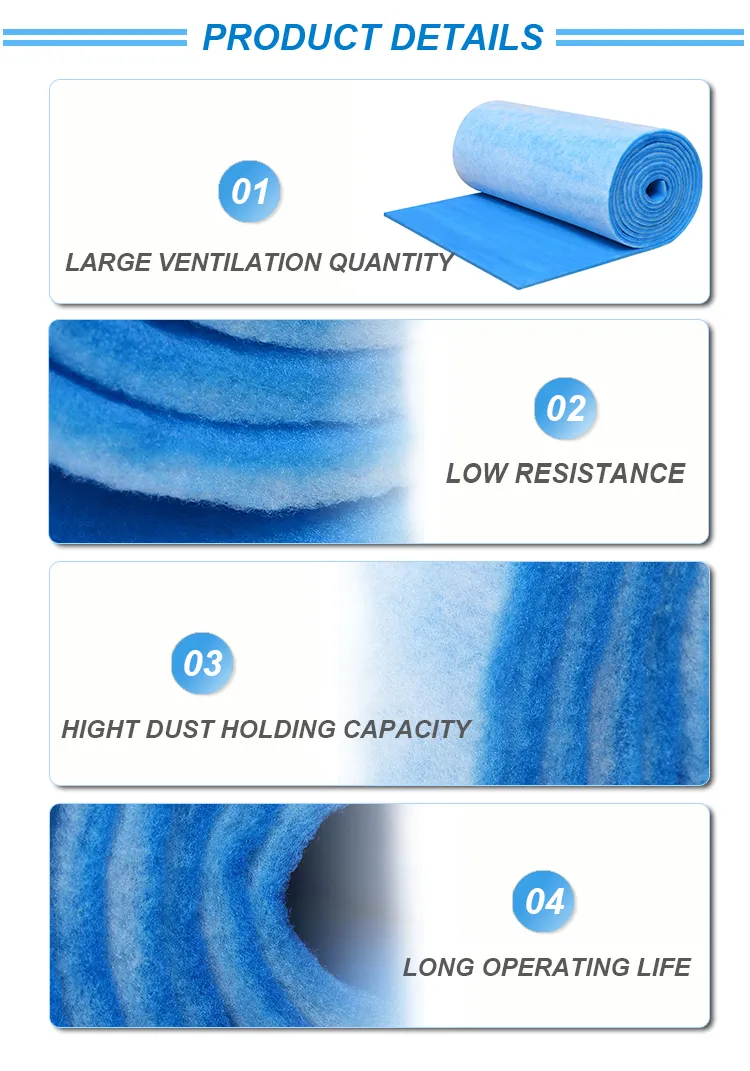

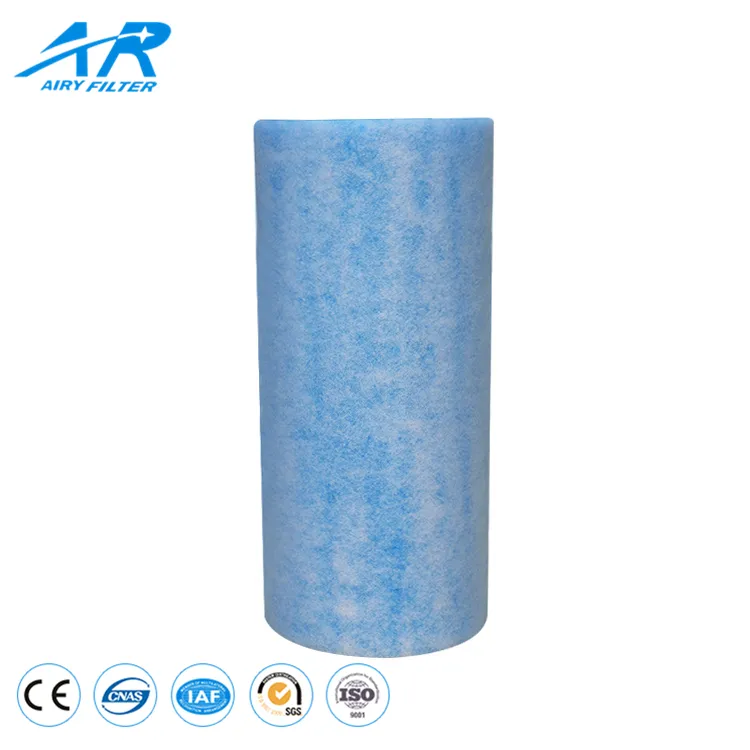

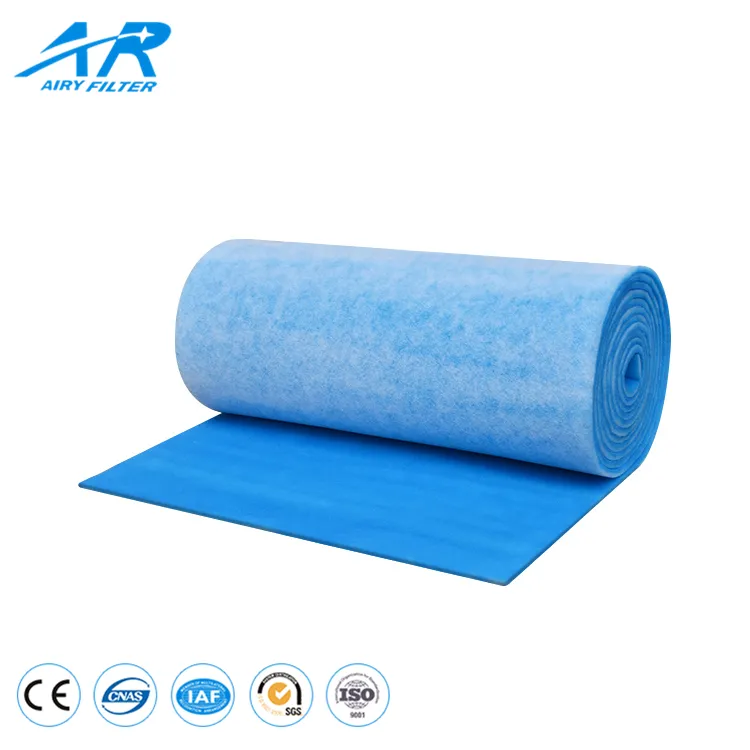

Product picture

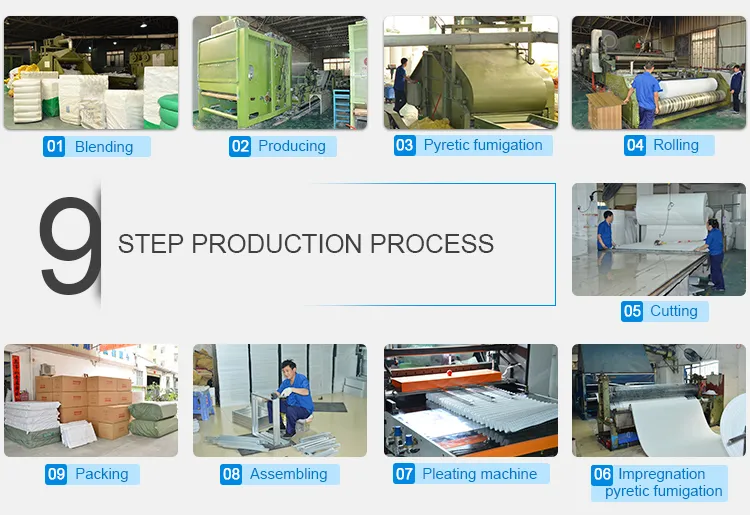

Production Flow
Company Information
Guangzhou Airy Filter Media Co., Ltd, a professional air filtering media manufacturing and trading combo which found in 2009. Our company has completed management system, best technical specialists, advance equipment. With over 12 years of experience our products are distributed throughout the World.
Our filters are made to perform second to none. Our products are constructed from top-quality filter material, designed for best efficiency, maximum holding capacity and minimum air flow restrictions.
We are specialized in all kinds of air filter, the main products are: paint arrestor filter mat, pre-filter, ceiling filter, paint stop filter, paint filter paper, sepa paint, HVAC filter, rigid box filter, exhaust filter, non-woven, high temperature resistance filter, plank filter, pleated filter, auto filter, pocket filter, disposable filter, ULPA filter& HEPA filter, activated carbon filter, face mask, mesh filter, paper filter, V cell filter, FFU, HEPA filter box, fiberglass, air filter paper, HEPA media, ceiling filter module, and products for HVAC ventilation system. All sorts of products are widely used in air purification industrial, such as: Spray Coating Industry, Automotive plant, high-tech electron, pharmaceutical factory, Food sanitation, Furniture Manufacturing, Precision Industry, hospital, research institutions and so on. Till now our products have big market share in many countries and areas, like European, USA, Japan, and Southeast Asia etc.
We always adhere to principle'Quality first,Faith root, Service foremost'. We are looking forward to making business relationship with you and having the deep cooperation with the world partners.

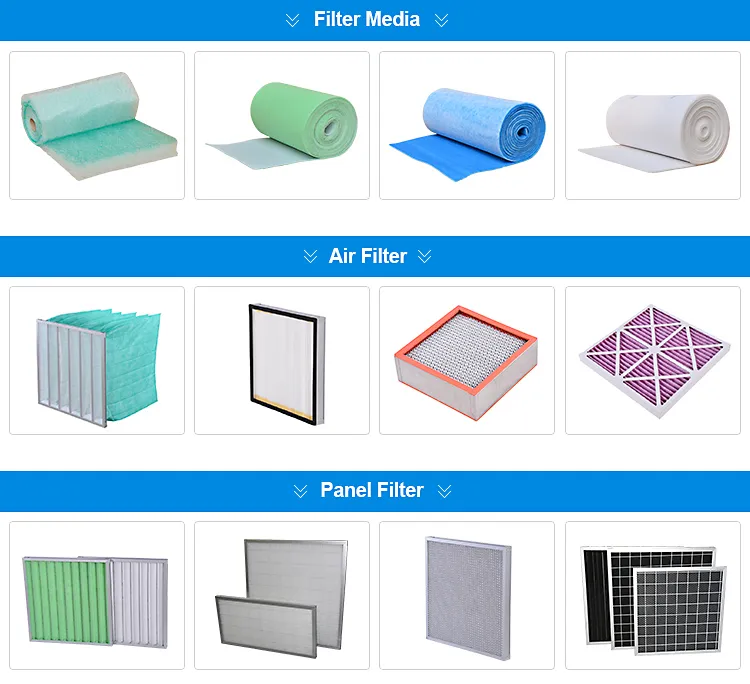

Related Products
FAQ
1. Factory or trading company?
We are a manufacturing and trading combo for air filter in China more than 12 years.
2.Free Sample
Free sample will be sent on request in 2 days for your testing.
3.Timely delivery
Production time: 5-7days. We have 9 production lines for filter media with the most advanced equipments and stable workers to control the quanlity and capacity.
4.OEM made
OEM is warmly welcomed,we can arrange your own color or label,print your OEM package,and make your own shape according to your drawing.
5.Payment terms
T/T, D/P, L/C, Western Union
Specification:
| Type | Filter Class | Average Arrestance | Initial Efficiency | Nominal Velocity (m/s) | Rated Airflow (m³/h) | Initial Resistance (Pa) | Final Resistance (Pa) | Dust Holding Capacity (g/m2) | Thickness (mm) | Size |
| AR-20 | G2 | 75% | <20% | 2.0 m/s | 7200 | 18 | 150 | 400 | 10 | 1.0*20 M |
| 2.0*20 M | ||||||||||
| AR-30 | G3 | 86% | <20% | 1.5 m/s | 5400 | 20 | 250 | 500 | 15 | 1.0*20 M |
| 2.0*20 M | ||||||||||
| AR-40 | G4 | 91% | <20% | 1.5 m/s | 5400 | 27 | 250 | 600 | 20 | 1.0*20 M |
| 2.0*20 M | ||||||||||
| AR-60 | F5 | 96% | <22% | 0.25 m/s | 900 | 45 | 450 | 380 | 12 | 1.0*20 M |
| 2.0*20 M | ||||||||||
| Note: Other specifications are available on request | ||||||||||
Speciality:
- Air intake filter is used for coarse filtration in the inlet of general ventilation and air conditioning equipment.
- It is processed by anti-break high performance synthetic fiber with gradual density.
- High dust holding capacity and low resistance, strong fire resistance, long working life which is economical.
- It conforms to the fire resistant standard and classification of European DIN53438-F1 and American UL900-Class2.
- It is widely used in plank filters, pleated filters.
Application:
- Filter fabric applies for many industries, such as: painting industry, pollution prevents and control, air conditioning, electronic, pharmaceutical factory, the food industry etc.
Product picture
Production Flow
Company Information
Guangzhou Airy Filter Media Co., Ltd, a professional air filtering media manufacturing and trading combo which found in 2009. Our company has completed management system, best technical specialists, advance equipment. With over 12 years of experience our products are distributed throughout the World.
Our filters are made to perform second to none. Our products are constructed from top-quality filter material, designed for best efficiency, maximum holding capacity and minimum air flow restrictions.
We are specialized in all kinds of air filter, the main products are: paint arrestor filter mat, pre-filter, ceiling filter, paint stop filter, paint filter paper, sepa paint, HVAC filter, rigid box filter, exhaust filter, non-woven, high temperature resistance filter, plank filter, pleated filter, auto filter, pocket filter, disposable filter, ULPA filter& HEPA filter, activated carbon filter, face mask, mesh filter, paper filter, V cell filter, FFU, HEPA filter box, fiberglass, air filter paper, HEPA media, ceiling filter module, and products for HVAC ventilation system. All sorts of products are widely used in air purification industrial, such as: Spray Coating Industry, Automotive plant, high-tech electron, pharmaceutical factory, Food sanitation, Furniture Manufacturing, Precision Industry, hospital, research institutions and so on. Till now our products have big market share in many countries and areas, like European, USA, Japan, and Southeast Asia etc.
We always adhere to principle'Quality first,Faith root, Service foremost'. We are looking forward to making business relationship with you and having the deep cooperation with the world partners.
Related Products
FAQ
1. Factory or trading company?
We are a manufacturing and trading combo for air filter in China more than 12 years.
2.Free Sample
Free sample will be sent on request in 2 days for your testing.
3.Timely delivery
Production time: 5-7days. We have 9 production lines for filter media with the most advanced equipments and stable workers to control the quanlity and capacity.
4.OEM made
OEM is warmly welcomed,we can arrange your own color or label,print your OEM package,and make your own shape according to your drawing.
5.Payment terms
T/T, D/P, L/C, Western Union
