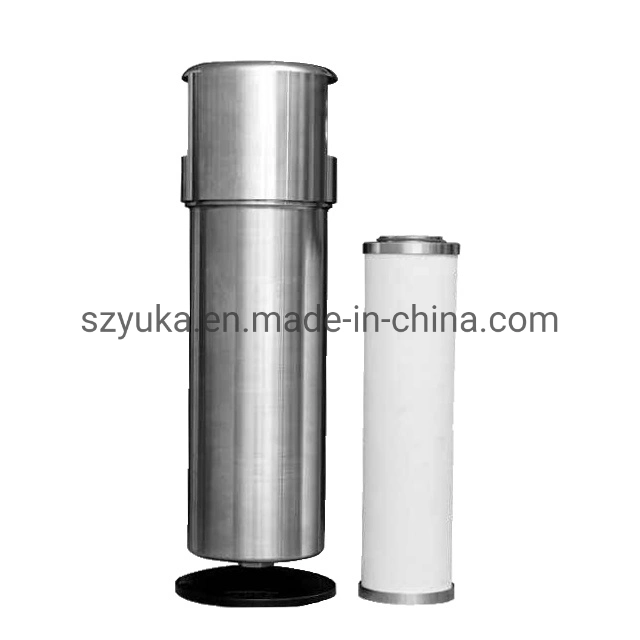

435 Scfm, 2" RC Stainless Steel Industrial Air Filter 304 Ss 316 Ss From Factory
Feature & Benefit1. Stainless steel 304 ss or 316 material available, 15 years serve life for filter housing under working condition from temperature 1.5ºC~90ºC.Maxi. Pressure is 25.0Mpa. 2. 6000~8000 hours serve life for filter element,filtering performance up to 99%.3. With S......
Send Inquiry
Product Description
Feature & Benefit
1. Stainless steel 304 ss or 316 material available, 15 years serve life for filter housing under working condition from temperature 1.5ºC~90ºC.
Maxi. Pressure is 25.0Mpa.
YUKA G-BHL series stainless steel industrial filters are designed for critical compressed air and gas applications in high tech manufacturing, food processing, caustic, marine or any aggressive environments.
The YUKA G-BHL range of industrial stainless steel filters are fabricated from polished 304 or 316 stainless steel for critical compressed air and gas applications in the high tech manufacturing, food processing and beverage industries.
The G-BHL range of industrial stainless steel filters encompasses fifteen models with connections from RC1/2" to 3" and rated flows from 35 to 1313.16scfm.Flange connection is acceptable.
Specifically designed to provide efficient and effective contaminant removal in caustic environments, these filters are ideally suited for process applications such as food and beverage facilities.
The unique interchangeable borosilicate microfiber filter elements incorporate stainless steel support media and a positive double o-ring click-lock seal to ensure optimal filtration integrity.
7 Grades Filter Element: PF/AO/AA/AX/ACS/AR/AAR
Technical Specification
YUKA Certificates
YUKA Patents
YUKA Factory
YUKA Facility
YUKA in Shanghai ComVac Asia & Hannover Messe Exhibition
YUKA Delivery
YUKA service:
a. Providing professional consultation, technical support and special solutions
b. Providing timely feedback on complaints
c. Providing perfect after sales service and warranty
Q:Why choose us?
a. 22 years' practical experiences in R&D and manufacturing Compressed air treatment;
b. Founder of Compressed Air Nation Standard GB/T30475.1-2013 and GB/T30475.2-2013;
c. ISO 9001:2015, CE and product follow ISO8573-1;
d. With Germany Imported high efficiency filtration Test Instrument;
e.All goods had been 100% test before dispatched.
Frequently Asked Questions:
Q1. What kind of your company is it?
We're the manufacturer integrated with R&D, production and sales.
Q2. How about your technical conditions and production capability?
Complete process documents and equipment, mass production.
Q3. What is the delivery time?
Delivery time depends on the order quantity, normally is 3-5 working days after 30% payment.
Q4. Do you have a warranty?
Yes, for filter, it is 1 year normally.
Q5. Can you supply customized product?
Yes, we have a professional technical team to provide you with the best solution and complete production processes and control to provide you with satisfied product.
1. Stainless steel 304 ss or 316 material available, 15 years serve life for filter housing under working condition from temperature 1.5ºC~90ºC.
Maxi. Pressure is 25.0Mpa.
2. 6000~8000 hours serve life for filter element,filtering performance up to 99%.
3. With Stainless steel filter element top-cap and bottom cam, 7 layer for filter element.
3. With Stainless steel filter element top-cap and bottom cam, 7 layer for filter element.
YUKA G-BHL series stainless steel industrial filters are designed for critical compressed air and gas applications in high tech manufacturing, food processing, caustic, marine or any aggressive environments.
The YUKA G-BHL range of industrial stainless steel filters are fabricated from polished 304 or 316 stainless steel for critical compressed air and gas applications in the high tech manufacturing, food processing and beverage industries.
The G-BHL range of industrial stainless steel filters encompasses fifteen models with connections from RC1/2" to 3" and rated flows from 35 to 1313.16scfm.Flange connection is acceptable.
Specifically designed to provide efficient and effective contaminant removal in caustic environments, these filters are ideally suited for process applications such as food and beverage facilities.
The unique interchangeable borosilicate microfiber filter elements incorporate stainless steel support media and a positive double o-ring click-lock seal to ensure optimal filtration integrity.
7 Grades Filter Element: PF/AO/AA/AX/ACS/AR/AAR
| PF | AO | AA | AX | ACS | AR | AAR |
| As a primary filter, particles whose diameter more than 5μm can be remove,the maxi. residual oil content is negligible | High efficiency general protection, dust particles, water mist & oil mist whose diameter more than 1μm can be removed, the residual content of oil mist does not exceed 0.6mg/m³ (21ºC),1ppm(w). | High effiency oil remove filtration, dust particles, water mist and oil mist whose diameter more than 0.01μm can be removed, the residual content of oil mist does not exceed 0.01mg/m³(21ºC),0.01ppm(w) | Ultra-efficient filtration, dust particles, water mist&oil mist whose diameter more than 0.01μm can be removed, the residual content of oil mist does not exceed 0.001mg/m³(21ºC),0.001ppm(w) | Dust particles whose diameter more than 0.01μm, oil vapor &odor can be removed, the maxi. resident content of oil vapor does not exceed 0.003mg/m³(21ºC),0.003ppm(w) | Dust particles whose diameter more than 1μm can be removed | Dust particles whose diameter more than 0.01μm can be removed |

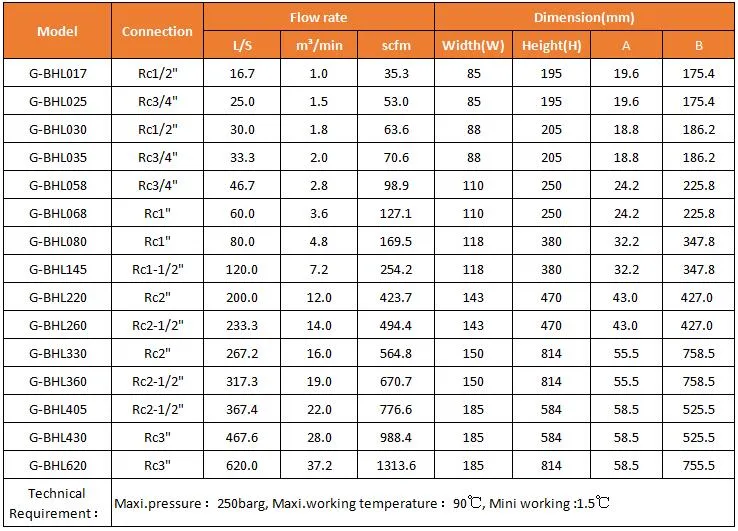

Technical Specification
| Pressure | Barg | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
| Psig | 15 | 29 | 44 | 59 | 73 | 87 | 100 | 116 | 131 | 145 | 160 | 174 | 189 | 203 | 219 | 232 | |
| Correction factor | 0.38 | 0.53 | 0.65 | 0.76 | 0.85 | 0.93 | 1.00 | 1.07 | 1.13 | 1.19 | 1.23 | 1.31 | 1.36 | 1.41 | 1.46 | 1.51 | |
YUKA Certificates
YUKA Patents

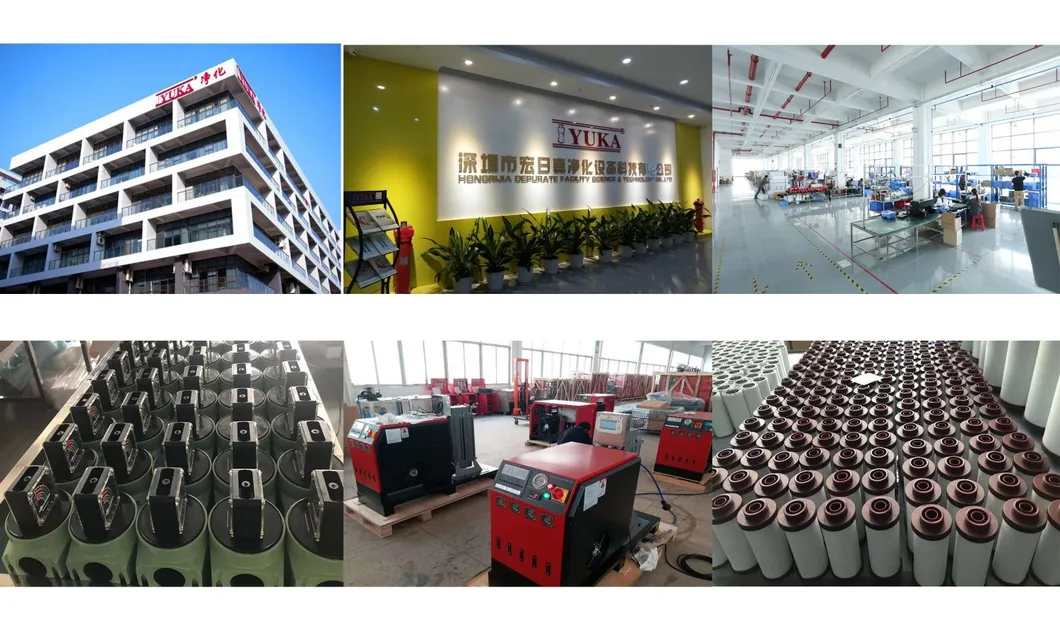

YUKA Factory

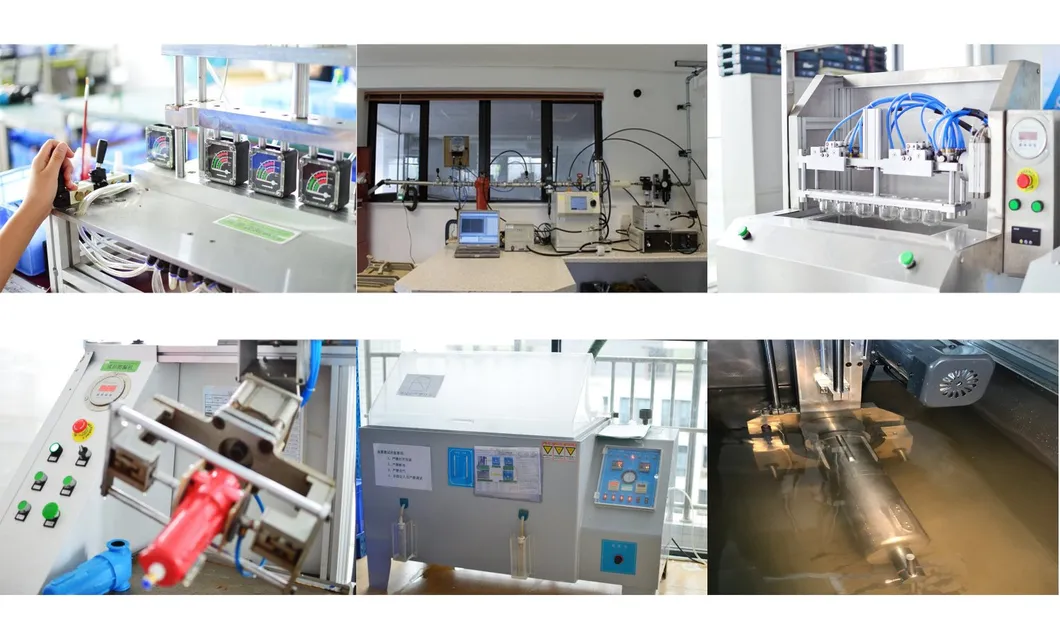

YUKA Facility
YUKA in Shanghai ComVac Asia & Hannover Messe Exhibition
YUKA Delivery
YUKA service:
a. Providing professional consultation, technical support and special solutions
b. Providing timely feedback on complaints
c. Providing perfect after sales service and warranty
Q:Why choose us?
a. 22 years' practical experiences in R&D and manufacturing Compressed air treatment;
b. Founder of Compressed Air Nation Standard GB/T30475.1-2013 and GB/T30475.2-2013;
c. ISO 9001:2015, CE and product follow ISO8573-1;
d. With Germany Imported high efficiency filtration Test Instrument;
e.All goods had been 100% test before dispatched.
Frequently Asked Questions:
Q1. What kind of your company is it?
We're the manufacturer integrated with R&D, production and sales.
Q2. How about your technical conditions and production capability?
Complete process documents and equipment, mass production.
Q3. What is the delivery time?
Delivery time depends on the order quantity, normally is 3-5 working days after 30% payment.
Q4. Do you have a warranty?
Yes, for filter, it is 1 year normally.
Q5. Can you supply customized product?
Yes, we have a professional technical team to provide you with the best solution and complete production processes and control to provide you with satisfied product.
