592*592*381 Nonwoven F7 Efficiency Pocket Bag Filter for Dust Collector
592*592*381 Nonwoven F6 Efficiency Pocket Bag Filter for Dust Collector Speciality of F6 Grade Medium Air Pocket Filter :1.Synthetic fiber pocket air filter, it is processed by high-powered thermal-melt nonwovens of the anti-fractured synthetic fiber, the increasing structure, high filter efficiency......
Send Inquiry
Product Description
592*592*381 Nonwoven F6 Efficiency Pocket Bag Filter for Dust Collector
Speciality of F6 Grade Medium Air Pocket Filter :
1.Synthetic fiber pocket air filter, it is processed by high-powered thermal-melt nonwovens of the anti-fractured synthetic fiber, the increasing structure, high filter efficiency, large dust holding capacity;
2.The filter pocket is made by seam craft or solderless jointing, to guarantee the feasibility of movement;
3.Each group of pockets have the localization air flue, guarantees the best filtration effect;
4.The filter doesn't contain silicon, it is very suitable specially for the spray-painting workshop;
5.Tha class of the filter: G3, G4, F5, F6;
6.Conformity with European and American classifications standard in non-flammability(e.g. D1N53438-F1 and UL900-CLASS2 with flame-out);
7.High moisture resistance:100%;
8.Normal Temp: 100°c.
Feature of Pocket Bag Medium Efficiency Air Filter
| Avg.arrestance | Color | Arrestance | Using |
| 30-35% | White | 92% | Pre-filter for the middle efficiency filter |
| 40-45% | Orange | 96% | Commercial building, theater .station, airport |
| 60-65% | Green | 97% | Automobile painting room, school, computer room |
| 80-85% | Pink | 98% | Petrochemical industry, plastics industry , pharmaceutical factory, food products factory, paintting factory, electrical factory, hospitial, laboratory, dust-free room |
| 90-95% | Yellow | 99% | Precise electronics industry, national defense factory, sterile room, aseptic workshop |

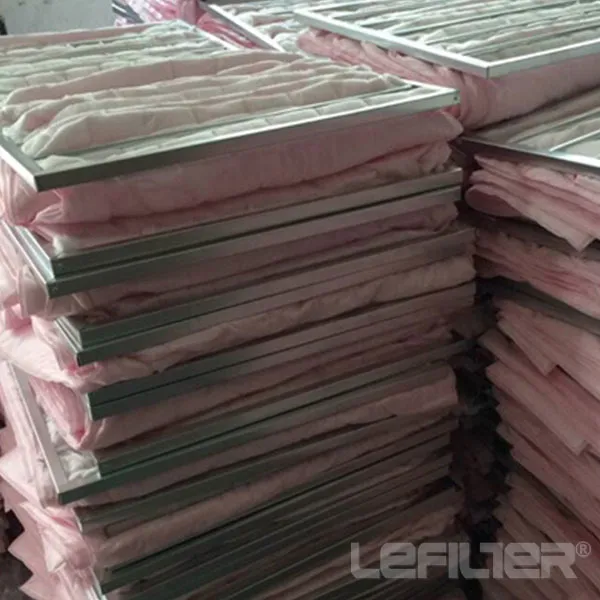

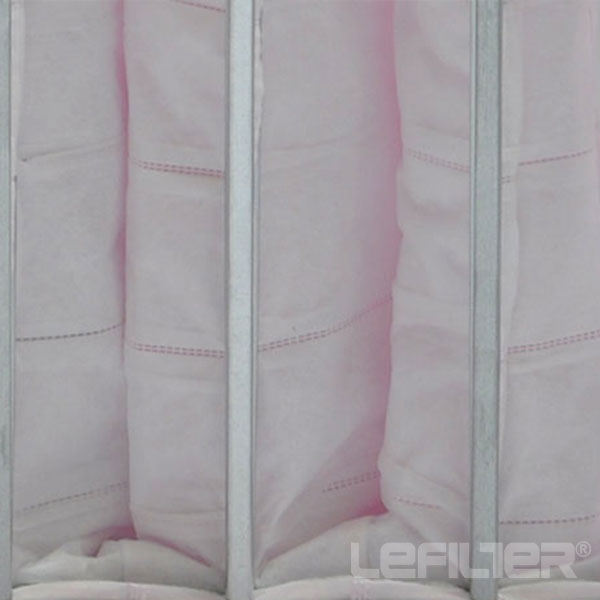

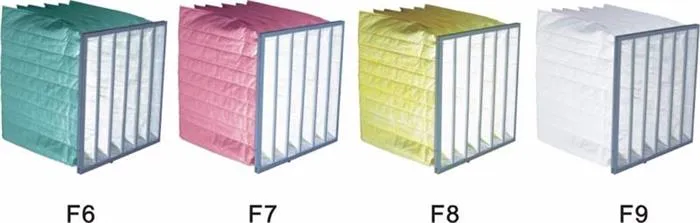

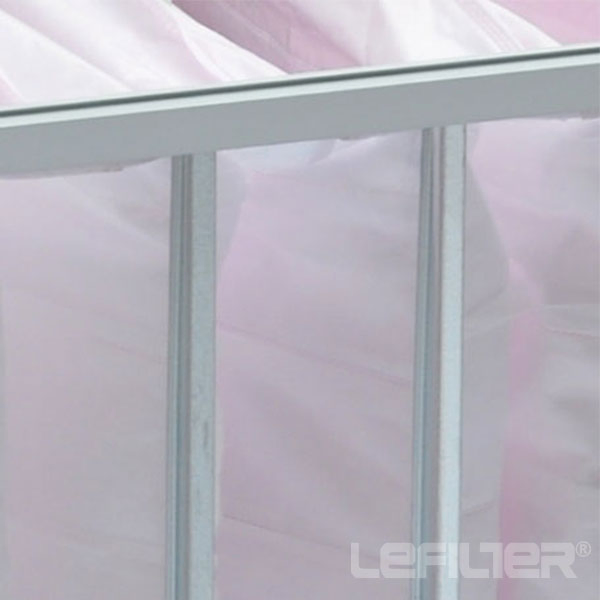

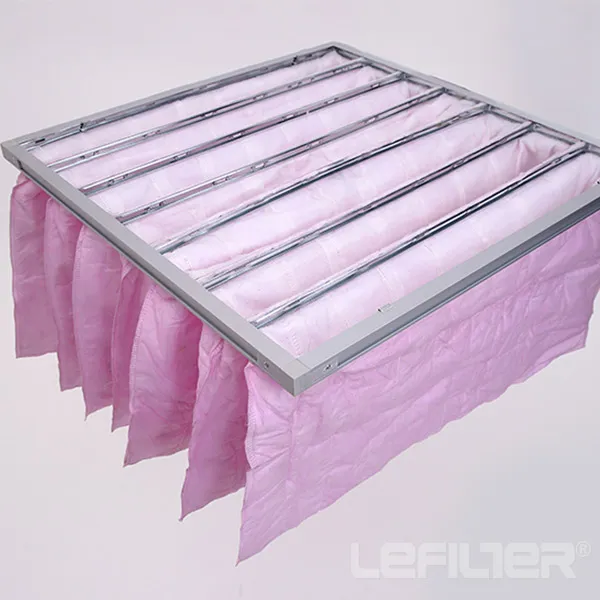

PHOTO of Pocket Filter
Using
Filter for Air conditioning ventilation system;
Thick dust filter(G3, G4), primary filtrate for the filtration system, primary filtrate for the medium filter.
Thin dust filter(F5,F6), primary filtrate for the HEPA filter.
Performance parameters of pocket bag filter :
| Class | Size W*H*D(mm) | Bags | Filtration area(m²) | Rated air flow(m3/h) | Initial resistance(P) | Finalresistance(Pa) |
| G3 | 287*592*550 | 3 | 1.92 | 1700 | 30 | 200 |
| 490*592*550 | 5 | 3.28 | 2600 | 30 | 200 | |
| 592*592*600 | 6 | 4.05 | 3400 | 30 | 200 | |
| G4 | 287*592*550 | 3 | 1.92 | 1700 | 45 | 250 |
| 490*592*550 | 5 | 3.28 | 2600 | 45 | 250 | |
| 592*592*600 | 6 | 4.05 | 3400 | 45 | 250 | |
| F5 | 287*592*550 | 3 | 1.92 | 1700 | 55 | 300 |
| 490*592*550 | 5 | 3.28 | 2600 | 55 | 300 | |
| 592*592*600 | 6 | 4.05 | 3400 | 55 | 300 | |
| F6 | 287*592*550 | 3 | 1.92 | 1700 | 60 | 320 |
| 490*592*550 | 5 | 3.28 | 2600 | 60 | 320 | |
| 592*592*550 | 6 | 4.05 | 3400 | 60 | 320 | |
| 592*592*600 | 8 | 5.40 | 3600 | 60 | 320 |
INGERSOLL-RAND 67731158 SECONDARY INLET FILTER ELEMENT
67731166 Ingersoll Rand Air Intake Filter
Panel 5929-0101-10 Air Filter
MXR9550 parker spin on filter
FAQ
Q: How do you guarantee the after-sale service?
A: Before shipment, the filters are checked one by one. If any problems caused by the product itself, we will supply you the new replaced one or refund the money.
Q: Can you design OEM according to the working condition?
A: Yes. We have professional R&D department , and we can design the more suitable filters for you.
Q.How do you pack products?

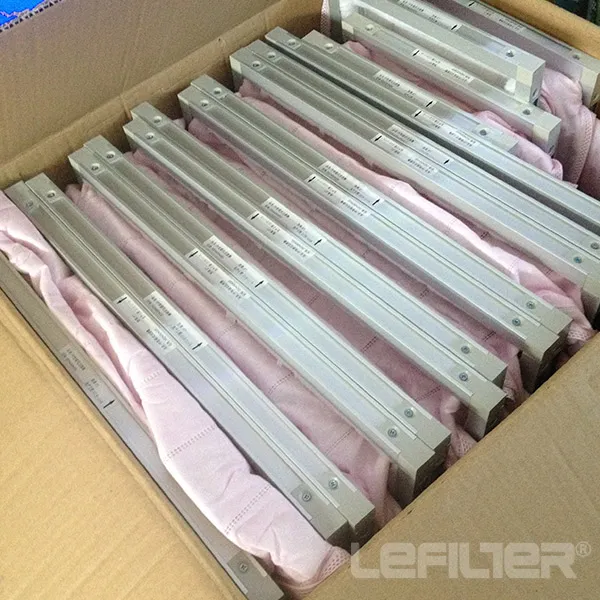

A: Normally,plastic bag inside and carton outside .We'll do according to customers' requirement.
Q. Can I get some samples?
A: Yes, We are honored to offer you sample if you need .
Q. How long is your Delivery Time ?
A: If there is stock, the delivery time is about 2 working days after getting the payment. If no stock, 7 working days after receiving deposits as usual .
