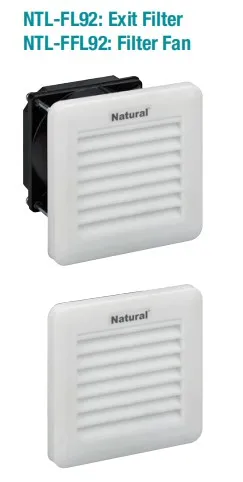

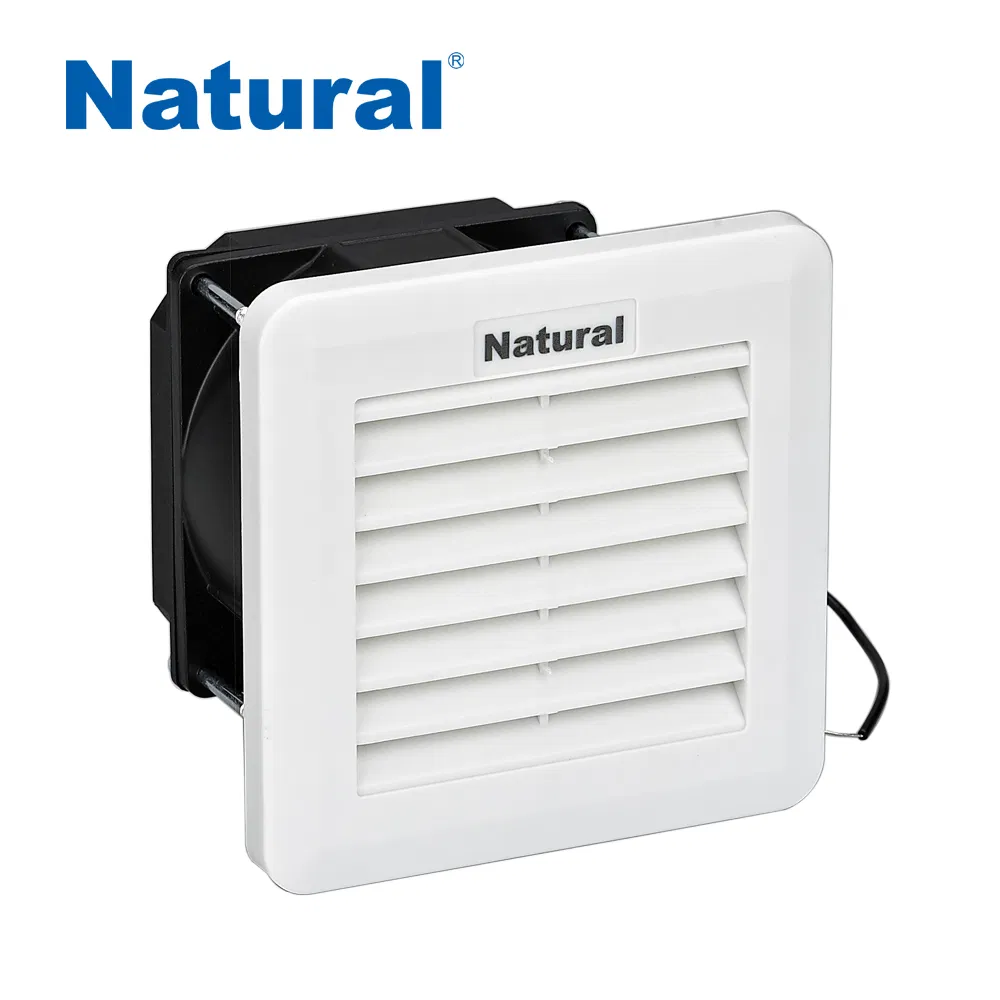

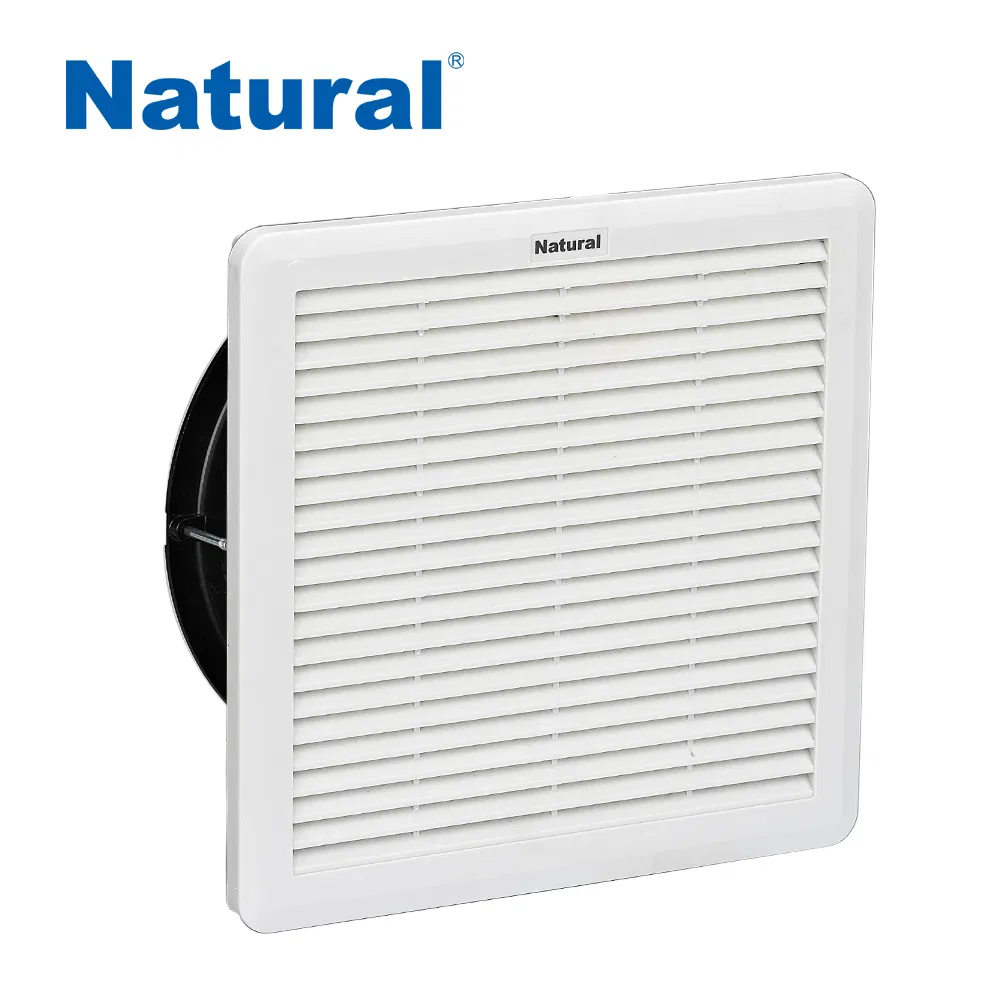

Cabinet Exhaust Fan and Filter Ntl-Ffl92
Slide opening function for change mat inside Filter cover will not fall off when slide opening the cover. Fast Fixing with clips for different size thickness of cabinet and enclosure, no need screw fixing Conform to CE-EMC, CE-LVD Can offer IP54 or IP55 to choose, use indoor and outdoor Normal ......
Send Inquiry
Product Description
• Slide opening function for change mat inside
• Filter cover will not fall off when slide opening the cover.
• Fast Fixing with clips for different size thickness of cabinet and enclosure,
no need screw fixing
• Conform to CE-EMC, CE-LVD
• Can offer IP54 or IP55 to choose, use indoor and outdoor
• Normal color is RAL 7035, also can be customer made for color with MOQ
• Same Size Filter can offer different Airflow Volumn requirement

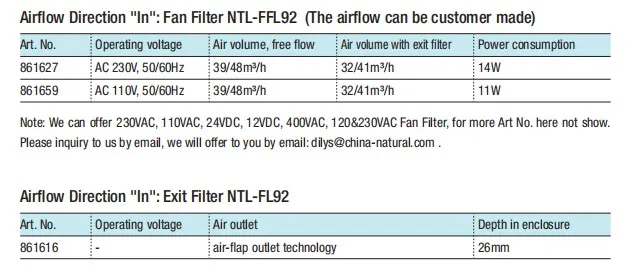

NTL-FFL92 | |
Axial fan, ball bearing | service life L10 at +40°C (+104°F): min. 50,000h fan body aluminium, rotor metal |
Connection | 2 stranded wires, 300mm |
Casing, hood, flaps | plastic according to RoHS |

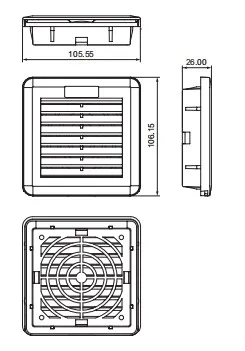

Enclosure cut-out | 92 x 92mm |
Mounting frame | Fast Fixing with clips for different size thickness of cabinet and enclosure, no need screw fixing |
Filter mat | G4 acc. to DIN EN 779, filtering degree 94% |
Filter material | synthetic fibre with progressive construction,temperature resistant to +100°C, self-extinguishing class F1,moisture resistant to 100% RH, reusable |
Operating/Storage temperature | -40 to +70°C (-40 to +158°F) |
Operating/Storage humidity | max. 90% RH (non-condensing) |
Protection type/Protection class | IP54 / I (earthed) |
Note | other voltages on request |
