Ceiling Filter Mat for Surface Treatment, Air Purifier, Electronic Cleanroom and Laboratory
Being high-grade diffusion media widely used in painting industry, Cocel ceiling filter-mat can ensure homogeneousness of air-flow system in paint booth, and supply clean air required by painting technology.Features and applications:Thermal bonded and adhesive activated,and reinforced on the clean a......
Send Inquiry
Product Description

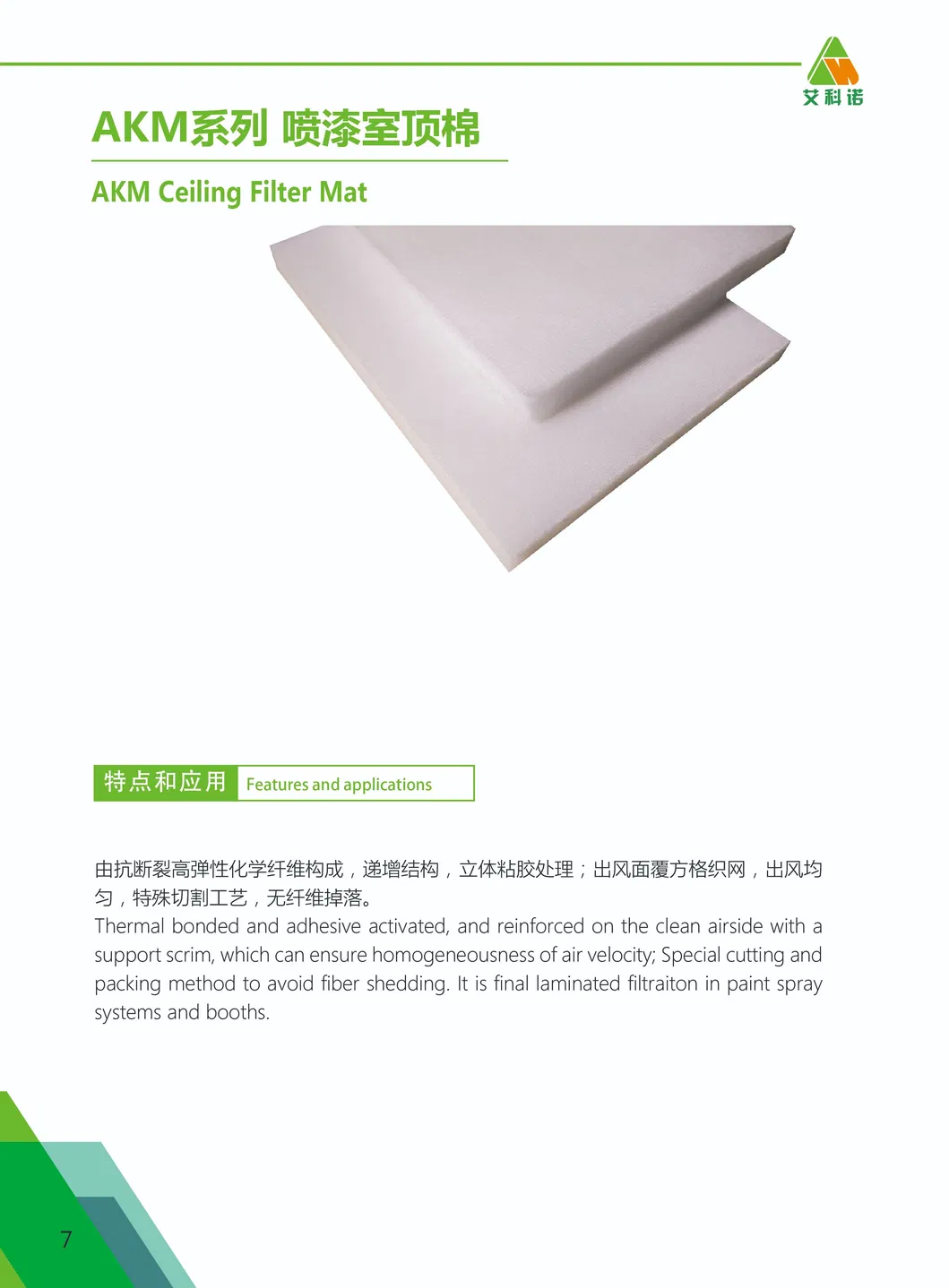

Being high-grade diffusion media widely used in painting industry, Cocel ceiling filter-mat can ensure homogeneousness of air-flow system in paint booth, and supply clean air required by painting technology.
Features and applications:
Thermal bonded and adhesive activated,and reinforced on the clean airside with a support scrim,which can ensure homogeneousness of air velocity;Special cutting and packing method to avoid fiber shedding.It is final laminated filtration in paint spray systems and booths.
Materials and operating conditions:
Standard specifications:
Standard rolls: 2x20m,1x20m;
Dimensions can be custom-made on request;
Recommended final pressure drop:250pa
Features and applications:
Thermal bonded and adhesive activated,and reinforced on the clean airside with a support scrim,which can ensure homogeneousness of air velocity;Special cutting and packing method to avoid fiber shedding.It is final laminated filtration in paint spray systems and booths.

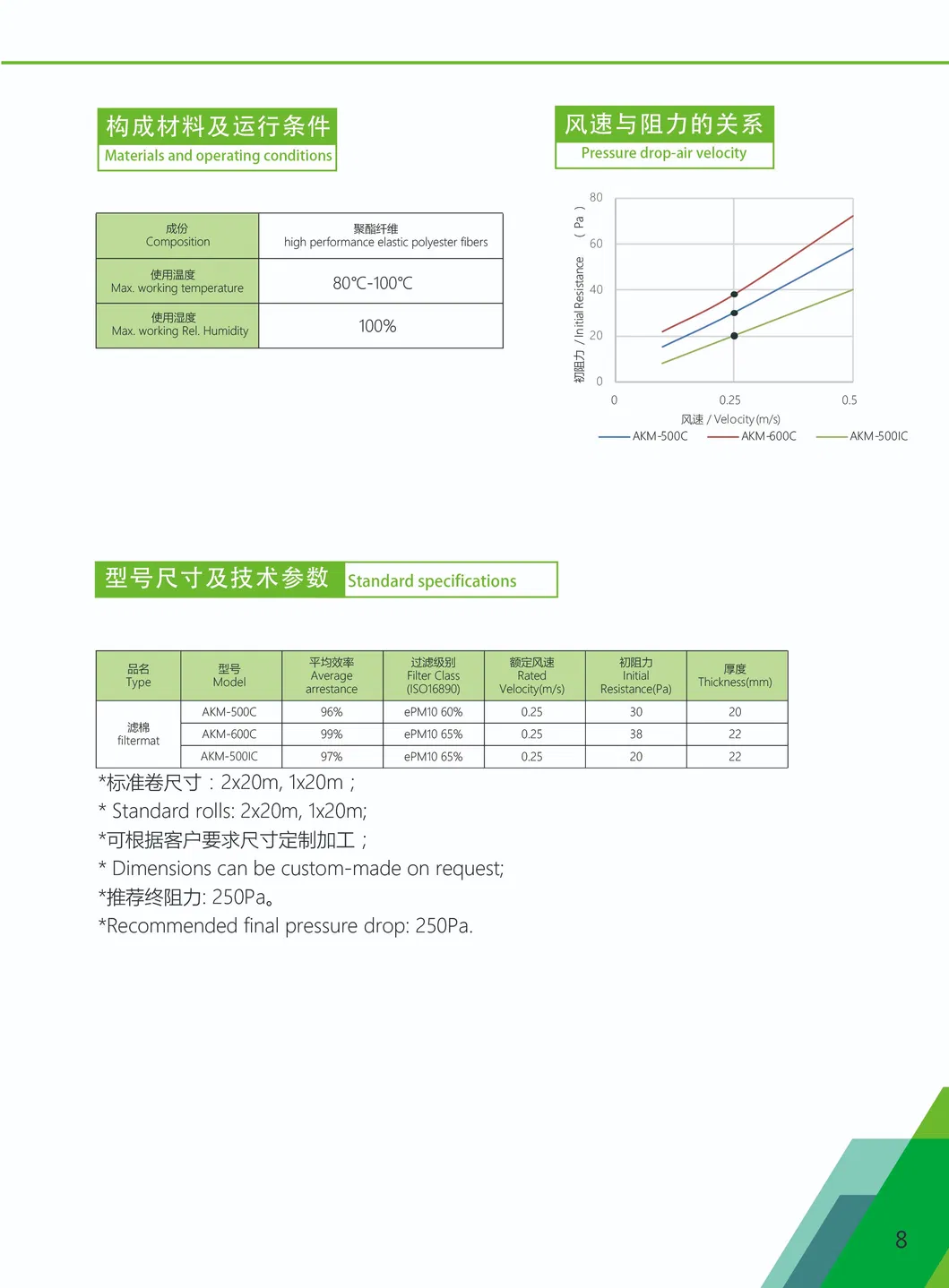

Materials and operating conditions:
| Composition | High performance elastic polyester fibers |
| Max.working temperature | 80ºC-100ºC |
| Max.working Rel.Humidity | 100% |
Standard specifications:
| Type | Model | Average arrestance | Filter class (ISO16890) | Rated Air Flow (m3/h) | Initial Resistance (Pa) | Thickness (mm) |
| Filter mat | AKM-500C | 96% | ePM10 60% | 0.25 | 30 | 20 |
| AKM-600C | 99% | ePM10 65% | 0.25 | 38 | 22 | |
| AKM-500IC | 97% | ePM10 65% | 0.25 | 20 | 22 |
Standard rolls: 2x20m,1x20m;
Dimensions can be custom-made on request;
Recommended final pressure drop:250pa
