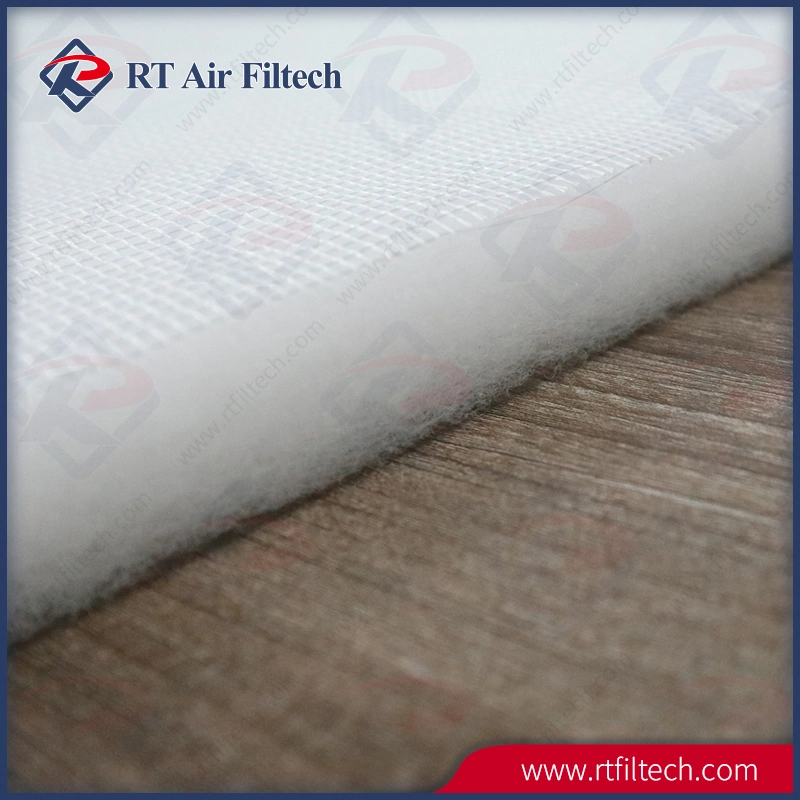

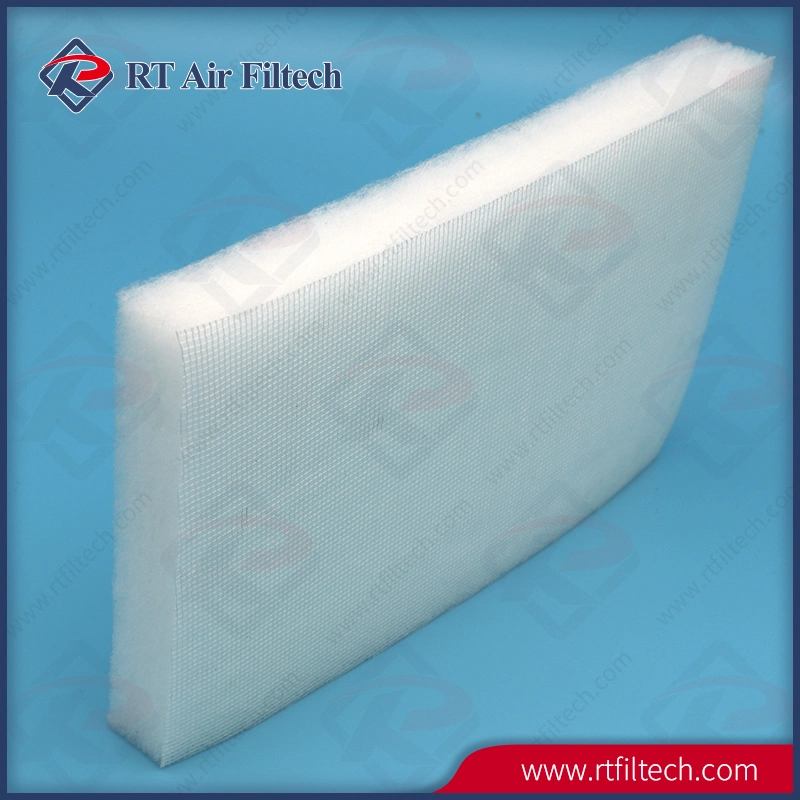

Ceiling Filter Media M5/F5 Paint Spray Booth
New style high quality paint spray booth ceiling filter mats Introduction:Ceiling filter is mainly used in the surface coating industry such as paint booths and painting workshops. It is the secondary filter of the air supply system, and is also the medium-effect filter media. Mainly used for the e......
Send Inquiry
Product Description
Introduction:

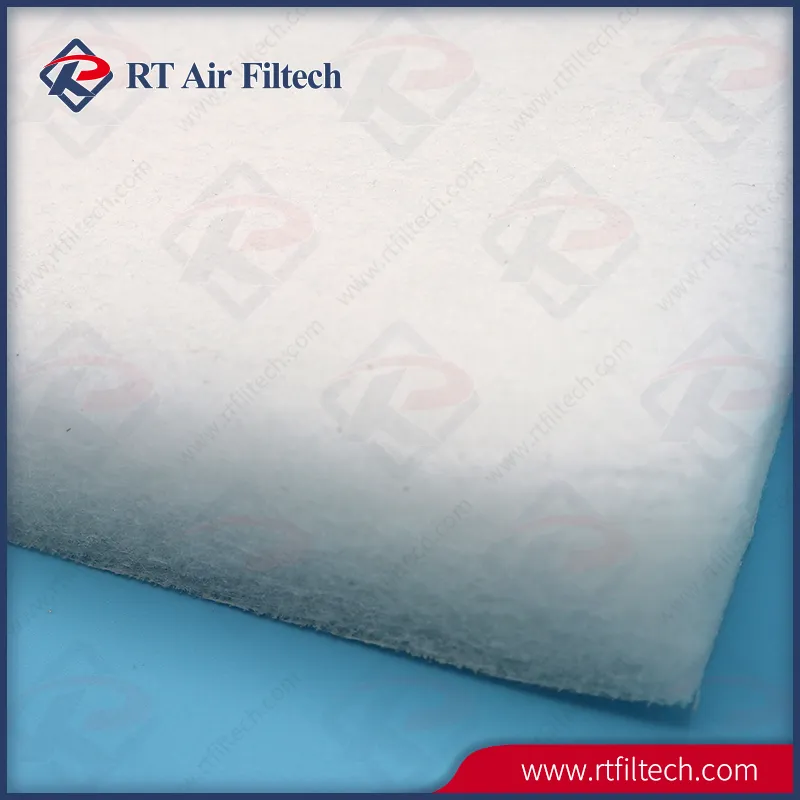

Ceiling filter is mainly used in the surface coating industry such as paint booths and painting workshops. It is the secondary filter of the air supply system, and is also the medium-effect filter media. Mainly used for the end of fresh air and return air filtration of the spray production line, mainly filtering 1-10μm suspended particles. It ensures uniform flow of air through the spray booth and forms a laminar flow.
Features:
1,It uses synthetic fibers and has excellent wrinkle resistance, elasticity and dimensional stability.
2,Gradient density structure,the fiber density increases gradually toward the pure air.May according to the dust size, prevent them in the different density level; it accommodates many dust more effectively.

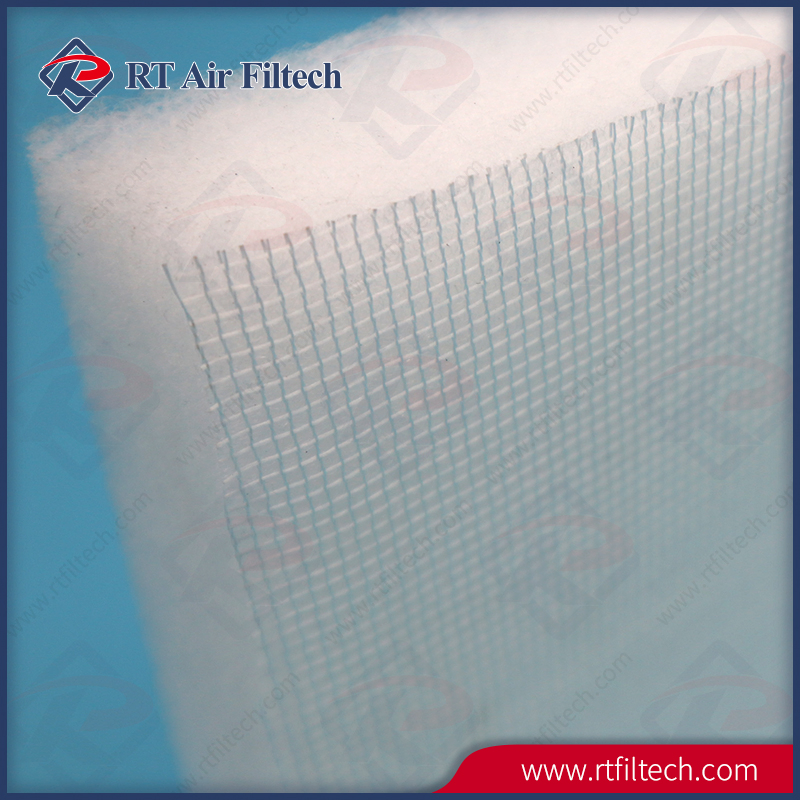

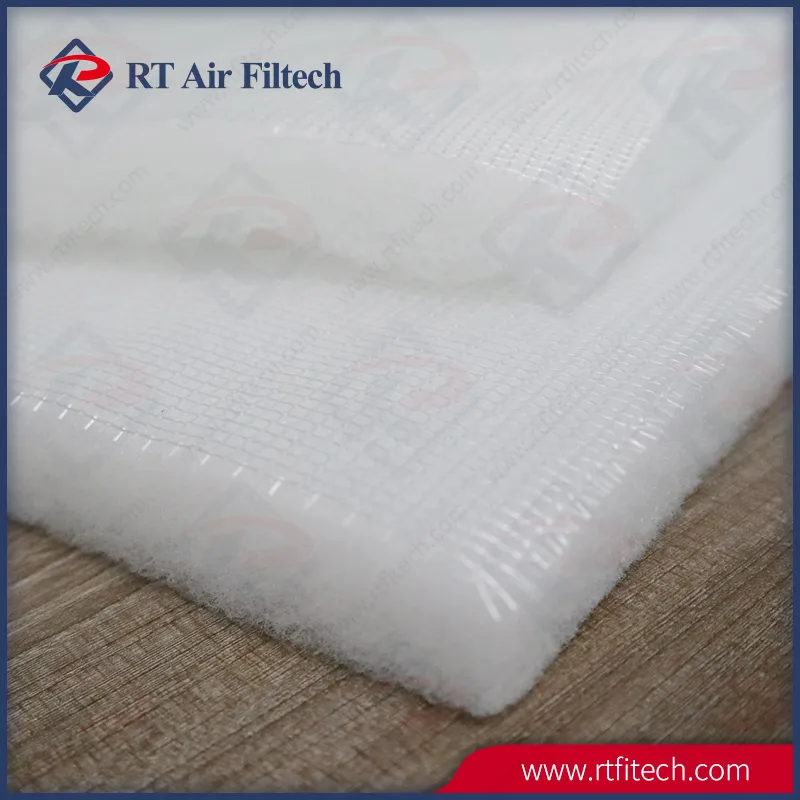

3,The wind surface of the mesh is specially compact, and also put a fishing net to strengthen it
4,High dust capacity, low resistance and low cost.
5,Fully impregnate media with adhesive treatment makes dust particles unable to pass; The filter material has full viscosity, surface viscosity and dry treatment for customers to choose;
5,Strong moisture resistance, up to 100% relative humidity;
6,Conform to European and American classifications for non-flammability.(e.g DIN53438-F1,UL900-class 2 with flameout)
Specification:
| Model | Dimensions | Rated air velocity(m/s) | Initial Pressure(Pa) | Rated air flow(m3/h) | ||
| length(m) | width(m) | Thickness(mm) | ||||
| RT-S420G | 20 | 1.0/2.0 | 22±2 | 0.3 | ≤45 | 1080 |
| Remark:Other specifications can be customized | ||||||
| Filtration class | F5/M5(EN779) EU5(EUROVENT) | Flammability rating | F1(DIN 53438), B1(GB/T 17591-2006) |
| Moisture resistance | ≤99%RH | Filter particles | ≥1μm |
| Final pressure | 400Pa | Humidity | ≤100ºC |
| Avg.arrestance | ≥95% (ASHRAE52.1-1992) | Dust holding capacity | 500g/m2 |
| Temp.short peaks | 130ºC | Temp.resistance | 130ºC |
About us:
Guangzhou RT Air Filtech co.,LTD. Is a collection research and development, production, sales and service in the integration of production-oriented enterprises, specializing in electronic workshop, semiconductor, LCD,, biological pharmacy, food, petrochemical industry, clean room, hospitals, rail transportation, car coating, commercial and civil construction and other industries to provide the required air purification air filter products and solutions.

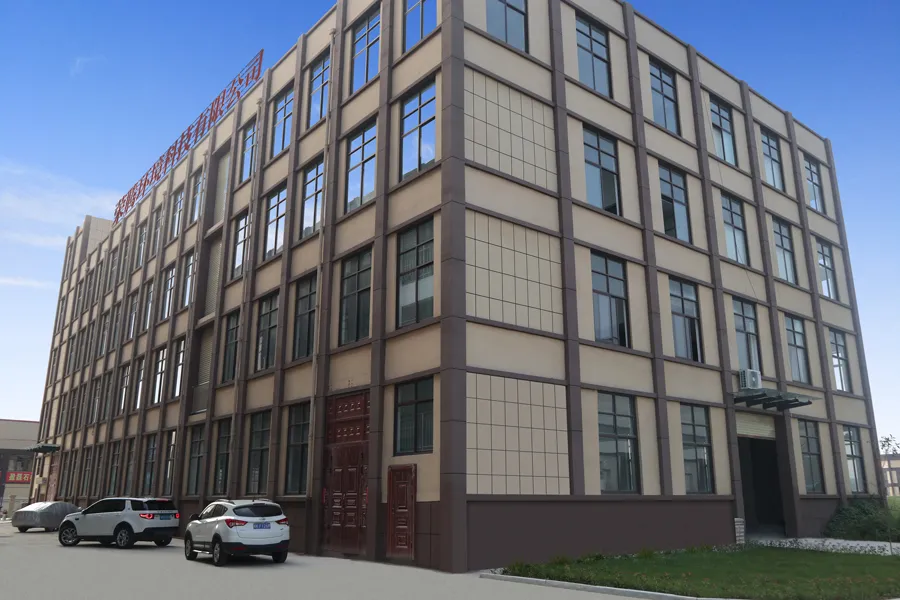

Factory is located in fuyang city in anhui province, covers an area of 12000 square, has more than modern automatic filter and filter cotton production line and equipment production workshop, strictly implement the ISO9001 quality management system standards, all products through the ministry of health health check, national mandatory safety certification, to quickly provide the best quality products and service for the customer.
Products include:
Early Effect Cotton, Filter Cotton, Tuyere Canopy Filter Cotton, Paint Mist Cotton and Activated Carbon Filter Cotton, Fire Filter Cotton,Secondary Effect Plate Filter, Secondary Chamber FilterEfficiency, Middle Efficiency Bag Filter, Filter Paper Box, Metal Mesh Filter, HighTemperature Resistant Filter,Activated Carbon Filter, Combined High Efficiency Filter, Hepa Filter, Hepa Filter with Separators, No Efficient AirSupply Outlet, Head, Laminar Flow Hood, Air Purifier, Lampblack Purifier and Other Related Environmental Purification Equipment.

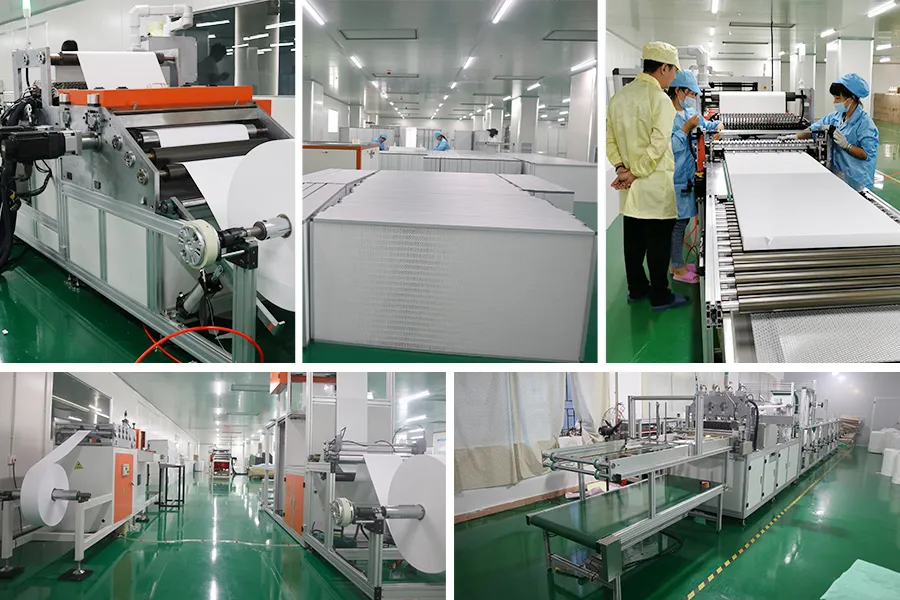

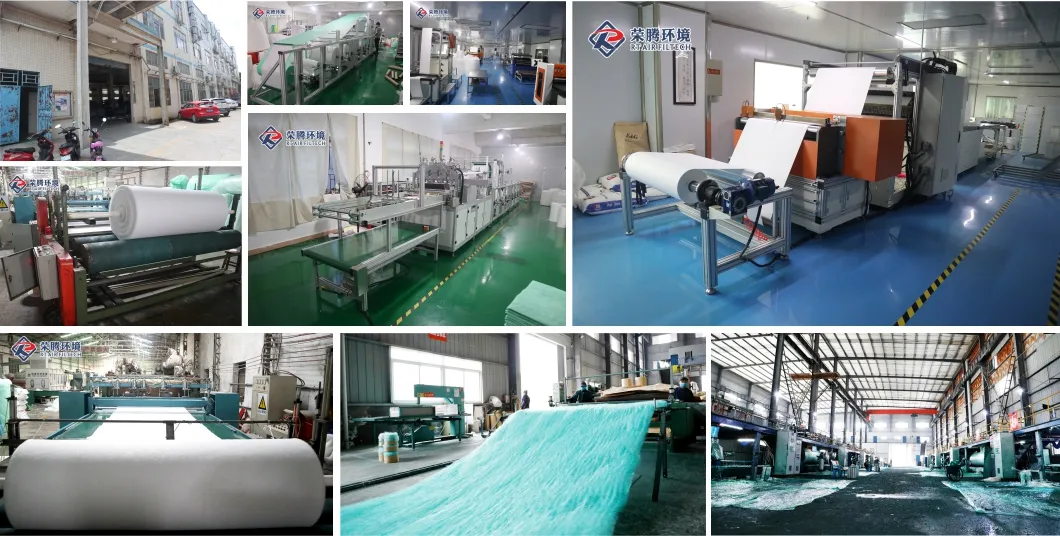

Production lines

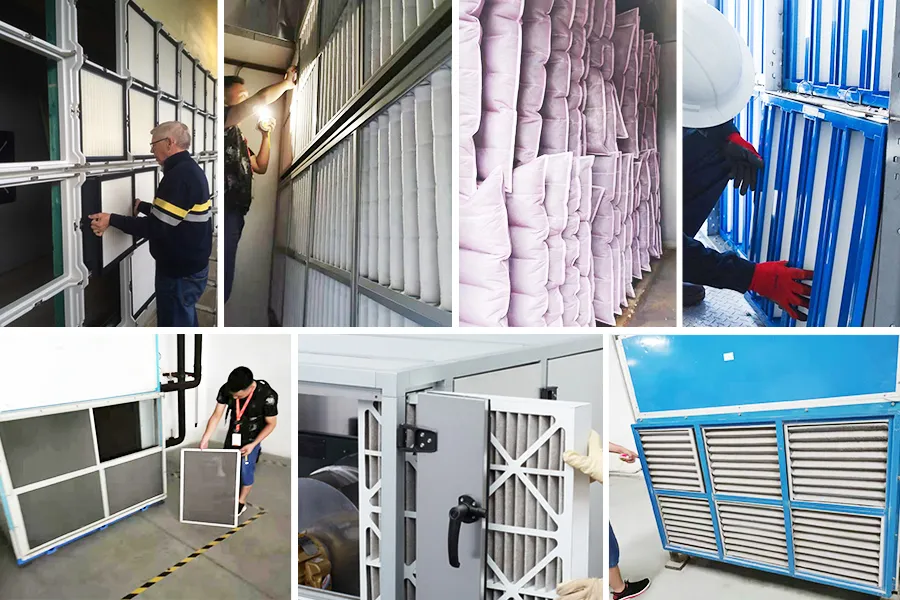

Installation
Certifications
Exhibition shows&Customer visit
FAQ:
Q1. What is your terms of packing?

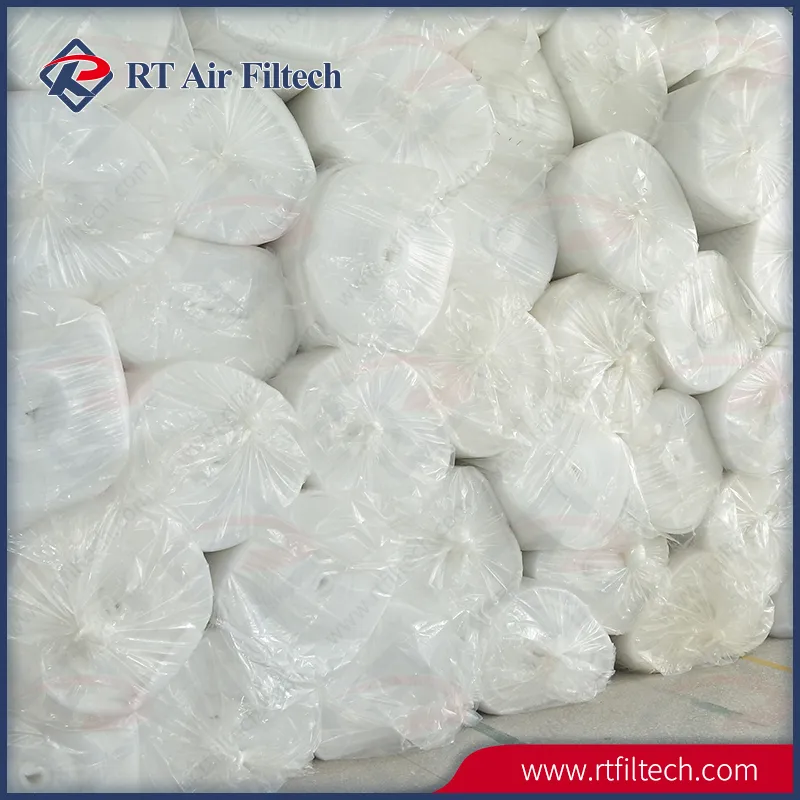

A: Generally, we pack our goods in neutral PE bags.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 7 to 10 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
