Donaldson Composite Filter P190848 Cylindrical for Gas Turbine Air Intake Filter
Donaldson P190848 Cylindrical Air Filter for Gas Turbine Air Intake FilterDimensions: Height: 26" Outside Diameter: 17.61" Inside Diameter: 14.0" Top End Cap:Material: Electro Galvanized (22 ga)Style: Open with 18.82" lip flangeBottom End cap:Material: Electro Galvanized (22 ga)S......
Send Inquiry
Product Description

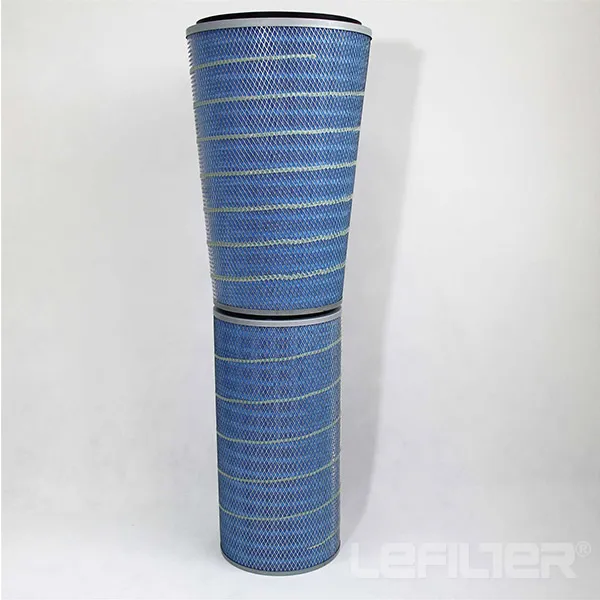

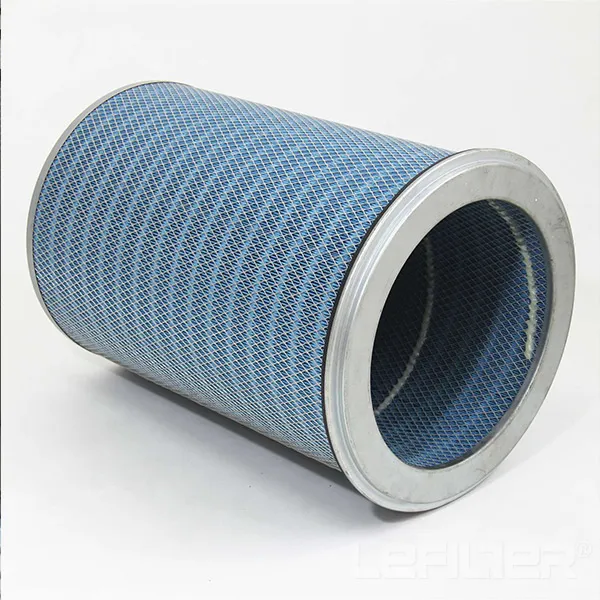

Donaldson P190848 Cylindrical Air Filter for Gas Turbine Air Intake Filter
Dimensions: Height: 26" Outside Diameter: 17.61" Inside Diameter: 14.0" Top End Cap:
Material: Electro Galvanized (22 ga)
Style: Open with 18.82" lip flange
Bottom End cap:
Material: Electro Galvanized (22 ga)
Style: Closed
Gasket: 11/16" x 1/2" x 17.750" ID mounted under flange
Inner Retainer: Electro galvanized expanded metal 3/8" x 5/8" (9.53 mm x 15.88 mm) 72% open area
Outer Retainer: Electro galvanized expanded metal 3/8" x 5/8" (9.53 mm x 15.88 mm) 72% open area
Filter Media Area: 226ft²
Pleat Count: 419
Media Type: Polyester / Glass Blend
Other type filter we have
Recomends of Donaldson Filter replacement
P03-0174 Cylindrical Spider-Web XP SS inner liner & endcaps P03-0175
P03-0175 Conical Spider-Web XP SS inner liner & endcaps P03-0174
P03-0166 Cylindrical Spider-Web XP SS inner liner P03-0158
P03-0158 Conical Spider-Web XP SS inner liner P03-0166
P03-0025 Cylindrical Spider-Web XP Galvanized P03-0151
P03-0151 Conical Spider-Web XP Galvanized P03-0025
P19-1177 Cylindrical Synthetic/Spider-Web Galvanized P19-1178
P19-1178 Conical Synthetic/Spider-Web Galvanized P19-1177
P19-1149 Cylindrical Synthetic/Spider-Web Galvanized P19-1150
Treated for Flame Retardancy*
P19-1150 Conical Synthetic/Spider-Web Galvanized P19-1149
Treated for Flame Retardancy*
P19-1619 Conical Synthetic/Spider-Web SS inner liner P19-1701
P19-1701 Cylindrical Synthetic/Spider-Web SS inner liner P19-1619
P19-1607 Cylindrical Synthetic/Spider-Web SS inner liner & endcaps P03-0034
P03-0034 Conical Synthetic/Spider-Web SS inner liner & endcaps P19-1607
P19-1033 Cylindrical Synthetic Galvanized P19-1107
P03-0165 Cylindrical P19-1033 with wrap installed Galvanized
P19-1107 Conical Synthetic Galvanized P19-1033
P03-0192 Cylindrical Synthetic SS inner liner & endcaps
P03-0173 Conical Synthetic SS liners & endcaps
P19-1772 Cylindrical Synthetic SS inner liner P19-1773
P19-1773 Conical Synthetic SS inner liner P19-1772
P03-0178 Conical Duratek/Spider-Web SS liners & galv. endcaps P03-0179
P03-0179 Cylindrical Duratek/Spider-Web SS liners & endcaps P03-0178
P19-1961 Cylindrical Duratek/Spider-Web SS inner liner P19-1962
P19-1962 Conical Duratek/Spider-Web SS inner liner P19-1961
P19-1280 Cylindrical Duratek/Spider-Web Galvanized P19-1281
P19-1281 Conical Duratek/Spider-Web Galvanized P19-1280
P03-0168 Cylindrical Duratek SS liners & endcaps P03-0169
P03-0169 Conical Duratek SS liners & galv.endcaps P03-0168
P19-9710 Cylindrical Duratek SS inner liner P19-9711
P19-9711 Conical Duratek SS inner liner P19-9710
P19-1236 Cylindrical Duratek Galvanized P19-1238
P19-1238 Conical Duratek Galvanized P19-1236
P19-1037 Cylindrical Cellulose Galvanized P19-1039
P19-1039 Conical Cellulose Galvanized P19-1037
Donaldson P52-7750 Intake Air Filter Elements
P03-0025 26"/ 660mm Spider-Web XP Galvanized liners
P03-0166 26"/ 660mm Spider-Web XP SS inner liner
P03-0174 26"/ 660mm Spider-Web XP SS inner liner & endcaps
P19-1177 26"/ 660mm Synthetic/Spider-Web Use alone (TTD) or mate to P19-1178 (GDX/GDS)
P19-1607 26"/ 660mm Synthetic/Spider-Web SS liners & endcaps
P19-1701 26"/ 660mm Synthetic/Spider-Web SS inner liner. Use alone (TTD) or mate to P19-1619 (GDX)
P19-1149 26"/ 660mm Synthetic/Spider-Web Treated for Flame Retardancy Use alone (TTD) or mate to P19-1150 (GDX)
P19-1772 26"/ 660mm Synthetic SS inner liner
P03-0172 26"/ 660mm Synthetic SS end caps/liner
P19-1033 26"/ 660mm Synthetic Use alone (TTD) or mate to P19-1107 (GDX/GDS)
P03-0192 26"/ 660mm Synthetic SS inner liner & endcaps
P19-1772 26"/ 660mm Synthetic SS inner liner
P03-0179 26"/ 660mm Duratek/Spider-Web SS liners & endcaps
P19-1961 26"/ 660mm Duratek/Spider-Web SS inner liner
P19-1280 26"/ 660mm Duratek/Spider-Web Use alone (TTD) or mate to P19-1281 (GDX/GDS)
P03-0168 26"/ 660mm Duratek SS liners & endcaps
P19-9710 26"/ 660mm Duratek SS inner liner
P19-1236 26"/ 660mm Duratek Use alone (TTD) or mate to P19-1238 (GDX/GDS)
P19-1037 26"/ 660mm Cellulose Use alone (TTD) or mate to P19-1039 (GDX/GDS)
P19-1617 29"/ 737mm Duratek
P19-1463 30"/ 762mm Duratek/Spider-Web
P19-1713 30"/762mm Duratek/Spider-Web Set: P19-1463 with pre-filter wrap installed
P19-1462 30"/ 762mm Duratek
P19-1790 30"/ 762mm Duratek Set: P19-1492 with pre-filter wrap installed
P19-1461 30"/ 762mm Cellulose
P19-1726 30"/ 762mm Cellulose Set: P19-1461 with pre-filter wrap installed
P19-1767 36"/ 914mm Duratek/Spider-Web
The sample can be sent as support ,please contact us now
Dimensions: Height: 26" Outside Diameter: 17.61" Inside Diameter: 14.0" Top End Cap:
Material: Electro Galvanized (22 ga)
Style: Open with 18.82" lip flange
Bottom End cap:
Material: Electro Galvanized (22 ga)
Style: Closed
Gasket: 11/16" x 1/2" x 17.750" ID mounted under flange
Inner Retainer: Electro galvanized expanded metal 3/8" x 5/8" (9.53 mm x 15.88 mm) 72% open area
Outer Retainer: Electro galvanized expanded metal 3/8" x 5/8" (9.53 mm x 15.88 mm) 72% open area
Filter Media Area: 226ft²
Pleat Count: 419
Media Type: Polyester / Glass Blend
Other type filter we have
| Part Number Length/Style Media/Material Comments |
| P03-0065 Composite Filter, outer Synthetic/Spider-WebXP Extra performance media |
| P19-0856 Composite Filter Set Synthetic/Spider-Web Outer filter + flat inner, w/ springretainer |
| P19-1129 Composite Filter Set Synthetic/Spider-Web Outer filter + pleated inner , w/o spring retainer |
| P19-0848 Composite Filter,outer Synthetic/Spider-Web Galvanized liners |
| P19-1469 Composite Filter,outer Synthetic/Spider-Web SS inside & outside liners |
| P03-0050 Composite Filter,outer Synthetic/Spider-Web SS outside liner |
| P03-0252 Composite Filter,outer Synthetic/Spider-Web SS outer liner & SS closed endcap |
| P03-0227 Composite Filter Set Synthetic Outer filter + flat inner filter |
| P03-0067 Composite Filter,outer Synthetic For high hydrocarbon environments |
| P19-5778 Composite Filter,inner man-made fiber Pleated. For high hydrocarbon environments |
| P19-0844 Composite Filter,inner poly Flat style, w/ spring retainer |
| P19-0847 Composite Filter, inner poly Flat style, w/o spring retainer |
| Accessories |
| P19-0883 Spring Retainer separate from inner element, reuseable |
| 31295-01 CFS Latch yellow zinc plated over-center latch |
| 31295-02 CFS Latch stainless steel over-center latch |
Recomends of Donaldson Filter replacement
P03-0174 Cylindrical Spider-Web XP SS inner liner & endcaps P03-0175
P03-0175 Conical Spider-Web XP SS inner liner & endcaps P03-0174
P03-0166 Cylindrical Spider-Web XP SS inner liner P03-0158
P03-0158 Conical Spider-Web XP SS inner liner P03-0166
P03-0025 Cylindrical Spider-Web XP Galvanized P03-0151
P03-0151 Conical Spider-Web XP Galvanized P03-0025
P19-1177 Cylindrical Synthetic/Spider-Web Galvanized P19-1178
P19-1178 Conical Synthetic/Spider-Web Galvanized P19-1177
P19-1149 Cylindrical Synthetic/Spider-Web Galvanized P19-1150
Treated for Flame Retardancy*
P19-1150 Conical Synthetic/Spider-Web Galvanized P19-1149
Treated for Flame Retardancy*
P19-1619 Conical Synthetic/Spider-Web SS inner liner P19-1701
P19-1701 Cylindrical Synthetic/Spider-Web SS inner liner P19-1619
P19-1607 Cylindrical Synthetic/Spider-Web SS inner liner & endcaps P03-0034
P03-0034 Conical Synthetic/Spider-Web SS inner liner & endcaps P19-1607
P19-1033 Cylindrical Synthetic Galvanized P19-1107
P03-0165 Cylindrical P19-1033 with wrap installed Galvanized
P19-1107 Conical Synthetic Galvanized P19-1033
P03-0192 Cylindrical Synthetic SS inner liner & endcaps
P03-0173 Conical Synthetic SS liners & endcaps
P19-1772 Cylindrical Synthetic SS inner liner P19-1773
P19-1773 Conical Synthetic SS inner liner P19-1772
P03-0178 Conical Duratek/Spider-Web SS liners & galv. endcaps P03-0179
P03-0179 Cylindrical Duratek/Spider-Web SS liners & endcaps P03-0178
P19-1961 Cylindrical Duratek/Spider-Web SS inner liner P19-1962
P19-1962 Conical Duratek/Spider-Web SS inner liner P19-1961
P19-1280 Cylindrical Duratek/Spider-Web Galvanized P19-1281
P19-1281 Conical Duratek/Spider-Web Galvanized P19-1280
P03-0168 Cylindrical Duratek SS liners & endcaps P03-0169
P03-0169 Conical Duratek SS liners & galv.endcaps P03-0168
P19-9710 Cylindrical Duratek SS inner liner P19-9711
P19-9711 Conical Duratek SS inner liner P19-9710
P19-1236 Cylindrical Duratek Galvanized P19-1238
P19-1238 Conical Duratek Galvanized P19-1236
P19-1037 Cylindrical Cellulose Galvanized P19-1039
P19-1039 Conical Cellulose Galvanized P19-1037
Donaldson P52-7750 Intake Air Filter Elements
P03-0025 26"/ 660mm Spider-Web XP Galvanized liners
P03-0166 26"/ 660mm Spider-Web XP SS inner liner
P03-0174 26"/ 660mm Spider-Web XP SS inner liner & endcaps
P19-1177 26"/ 660mm Synthetic/Spider-Web Use alone (TTD) or mate to P19-1178 (GDX/GDS)
P19-1607 26"/ 660mm Synthetic/Spider-Web SS liners & endcaps
P19-1701 26"/ 660mm Synthetic/Spider-Web SS inner liner. Use alone (TTD) or mate to P19-1619 (GDX)
P19-1149 26"/ 660mm Synthetic/Spider-Web Treated for Flame Retardancy Use alone (TTD) or mate to P19-1150 (GDX)
P19-1772 26"/ 660mm Synthetic SS inner liner
P03-0172 26"/ 660mm Synthetic SS end caps/liner
P19-1033 26"/ 660mm Synthetic Use alone (TTD) or mate to P19-1107 (GDX/GDS)
P03-0192 26"/ 660mm Synthetic SS inner liner & endcaps
P19-1772 26"/ 660mm Synthetic SS inner liner
P03-0179 26"/ 660mm Duratek/Spider-Web SS liners & endcaps
P19-1961 26"/ 660mm Duratek/Spider-Web SS inner liner
P19-1280 26"/ 660mm Duratek/Spider-Web Use alone (TTD) or mate to P19-1281 (GDX/GDS)
P03-0168 26"/ 660mm Duratek SS liners & endcaps
P19-9710 26"/ 660mm Duratek SS inner liner
P19-1236 26"/ 660mm Duratek Use alone (TTD) or mate to P19-1238 (GDX/GDS)
P19-1037 26"/ 660mm Cellulose Use alone (TTD) or mate to P19-1039 (GDX/GDS)
P19-1617 29"/ 737mm Duratek
P19-1463 30"/ 762mm Duratek/Spider-Web
P19-1713 30"/762mm Duratek/Spider-Web Set: P19-1463 with pre-filter wrap installed
P19-1462 30"/ 762mm Duratek
P19-1790 30"/ 762mm Duratek Set: P19-1492 with pre-filter wrap installed
P19-1461 30"/ 762mm Cellulose
P19-1726 30"/ 762mm Cellulose Set: P19-1461 with pre-filter wrap installed
P19-1767 36"/ 914mm Duratek/Spider-Web
The sample can be sent as support ,please contact us now
