Donaldson PTFE Membrane Air HEPA Cartridge Filter
Donaldson PTFE membrane air filter cartridge Product features:Imported long fiber polyester filter mediaHigh-wearing feature can improve the airflowWashable filter media with high qualityCan extend the service lifeGalvanized top & inner frame, rust resistanceSpecial seal elastic neopreneOperati......
Send Inquiry
Product Description
Donaldson PTFE membrane air filter cartridge
Product features:
Imported long fiber polyester filter media
High-wearing feature can improve the airflow
Washable filter media with high quality
Can extend the service life
Galvanized top & inner frame, rust resistance
Special seal elastic neoprene
Operating temperature: ≤ 135ºC
Specification of air filter cartridge :
Application of Air Filter Cartridge
1. Description: Excellent performance on moist, hygroscopic , or agglomerative dust.
2 Markets : Thermal spray, welding, mining, chemical processing, metal buffing, pharmaceutical,cement, woodworking and etc.
3. Dust types: Fumed silica, metallic fume, metallurgical powders, and etc.
We are factory, we can make products as per your needs.
Advantages
1)Our company is a well-known flue gas dust removal environmental protection enterprise in China,it is the standing director of China nonwovens & industrial textiles association member units.
2)We professionally produce various kinds of the dedusting filter bag,filter cloth and its fittings for more than 15 years.
3) We are the manufacturer, can assure the price ,quality and shipment.

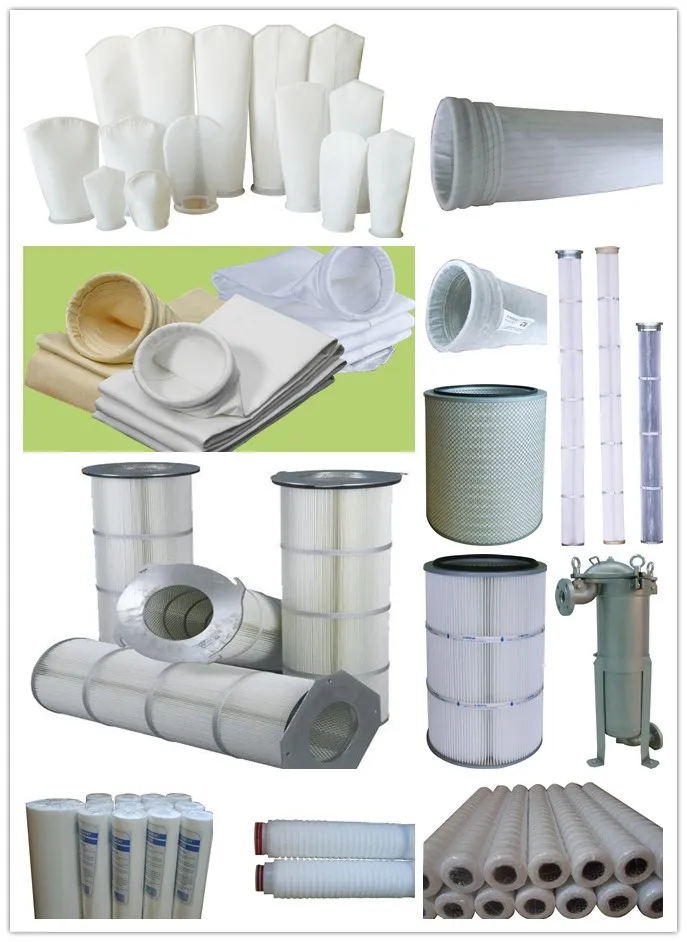

Our other products
If you have any question, please feel free to contact me.
Contact information :
Name : Linda
Product features:
Imported long fiber polyester filter media
High-wearing feature can improve the airflow
Washable filter media with high quality
Can extend the service life
Galvanized top & inner frame, rust resistance
Special seal elastic neoprene
Operating temperature: ≤ 135ºC
| Air filter cartridge | ||
| Name | Value | |
| Structure | Cone , cylinder , cartridge | |
| Filter media | Material Option | PP,Fiberglass ,Nanofiber ,Synthetic fiber , composite fiber , cellulose fiber ,H&V Filter paper etc. |
| Band | Japan Toray, American HV etc | |
| Special treatment | Nano meter material coated PTFE coated Oil/Water proof treatment Anti static treatment Flame retardant treatment Other treatment | |
| Top / Bottom | Galvanized Steel with double powder coating /Galvanized steel / Stainless steel / Powder coated / ABS / PU etc. | |
| Gasket | 100% reinforced RTV Silicon Rubber, EVA, Fluorubber ect. | |
| Inner / Outer Mesh | Galvanized steel with hot melt glue / Stainless Steel / Color-coated steel etc. | |
| Bottom | Open / Closed with bolt hole | |
| Finishing Treatment | PTFE membrane, Teflon-coating, waterproofing, oilproofing, flame-retarding treatment, antistatic coating, etc. | |
| Operating Temperature | 0 to above 70 Degrees, High Temperature, | |
| Pressure Drop | 117-1000Pa, High Pressure | |
Specification of air filter cartridge :
| Cartridge Model | Top Cap OD mm | Top Cap ID mm | Bottom Cap OD mm | Bolt Hole mm | Height mm | Filtration Surface (m²) |
| TR/P 3266 | Φ324 | φ213 | Φ324 | φ14 | 660 | 9.4 |
| TR/P 3275 | Φ324 | φ213 | Φ324 | φ14 | 750 | 10.6 |
| TR/P 32100 | Φ324 | φ213 | Φ324 | φ14 | 1000 | 14.2 |
| TR/P 3566 | Φ352 | φ241 | Φ352 | φ16 | 660 | 10 |
| TR/P 3575 | Φ352 | φ241 | Φ352 | φ16 | 750 | 11.3 |
| TR/P 35100 | Φ352 | φ241 | Φ352 | φ16 | 100 | 15.1 |
Application of Air Filter Cartridge
1. Description: Excellent performance on moist, hygroscopic , or agglomerative dust.
2 Markets : Thermal spray, welding, mining, chemical processing, metal buffing, pharmaceutical,cement, woodworking and etc.
3. Dust types: Fumed silica, metallic fume, metallurgical powders, and etc.
We are factory, we can make products as per your needs.
Advantages
1)Our company is a well-known flue gas dust removal environmental protection enterprise in China,it is the standing director of China nonwovens & industrial textiles association member units.
2)We professionally produce various kinds of the dedusting filter bag,filter cloth and its fittings for more than 15 years.
3) We are the manufacturer, can assure the price ,quality and shipment.
Our other products
If you have any question, please feel free to contact me.
Contact information :
Name : Linda
