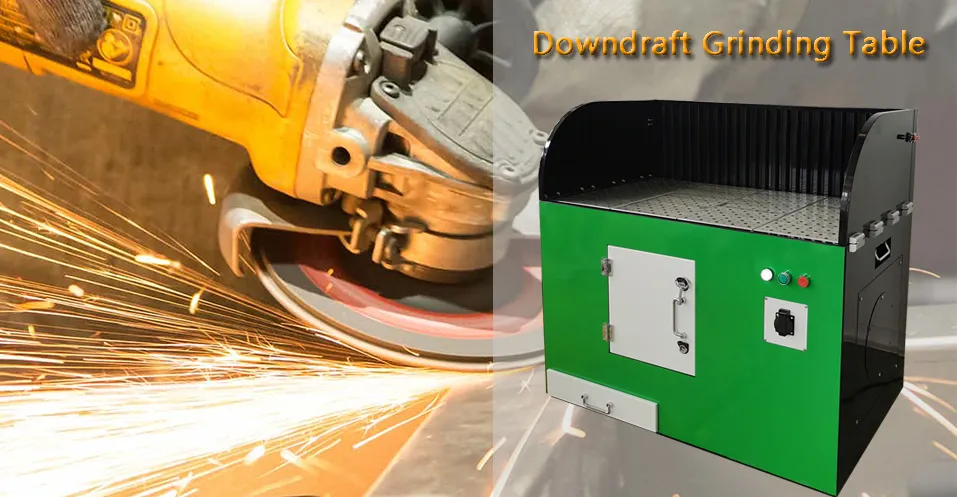

Dust Removal Grinding Table Dust Adsorption Dust Precipitator Dust Exhaust Gas Vacuum Cleaner
Application· Suitable for grinding, deburring, polishing, welding and other working conditions of metal and non-metal workpiecesProduct ParametersPerformance description· Integral structure, beautiful appearance, small floor area, easy to move and fix with Fuma wheel installed ......
Send Inquiry
Product Description
Application
· Suitable for grinding, deburring, polishing, welding and other working conditions of metal and non-metal workpieces

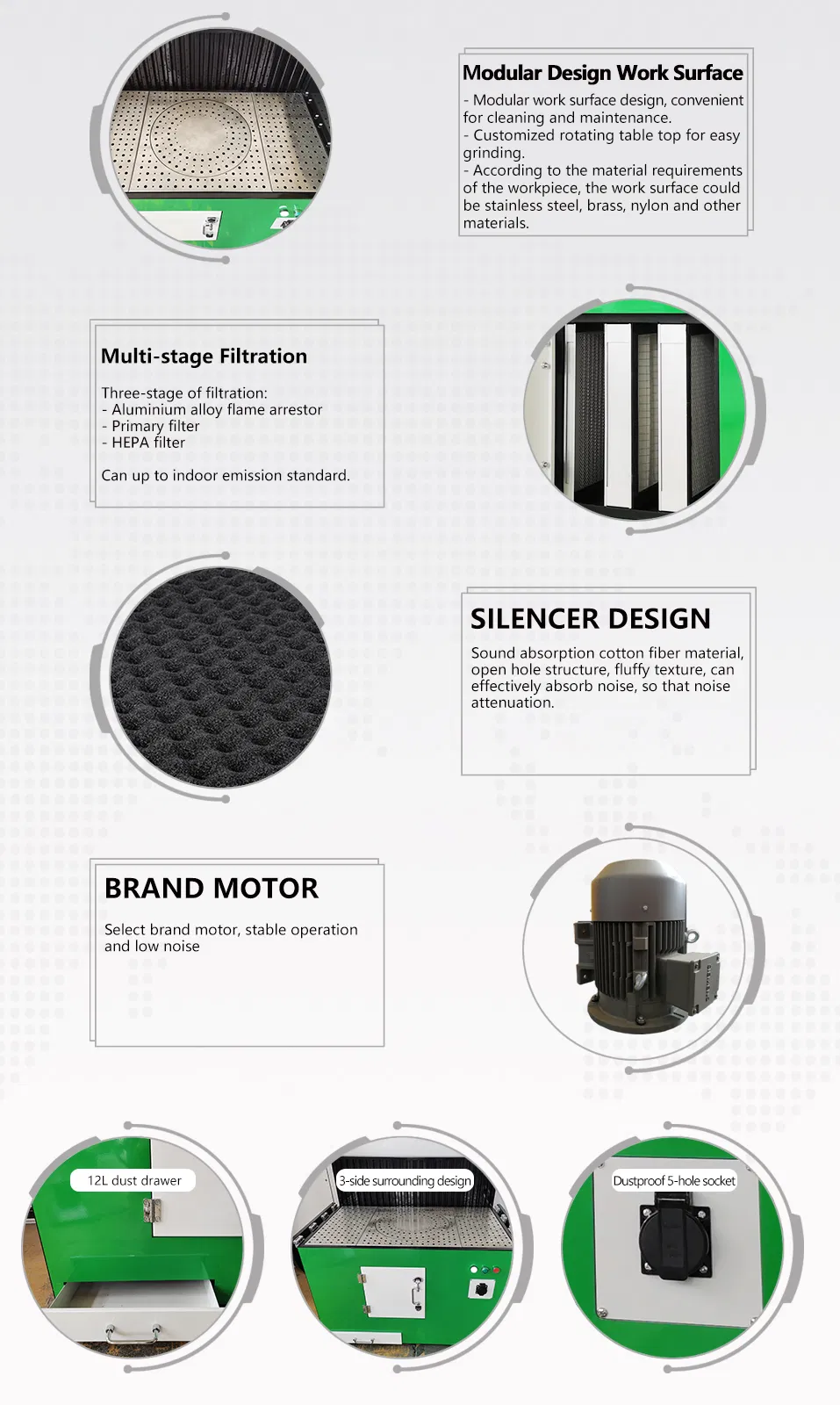

Performance description

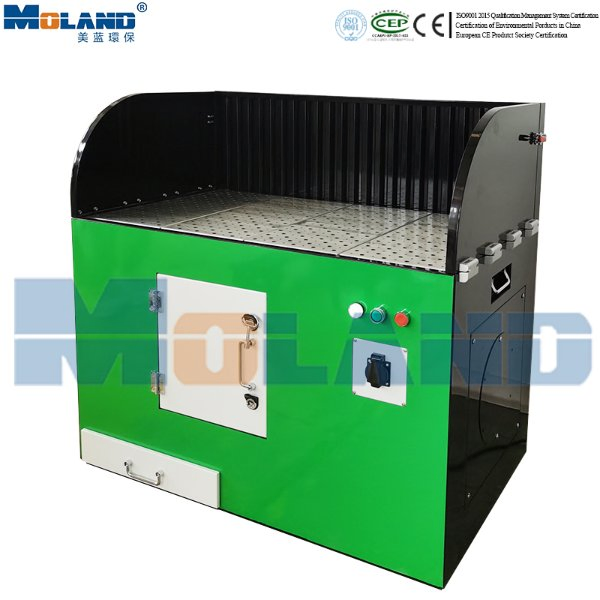

· Integral structure, beautiful appearance, small floor area, easy to move and fix with Fuma wheel installed at the bottom.

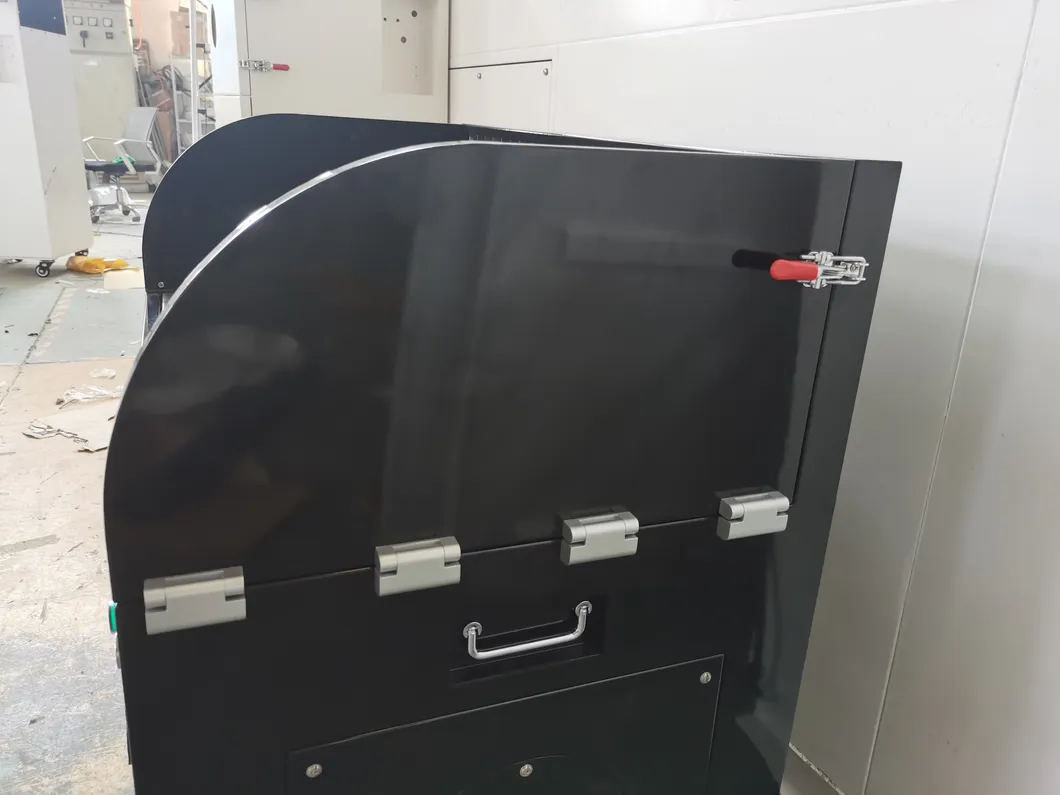

· Three sides surrounding design, effectively preventing the spread of dust.

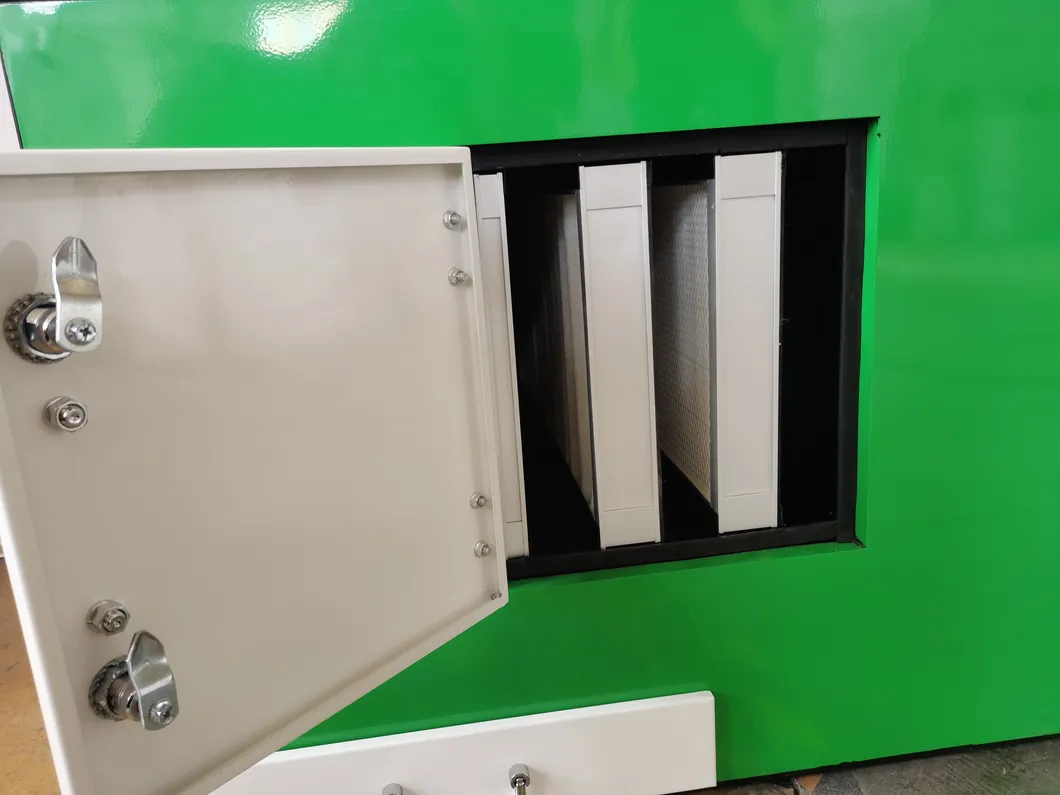

· Multi-stage high efficiency filtration, up to emission standard.
· Drawer dust box, convenient and quick to pour dust.
· Dustproof 5-hole socket, convenient to connect with electric tools.

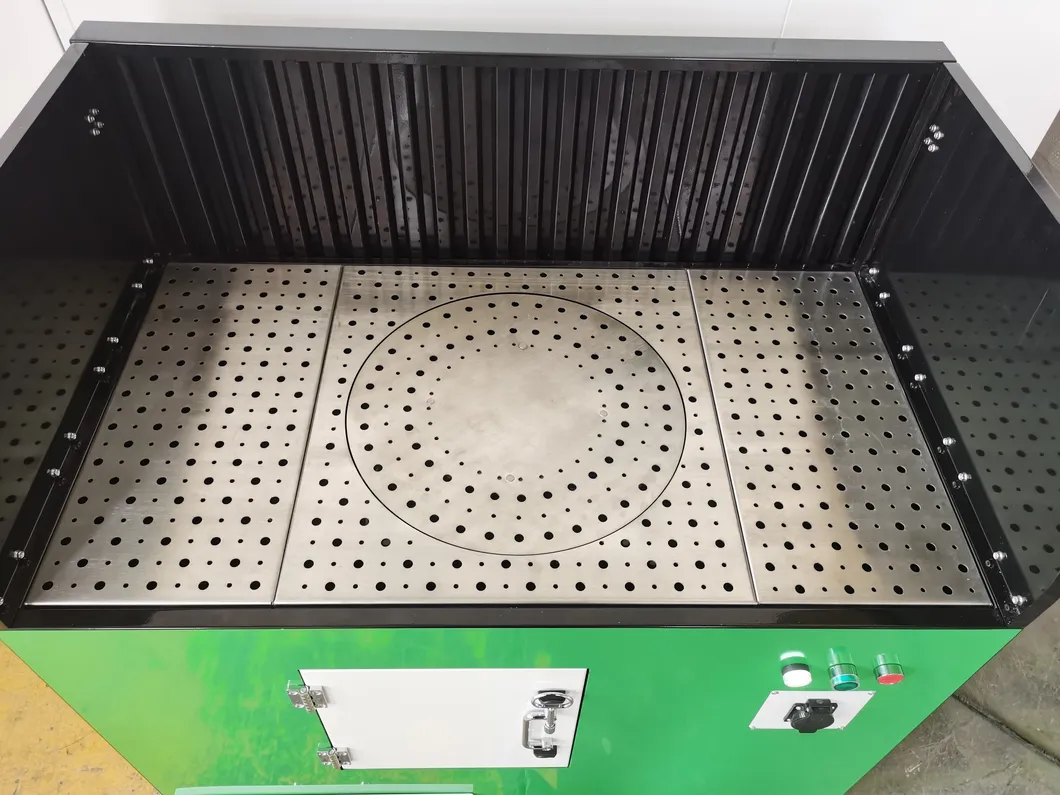

· Removable modular work surface
| MLWF100D | MLWF150D | MLWF200D | |
| Motor Power | 1.1KW | 1.5KW | 1.1KW*2 |
| Working Voltage | 220V 50Hz | 380V/50Hz | 380V/50Hz |
| Air Volume | 1500m^3/h | 2500m^3/h | 3000m^3/h |
| Filtering Accuracy | 0.3um | 0.3um | 0.3um |
| Filter Material | Aluminium alloy flame arrestor, Primary filter, HEPA filter | Aluminium alloy flame arrestor, Primary filter, HEPA filter | Aluminium alloy flame arrestor, Primary filter, HEPA filter |
| Cleaning Mode | Manual | Manual | Manual |
| Noise Level | 75±3dBA | 75±3dBA | 75±3dBA |
| Dimension | 1000*600*1000mm | 1500*800*1000mm | 2000*800*1000mm |
| Weight | 105kg | 150kg | 260kg |
Standard configuration
· Aluminium alloy flame arrestor
· Primary filter
· HEPA filter
· Dustproof 5-hole socket
· 12L dust drawer
· 5m power cord
· Non-slip soft pad
· IO Port (remote control)
· Stainless steel custom machine structure
· Working surface can be designed as round hole, square hole, long hole.
· Working surface can be stainless steel, brass, nylon, polyurethane.

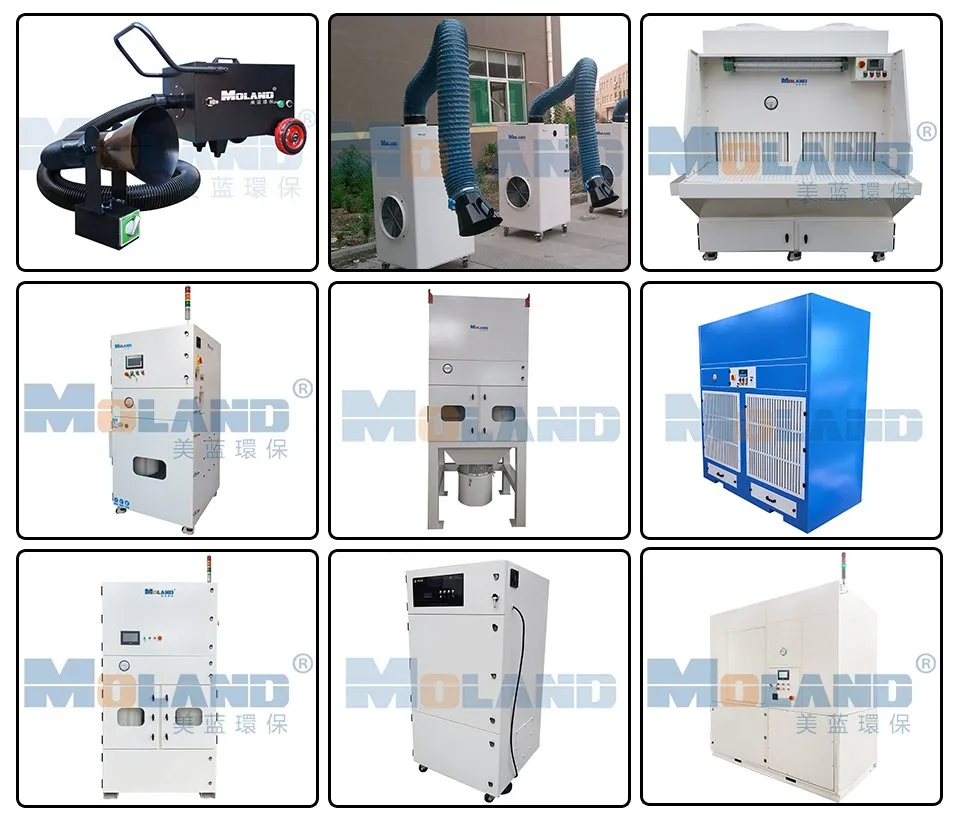

Our main product series:
1. Movable fume extractors
2. Centralized industrial dust extraction system
3. Grinding dust extraction products: 1) downdraft table 2) grinding cabinet 3) grinding room
4. VOCs treatment
