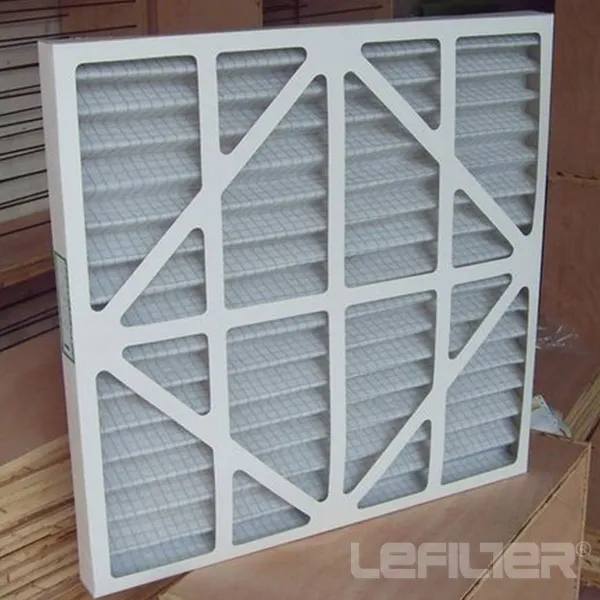

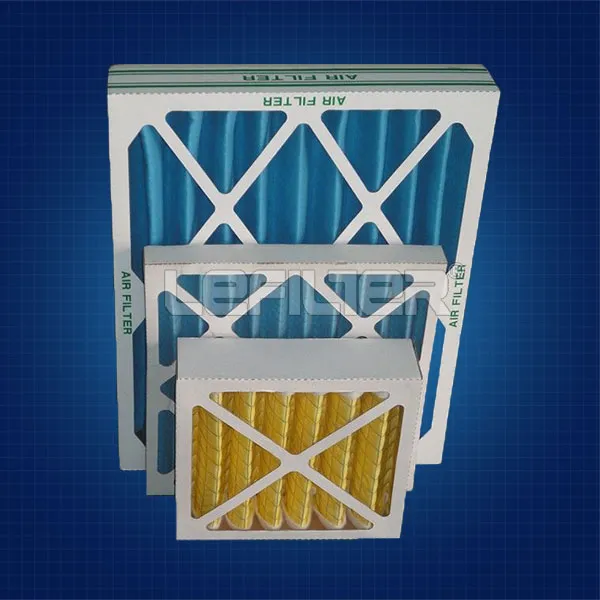

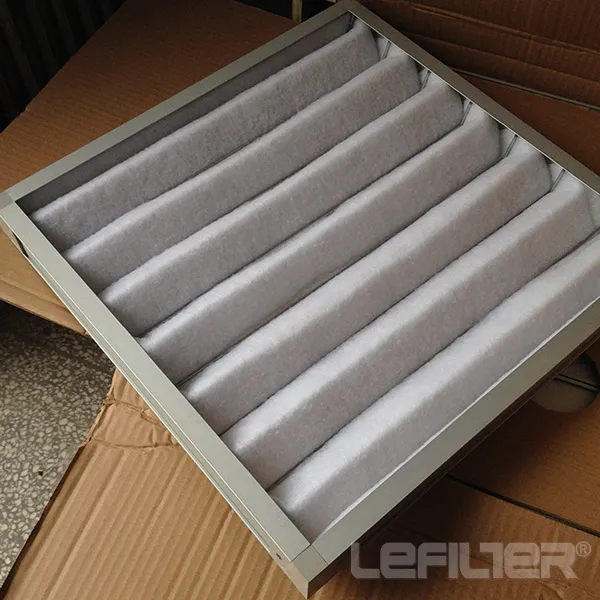

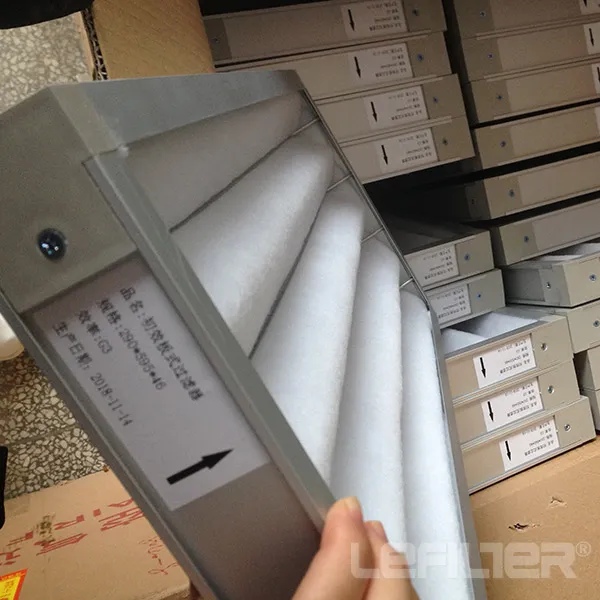

G4 Pre Pleated Primary Panel Air Filters
Features of G4 Pre Pleated Primary panel Air Filters:1. Primary Efficiency Panel Filter is processed by high quality fiber and featured with dust holding,low resistance.The frame is metal ,cardboard or galvanized and can be replaced easily.2. Primary Efficiency Washable Panel Filter adopt folding......
Send Inquiry
Product Description
Features of G4 Pre Pleated Primary panel Air Filters:
1. Primary Efficiency Panel Filter is processed by high quality fiber and featured with dust holding,low
resistance.The frame is metal ,cardboard or galvanized and can be replaced easily.
2. Primary Efficiency Washable Panel Filter adopt folding structure can increase the filter area.
3. Fire classification standara European Din53438-F1 and United states UL900-class2.
4. Depending on the outer frame, folding effectively filter the highest heat resistance at
the beginning of 80 C, the relative temperature can reach 100 C.
INGERSOLL-RAND 67731158 SECONDARY INLET FILTER ELEMENT
67731166 Ingersoll Rand Air Intake Filter
Panel 5929-0101-10 Air Filter
Application of Air Panel Filter:
Primary Efficiency Panel Filter is for filter air conditioning and ventilation system .
Specification of Gas Turbine Intake Air Panel Filter:
Filter Class | Size(mm)
| Rated Airflow(m3/h) | Initial Pressure Drop(Pa) | Final Pressure Drop(pa) | Average Arrestance |
G3 | 595x595x46 | 3200 | 35 | 250 | 85% |
495x595x46 | 2700 | 35 | 250 | 85% | |
295x595x46 | 1600 | 35 | 250 | 85% | |
495x495x46 | 2200 | 35 | 250 | 85% | |
G4
| 595x595x46 | 3200 | 42 | 250 | 95% |
495x595x46 | 2700 | 42 | 250 | 95% | |
295x595x46 | 1600 | 42 | 250 | 95% | |
495x495x46 | 2200 | 42 | 250 | 95% |
Note: Special Size Available Upon Request.
Other popular filter code we have
Donaldson P03-0025 A44428C1
P03-0151 A44429C1
Donaldson P19-1177 A45411C1
P19-1178 A45412C1
Donaldson P19-1033 A43432C1
P19-1107 A43433C1
Donaldson P19-1280 A45322C1
P19-1281 A45323C1
Donaldson P19-1236 A43410C1
P19-1238 A43411C1
Donaldson P19-1037 A43422C1
P19-1039 A43423C1
Donaldson P19-0978 A43392C2
P19-0979 A43688D2
Donaldson P19-1006 S52554C1
P19-1234 S52554C2
P19-1031 S52554C4
P19-1310 S52554C3
P19-0949 S52554C5
