Product Description

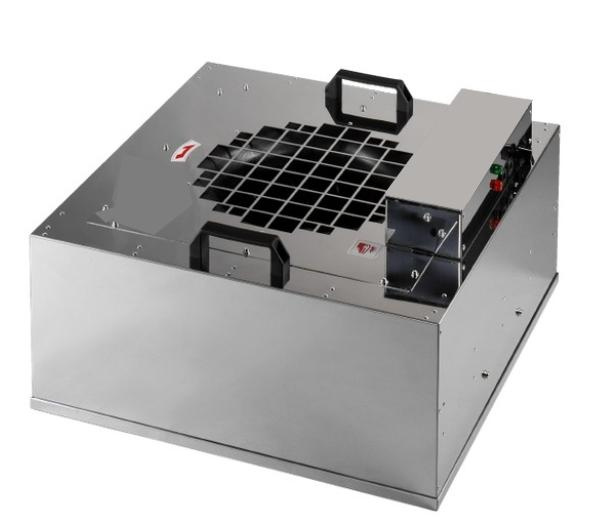

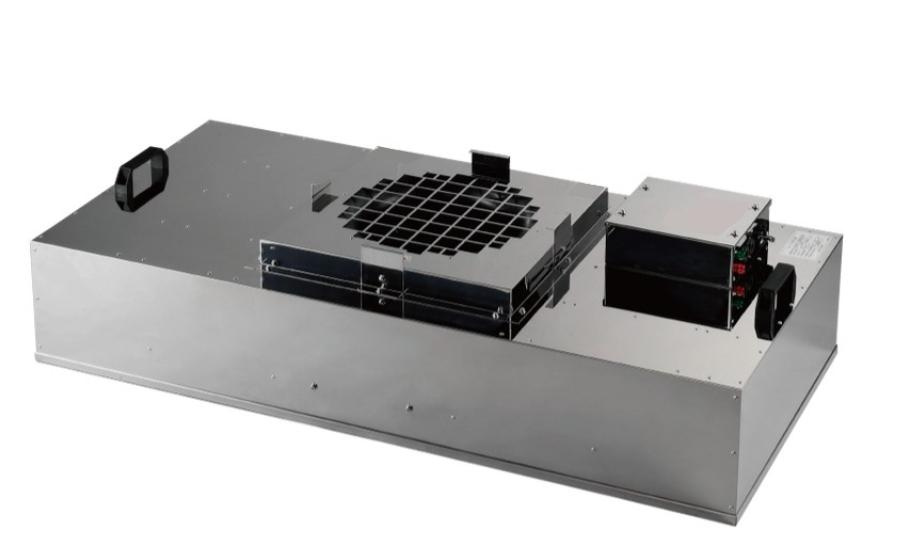

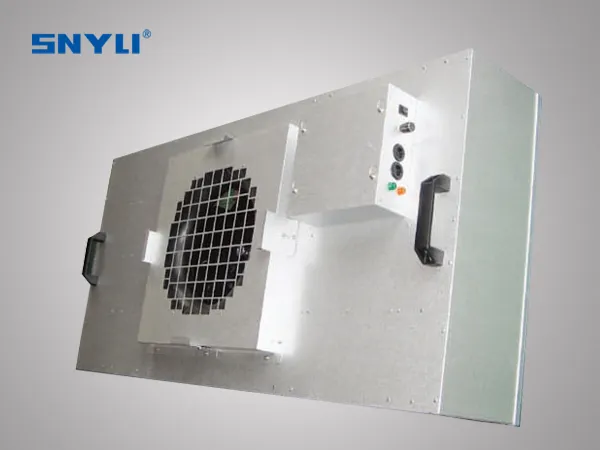

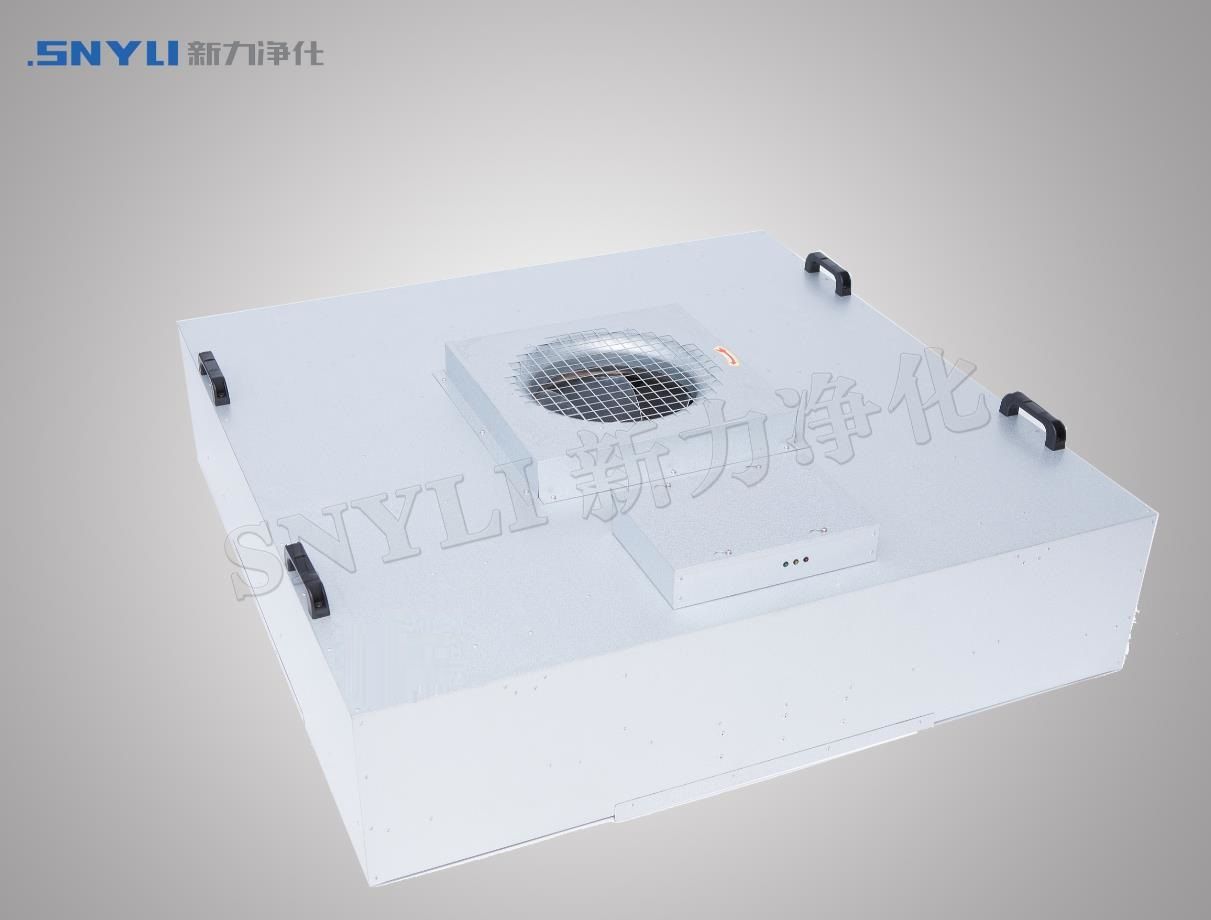

Galvanized steel FAN filter unit HEPA Filter FFU
Product description:
| Mode | SL-30CDCZPN1 | SL-15CDCZPN1 |
| Exterior size | 1174mmx1174mmx300mm | 574mmx1174mmx265mm |
| Filter size | 1170mm x1170 mmx70 mm | 570mm x1170mm x70 mm |
| Filter efficiency | HEPA/ULPA | HEPA/ULPA |
| Average air speed | 0.45m/s±10% | 0.45m/s±10% |
Motor brand | Taiwan DEI/Zhongwei | Taiwan DEI/Zhongwei |
| Motor type | Brushless DC Permanent Magnet Motor | Brushless DC Permanent Magnet Motor |
| Motor efficiency | ≥88% | ≥88% |
| Noise | 0.25-0.45/sec,48-55d BA | 0.25-0.45/sec,48-55d BA |
| Noise test | 1.5M under filter screen | 1.5M under filter screen |
| Power | AC 1Ph , 200 ~ 240 , 50/60Hz | AC 1Ph , 200 ~ 240 , 50/60Hz |
| Box material | Aluminium-Zinc alloy coated steel/Stainless Steel | Aluminium-Zinc alloy coated steel/Stainless Steel |
Box material thickness | Outer box≥0.8mm, Base≥2.0mm | Outer box≥0.8mm, Base≥2.0mm |
| Box structure | Full disassembly simple maintenance(Fan, Motor, Controller) | Full disassembly simple maintenance(Fan, Motor, Controller) |
| Note | Special specification can be customized. | |
Snyli Fan Filter Units (FFU) are the most energy efficient line of fan filter units on the market today. Designed specifically for use in cleanrooms, pharmacies, pharmaceutical manufacturing facilities and laboratories, the FFU delivers high volumes of HEPA (or ULPA) filtered air at low sound levels while reducing energy consumption by 15 to 50% versus comparable products becuase of it's equipment of Brushless DC Permanent Magnet Motor design.
* Industry leading Brushless DC permanent magnet motor,sine wave
vector control technology.
* Zero speed start full closed-loop control, no risk of open-loop closed-
loop switching failure.
* Small starting current, smooth acceleration and deceleration, no
motor demagnetization risk.
* Perfect sine wave operation, low loss, low noise, small vibration.
* Powerful motor torque control function, high speed accuracy,
startsmoothly in case of 400 RPM against the wind.
* Complete abnormal protection of over-voltage, over-current,short
circuit, open circuit, over temperature,etc.
* Meet the requirements of EMC and electrical safety certification.
* Low standby power consumption (< 1.2W) and high overall efficiency.
* Integrated PFC function to achieve higher power factor and lower
harmonic current.
* The key components adopt foreign famous brand products to ensure
high performance and high reliability.

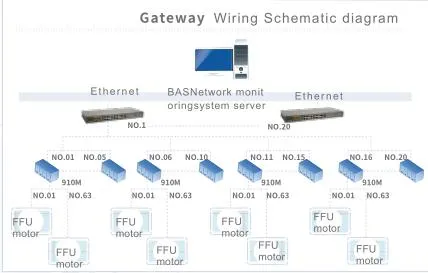

--FFU group control system structure
can be connected with Maximum 63 FFU .
* 1 Central host computer (PC) (Note: Ethernet switch HUB
is selected according to the actual quantity.
* Gateway:Modbus-RS485 TCP.
* Data Collector (DT): Standard protocol Modbus-RS485
--Simple operation
* Through the color of FFU fan button in the interface page, the different operation states of FFU can be identified,
which is intuitive and eye-catching.
--Scientific early warning system,much safer
* When the alarm occurs, there is a certain ratio of color change.
* The different operation states of FFU can be identified by the color of FFU fan button in the operation interface,which
is intuitive and eye-catching.
--Inintelligent monitoring
* Complete, secure and open network system, intimely and best monitoring and control.
* It can be monitored and controlled independently by regional or single FFU.
* After FFU is powered off, it will operate according to the state (power supply,wind speed) before the last shutdown when
power is on again.
* Software intelligent scheduling management, FFU Timing set is available,energy saving.
* FFU control box also equiped with field LED indicator light showing running status.
* FFU automatic grouping order delay start, avoiding the impact of starting current on user's power system in large-scale system.
* It can be connected with tempreture/humidity sensor, the fan speed can be automatically adjusted withthe change of pressure
difference.
Q1.Are you a manufacture or trading company?
A:We are a manufacure.

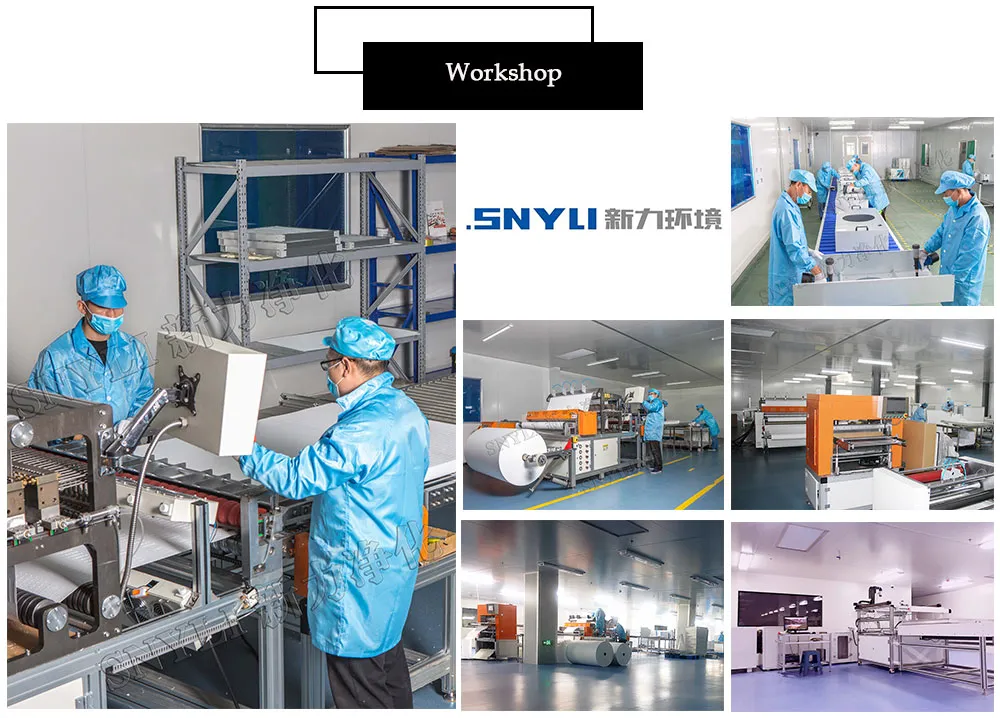

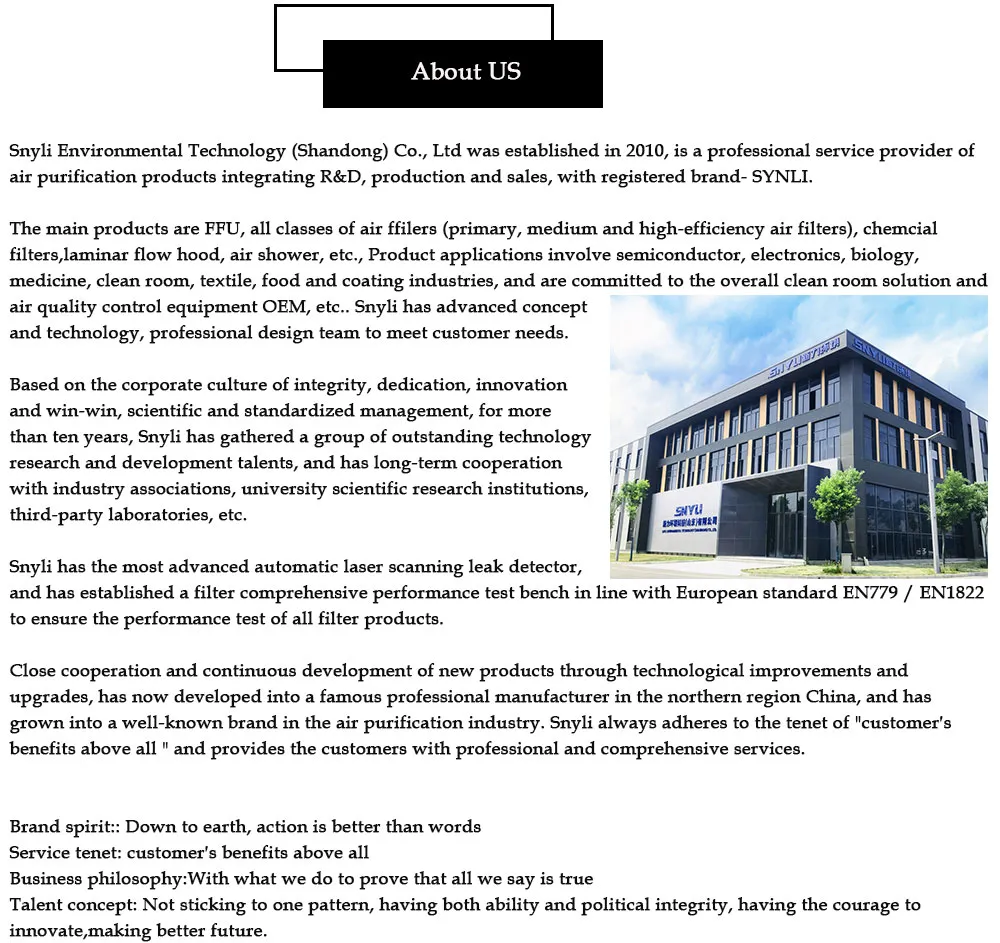

Snyli Environmental Technology (Shandong) Co., Ltd was established in 2010, is a professional service provider of air purification products integrating R&D, production and sales, with registered brand- SYNLI.
Q2: Where are air filters commonly used?
A :HAVC(heating, air conditioning and ventilation systems) painting stations, chemical plants, pharmaceutical plants, cement or asphalt powder plants, clean rooms, power stations, heavy metal industries, gas turbines and cogeneration power plants, engineering and equipment plants, drying and baking rooms, hospitals, etc.
Q3: What are your testing criteria?
A: EN779:2012 ISO9001
Q4: What is the international standard for air filters?
A:Euro :Pre (G1-G4), Medium (F5-F9), HEPA (H10-H14) ULPA (U15-U17)
American :Pre (MERV5-7), Medium (MERV8-14), HEPA (MERV15-19) ULPA(MERV 20)
Q5: What is your sample policy?
A: The sample price will be the product price of the standard order. If you make a demo order after receiving the sample and proofing (reaching our MOQ), we will roughly understand the sample price and sample price in the order, and give us your MOQ price.
Q6: How about your after-sales service?
A: Even if we have confidence in the quality of our products, the products may be damaged due to some unpredictable reasons. Please use and maintain the products you purchased correctly in accordance with the user manual or the recommendations of the sales staff. Contact the household to understand the usage of the product, provide suggestions or support professional maintenance services according to the warranty policy.
