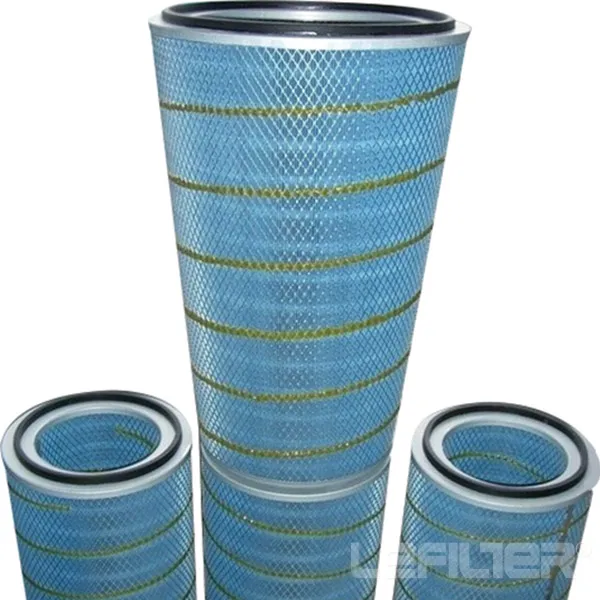

Gas Turbine Intake Air Filtration P191178 Donaldson Filters Factory

Details of Gas Turbine Intake Air Filtration P191178 Donaldson filters

Replaces OEM: Donaldson Torit
Part Number: P191178

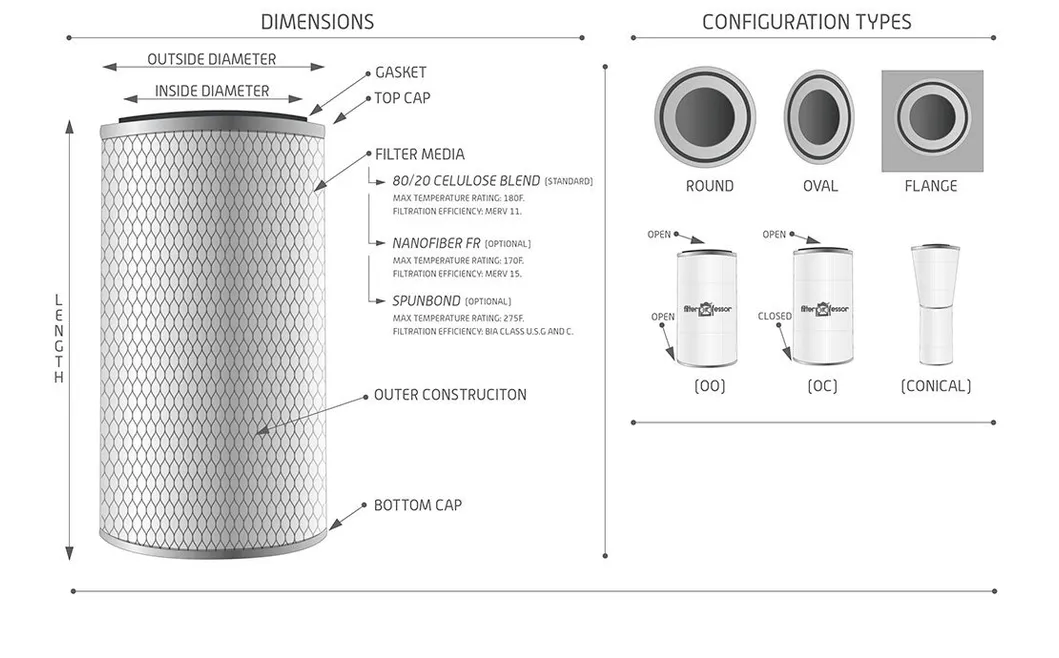

Dimensions: 8.375 x 12.75 x 26
Outside Diameter: 17.50" to 12.75"
Length: 26"
Inside Diameter: 13" to 8.375"
Top: Open
Bottom: Open
Shape: Conical
Approx. Square Footage of Filter Media: 287

P03-0174 Cylindrical Spider-Web XP SS inner liner & endcaps P03-0175
P03-0175 Conical Spider-Web XP SS inner liner & endcaps P03-0174
P03-0166 Cylindrical Spider-Web XP SS inner liner P03-0158
P03-0158 Conical Spider-Web XP SS inner liner P03-0166
P03-0025 Cylindrical Spider-Web XP Galvanized P03-0151
P03-0151 Conical Spider-Web XP Galvanized P03-0025
P19-1177 Cylindrical Synthetic/Spider-Web Galvanized P19-1178

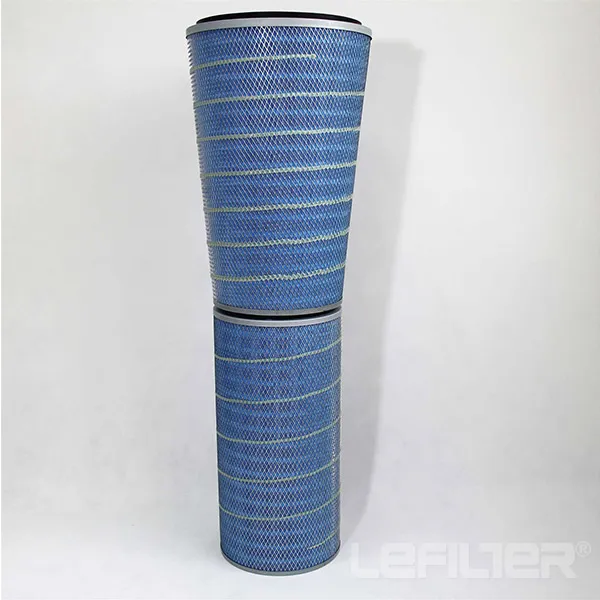

P19-1178 Conical Synthetic/Spider-Web Galvanized P19-1177
P19-1149 Cylindrical Synthetic/Spider-Web Galvanized P19-1150
Treated for Flame Retardancy*
P19-1150 Conical Synthetic/Spider-Web Galvanized P19-1149
Treated for Flame Retardancy*
P19-1619 Conical Synthetic/Spider-Web SS inner liner P19-1701
P19-1701 Cylindrical Synthetic/Spider-Web SS inner liner P19-1619
P19-1607 Cylindrical Synthetic/Spider-Web SS inner liner & endcaps P03-0034
P03-0034 Conical Synthetic/Spider-Web SS inner liner & endcaps P19-1607
P19-1033 Cylindrical Synthetic Galvanized P19-1107
P03-0165 Cylindrical P19-1033 with wrap installed Galvanized
P19-1107 Conical Synthetic Galvanized P19-1033
P03-0192 Cylindrical Synthetic SS inner liner & endcaps
P03-0173 Conical Synthetic SS liners & endcaps
P19-1772 Cylindrical Synthetic SS inner liner P19-1773
P19-1773 Conical Synthetic SS inner liner P19-1772
P03-0178 Conical Duratek/Spider-Web SS liners & galv. endcaps P03-0179
P03-0179 Cylindrical Duratek/Spider-Web SS liners & endcaps P03-0178
P19-1961 Cylindrical Duratek/Spider-Web SS inner liner P19-1962
P19-1962 Conical Duratek/Spider-Web SS inner liner P19-1961
P19-1280 Cylindrical Duratek/Spider-Web Galvanized P19-1281
P19-1281 Conical Duratek/Spider-Web Galvanized P19-1280
P03-0168 Cylindrical Duratek SS liners & endcaps P03-0169
P03-0169 Conical Duratek SS liners & galv.endcaps P03-0168
P19-9710 Cylindrical Duratek SS inner liner P19-9711
P19-9711 Conical Duratek SS inner liner P19-9710
P19-1236 Cylindrical Duratek Galvanized P19-1238
P19-1238 Conical Duratek Galvanized P19-1236
P19-1037 Cylindrical Cellulose Galvanized P19-1039
P19-1039 Conical Cellulose Galvanized P19-1037

P03-0025 26"/ 660mm Spider-Web XP Galvanized liners
P03-0166 26"/ 660mm Spider-Web XP SS inner liner
P03-0174 26"/ 660mm Spider-Web XP SS inner liner & endcaps
P19-1177 26"/ 660mm Synthetic/Spider-Web Use alone (TTD) or mate to P19-1178 (GDX/GDS)
P19-1607 26"/ 660mm Synthetic/Spider-Web SS liners & endcaps
P19-1701 26"/ 660mm Synthetic/Spider-Web SS inner liner. Use alone (TTD) or mate to P19-1619 (GDX)
P19-1149 26"/ 660mm Synthetic/Spider-Web Treated for Flame Retardancy   Use alone (TTD) or mate to P19-1150 (GDX)
P19-1772 26"/ 660mm Synthetic SS inner liner
P03-0172 26"/ 660mm Synthetic SS end caps/liner
P19-1033 26"/ 660mm Synthetic Use alone (TTD) or mate to P19-1107 (GDX/GDS)
P03-0192 26"/ 660mm Synthetic SS inner liner & endcaps
P19-1772 26"/ 660mm Synthetic SS inner liner
P03-0179 26"/ 660mm Duratek/Spider-Web SS liners & endcaps
P19-1961 26"/ 660mm Duratek/Spider-Web SS inner liner
P19-1280 26"/ 660mm Duratek/Spider-Web Use alone (TTD) or mate to P19-1281 (GDX/GDS)
P03-0168 26"/ 660mm Duratek SS liners & endcaps
P19-9710 26"/ 660mm Duratek SS inner liner
P19-1236 26"/ 660mm Duratek Use alone (TTD) or mate to P19-1238 (GDX/GDS)
P19-1037 26"/ 660mm Cellulose Use alone (TTD) or mate to P19-1039 (GDX/GDS)
P19-1617 29"/ 737mm Duratek
P19-1463 30"/ 762mm Duratek/Spider-Web
P19-1713 30"/762mm Duratek/Spider-Web Set: P19-1463 with pre-filter wrap installed
P19-1462 30"/ 762mm Duratek
P19-1790 30"/ 762mm Duratek Set: P19-1492 with pre-filter wrap installed
P19-1461 30"/ 762mm Cellulose
P19-1726 30"/ 762mm Cellulose Set: P19-1461 with pre-filter wrap installed
P19-1767 36"/ 914mm Duratek/Spider-Web

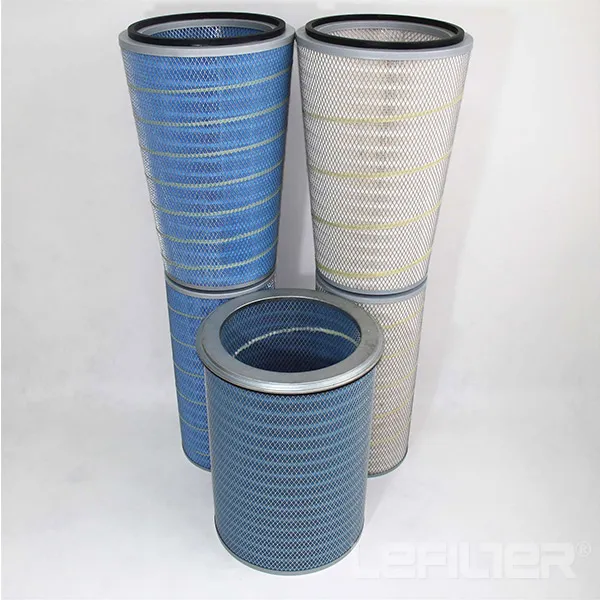

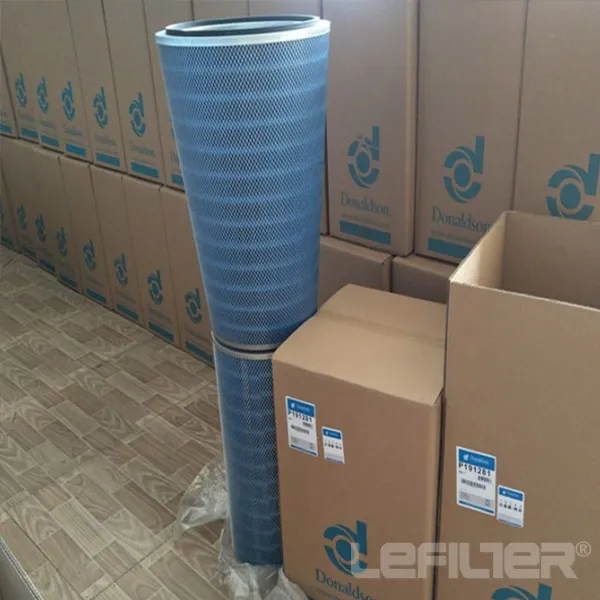

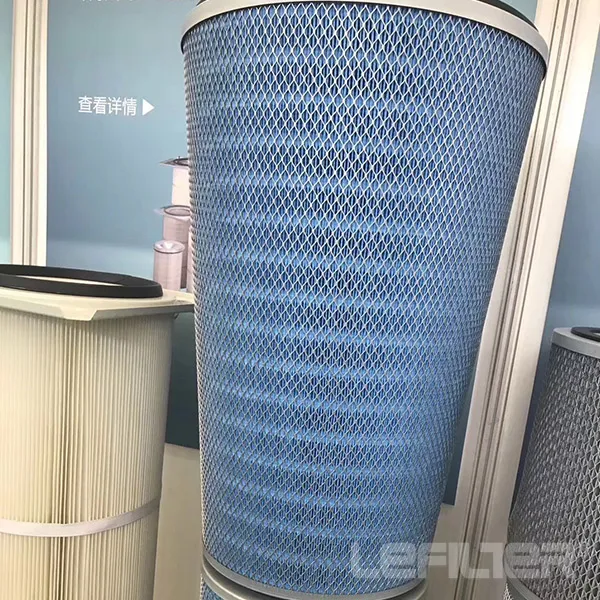

Replacement Donaldson Filter Photos
