              HEPA/ULPA Air Filter with H13, H14, U15 for Purifying Equipment
              • HEPA/ULPA Air Filter with H13, H14, U15 for Purifying EquipmentHEPA/ULPA Air Filter with H13, H14, U15 for Purifying Equipment
              • HEPA/ULPA Air Filter with H13, H14, U15 for Purifying EquipmentHEPA/ULPA Air Filter with H13, H14, U15 for Purifying Equipment
              • HEPA/ULPA Air Filter with H13, H14, U15 for Purifying EquipmentHEPA/ULPA Air Filter with H13, H14, U15 for Purifying Equipment
              • HEPA/ULPA Air Filter with H13, H14, U15 for Purifying EquipmentHEPA/ULPA Air Filter with H13, H14, U15 for Purifying Equipment

              HEPA/ULPA Air Filter with H13, H14, U15 for Purifying Equipment

              Features and applications:100% leak test,making use of high-strength glassfiber medium,optium pleat geometry and equidistance,assured leak-proof mounting,long useful time and cost-effecient. HEPA/ULPA with Gel-channel/knife-edge fluid sealing system is widely used in Class 100 clean room for semicon......

              Send Inquiry

              Product Description

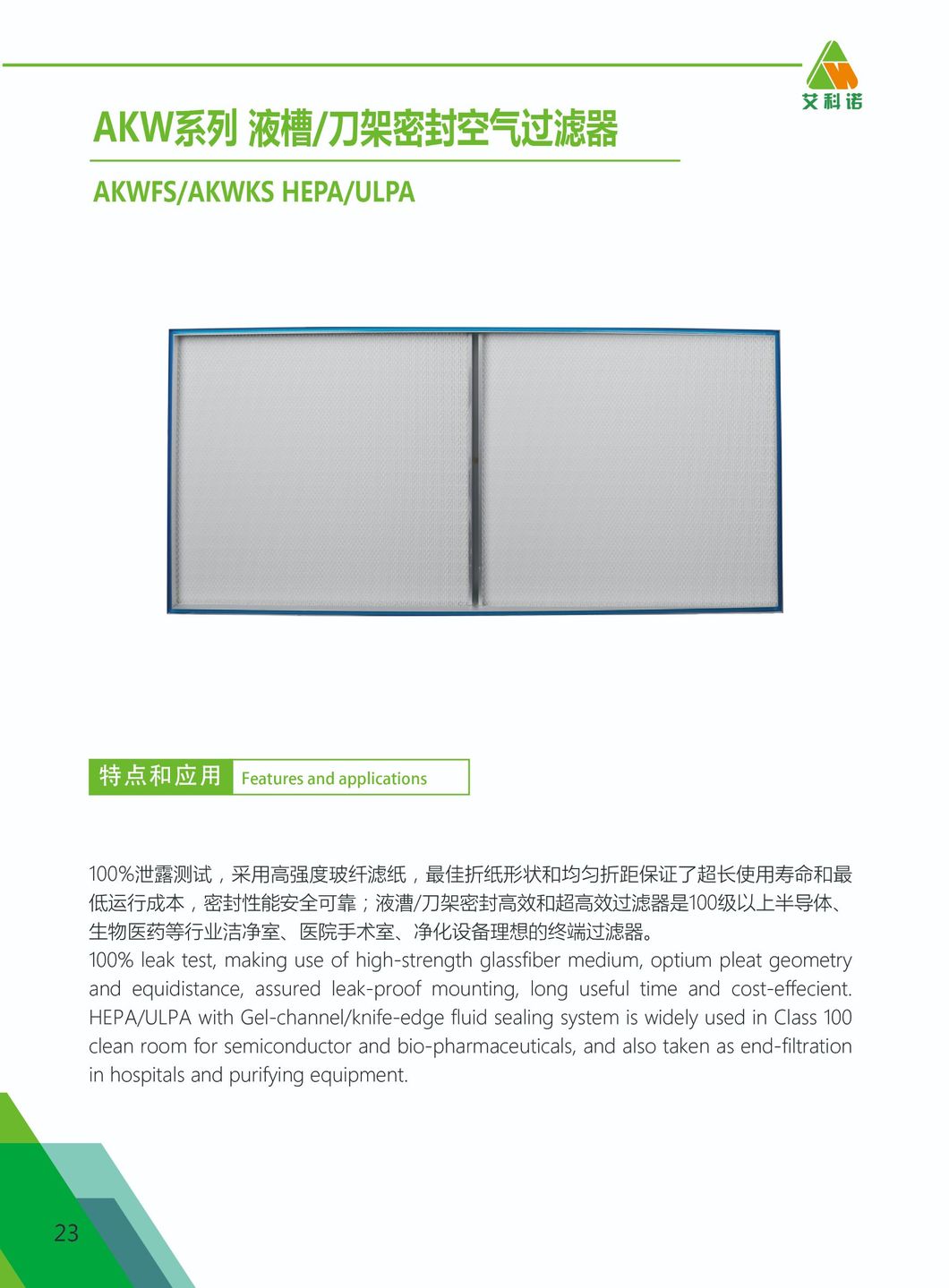

              Features and applications:
              100% leak test,making use of high-strength glassfiber medium,optium pleat geometry and equidistance,assured leak-proof mounting,long useful time and cost-effecient. HEPA/ULPA with Gel-channel/knife-edge fluid sealing system is widely used in Class 100 clean room for semiconductor and bio-pharmaceuticals,and also taken as end-filtration in hospitals and purifying equipment.

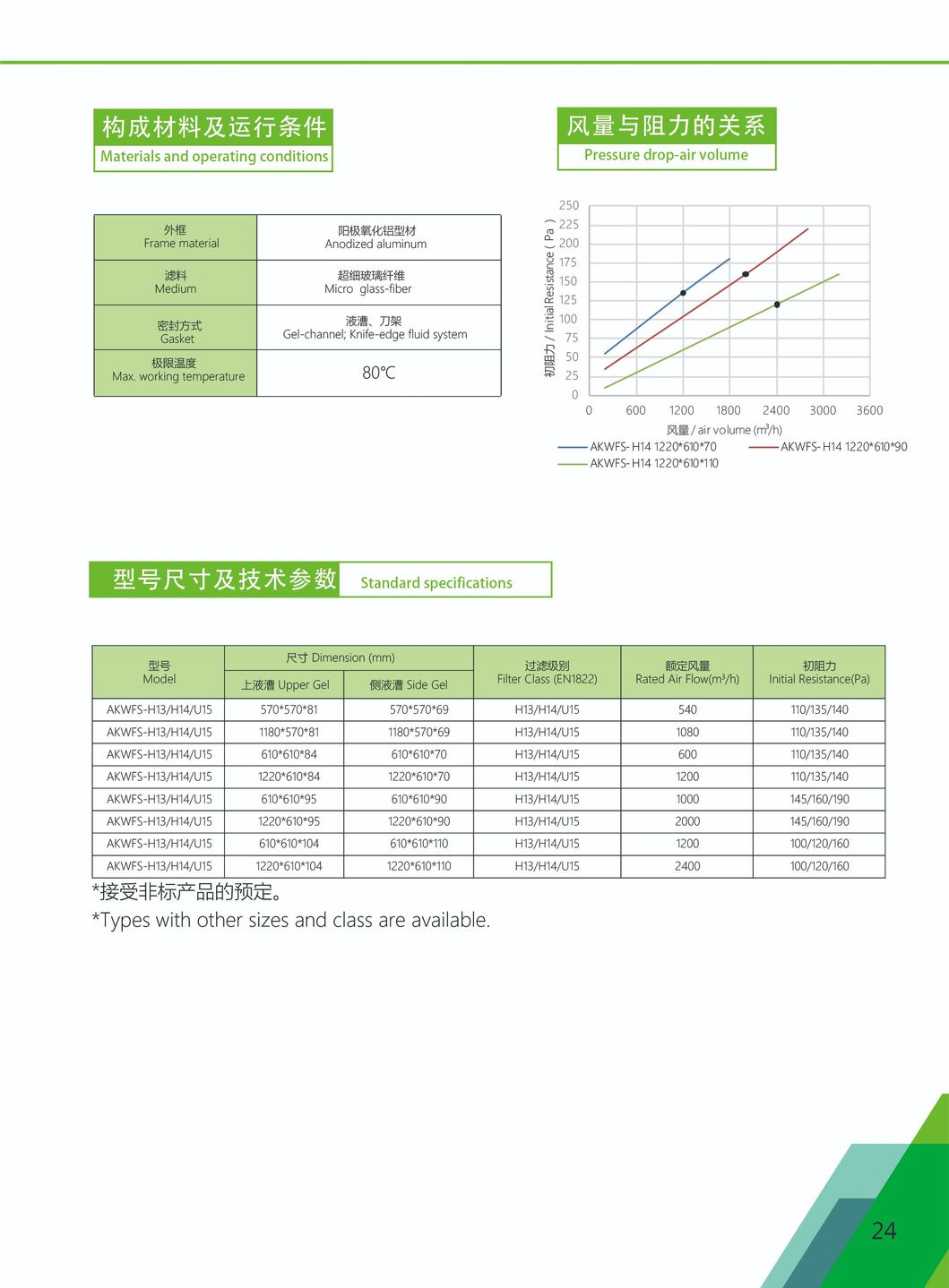

              Materials and operating conditions:
              Frame materialAnodized aluminum
              MediumMicro glass-fiber
              GasketGel-channel;knife-edge fluid system
              Max.working temperature80ºC

              Standard specifications:
              ModelDimension(mm)Filter class
              EN1822              		Rated Air flow
              M3/h              		Initial Resistance
              (Pa)
              Upper GelSide Gel
              AKWFS-H13/H14/U15570*570*81570*570*69H13/H14/U15540110/135/140
              AKWFS-H13/H14/U151180*570*811180*570*69H13/H14/U151080110/135/140
              AKWFS-H13/H14/U15610*610*84610*610*70H13/H14/U15600110/135/140
              AKWFS-H13/H14/U151220*610*841220*610*70H13/H14/U151200110/135/140
              AKWFS-H13/H14/U15610*610*95610*610*90H13/H14/U151000145/160/190
              AKWFS-H13/H14/U151220*610*951220*610*90H13/H14/U152000145/160/190
              AKWFS-H13/H14/U15610*610*104610*610*110H13/H14/U151200100/120/160
              AKWFS-H13/H14/U151220*610*1041220*610*110H13/H14/U152400100/120/160

              Type with other sizes and class are available.
