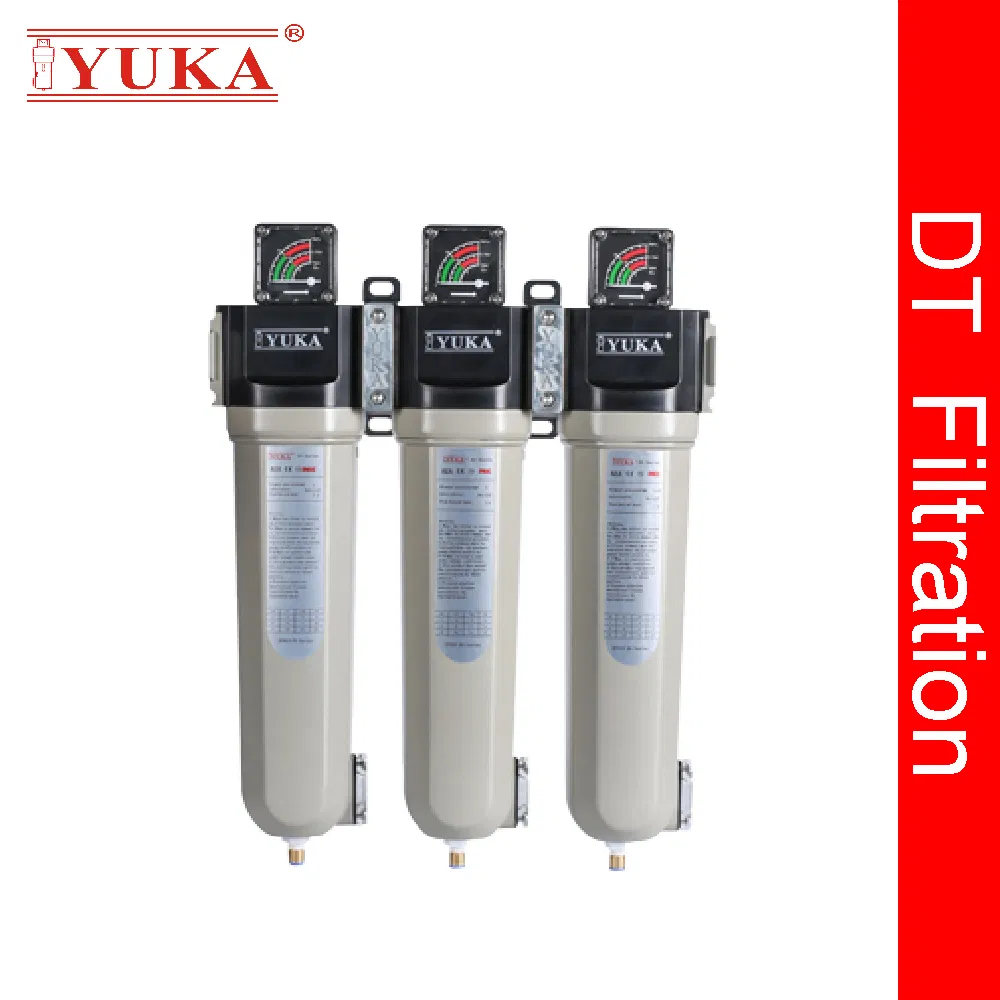

High Performance Air Filter Remove Solid Particles, Oil Aerosol, Vapour & Odours with Auto Drain
Features & Benefits Low cost for OwnershipAdvanced filter design to Optimize flow capacities, reducing differential pressure and thereby increasing energy efficiency.Certified PerformanceTested validated in accordance with ISO 8573.1-2010, housing & elements are manufactured with highest qua......
Send Inquiry
Product Description
Features & Benefits
Validated Performance
The performance of DT series compressed air filters exceeds the latest international ISO 12500 air quality standard.
7 Grades Filter element: PF/AO/AA/AX/ACS/AR/AAR
International test and measurement standard ISO12500
>ISO 12500 has made clear a general test and definition method for the compressed air filter manufacturers. The main performance
parameters are the air inlet oil content and particles size distribution of the solid particles.
>ISO12500-1 specifies the test requirements for the filtration performance of oil aerosol in the coalescing filter.
>ISO12500-2 specifies the test requirements of adsorption filters for the removal performance of steam adsorption.
>ISO12500-3 specifies the requirements for removal of particulate matter from solid pullutants.
Product are test with the international advanced testing equipment based on standard ISO12500, Which is equivalent to the standard
ISO8573.1-2010 quality standard, and provide filter performance test report.
Technical Specification
The flow rate below is the treatment capacity of compressed air under rated working pressure 7bar g(100psi g).
For the application in other working pressure, please refer to the correction factors.
YUKA Patents

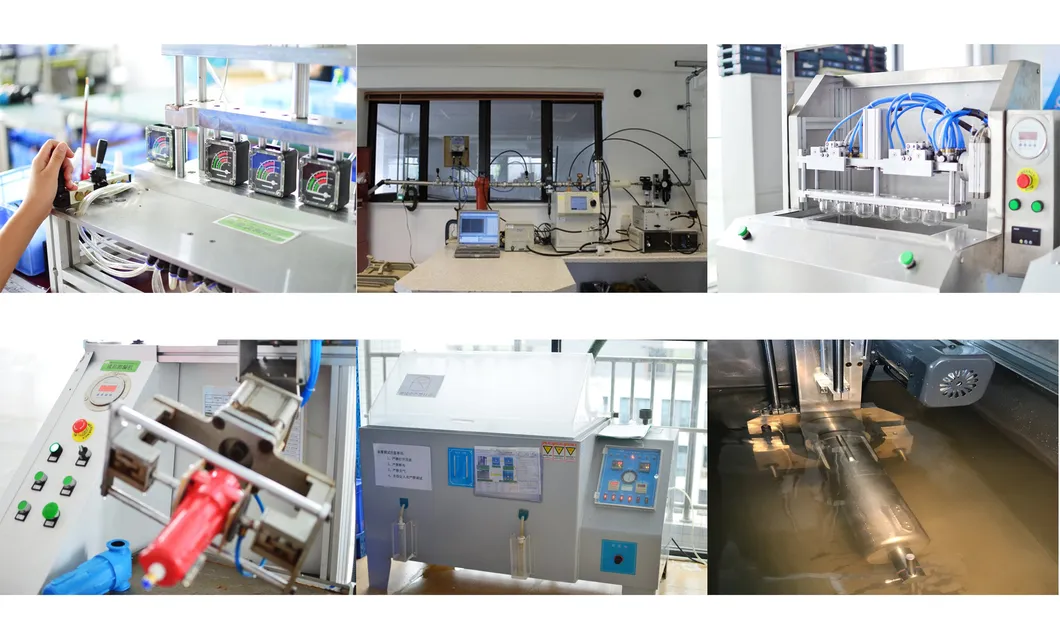

YUKA Facility
YUKA Exhibitions in Shanghai ComVac Asia & Hannover Messe
YUKA service:
a. Providing professional consultation, technical support and special solutions
b. Providing timely feedback on complaints
c. Providing perfect after sales service and warranty
Q:Why choose us?
a. 22 years' practical experiences in R&D and manufacturing Compressed air treatment;
b. Founder of Compressed Air Nation Standard GB/T30475.1-2013 and GB/T30475.2-2013;
c. ISO 9001:2015, CE and product follow ISO8573-1;
d. With Germany Imported high efficiency filtration Test Instrument;
e.All goods had been 100% test before dispatched.
Frequently Asked Questions:
Q1. What kind of your company is it?
We're the manufacturer integrated with R&D, production and sales.
Q2. How about your technical conditions and production capability?
Complete process documents and equipment, mass production.
Q3. What is the delivery time?
Delivery time depends on the order quantity, normally is 3-5 working days after 30% payment.
Q4. Do you have a warranty?
Yes, for filter, it is 1 year normally.
Q5. Can you supply customized product?
Yes, we have a professional technical team to provide you with the best solution and complete production processes and control to provide you with satisfied product.
Low cost for Ownership
Advanced filter design to Optimize flow capacities, reducing differential pressure and thereby increasing energy efficiency.
Certified Performance
Tested validated in accordance with ISO 8573.1-2010, housing & elements are manufactured with highest quality materials to provide optimum performance & improved efficiency.
Improved Operating Conditions
Aluminum alloy, precision die-casting housing, suitable for operating temperature of 85 ºC and operating pressure of up to 10 bar, solution for your filtration requirements.
Product Safety

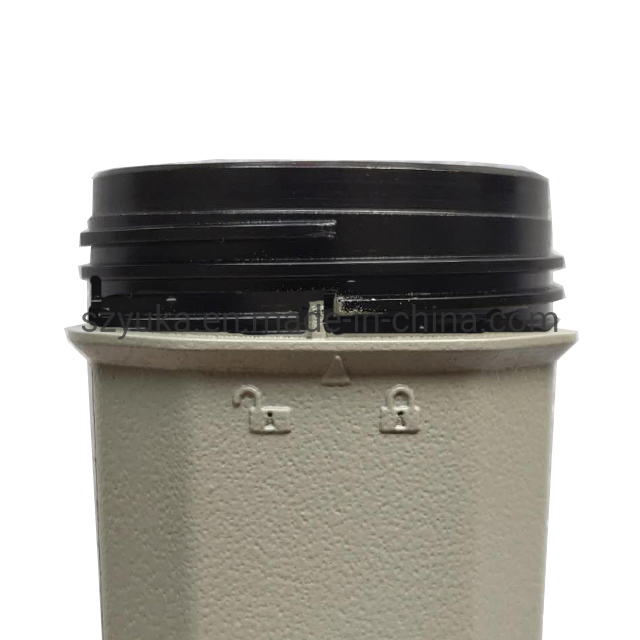

Housing Guaranteed closure with single-start thread and flixed thread engagement stop & lock indication arrows to invoid over tightening and ensure effective sealing.
Flexible Installation

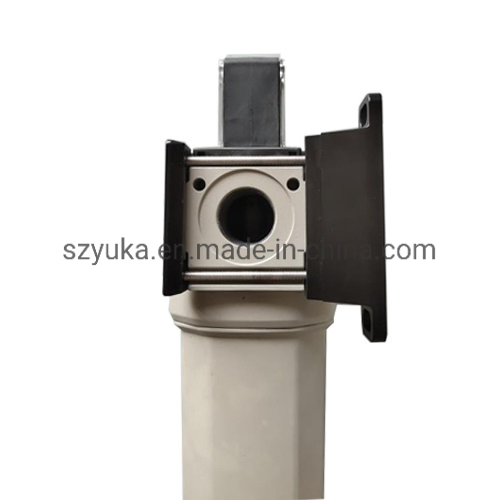

Without tie-rod design, no-touch element, optimize the process of replacement. Pipeline size from RC1/4" to RC2-1/2", flow rates from 1.0-19.0m³/min.
Guaranteed
Housing enjoy 15 years lifespan, element recommend 6000 to 8000 hours, depend on actual working condition.
Advanced filter design to Optimize flow capacities, reducing differential pressure and thereby increasing energy efficiency.
Certified Performance
Tested validated in accordance with ISO 8573.1-2010, housing & elements are manufactured with highest quality materials to provide optimum performance & improved efficiency.
Improved Operating Conditions
Aluminum alloy, precision die-casting housing, suitable for operating temperature of 85 ºC and operating pressure of up to 10 bar, solution for your filtration requirements.
Product Safety
Housing Guaranteed closure with single-start thread and flixed thread engagement stop & lock indication arrows to invoid over tightening and ensure effective sealing.
Flexible Installation
Without tie-rod design, no-touch element, optimize the process of replacement. Pipeline size from RC1/4" to RC2-1/2", flow rates from 1.0-19.0m³/min.
Guaranteed
Housing enjoy 15 years lifespan, element recommend 6000 to 8000 hours, depend on actual working condition.
Validated Performance
The performance of DT series compressed air filters exceeds the latest international ISO 12500 air quality standard.
7 Grades Filter element: PF/AO/AA/AX/ACS/AR/AAR
| PF | AO | AA | AX | ACS | AR | AAR |
| As a primary filter, particles whose diameter more than 5μm can be remove,the maxi. residual oil content is negligible | High efficiency general protection, dust particles, water mist & oil mist whose diameter more than 1μm can be removed, the residual content of oil mist does not exceed 0.6mg/m³ (21ºC),1ppm(w). | High effiency oil remove filtration, dust particles, water mist and oil mist whose diameter more than 0.01μm can be removed, the residual content of oil mist does not exceed 0.01mg/m³(21ºC),0.01ppm(w) | Ultra-efficient filtration, dust particles, water mist&oil mist whose diameter more than 0.01μm can be removed, the residual content of oil mist does not exceed 0.001mg/m³(21ºC),0.001ppm(w) | Dust particles whose diameter more than 0.01μm, oil vapor &odor can be removed, the maxi. resident content of oil vapor does not exceed 0.003mg/m³(21ºC),0.003ppm(w) | Dust particles whose diameter more than 1μm can be removed | Dust particles whose diameter more than 0.01μm can be removed |
International test and measurement standard ISO12500
>ISO 12500 has made clear a general test and definition method for the compressed air filter manufacturers. The main performance
parameters are the air inlet oil content and particles size distribution of the solid particles.
>ISO12500-1 specifies the test requirements for the filtration performance of oil aerosol in the coalescing filter.
>ISO12500-2 specifies the test requirements of adsorption filters for the removal performance of steam adsorption.
>ISO12500-3 specifies the requirements for removal of particulate matter from solid pullutants.
Product are test with the international advanced testing equipment based on standard ISO12500, Which is equivalent to the standard
ISO8573.1-2010 quality standard, and provide filter performance test report.
| Filtration Grade | PF | AO | AA | AX | ACS | AR | AAR |
| Size of solid particles(ISO12500-3) | 5μm | 1μm | 0.01μm | 0.01μm | - | 1μm | 0.01μm |
| Filtration performance of solid particles(ISO12500-3) | - | 99.999+% | 99.999+% | 99.999+% | 99.999+% | 99.999+% | 99.999+% |
| Filtration performance of oil(ISO12500-1) | 50% | 80+% | 99.9+% | 99.99+% | - | - | - |
| Residual oil content(ISO12500-1) | 5mg/m³ | 0.6mg/m³ | <0.01mg/m³ | <0.001mg/m³ | <0.004mg/m³ | - | - |
Technical Specification
The flow rate below is the treatment capacity of compressed air under rated working pressure 7bar g(100psi g).
For the application in other working pressure, please refer to the correction factors.
| Model | Pipe size | Flow rates | Dimension (mm) | |||||||
| L/S | m³/min | scfm | W (Width) | D (Depth) | H (Height) | A | B | C | ||
| DT009 | RC1/4" | 5.0 | 0.3 | 10.6 | 80.6 | 69.0 | 224.1 | 24.6 | 173.9 | 50.5 |
| DT010 | RC3/8" | 10.0 | 0.6 | 21.2 | 80.6 | 69.0 | 224.1 | 24.6 | 173.9 | 50.5 |
| DT011 | RC1/2" | 20.0 | 1.2 | 42.4 | 108.2 | 93.3 | 275.3 | 30.1 | 220.6 | 53.3 |
| DT012 | RC3/4" | 25.1 | 1.5 | 53.0 | 108.2 | 93.3 | 275.3 | 30.1 | 220.6 | 53.3 |
| DT013 | RC1/2" | 30.1 | 1.8 | 63.5 | 108.2 | 93.3 | 315.3 | 30.1 | 260.6 | 53.3 |
| DT014 | RC3/4" | 33.4 | 2.0 | 70.6 | 108.2 | 93.3 | 315.3 | 30.1 | 260.6 | 53.3 |
| DT015 | RC3/4" | 46.8 | 2.8 | 98.8 | 133.0 | 113.9 | 399.6 | 40.7 | 291 | 59.6 |
| DT016 | RC1" | 60.1 | 3.6 | 127.1 | 133.0 | 113.9 | 399.6 | 40.7 | 291 | 59.6 |
| DT017 | RC1" | 80.2 | 4.8 | 169.4 | 133.0 | 113.9 | 468.4 | 40.7 | 359.8 | 59.6 |
| DT018 | RC1-1/2" | 100.2 | 6.0 | 211.8 | 133.0 | 113.9 | 468.4 | 40.7 | 359.8 | 59.6 |
| DT019 | RC1-1/2" | 125.3 | 7.5 | 264.8 | 133.0 | 113.9 | 533.7 | 40.7 | 425.3 | 59.6 |
| DT020 | RC2" | 200.0 | 12.0 | 424.0 | 170.0 | 158.3 | 783.1 | 52.9 | 623.0 | 59.6 |
| DT021 | RC2" | 266.7 | 16.0 | 565.3 | 170.0 | 158.3 | 1065.4 | 52.9 | 945.3 | 59.6 |
| DT022 | RC2-1/2" | 316.7 | 19.0 | 671.3 | 170.0 | 158.3 | 1065.4 | 52.9 | 945.3 | 59.6 |
| Technical requirements | Maximum operating pressure: 10 barg Operating temperature: from 1.5~80°C | |||||||||
| Pressure | Barg | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
| Psig | 15 | 29 | 44 | 59 | 73 | 87 | 100 | 116 | 131 | 145 | 160 | 174 | 189 | 203 | 219 | 232 | |
| Correction factor | 0.38 | 0.53 | 0.65 | 0.76 | 0.85 | 0.93 | 1.00 | 1.07 | 1.13 | 1.19 | 1.23 | 1.31 | 1.36 | 1.41 | 1.46 | 1.51 | |

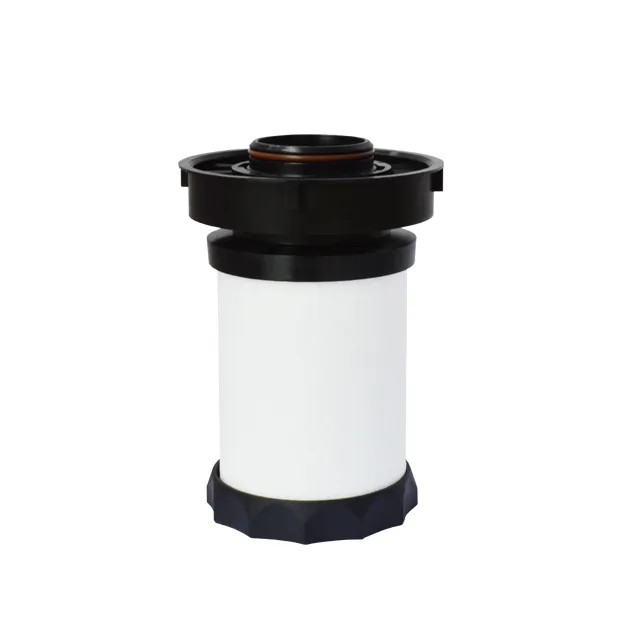

Filter Element ( AO Grade for example )
YUKA CE & ISO9001-2015 CertificateFeature:
1. Borosilicate fiber glass mater, with 96 % Porosity ensure the filtration performance accordance air purity level with ISO8573.1-2010 standard
2. GA+PF Material top cap, could work well under the harsh working conditions. Specially Strong acid and alkali, high temperature and low temperature environment.
3. Double support stainless steel mesh, protect element itself with medium pressure, improve the strength and make sure the filter performance.
4.Fluororubber Sealing ring, with optimize feature and improve air tight well.
1. Borosilicate fiber glass mater, with 96 % Porosity ensure the filtration performance accordance air purity level with ISO8573.1-2010 standard
2. GA+PF Material top cap, could work well under the harsh working conditions. Specially Strong acid and alkali, high temperature and low temperature environment.
3. Double support stainless steel mesh, protect element itself with medium pressure, improve the strength and make sure the filter performance.
4.Fluororubber Sealing ring, with optimize feature and improve air tight well.
YUKA Patents
YUKA Facility
YUKA Exhibitions in Shanghai ComVac Asia & Hannover Messe
YUKA service:
a. Providing professional consultation, technical support and special solutions
b. Providing timely feedback on complaints
c. Providing perfect after sales service and warranty
Q:Why choose us?
a. 22 years' practical experiences in R&D and manufacturing Compressed air treatment;
b. Founder of Compressed Air Nation Standard GB/T30475.1-2013 and GB/T30475.2-2013;
c. ISO 9001:2015, CE and product follow ISO8573-1;
d. With Germany Imported high efficiency filtration Test Instrument;
e.All goods had been 100% test before dispatched.
Frequently Asked Questions:
Q1. What kind of your company is it?
We're the manufacturer integrated with R&D, production and sales.
Q2. How about your technical conditions and production capability?
Complete process documents and equipment, mass production.
Q3. What is the delivery time?
Delivery time depends on the order quantity, normally is 3-5 working days after 30% payment.
Q4. Do you have a warranty?
Yes, for filter, it is 1 year normally.
Q5. Can you supply customized product?
Yes, we have a professional technical team to provide you with the best solution and complete production processes and control to provide you with satisfied product.
