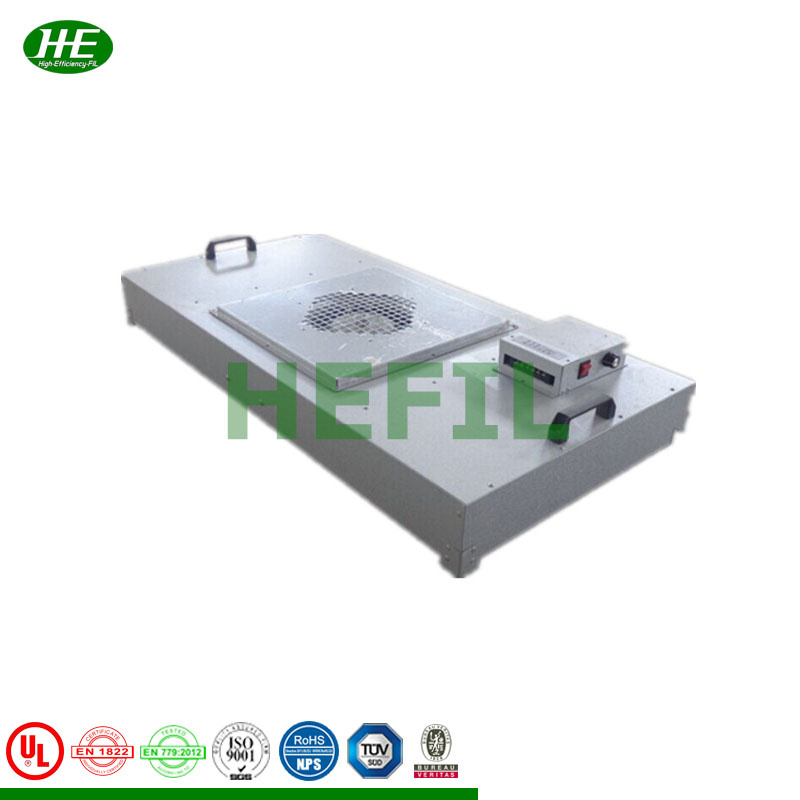

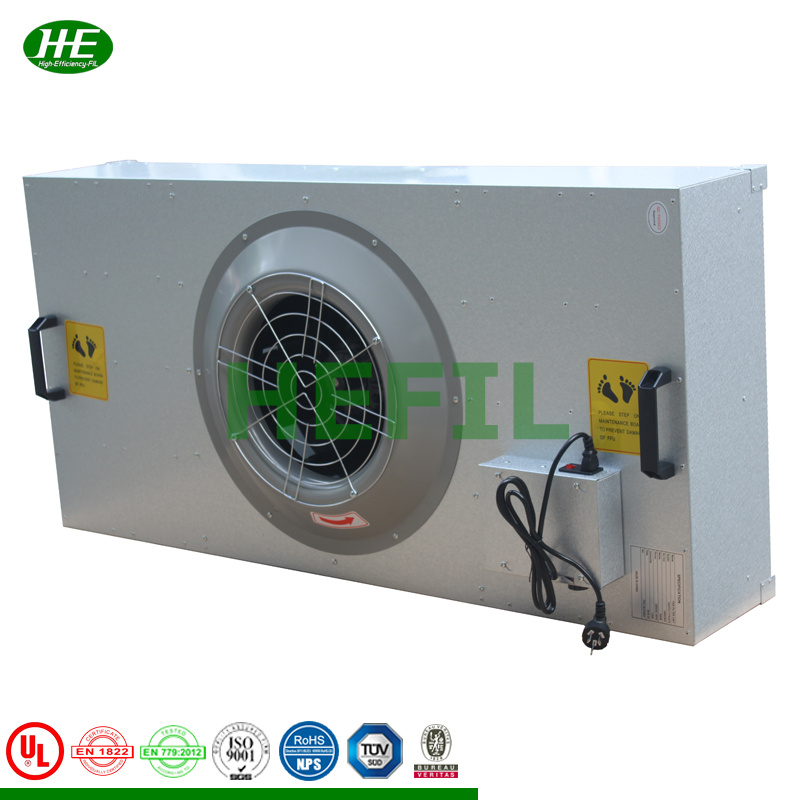

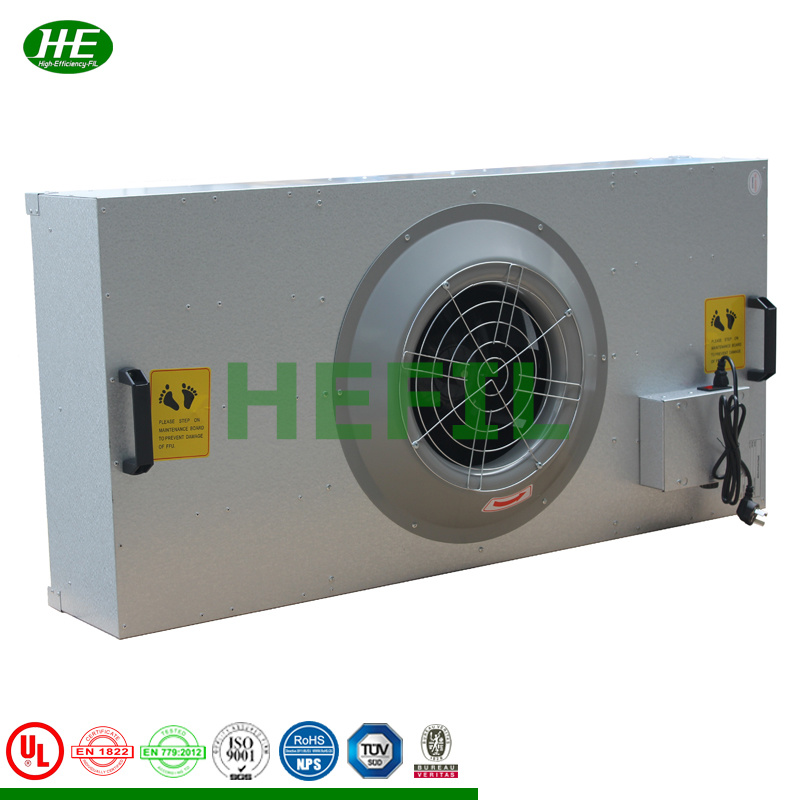

Industrial Motorized Blower Exhaust HEPA Fan Filter Unit FFU
AdvantagesFFU consists of high performance AC fan, professionally designed box and HEPA/ULPA filter.Outer casing is made of galvalume sheet, stainless steel or aviation aluminum.Apply powerful fan, makes the whole equipment keep long-term operation under high static pressure and maintain a low noise......
Send Inquiry
Product Description
Advantages
FFU consists of high performance AC fan, professionally designed box and HEPA/ULPA filter.
Outer casing is made of galvalume sheet, stainless steel or aviation aluminum.
Apply powerful fan, makes the whole equipment keep long-term operation under high static pressure and maintain a low noise (≤50 dB (A)) at the same time.
Low noise, low power consumption, small vibration, strong intensity, maintenance free.
Uniform air speed, stable operation. In addition, continuously variability of air speed is available.
Structure is compact and firm; Installation is easy and convenient.
Three-speed control or continuously viable.
Material Instructions
Casing material: Galvalume sheet, stainless steel or aviation aluminum.
Fan: Domestic motor or imported motor.
Filter material: Ultra-fine fiberglass or PTFE.
Filter efficiency: H13~U17.
Sealing gasket: Sealing gasket in double air supply sides.
Temperature: Maximum 90°C in continuous service.
Application
Suitable to a variety of clean rooms from Class 10,000 to
Class 1. FFU system is convenient and flexible, can be
applied to any structure and level of clean room. It can also
be used to other cleaning devices, such as portable clean
rooms, clean bench, clean corridors and so on.

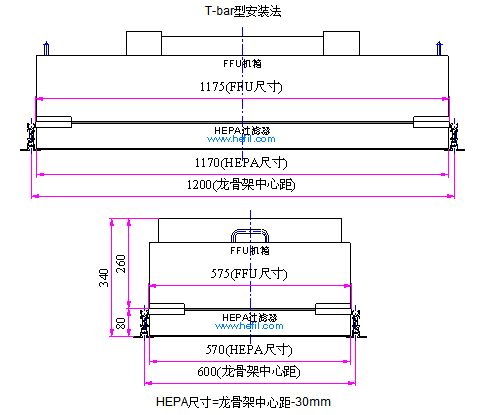

Structure Drawings
Note: 1. In case of specifications or structures changes, HEFIL will provide up-to-date data on website: hefilter.en.made-in-china.com.
2. HEFIL makes various of other models' FFU filter not listed in above table. Please consult with us if you need.
FFU consists of high performance AC fan, professionally designed box and HEPA/ULPA filter.
Outer casing is made of galvalume sheet, stainless steel or aviation aluminum.
Apply powerful fan, makes the whole equipment keep long-term operation under high static pressure and maintain a low noise (≤50 dB (A)) at the same time.
Low noise, low power consumption, small vibration, strong intensity, maintenance free.
Uniform air speed, stable operation. In addition, continuously variability of air speed is available.
Structure is compact and firm; Installation is easy and convenient.
Three-speed control or continuously viable.
Material Instructions
Casing material: Galvalume sheet, stainless steel or aviation aluminum.
Fan: Domestic motor or imported motor.
Filter material: Ultra-fine fiberglass or PTFE.
Filter efficiency: H13~U17.
Sealing gasket: Sealing gasket in double air supply sides.
Temperature: Maximum 90°C in continuous service.
Application
Suitable to a variety of clean rooms from Class 10,000 to
Class 1. FFU system is convenient and flexible, can be
applied to any structure and level of clean room. It can also
be used to other cleaning devices, such as portable clean
rooms, clean bench, clean corridors and so on.
Structure Drawings
| Common Specifications | ||||||
| Model | FFU-HA24 | FFU-HA44 | FFU-HA22 | |||
| Dimensions (mm) | 1175×575×270 | 1175×1175×270 | 575×575×270 | |||
Face Velocity (m/s) | Low | High | Low | High | Low | High |
| 0.35 | 0.55 | 0.35 | 0.55 | 0.35 | 0.55 | |
Noise (dB(A)) | ≤46 | ≤52 | ≤48 | ≤54 | ≤46 | ≤52 |
| Power Supply | AC, 1Ф-220V/50Hz | |||||
| Power Consumption (W) | 100~120 | 200~245 | 75~90 | |||
| Host Weight (kg) | 25 | 45 | 15 | |||
| HEPA Filter Efficiency | 99.99~99.999%@0.3μm | |||||
| HEPA Filter Specification (mm) | 1170×570×80/70 | 1170×1170×80/70 | 570×570×80/70 | |||
| HEPA Filter Weight (kg) | 9.5 | 17 | 5.2 | |||
External State Pressure (Pa) | 98 | |||||
Note: 1. In case of specifications or structures changes, HEFIL will provide up-to-date data on website: hefilter.en.made-in-china.com.
2. HEFIL makes various of other models' FFU filter not listed in above table. Please consult with us if you need.
