Manufacture Cement Silo Top Air Pleated Dust Bag Filter Cartridge
manufacture Cement Silo Top Air Pleated Dust Bag Filter CartridgeDeveloped to replace traditional filter bags and cages, each pleated bag filter has a one-piece construction design which allows it to be used in new systems or as a simple retrofit in existing bag house equipment for improved system p......
Send Inquiry
Product Description
manufacture Cement Silo Top Air Pleated Dust Bag Filter Cartridge
Developed to replace traditional filter bags and cages, each pleated bag filter has a one-piece construction design which allows it to be used in new systems or as a simple retrofit in existing bag house equipment for improved system performance.
Cement Silo Top Air Pleated Dust Bag Filter Cartridge offer more filtration media than traditional felt bags increasing the filtration surface area and thus the filtration capacity. With up to 2-3 times the filter life over traditional 16 oz. polyester felt bags, pleated bag filters provide almost twice as much filtration area in existing equipment due to increased media in the pleat pack design.
Filter Media Type of Cement Silo Top Air Pleated Dust Bag Filter Cartridge:
Water and oil repellent treatment.
Antistatic treatment.
PTFE membrane treatment.
Features of Pleated Bag Filters Washable Air Bag Filter:
(1) World famous brand filter media: 100% spun bond polyester Smooth surface of filters.
(2) Highest filter efficiency more than 99.99% Proper number of pleats, wide and rigid pleats Large Length-to-OD ratio.
(3) Offers excellent dust release Incorporate design according to requirements Various installation options available.
(4) Airtight gasket accessories available.Applications in many temperatures conditions.
Specification of manufacture Pleated Bag Filters:
Remarks: The following are commonly used filter cartridge specifications, and there are many products that cannot be listed one by one. Please consult directly.
Applications of Pleated Washable Air Bag Filter :

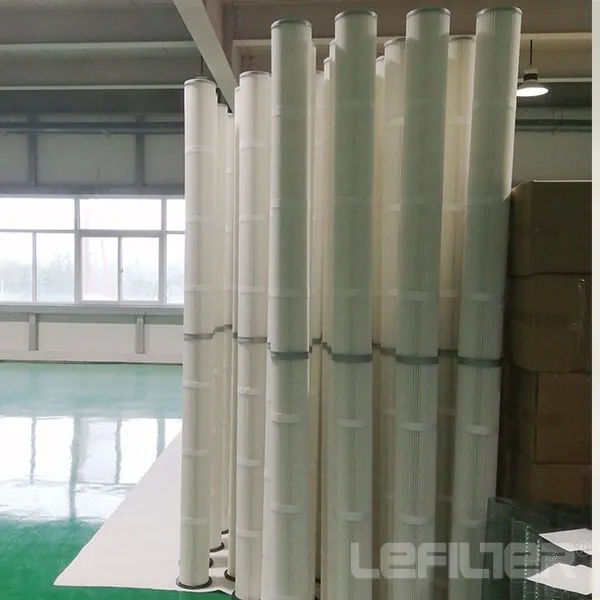

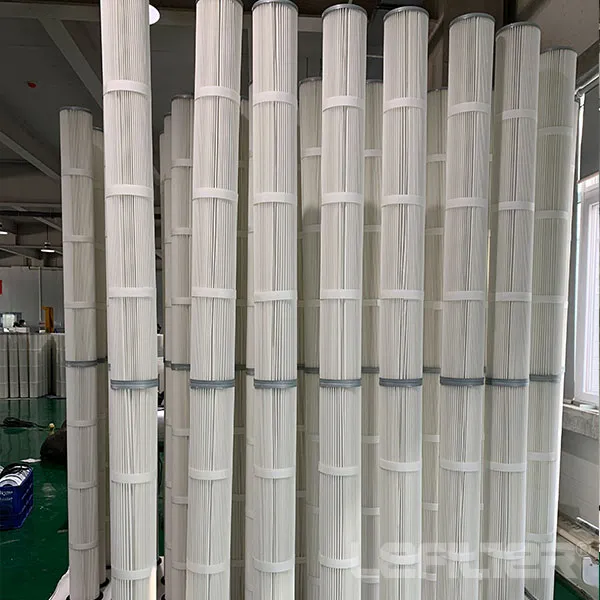

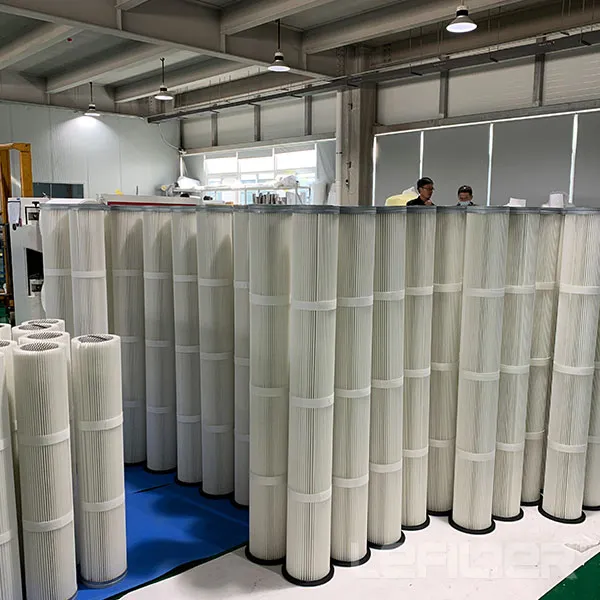

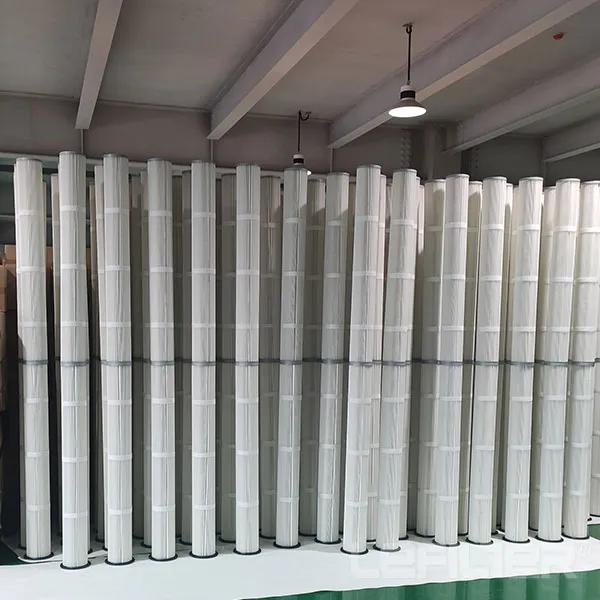

Photo shows :
other popular filter recommends to you :
P191920-016-436 filter cartridge
P199474-016-436 Donaldson filter cartridge
Replacement for Torit P191889 Oval Industrial Cartridge Filter
Donaldson P031791-016-436 - Ultra-Web Spunbond Oval Cartridge Filter
Donaldson replacement Oval filter cartridge P191889
Replace Donaldson Air Filter cartridge P191177&P191178
P034077-016-436 Flame Retardant Oval Cartridge Filter
Replacement Donaldson P191920 Dust Collector Filter
P191037 Donaldson dust collector cartridge filter
P191238 Donaldson filter conical
Donaldson replacement filters P03-0254 for Pulstar Systems
air filter (Donaldson) p/n P030085
Ultra - Web Cartridge Dust Collector Filters
Donaldson P19-1889-016-436
Donaldson 2625115
Donaldson P191889-016-436 - Ultra-Web Oval Cartridge Filter
P190848-016-525
Donaldson Cartridge Filter P19-0848
COMPOSITE FILTERS P19-0844
Composite Filter Donaldson P19-0856
Donaldson Spider Web Cylindrical Cartridge Filter P19-0848
Donaldson 262-5026
Donaldson P533930 AIR FILTER
Donaldson P785394 AIR FILTER
Donaldson P785390 AIR FILTER
P785391 Donaldson AIR FILTER
Donaldson P181039 AIR FILTER
P19-1280 AIR FILTER ELEMENT CYLINDRICAL
P19-1281 AIR FILTER ELEMENT CONICAL
cement factory dust collector filter element P191037
Filter Donaldson P19-1249
P191107 CONICAL REPLACEMENT FILTER FOR DONALDSON GDX/GDS SERIES DUST COLLERTOR CARTRIDGE
P191033 CYLINDRICAL REPLACEMENT FILTER FOR DONALDSON GDX/GDS SERIES DUST COLLERTOR CARTRIDGE
Donaldson P034303-016-436
Donaldson P783648 Filter
Donaldson Spunbond Washable Triagonal Filter P034310-016-436
Air filter dust collector filter cartridge P783648
P190818-016-436 Industrial Dust Filter Cartridge
P199415-016-429 Oval Cartridge Filter
P191889 000111 Oval Cartridge Filter
P19-0979 conical prefilter wrap donaldson filter
Donaldson P52-7750 Intake Air Filter Elements
p191238 filters cartridge round conical
Donaldson P191115-016-340 filter
P134507-016-340
Donaldson P191889 filter
Donaldson replacement filters P03-0254
P030615 Donaldson
Donaldson P030607-016-002
donaldson p191178
Donaldson P145891 CARTRIDGE AIR FILTER
Donaldson P520444 CARTRIDGE FILTER COMPRESSOR
Cylindrical Filter P145891 Donaldson Air Filter Catridge For BMR Compressor
P145891-016-436
Conical Filter 520444
Filter Donaldson P191889-016-436
Element Donaldson P19-0856
Donaldson Torit P191295 FILTER ELEMENT AIR INTAKE
Northern Blower Winnipeg Manitoba. Plant P19-0884-016-426 Filter for dust collector
CYLINDRICAL FILTER ELEMENT P03-0278 (P19-0844+P03-0050)
We manufacture a complete line of Cellulose, Polyester, Synthetic, Coated and Non-Woven Cartridges to fit most cartridge collectors in the marketplace today. Each type of cartridge is designed with a specific application in mind.
The sample can be sent as support ,please contact us now
Developed to replace traditional filter bags and cages, each pleated bag filter has a one-piece construction design which allows it to be used in new systems or as a simple retrofit in existing bag house equipment for improved system performance.
Cement Silo Top Air Pleated Dust Bag Filter Cartridge offer more filtration media than traditional felt bags increasing the filtration surface area and thus the filtration capacity. With up to 2-3 times the filter life over traditional 16 oz. polyester felt bags, pleated bag filters provide almost twice as much filtration area in existing equipment due to increased media in the pleat pack design.
Filter Media Type of Cement Silo Top Air Pleated Dust Bag Filter Cartridge:
Water and oil repellent treatment.
Antistatic treatment.
PTFE membrane treatment.
Features of Pleated Bag Filters Washable Air Bag Filter:
(1) World famous brand filter media: 100% spun bond polyester Smooth surface of filters.
(2) Highest filter efficiency more than 99.99% Proper number of pleats, wide and rigid pleats Large Length-to-OD ratio.
(3) Offers excellent dust release Incorporate design according to requirements Various installation options available.
(4) Airtight gasket accessories available.Applications in many temperatures conditions.
Specification of manufacture Pleated Bag Filters:
| Model | Filter area | Length | Cartridge (2mLength) | Media Weight | Air permeability | Media type |
| LF-P1 | 2.3m2 | 1m | 135ºC | 270g/m2 | 7m3/m2/min 12mm WC | Spun bond polyester |
| LF-P2 | 4.6m2 | 2m | 135ºC | 270g/m2 | 7m3/m2/min 12mm WC | Spun bond polyester |
| LF-D1 | 2.3m2 | 1m | 135ºC | 270g/m2 | 7m3/m2/min 12mm WC | Antistatic Spun bond polyester |
| LF-D2 | 4.6m2 | 2m | 135ºC | 270g/m2 | 7m3/m2/min 12mm WC | Antistatic Spun bond polyester |
| LF-F1 | 2.3m2 | 1m | 135ºC | 270g/m2 | 7m3/m2/min 12mm WC | Spun bond polyester + PTFE |
| LF-F2 | 4.6m2 | 2m | 135ºC | 270g/m2 | 7m3/m2/min 12mm WC | Spun bond polyester + PTFE |
| LF-N1 | 2.3m2 | 1m | 190ºC | 500g/m2 | 7m3/m2/min 12mm WC | |
| LF-N2 | 4.6m2 | 2m | 190ºC | 500g/m2 | 12m3/m2/min 12.7mm WC |
Remarks: The following are commonly used filter cartridge specifications, and there are many products that cannot be listed one by one. Please consult directly.
Applications of Pleated Washable Air Bag Filter :
| 1.Cement and rock |
| Crush/Grind Coal mill Raw mill/Cement mill Clay crushed |
| Packaging machine Bentonite crushed Kaolin processing |
| Ventilation and dust removal of silo top Material handling / shipping |
| 2.Aluminum plant |
| Fluidized bed dry-cleaning tower The venturi jet dry-cleaning tower |
| Self-baking dry-cleaning tower Carbon dust processing |
| Broken and ventilation of anode Reaction / non-reaction mine shafts prebaked |
| 3.Food / Medical |
| Food Additives Cereal drying Protein spray drying Grain processing |
| Flour Animal vitamins Sugar-coated tablets |
| 4.Metallurgy |
| Electric arc furnace Blast furnace Sulfur removal furnace Casting machine |
| Induction furnace Mold cooling line Blasting / Polishing Drum furnace |
| Sand production/recycling |
| 5.Chemical industry |
| Fertilizer spray drying Plastic fiber Bleaching powder Cellulose |
| Polyethylene resin Polystyrene staple Coke / briquettes processing Packaging line |
| Tire / Special rubber PVC Catalyst processing |
| 6.Paint / Pigment |
| Black powder mixing / agitation Packaging line Pneumatic conveying Paint mixing |
| Pigment stir Spray drying Micro powder mill |
other popular filter recommends to you :
P191920-016-436 filter cartridge
P199474-016-436 Donaldson filter cartridge
Replacement for Torit P191889 Oval Industrial Cartridge Filter
Donaldson P031791-016-436 - Ultra-Web Spunbond Oval Cartridge Filter
Donaldson replacement Oval filter cartridge P191889
Replace Donaldson Air Filter cartridge P191177&P191178
P034077-016-436 Flame Retardant Oval Cartridge Filter
Replacement Donaldson P191920 Dust Collector Filter
P191037 Donaldson dust collector cartridge filter
P191238 Donaldson filter conical
Donaldson replacement filters P03-0254 for Pulstar Systems
air filter (Donaldson) p/n P030085
Ultra - Web Cartridge Dust Collector Filters
Donaldson P19-1889-016-436
Donaldson 2625115
Donaldson P191889-016-436 - Ultra-Web Oval Cartridge Filter
P190848-016-525
Donaldson Cartridge Filter P19-0848
COMPOSITE FILTERS P19-0844
Composite Filter Donaldson P19-0856
Donaldson Spider Web Cylindrical Cartridge Filter P19-0848
Donaldson 262-5026
Donaldson P533930 AIR FILTER
Donaldson P785394 AIR FILTER
Donaldson P785390 AIR FILTER
P785391 Donaldson AIR FILTER
Donaldson P181039 AIR FILTER
P19-1280 AIR FILTER ELEMENT CYLINDRICAL
P19-1281 AIR FILTER ELEMENT CONICAL
cement factory dust collector filter element P191037
Filter Donaldson P19-1249
P191107 CONICAL REPLACEMENT FILTER FOR DONALDSON GDX/GDS SERIES DUST COLLERTOR CARTRIDGE
P191033 CYLINDRICAL REPLACEMENT FILTER FOR DONALDSON GDX/GDS SERIES DUST COLLERTOR CARTRIDGE
Donaldson P034303-016-436
Donaldson P783648 Filter
Donaldson Spunbond Washable Triagonal Filter P034310-016-436
Air filter dust collector filter cartridge P783648
P190818-016-436 Industrial Dust Filter Cartridge
P199415-016-429 Oval Cartridge Filter
P191889 000111 Oval Cartridge Filter
P19-0979 conical prefilter wrap donaldson filter
Donaldson P52-7750 Intake Air Filter Elements
p191238 filters cartridge round conical
Donaldson P191115-016-340 filter
P134507-016-340
Donaldson P191889 filter
Donaldson replacement filters P03-0254
P030615 Donaldson
Donaldson P030607-016-002
donaldson p191178
Donaldson P145891 CARTRIDGE AIR FILTER
Donaldson P520444 CARTRIDGE FILTER COMPRESSOR
Cylindrical Filter P145891 Donaldson Air Filter Catridge For BMR Compressor
P145891-016-436
Conical Filter 520444
Filter Donaldson P191889-016-436
Element Donaldson P19-0856
Donaldson Torit P191295 FILTER ELEMENT AIR INTAKE
Northern Blower Winnipeg Manitoba. Plant P19-0884-016-426 Filter for dust collector
CYLINDRICAL FILTER ELEMENT P03-0278 (P19-0844+P03-0050)
We manufacture a complete line of Cellulose, Polyester, Synthetic, Coated and Non-Woven Cartridges to fit most cartridge collectors in the marketplace today. Each type of cartridge is designed with a specific application in mind.
The sample can be sent as support ,please contact us now
