Manufacture Pleated Bag Filters Washable Air Bag Filter for Cement Dust
manufacture Pleated Bag Filters Washable Air Bag Filter For Cement DustDeveloped to replace traditional filter bags and cages, each pleated bag filter has a one-piece construction design which allows it to be used in new systems or as a simple retrofit in existing bag house equipment for improved sy......
Send Inquiry
Product Description
manufacture Pleated Bag Filters Washable Air Bag Filter For Cement Dust
Developed to replace traditional filter bags and cages, each pleated bag filter has a one-piece construction design which allows it to be used in new systems or as a simple retrofit in existing bag house equipment for improved system performance.
Pleated bag filters offer more filtration media than traditional felt bags increasing the filtration surface area and thus the filtration capacity. With up to 2-3 times the filter life over traditional 16 oz. polyester felt bags, pleated bag filters provide almost twice as much filtration area in existing equipment due to increased media in the pleat pack design.
Filter Media Type of Pleated Bag Filters Washable Air Bag Filter For Cement Dust:
Water and oil repellent treatment.
Antistatic treatment.
PTFE membrane treatment.
Features of Pleated Bag Filters Washable Air Bag Filter:
(1) World famous brand filter media: 100% spun bond polyester Smooth surface of filters.
(2) Highest filter efficiency more than 99.99% Proper number of pleats, wide and rigid pleats Large Length-to-OD ratio.
(3) Offers excellent dust release Incorporate design according to requirements Various installation options available.
(4) Airtight gasket accessories available.Applications in many temperatures conditions.
Specification of manufacture Pleated Bag Filters:
Remarks: The following are commonly used filter cartridge specifications, and there are many products that cannot be listed one by one. Please consult directly.
Applications of Pleated Washable Air Bag Filter :

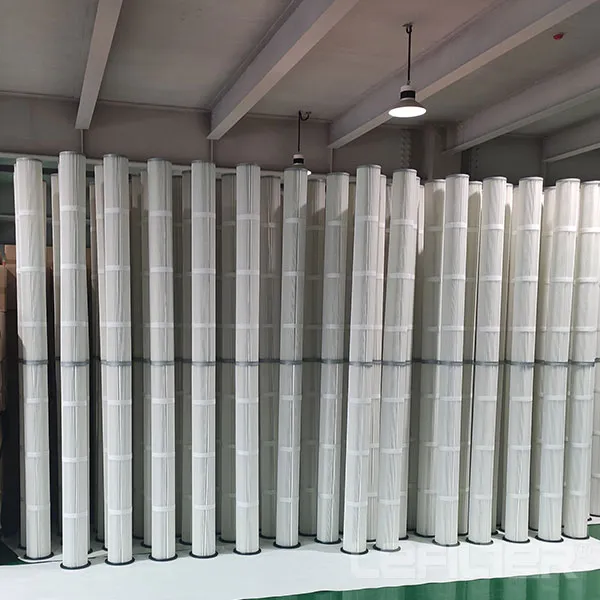

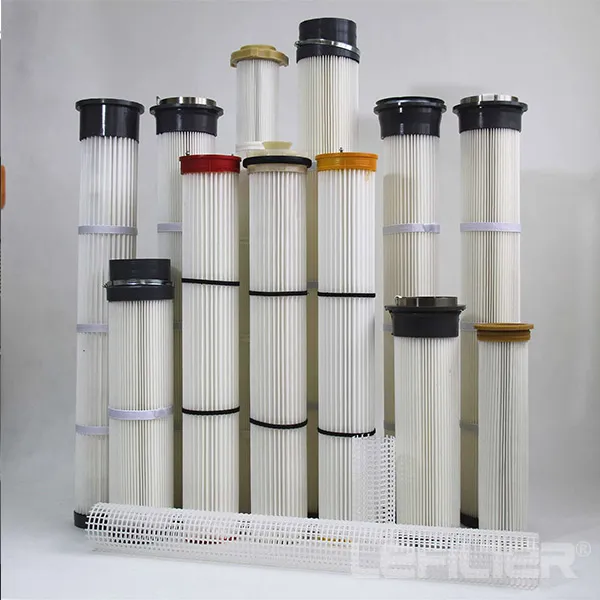

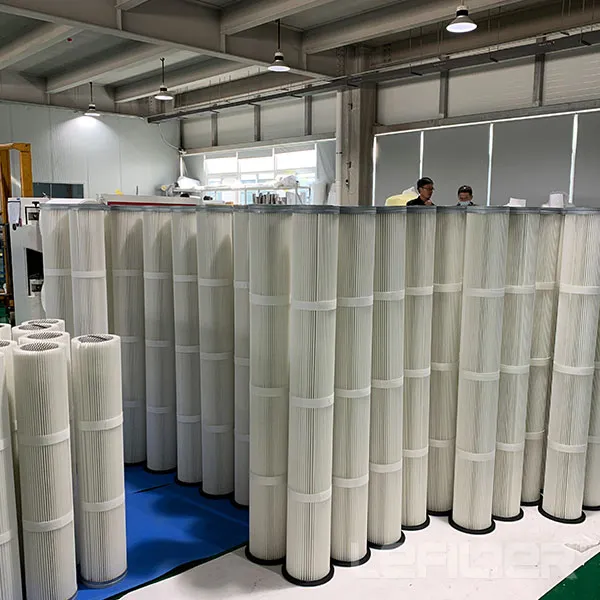

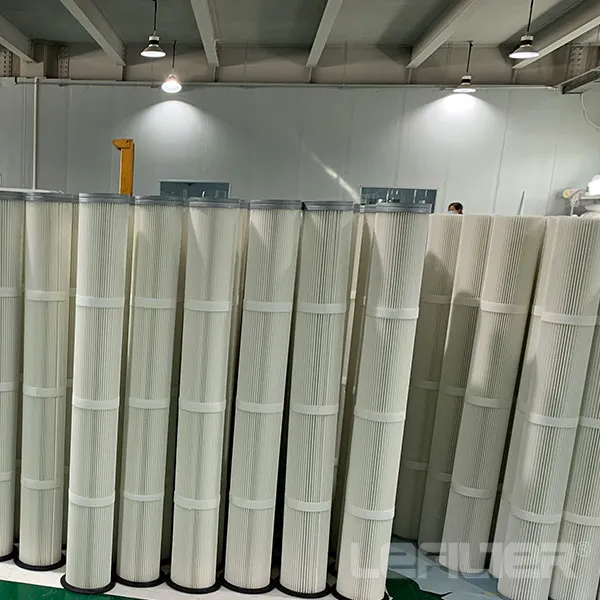

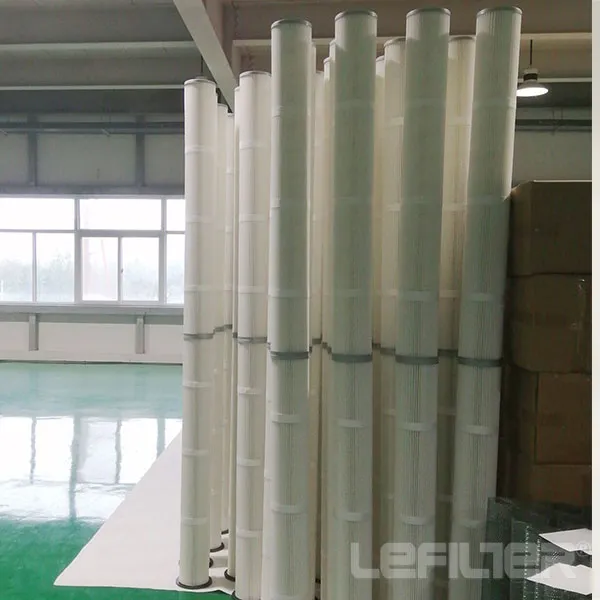

Photo shows :
other popular filter recommends to you :
P191920-016-436 filter cartridge
P199474-016-436 Donaldson filter cartridge
Replacement for Torit P191889 Oval Industrial Cartridge Filter
Donaldson P031791-016-436 - Ultra-Web Spunbond Oval Cartridge Filter
Donaldson replacement Oval filter cartridge P191889
Replace Donaldson Air Filter cartridge P191177&P191178
P034077-016-436 Flame Retardant Oval Cartridge Filter
Replacement Donaldson P191920 Dust Collector Filter
P191037 Donaldson dust collector cartridge filter
P191238 Donaldson filter conical
Donaldson replacement filters P03-0254 for Pulstar Systems
air filter (Donaldson) p/n P030085
Ultra - Web Cartridge Dust Collector Filters
Donaldson P19-1889-016-436
Donaldson 2625115
Donaldson P191889-016-436 - Ultra-Web Oval Cartridge Filter
P190848-016-525
Donaldson Cartridge Filter P19-0848
COMPOSITE FILTERS P19-0844
Composite Filter Donaldson P19-0856
Donaldson Spider Web Cylindrical Cartridge Filter P19-0848
Donaldson 262-5026
Donaldson P533930 AIR FILTER
Donaldson P785394 AIR FILTER
Donaldson P785390 AIR FILTER
P785391 Donaldson AIR FILTER
Donaldson P181039 AIR FILTER
P19-1280 AIR FILTER ELEMENT CYLINDRICAL
P19-1281 AIR FILTER ELEMENT CONICAL
cement factory dust collector filter element P191037
Filter Donaldson P19-1249
cylindrical filter element P030174
Replacement filter for Donaldson P191920
Donaldson P191920 Ultra-Web Flame Retardant Oval Cartridge Filter
P14-7320 Donaldson replacement
P191889000111 Donaldson cartridge filter P191889 000111
Donaldson P191889-016-436
equivalent DONALDSON - P191280-016-190
equivalent DONALDSON - P191281-016-190
Donaldson P191920-016-436
Donaldson air filter P191995
Replacement of P191115 Donaldson air filter
P147320 Barrier Element Filter (Part no: P147320 / P19-006)
P19-1280 Cylindrical Filter Element
Generator Pre-Filter AM-AIR300
P199415-016-429
P030915-016-436
We manufacture a complete line of Cellulose, Polyester, Synthetic, Coated and Non-Woven Cartridges to fit most cartridge collectors in the marketplace today. Each type of cartridge is designed with a specific application in mind.
The sample can be sent as support ,please contact us now
Developed to replace traditional filter bags and cages, each pleated bag filter has a one-piece construction design which allows it to be used in new systems or as a simple retrofit in existing bag house equipment for improved system performance.
Pleated bag filters offer more filtration media than traditional felt bags increasing the filtration surface area and thus the filtration capacity. With up to 2-3 times the filter life over traditional 16 oz. polyester felt bags, pleated bag filters provide almost twice as much filtration area in existing equipment due to increased media in the pleat pack design.
Filter Media Type of Pleated Bag Filters Washable Air Bag Filter For Cement Dust:
Water and oil repellent treatment.
Antistatic treatment.
PTFE membrane treatment.
Features of Pleated Bag Filters Washable Air Bag Filter:
(1) World famous brand filter media: 100% spun bond polyester Smooth surface of filters.
(2) Highest filter efficiency more than 99.99% Proper number of pleats, wide and rigid pleats Large Length-to-OD ratio.
(3) Offers excellent dust release Incorporate design according to requirements Various installation options available.
(4) Airtight gasket accessories available.Applications in many temperatures conditions.
Specification of manufacture Pleated Bag Filters:
| Model | Filter area | Length | Cartridge (2mLength) | Media Weight | Air permeability | Media type |
| LF-P1 | 2.3m2 | 1m | 135ºC | 270g/m2 | 7m3/m2/min 12mm WC | Spun bond polyester |
| LF-P2 | 4.6m2 | 2m | 135ºC | 270g/m2 | 7m3/m2/min 12mm WC | Spun bond polyester |
| LF-D1 | 2.3m2 | 1m | 135ºC | 270g/m2 | 7m3/m2/min 12mm WC | Antistatic Spun bond polyester |
| LF-D2 | 4.6m2 | 2m | 135ºC | 270g/m2 | 7m3/m2/min 12mm WC | Antistatic Spun bond polyester |
| LF-F1 | 2.3m2 | 1m | 135ºC | 270g/m2 | 7m3/m2/min 12mm WC | Spun bond polyester + PTFE |
| LF-F2 | 4.6m2 | 2m | 135ºC | 270g/m2 | 7m3/m2/min 12mm WC | Spun bond polyester + PTFE |
| LF-N1 | 2.3m2 | 1m | 190ºC | 500g/m2 | 7m3/m2/min 12mm WC | |
| LF-N2 | 4.6m2 | 2m | 190ºC | 500g/m2 | 12m3/m2/min 12.7mm WC |
Remarks: The following are commonly used filter cartridge specifications, and there are many products that cannot be listed one by one. Please consult directly.
Applications of Pleated Washable Air Bag Filter :
| 1.Cement and rock |
| Crush/Grind Coal mill Raw mill/Cement mill Clay crushed |
| Packaging machine Bentonite crushed Kaolin processing |
| Ventilation and dust removal of silo top Material handling / shipping |
| 2.Aluminum plant |
| Fluidized bed dry-cleaning tower The venturi jet dry-cleaning tower |
| Self-baking dry-cleaning tower Carbon dust processing |
| Broken and ventilation of anode Reaction / non-reaction mine shafts prebaked |
| 3.Food / Medical |
| Food Additives Cereal drying Protein spray drying Grain processing |
| Flour Animal vitamins Sugar-coated tablets |
| 4.Metallurgy |
| Electric arc furnace Blast furnace Sulfur removal furnace Casting machine |
| Induction furnace Mold cooling line Blasting / Polishing Drum furnace |
| Sand production/recycling |
| 5.Chemical industry |
| Fertilizer spray drying Plastic fiber Bleaching powder Cellulose |
| Polyethylene resin Polystyrene staple Coke / briquettes processing Packaging line |
| Tire / Special rubber PVC Catalyst processing |
| 6.Paint / Pigment |
| Black powder mixing / agitation Packaging line Pneumatic conveying Paint mixing |
| Pigment stir Spray drying Micro powder mill |
