Medium Material Glass Fiber Pocket Filter and Manufacturer Customized Bag Air Filter
APPLICATION Glass fiber bag filter is used in air treatment cabinets, air conditioning systems, public areas, and as a pre-filter in cleanrooms and the pharmaceuticals industry.Features:Make sure that the eco70 serie bag filter is fitted correctly: Suction side - clean air sideFilter should be cor......
Send Inquiry
Product Description
APPLICATION

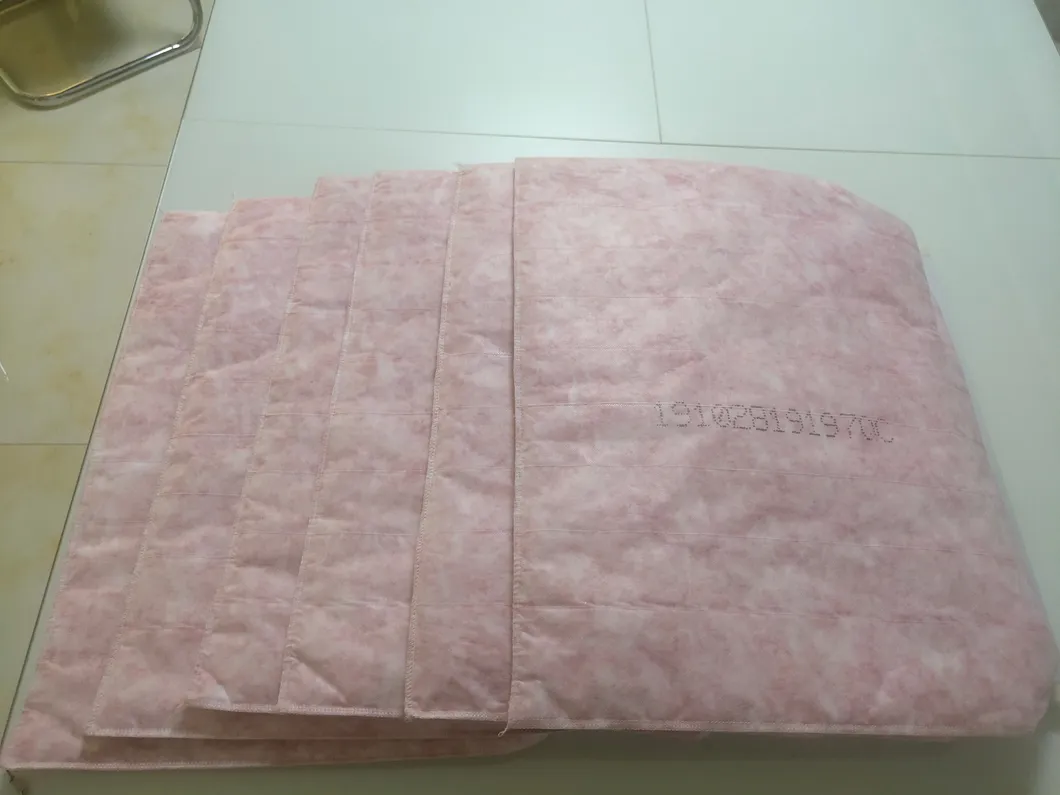

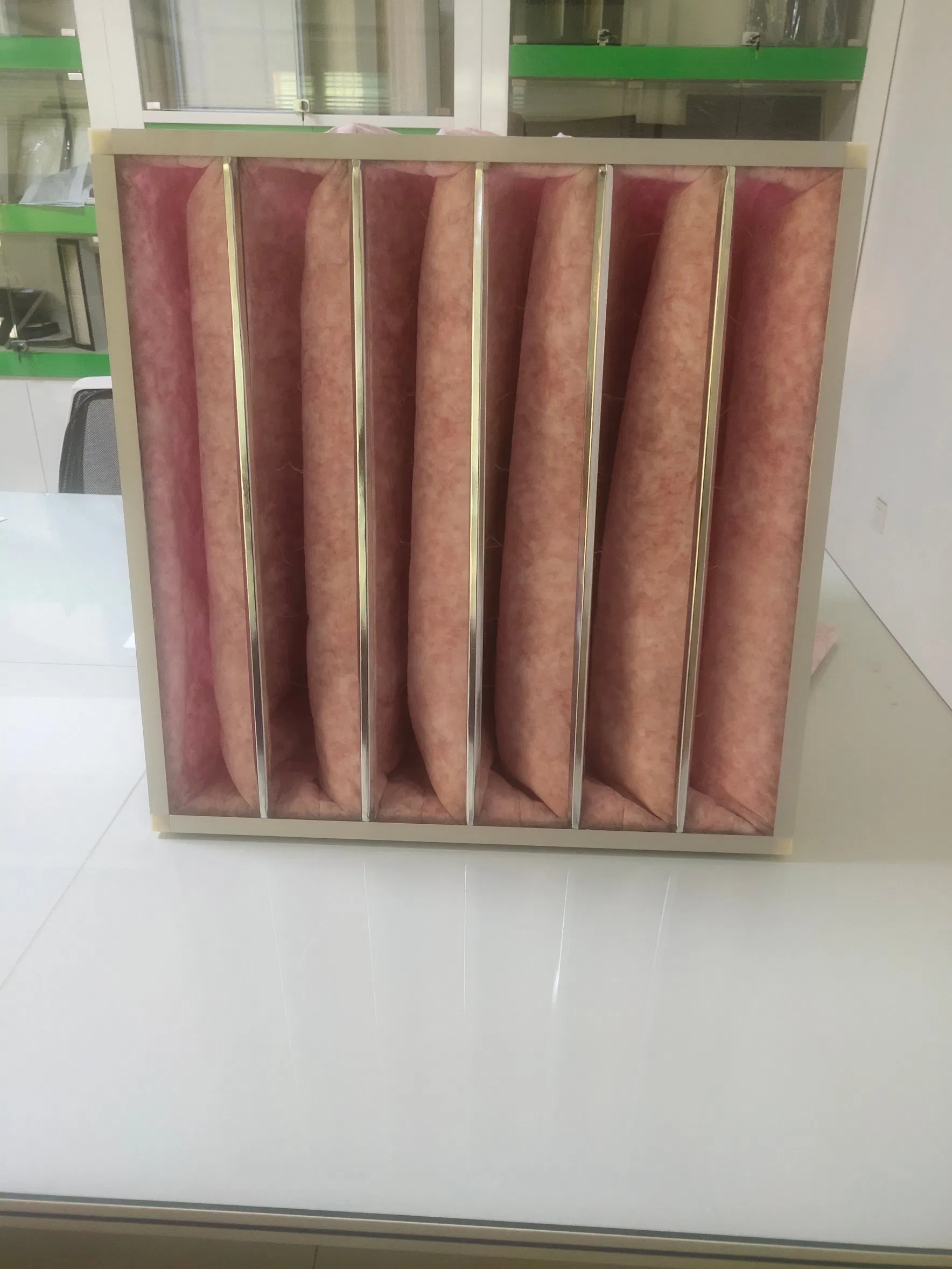

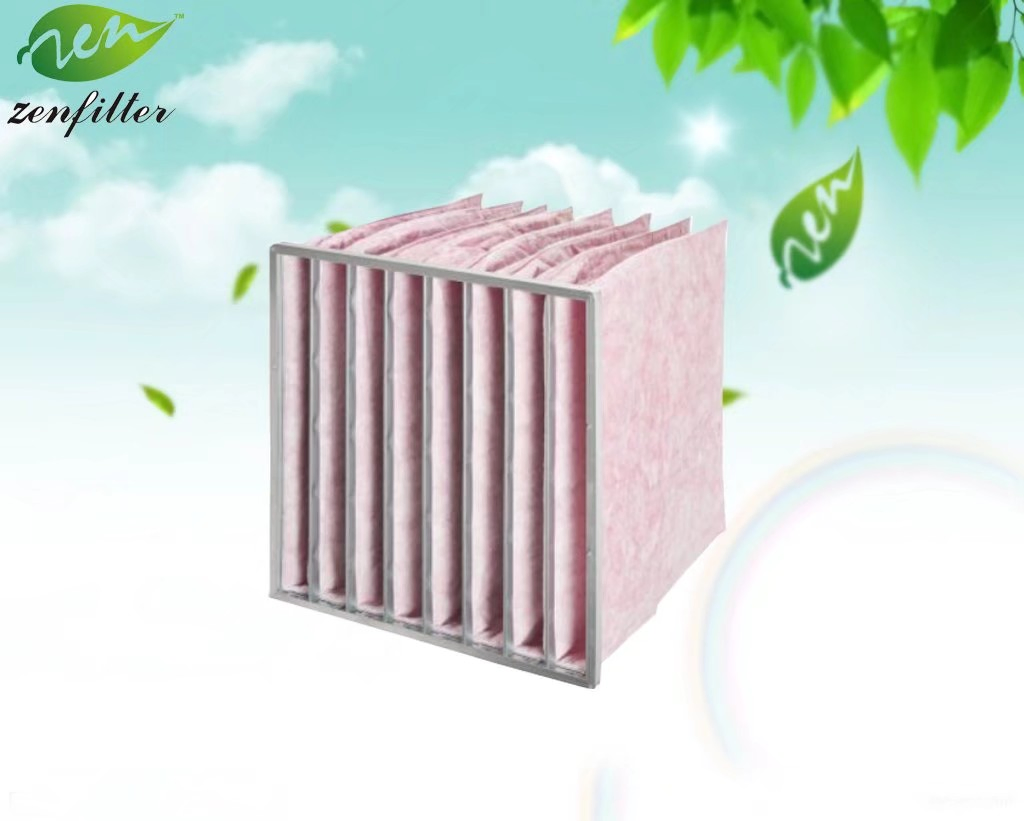

Glass fiber bag filter is used in air treatment cabinets, air conditioning systems, public areas, and as a pre-filter in cleanrooms and the pharmaceuticals industry.
Features:
- Make sure that the eco70 serie bag filter is fitted correctly: Suction side - clean air side
- Filter should be correctly installed: no leaks
- Gaskets should be completely undamaged
- Filter should be secured at four points
- Ensure that the filter medium is not folded double
- Take care to avoid damaging the filter during installation
- System should be run in for several hours to achieve the desired result
- Keep filter installation records; note the date, type and initial resistance.
SPECIFICATIONS
Application:HVAC industryApplication : HVAC, industries
Frame : Galvanised steel or Aluminium alloy
Medium : Glass fiber
Maximal final presssure drop : 450 Pa
Highest temperature : 70 °C
Maximum relative humidity : 90%
Specification Size:
| TYPE | Effectiveness | dimension | Number | Effective filtration area | Initial resistance / air volume Pa / M³/h | |||||
| XDC/F 6660/06-F5 | F5 | 592*592*600 | 6 | 4.64 | 20 | 2500 | 45 | 3600 | 70 | 5000 |
| XDC/F 3660/04-F5 | F5 | 287*592*600 | 4 | 3.09 | 20 | 1250 | 40 | 1800 | 70 | 2500 |
| XDC/F 5650/05-F5 | F5 | 490*592*500 | 5 | 3.22 | 25 | 2000 | 40 | 3000 | 70 | 4000 |
| XDC/F 6665/08-F6 | F6 | 592*592*650 | 8 | 6.60 | 35 | 2500 | 65 | 3600 | 110 | 5000 |
| XDC/F 3655/04-F6 | F6 | 287*592*550 | 4 | 2.79 | 40 | 1250 | 75 | 1800 | 125 | 2500 |
| XDC/F 5665/08-F6 | F6 | 490*592*650 | 8 | 6.45 | 35 | 2000 | 60 | 3000 | 100 | 4000 |
| XDC/F 6655/08-F7 | F7 | 592*592*550 | 8 | 5.58 | 50 | 2500 | 80 | 3600 | 125 | 5000 |
| XDC/F 3665/05-F7 | F7 | 287*592*650 | 5 | 4.03 | 45 | 1250 | 70 | 1800 | 120 | 2500 |
| XDC/F 5655/06-F7 | F7 | 490*592*550 | 6 | 4.19 | 50 | 2000 | 80 | 3000 | 125 | 4000 |
| XDC/F 6665/12-F8 | F8 | 592*592*650 | 12 | 9.44 | 60 | 2500 | 100 | 3600 | 170 | 5000 |
| XDC/F 6655/08-F8 | F8 | 592*592*550 | 8 | 5.58 | 70 | 2500 | 110 | 3600 | 170 | 5000 |
| XDC/F 3665/06-F8 | F8 | 287*592*650 | 6 | 4.72 | 60 | 1250 | 100 | 1800 | 170 | 2500 |
| XDC/F 3665/05-F8 | F8 | 287*592*550 | 5 | 4.03 | 60 | 1250 | 100 | 1800 | 175 | 2500 |
| XDC/F 5655/06-F8 | F8 | 490*592*550 | 6 | 4.19 | 70 | 2000 | 110 | 3000 | 175 | 4000 |
