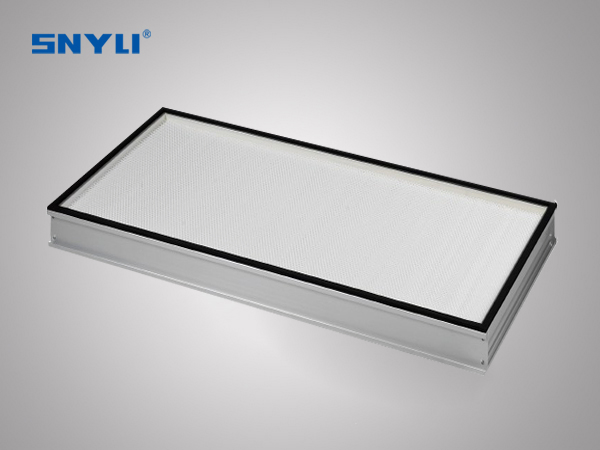

Mini Pleat Standard Airflow HEPA Filter with Media Guard ( H12 , H13, H14) for Clean Room
Mini pleat standard air flow HEPA filter (H12-H14)All heating and cooling air duct systems naturally collect dust and contaminants. Clean rooms, such as those used in the electronics, pharmaceutical, and medical industries, require a controlled environment free of dust, airborne particles, and other......
Send Inquiry
Product Description

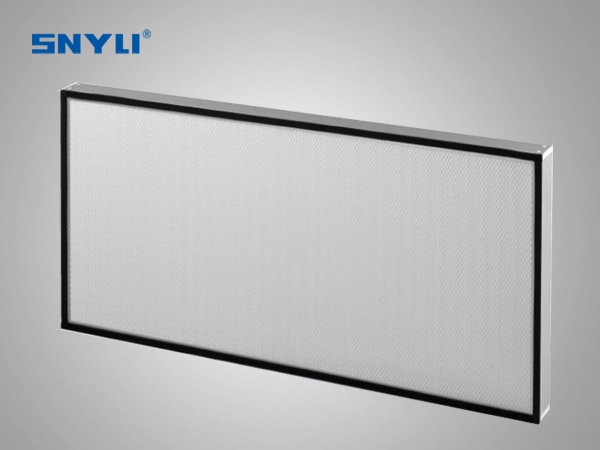

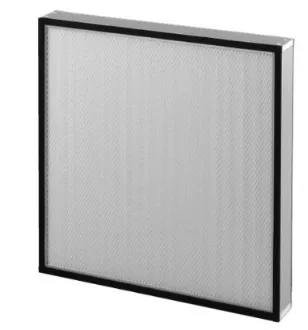

Mini pleat standard air flow HEPA filter (H12-H14)
All heating and cooling air duct systems naturally collect dust and contaminants. Clean rooms, such as those used in the electronics, pharmaceutical, and medical industries, require a controlled environment free of dust, airborne particles, and other contaminants. Ultra low particulate air (ULPA) filters and high efficiency particulate air (HEPA) filters are used in commercial air filtration systems to trap extremely small particulate contaminants.HEPA filters are 99.97% effective for eliminating particulate matter of 0.3-micron diameter or larger.HEPA filters can be combined with pre filters to trap larger particles before they come into contact with the main filter.
Application: Mainly used in terminal filtration of electronics, Bio,pharmaceutical industries,hospitals,,FFU,Laminar flow devices,and other clean room equipments.
Frame: Anodized aluminum profile
Media: Ultra fine glass fiber

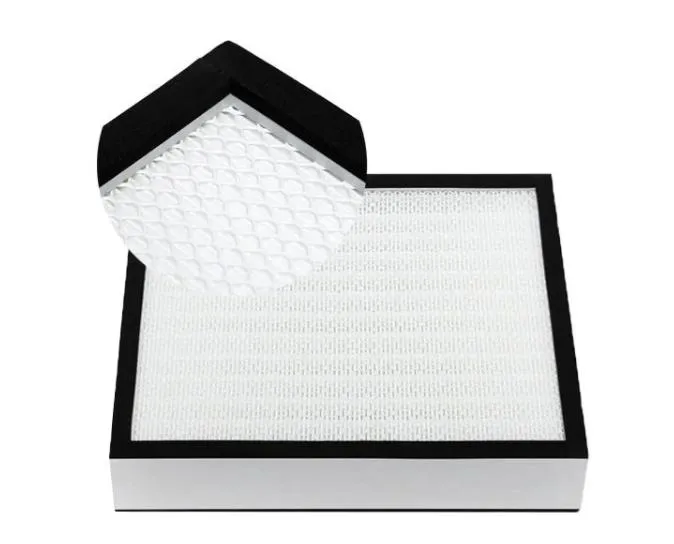

Media guard:Aluminium mesh/Painting fished expanded mesh
Std. EN1822:2009 : H14/H13/H12
Std. ASHRAE 52.22007:MERV19/MERV18/MERV17
Efficiency: 99.999%,99.99%,99.97% at 0.3μm
(DOP/PSL/PAO Counting method)
Maximum temperature: 70ºC
Maximum relative humidity: 100%
Customized size: Available
* Mini pleat design ensures low resistance to airflow
* Seamless sealing technology
* Uniform air flow, high efficiency,low resistance
* Anti-aging technology,long service life

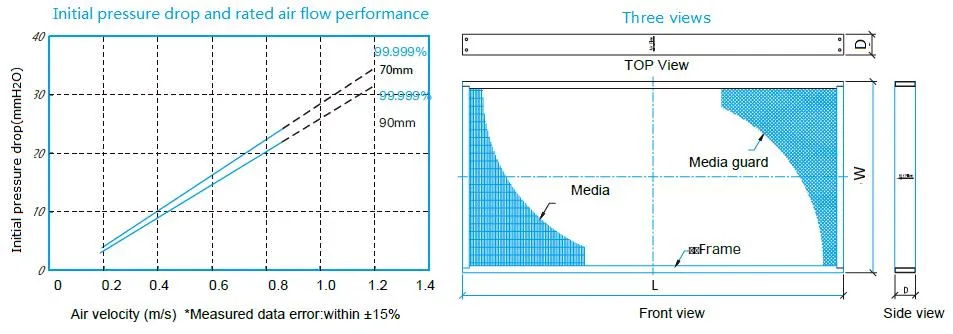

COMMON DIMENSIONS
| Model | Actual size W×H×D(mm) | Air flow (m³/h) | Initial pressure drop(Pa) | Final pressure drop(Pa) |
| H4BX1-70L5-WB1 | 484×484×70 | 630 | 249Pa Face velocity 0.85m/sec | 500Pa *Proposed value |
| H4PT2-70L5-WB1 | 630×630×70 | 1100 | ||
| H4BX3-70L5-WB1 | 570×1170×70 | 1000 | 110Pa Face velocity 0.45m/sec | 220Pa *Proposed value |
| H4PT4-70L5-WB1 | 1170×1170×70 | 2100 | ||
| H4BX1-90L5-WB2 | 484×484×90 | 630 | 220Pa Face velocity 0.85m/sec | 440Pa *Proposed value |
| H4PT2-90L5-WB2 | 630×630×90 | 1100 | ||
| H4BX3-90L5-WB2 | 570×1170×90 | 1000 | 98Pa Face velocity 0.45m/sec | 200Pa *Based on FFU performance |
| H4PT4-90L5-WB2 | 1170×1170×90 | 2100 |
COMPANY INTRODUCTION
The main products are primary, middle and high-efficiency air filters, FFU, air supply, winding filter, laminar flow hood, air shower, etc., product applications involve semiconductor, electronics, biology, medicine, clean room, textile, food and coating industries, and are committed to the overall clean room solution.
Based on the corporate culture of integrity, dedication, innovation and win-win, scientific and standardized management, for more than ten years, Snyli has gathered a group of outstanding technology research and development talents, and has long-term cooperation with industry associations, university scientific research institutions, third-party laboratories, etc.
Snyli has the most advanced automatic laser scanning leak detector, and has established a filter comprehensive performance test bench in line with European standard EN779 / EN1822 to ensure the performance test of all filter products.
Close cooperation and continuous development of new products through technological improvements and upgrades, has now developed into a famous professional manufacturer in the northern region China, and has grown into a well-known brand in the air purification industry.
Snyli always adheres to the tenet of "customer′s benefits above all " and provides the customers with professional and comprehensive services.
FAQ
Q1.Are you a manufacture or trading company?
A:We are a manufacure.
Snyli Environmental Technology (Shandong) Co., Ltd was established in 2010, is a professional service provider of air purification products integrating R&D, production and sales, with registered brand- SYNLI.
Q2: Where are air filters commonly used?
A :HAVC(heating, air conditioning and ventilation systems) painting stations, chemical plants, pharmaceutical plants, cement or asphalt powder plants, clean rooms, power stations, heavy metal industries, gas turbines and cogeneration power plants, engineering and equipment plants, drying and baking rooms, hospitals, etc.
Q3: What are your testing criteria?
A: EN779:2012 ISO9001
Euro :Pre (G1-G4), Medium (F5-F9), HEPA (H10-H14) ULPA (U15-U17)
American :Pre (MERV5-7), Medium (MERV8-14), HEPA (MERV15-19) ULPA(MERV 20)
