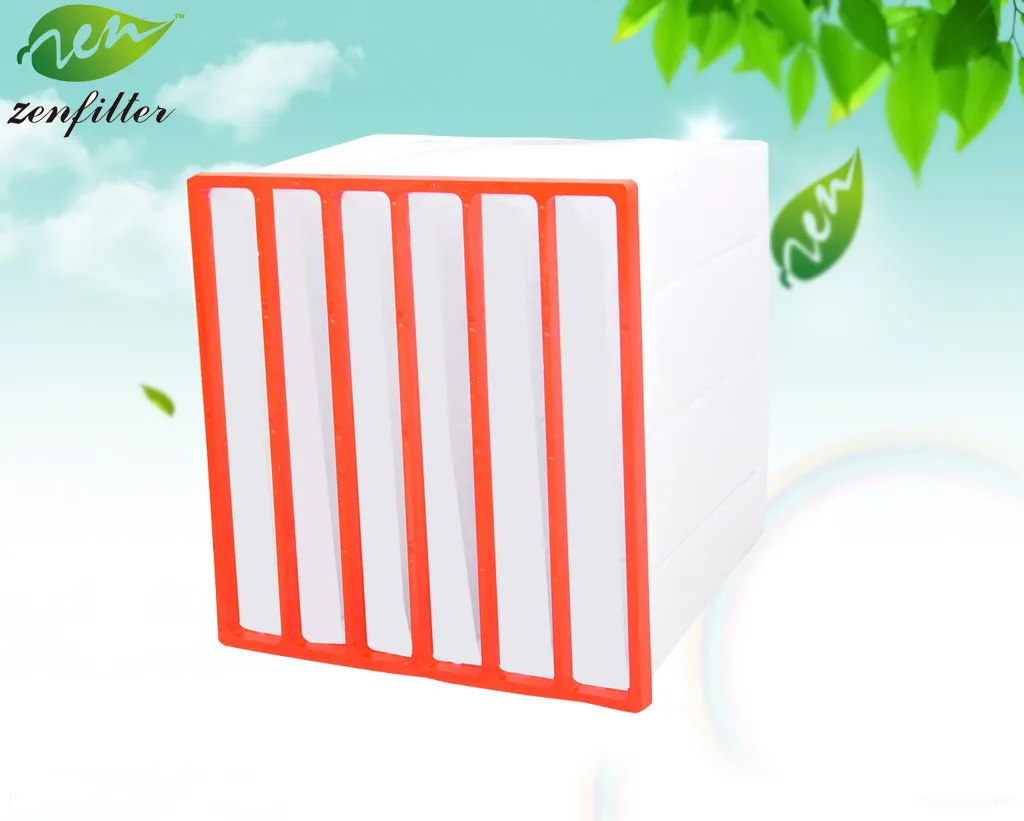

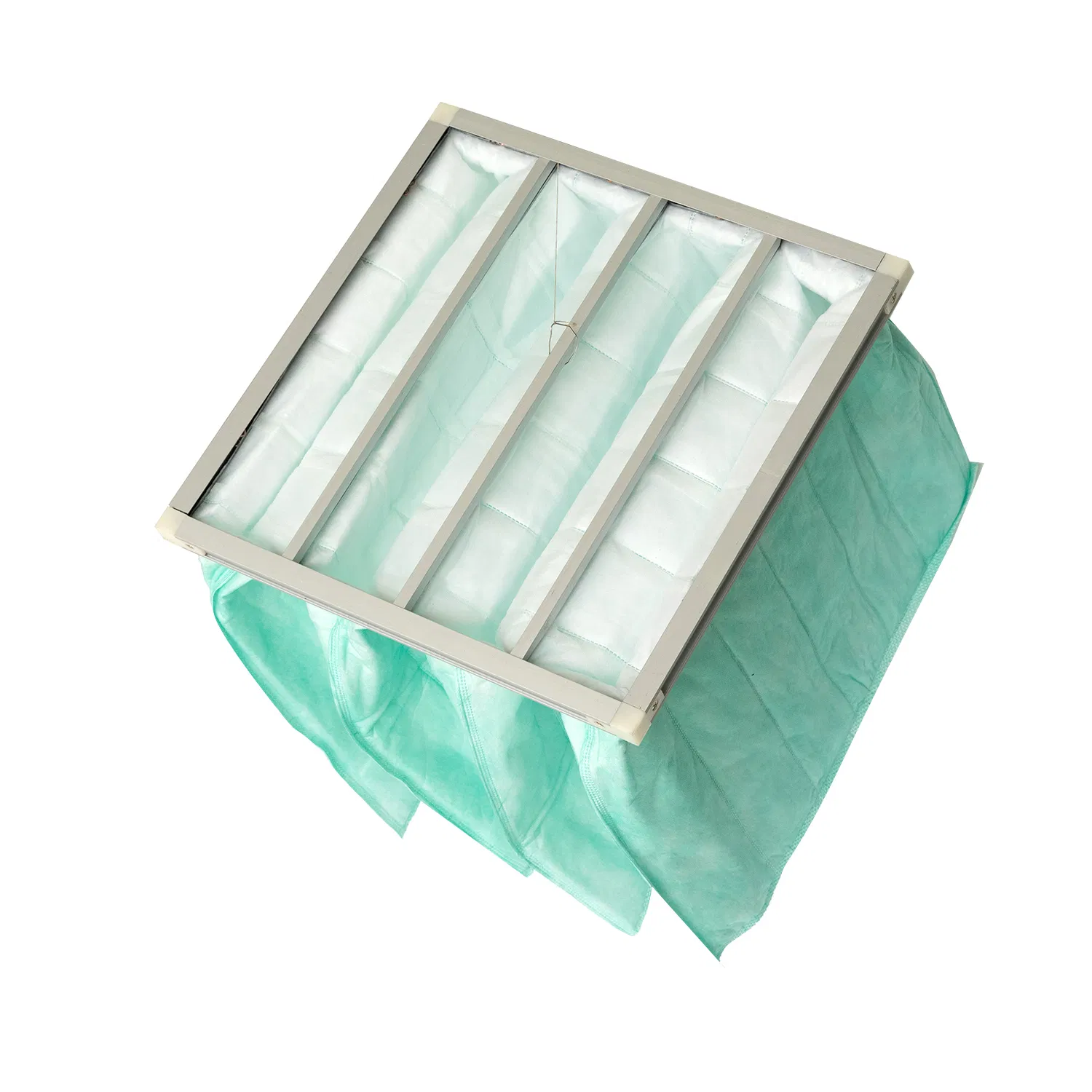

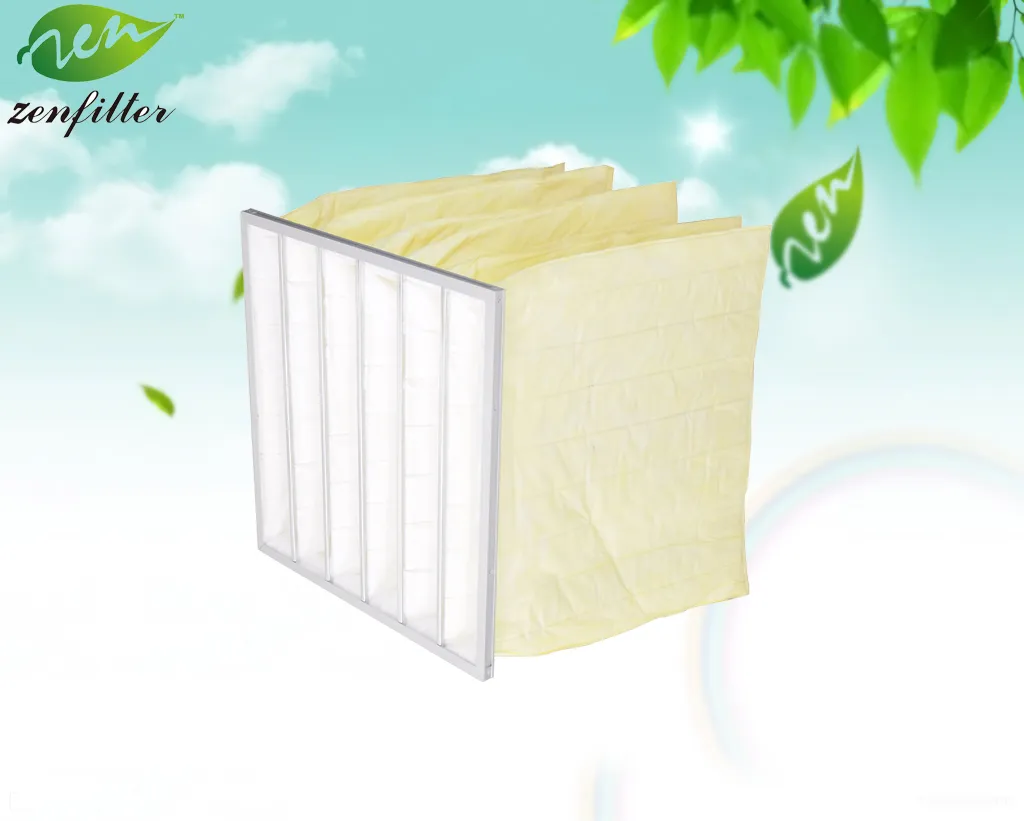

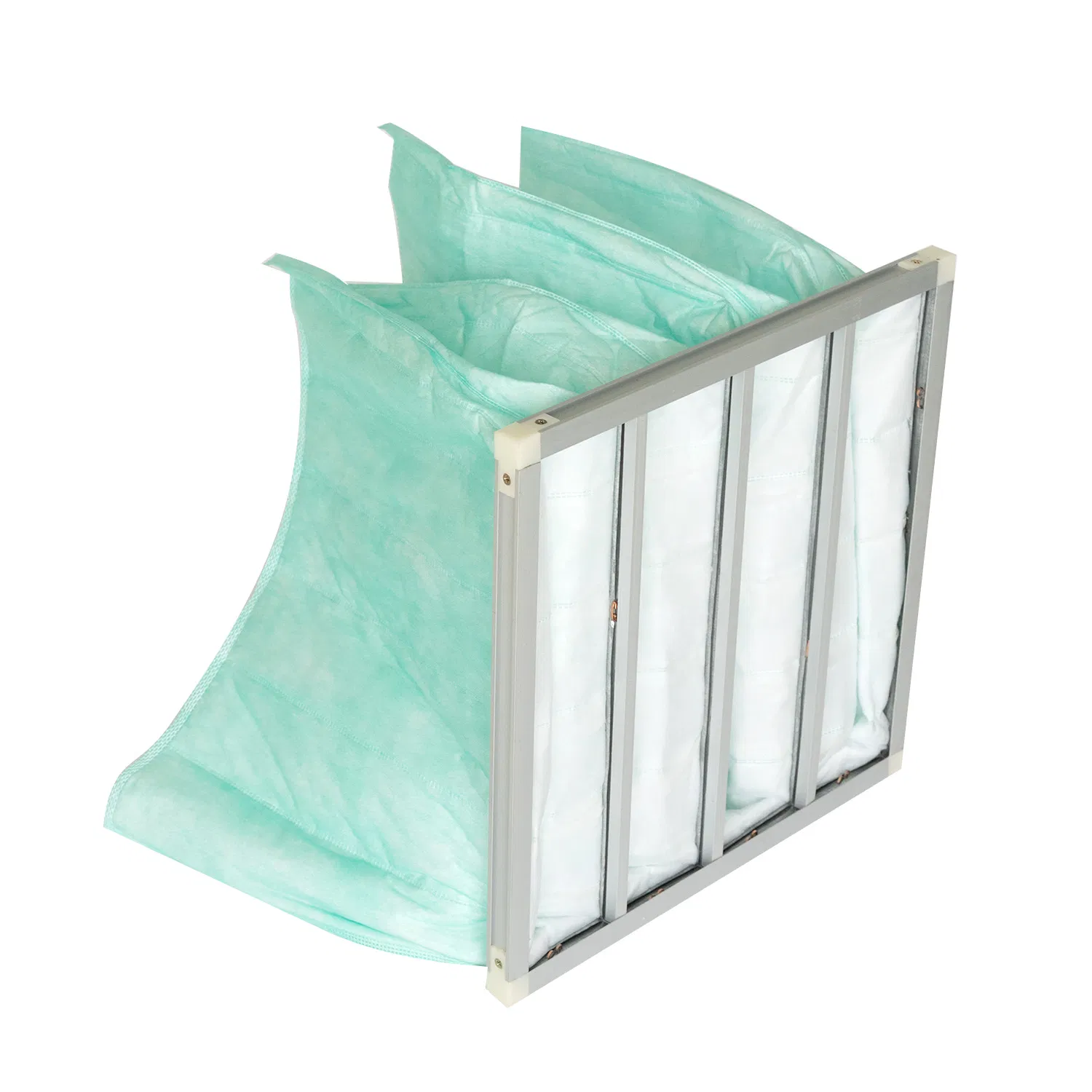

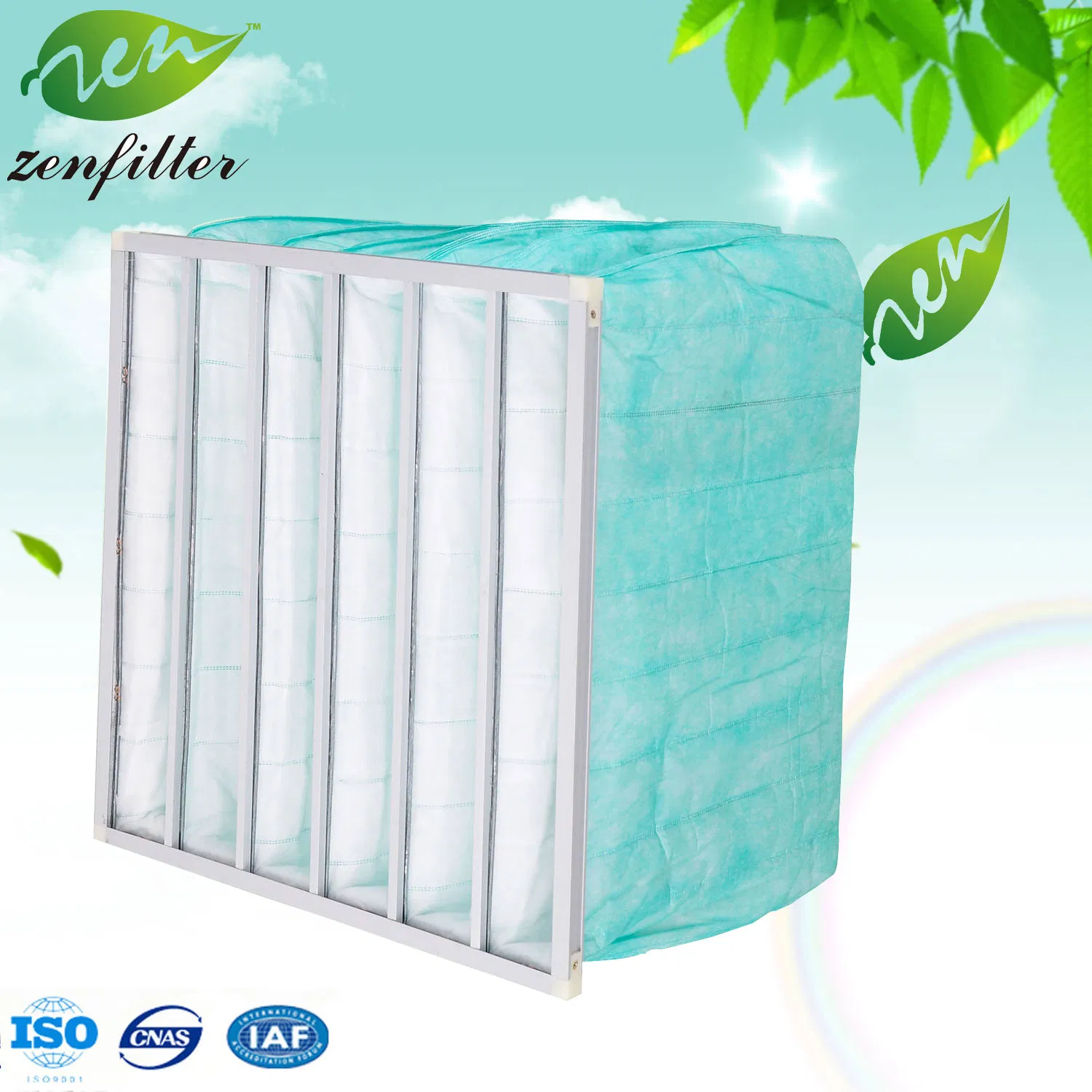

Non-Woven Bag Air Filter and Washable Pocaket Air Filter for HVAC Air Purification System
Application:Mainly used for intermediate filtration of central air conditioning ventilation systems, pharmaceutical, hospital, electronics, semiconductor, food and other industrial purification.Features:Large dust capacity .Low resistanceSynthetic fiber filter materialGalvanized steel/Aluminum /stai......
Send Inquiry
Product Description
Application:
Mainly used for intermediate filtration of central air conditioning ventilation systems, pharmaceutical, hospital, electronics, semiconductor, food and other industrial purification.
Features:
- Large dust capacity .
- Low resistance
- Synthetic fiber filter material
- Galvanized steel/Aluminum /stainless steel frame
Application:HVAC industry
Frame:Galvanized steel/Aluminum alloy/stainless steel
Medium: synthetic fiber
Bonding:ultrasonic sealing
Filter class:F5/F6/F7/F8/F9
Maximum final pressure drop :450pa
Maximum temperature :70
Maximum relative humidity:90%
Specification Size:
| TYPE | Effectiveness | dimension | Number | Effective filtration area | Initial resistance / air volume Pa / M³/h | |||||
| XDC/F 6660/06-F5 | F5 | 592*592*600 | 6 | 4.64 | 20 | 2500 | 45 | 3600 | 70 | 5000 |
| XDC/F 3660/04-F5 | F5 | 287*592*600 | 4 | 3.09 | 20 | 1250 | 40 | 1800 | 70 | 2500 |
| XDC/F 5650/05-F5 | F5 | 490*592*500 | 5 | 3.22 | 25 | 2000 | 40 | 3000 | 70 | 4000 |
| XDC/F 6665/08-F6 | F6 | 592*592*650 | 8 | 6.60 | 35 | 2500 | 65 | 3600 | 110 | 5000 |
| XDC/F 3655/04-F6 | F6 | 287*592*550 | 4 | 2.79 | 40 | 1250 | 75 | 1800 | 125 | 2500 |
| XDC/F 5665/08-F6 | F6 | 490*592*650 | 8 | 6.45 | 35 | 2000 | 60 | 3000 | 100 | 4000 |
| XDC/F 6655/08-F7 | F7 | 592*592*550 | 8 | 5.58 | 50 | 2500 | 80 | 3600 | 125 | 5000 |
| XDC/F 3665/05-F7 | F7 | 287*592*650 | 5 | 4.03 | 45 | 1250 | 70 | 1800 | 120 | 2500 |
| XDC/F 5655/06-F7 | F7 | 490*592*550 | 6 | 4.19 | 50 | 2000 | 80 | 3000 | 125 | 4000 |
| XDC/F 6665/12-F8 | F8 | 592*592*650 | 12 | 9.44 | 60 | 2500 | 100 | 3600 | 170 | 5000 |
| XDC/F 6655/08-F8 | F8 | 592*592*550 | 8 | 5.58 | 70 | 2500 | 110 | 3600 | 170 | 5000 |
| XDC/F 3665/06-F8 | F8 | 287*592*650 | 6 | 4.72 | 60 | 1250 | 100 | 1800 | 170 | 2500 |
| XDC/F 3665/05-F8 | F8 | 287*592*550 | 5 | 4.03 | 60 | 1250 | 100 | 1800 | 175 | 2500 |
| XDC/F 5655/06-F8 | F8 | 490*592*550 | 6 | 4.19 | 70 | 2000 | 110 | 3000 | 175 | 4000 |
