Pleated Bag Filters

Product Description

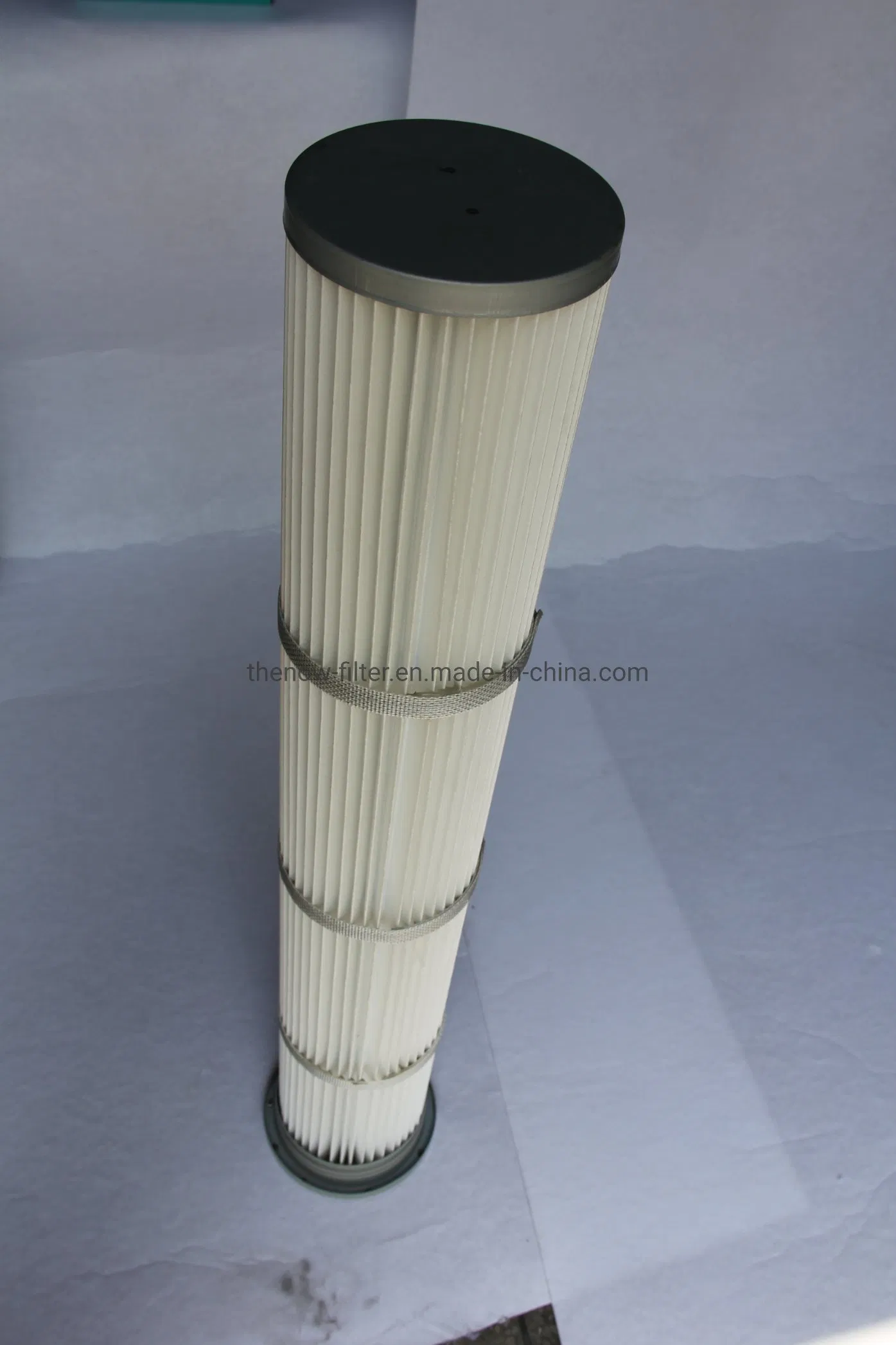

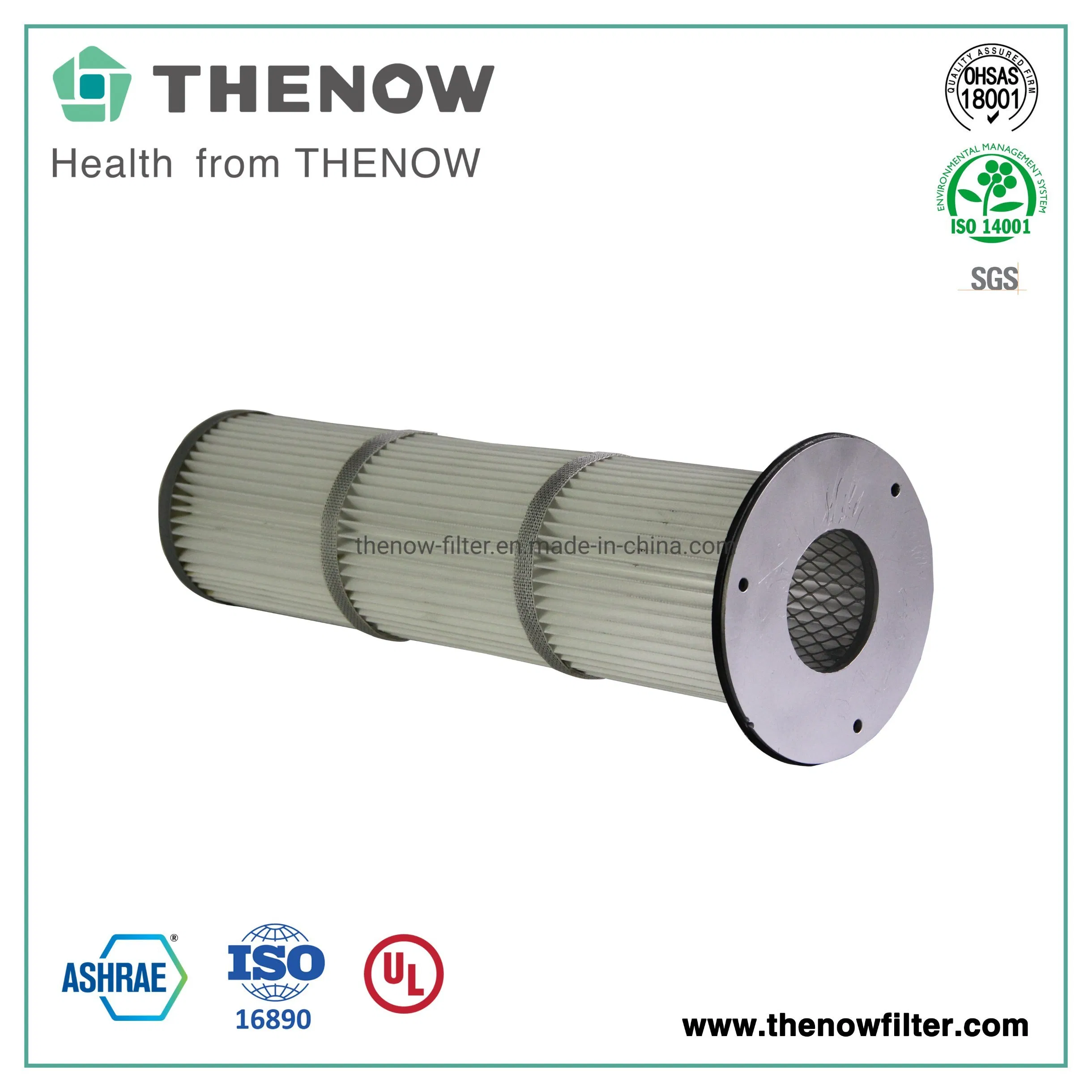

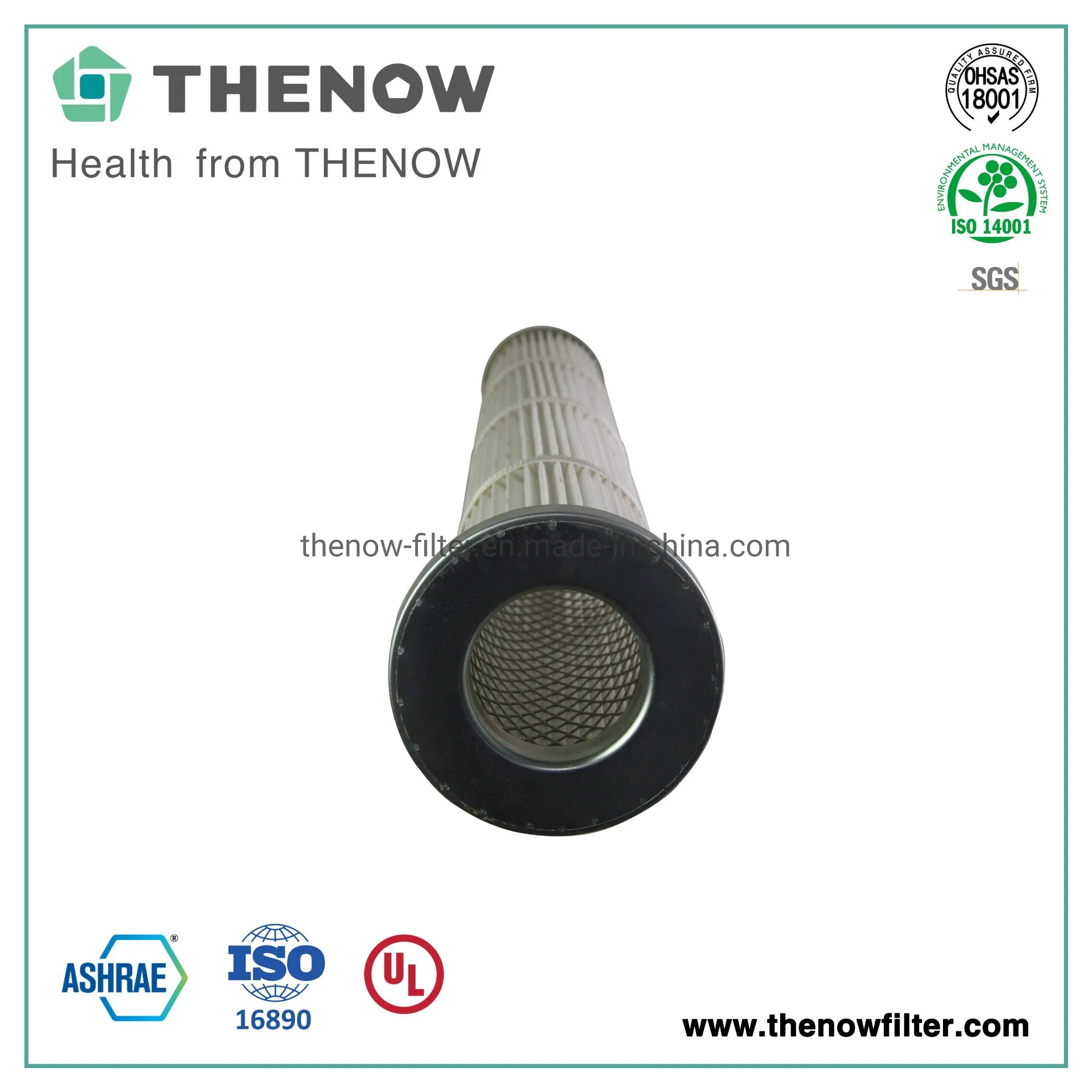

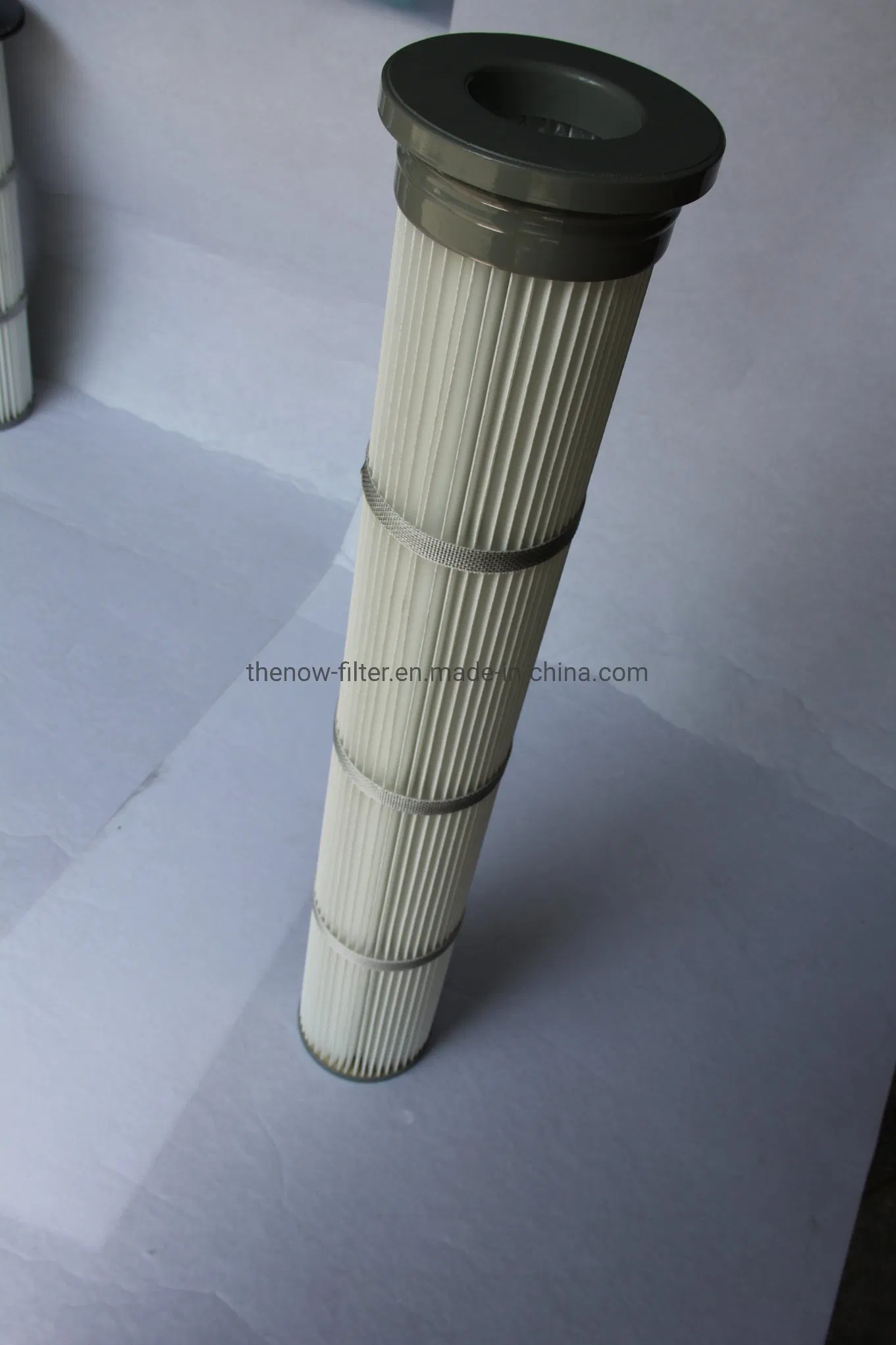

PLEATED BAG FILTERS

Filter Media Types:
1. Imported Polyester
2. Spun bond polyester+eptfe membrane
Area weight of filter media
»  170 gms/m2
»  200 gms/m2
»  260 gms/m2

Selected Post-processing:
1.Nano flame retardand
2.Nano
3.Anti-static
4.Flame-retardant
5.Oil,water proof
6.PTFE Membrane
7.PTFE Membrane flame retardant
8.Anti-static PTFE Membrane

DIMENTIONS
Model	Top or Bottom Load	OD(mm)	H(mm)	filter Area(m2)
T10442110	Top	112	533	0.7
T10444010	Top	112	1034	1.44
T10446110	Top	112	1557	2.2
T10448010	Top	112	2032	2.88
T10482110	Bottom	123	551	0.8
T10484110	Bottom	123	1052	1.63
T10486210	Bottom	123	1575	2.43
T10488010	Bottom	123	2052	3.25
T10532110	Top	135	533	1.1
T10534010	Top	135	1034	2.2
T10536110	Top	135	1557	3.3
T10538010	Top	135	2032	4.4
T10562110	Top	144	533	1.35
T10564010	Top	144	1034	2.7
T10566110	Top	144	1557	4.18
T10568010	Top	144	2032	5.4
T10582110	Bottom	147	549	1.35
T10584110	Bottom	147	1049	2.7
T10586110	Bottom	147	1572	4.12
T10588010	Bottom	147	2050	5.4
T10582510	Bottom	147	635	1.14
T10584410	Bottom	147	1135	2.29
T10586510	Bottom	147	1659	3.48
T10588410	Bottom	147	2136	4.57
T10592110	Bottom	151	549	1.14
T10594110	Bottom	151	1049	2.29
T10596110	Bottom	151	1572	3.48
T10598010	Bottom	151	2050	4.57
T10873910	Top	225	991	3.9

Filtration area
» 0.96 m2 to 20.0 m2

Features:
1. Square flange top for secure filters
2. Highest filtration efficiencies to 99.98%
3. Best pulse clean effects on cartridges

Construction:
1. Top/Bottom caps: electro galvanized plates
2. Filter surface: various available
3. Inner core: galvanized mesh
4. Outer core: galvanized mesh / strip bands
5. Gasket: urethane gasket to ensure airtight sealing

Typical Application:
Metal working, Fume, Powder coating, Shot Blasting, Mixing, Grinding, Mining industry, Chemical

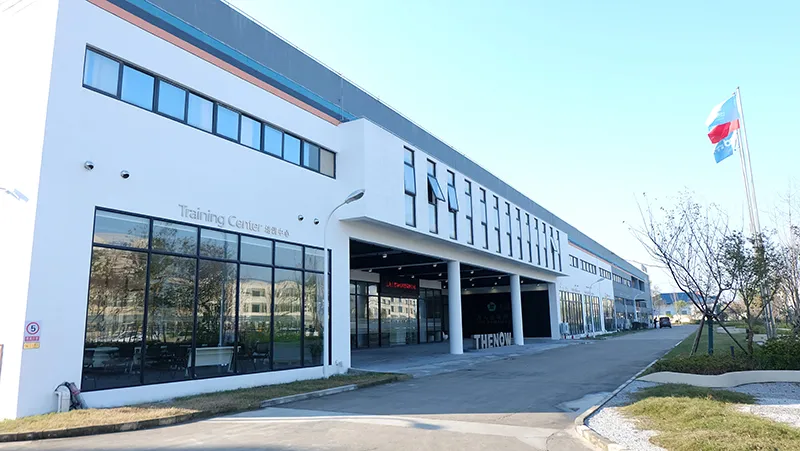

>Company Show

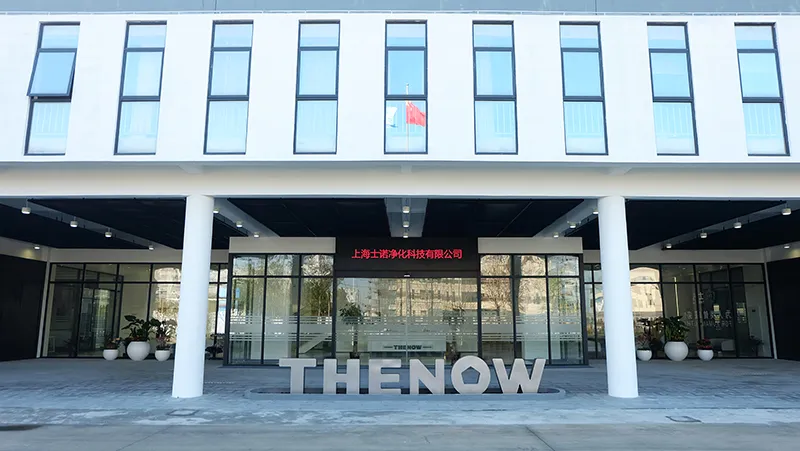

Thenow Purification Technology has focused on air filtration on HVAC industry for more than 16 years. We hope to bring the world more clean air with quality and environmental friendly filters.
Pleated Bag Filters

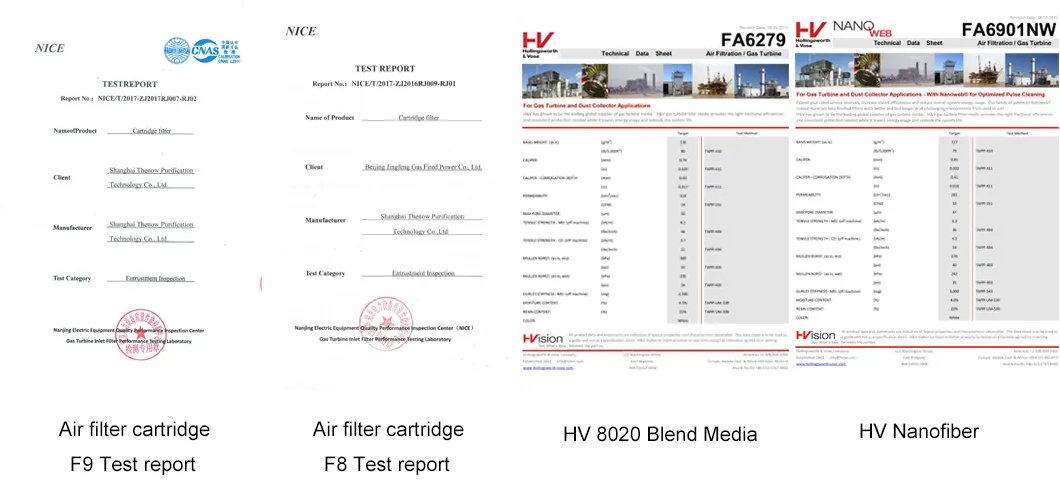

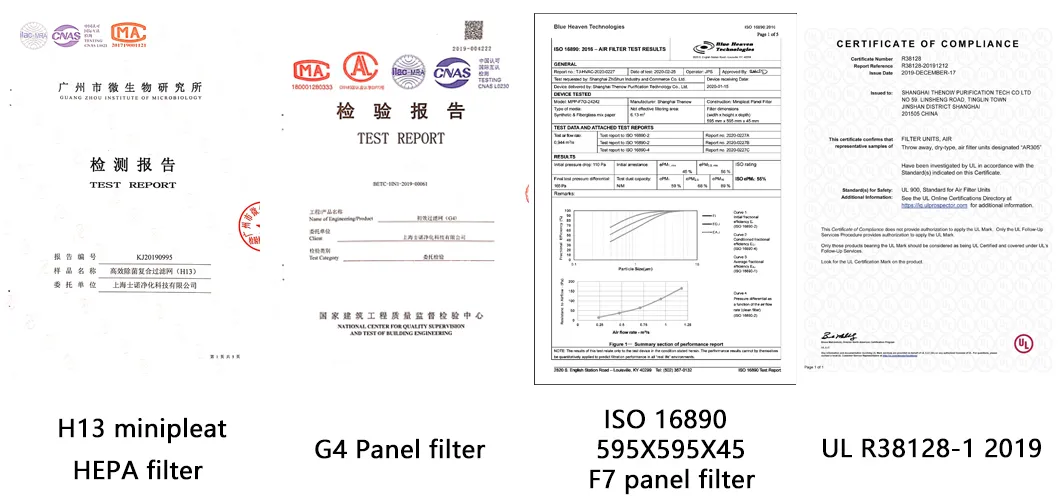

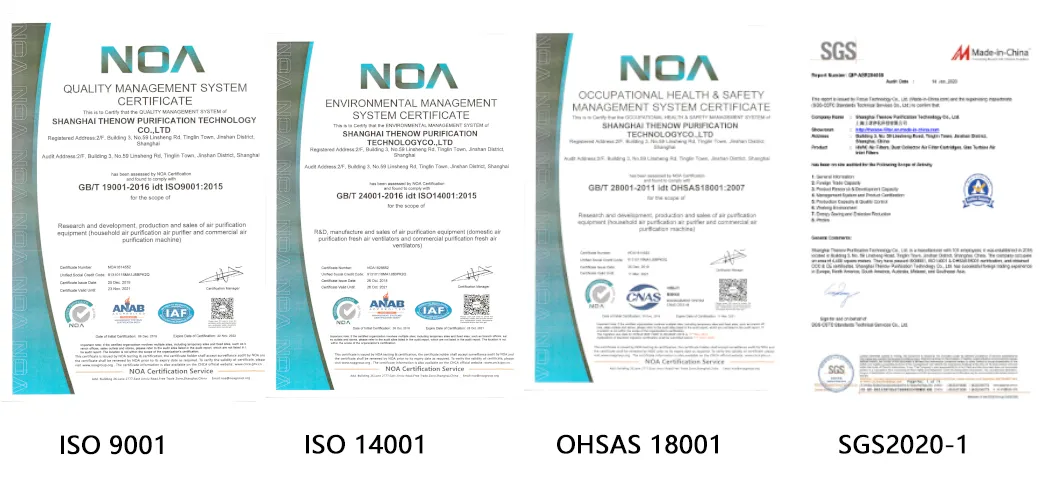

>Certificates and Test reports

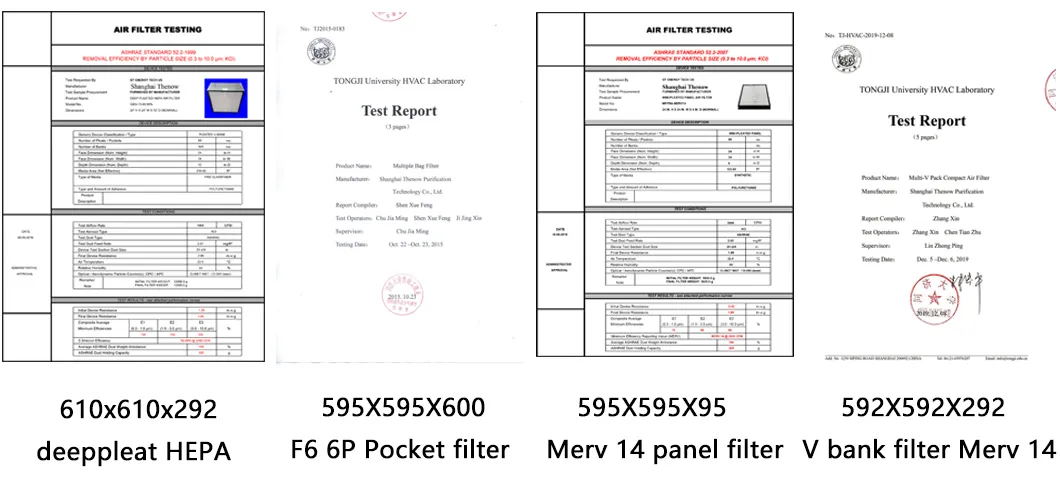

Standard is a ruler for the filters from all over the world. We have been trying to meet the most strict standard. Our HVAC air filters have been certified by CE, SGS and tested according to EN779, EN1822, Ashare and the latest ISO16890. You can rest assured when make a decision to buy.
Pleated Bag Filters

>8+ years exporting experience

We have been to Powtech In Nurnberg in 2014, Achema in Frankfurt in 2015, AHR in Chicago in 2018, Chilliventa in Nurnberg in 2018. And our filters have been to all over the world: Europe, Middle East area, Africa, South Asian area, South American area and North American area.
Pleated Bag Filters

>Professional Packing and Container Loading

Packing is important especially for carboard frame disposable filters and HEPA filters with glassfiber filter media. So we are very careful with it.
