Pre Filter, Spray Booth Filter, Synthetic Fiber Media
Pre Filter, Spray Booth Filter, Synthetic Fiber Media Specification:TypeDimensionsRated air velocity(m/s)Initial pressure drop (Pa)Rated air flow(m2/h) Length(m)Width(m)Thickness(mm) Rolls201/215 ± 21.5205400 Advantages:·Washable and reusable·Low initial resistanc......
Send Inquiry
Product Description

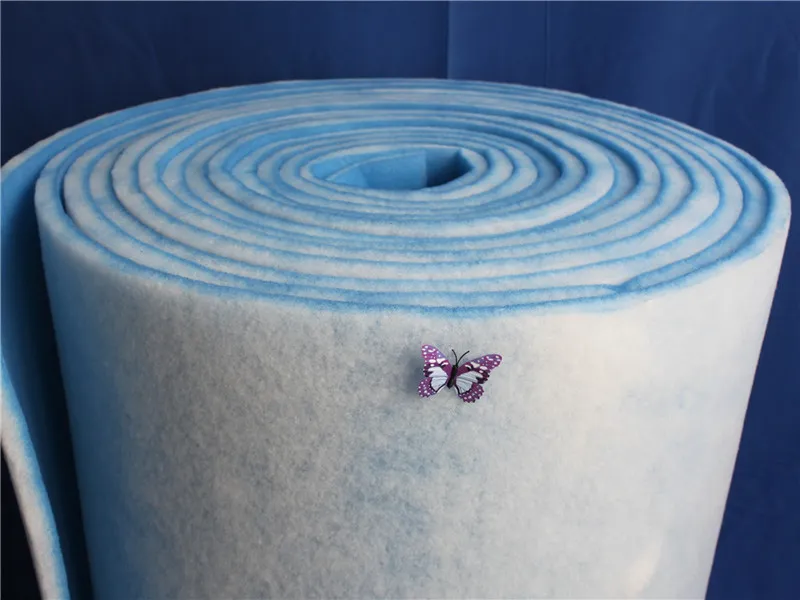

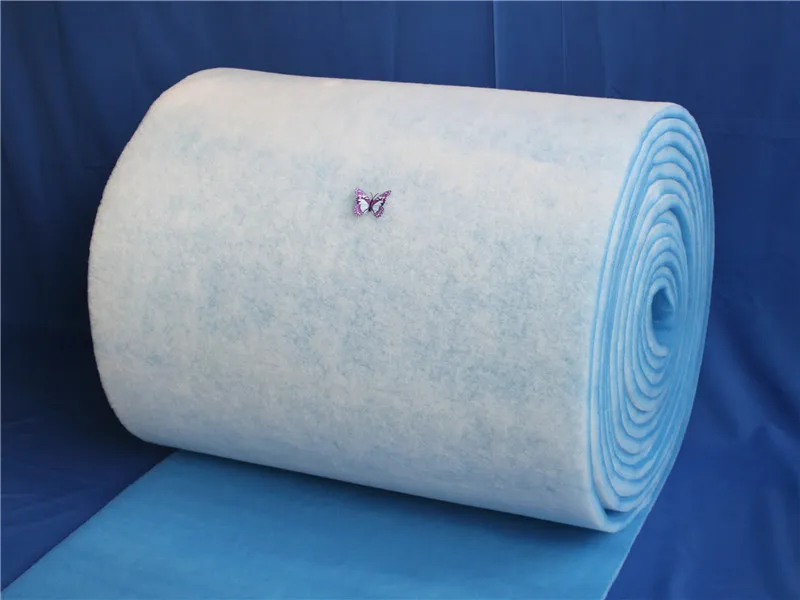

Pre Filter, Spray Booth Filter, Synthetic Fiber Media
Specification:
Type | Dimensions | Rated air velocity(m/s) | Initial pressure drop (Pa) | Rated air flow(m2/h) | ||
| Length(m) | Width(m) | Thickness(mm) |
|
|
|
Rolls | 20 | 1/2 | 15 ± 2 | 1.5 | 20 | 5400 |
Advantages:
·Washable and reusable
·Low initial resistance
·Large dust holding capacity
·Flexible
·Economical and practica
Application: ≥5μm, Filter dust , (especially used in the train or the subway, where the place has air-conditioner), pre-filter through air filter program
pre-filter through air filter program
Type: supply pads or rolls size
Media: synthetic fiber with gradual density
Average arrestance:91%(ASHRAE52.1-1992)
EUROVENT4/5 class: EU4
DIN53438 Non-flammability Standard: F1
Final resistance: (suggested) 200Pa-250Pa
Temp. resistance: 100ºC
Pictures:
