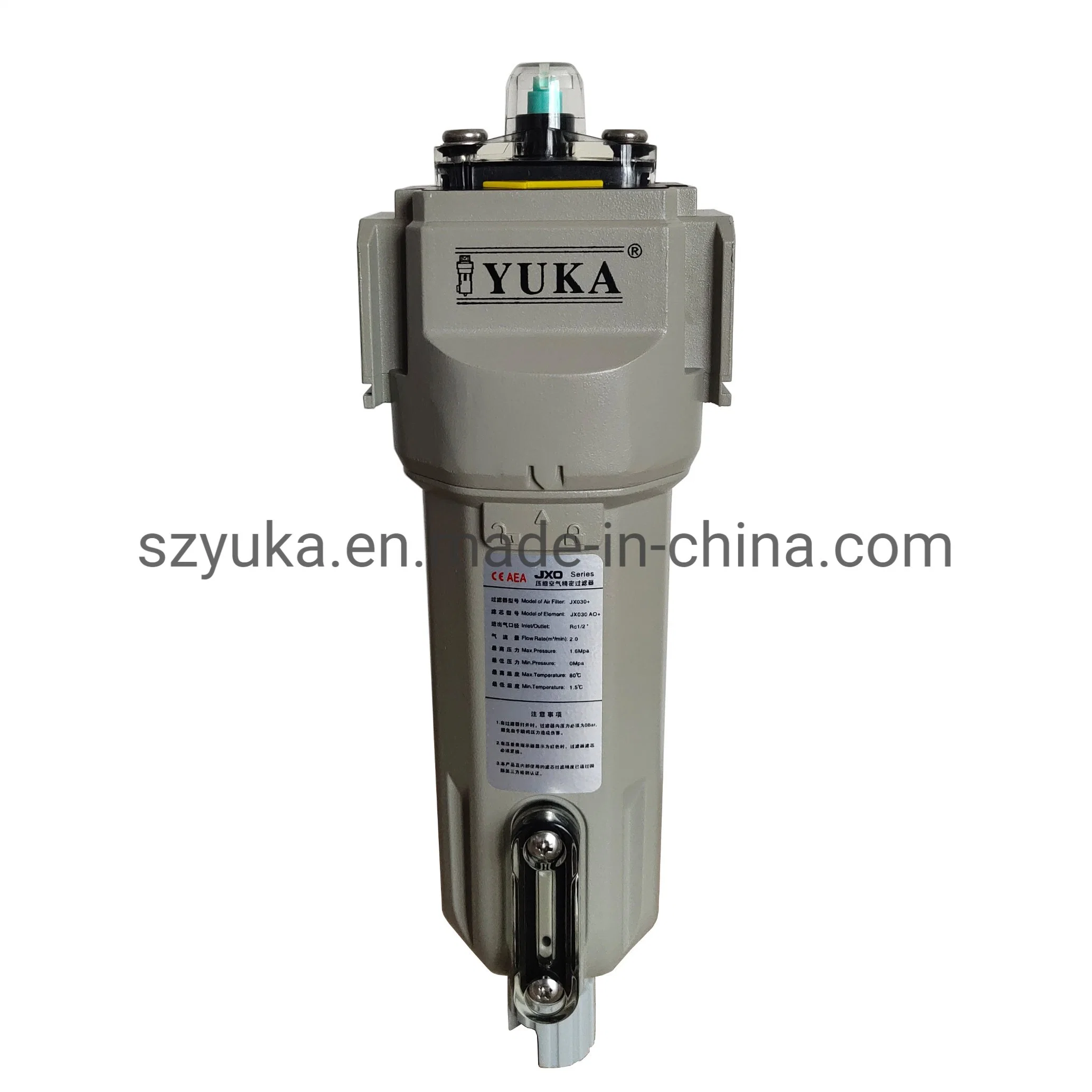

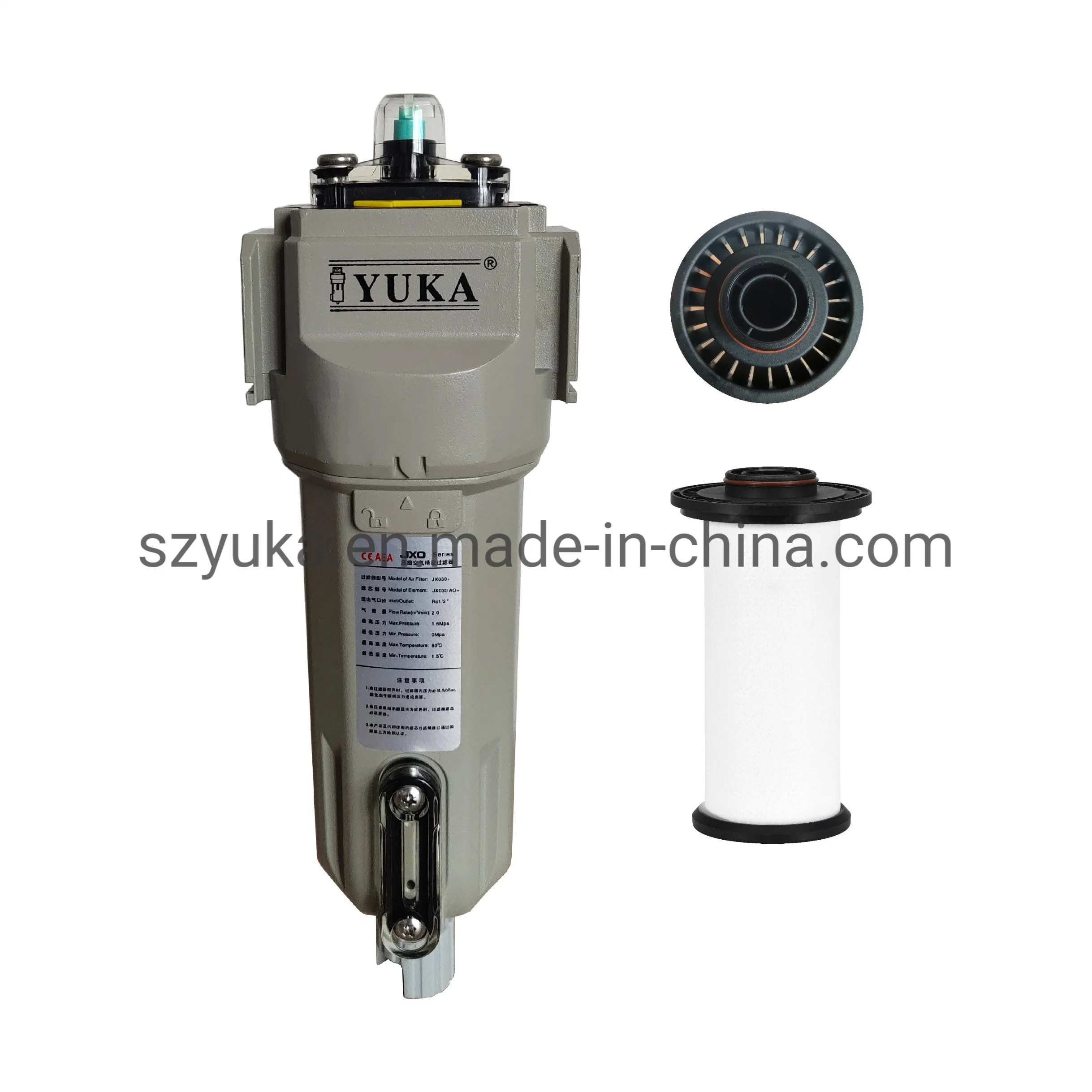

Two Sight Glass Air Filter with Auto Drain Coalescing Air Filter, HEPA Filter, Remove Particle Water Mist Vapour for Air Compressor
Features & Benefits 1. The new dual-level design makes it easier for users to observe the condensate discharge inside the filter and judge whether the drain is blocked;2. Parallel design, reducing the time of installation and paralleling;3. No screw design, easy to replace the filter element;4.......
Send Inquiry
Product Description
Features & Benefits
Guaranteed Quality
All YUKA series Compressed Air Filters have TWO GUARANTEES.
The first guarantee is a filter element PF/AO/AA/AX grade with 6000-8000 hours serve life. ACS/AR/AAR grade with 2000-3000 hours.
This ensures that the solid particle, oil aerosol and vapor content selected conforms to the ISO 8573.1 international standard.
The second guarantees the compressed air filter housing for fifteen years under recommended operating conditions.

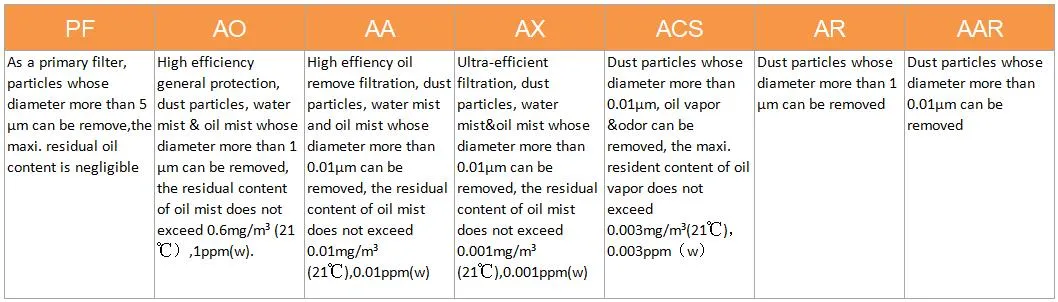

7 Grades Filter Element : PF/AO/AA/AX/ACS/AR/AAR
International test and measurement standard ISO12500
>ISO 12500 has made clear a general test and definition method for the compressed air filter manufacturers. The main performance
parameters are the air inlet oil content and particles size distribution of the solid particles.
>ISO12500-1 specifies the test requirements for the filtration performance of oil aerosol in the coalescing filter.
>ISO12500-2 specifies the test requirements of adsorption filters for the removal performance of steam adsorption.
>ISO12500-3 specifies the requirements for removal of particulate matter from solid pullutants.
Product are test with the international advanced testing equipment based on standard ISO12500, Which is equivalent to the standard
ISO8573.1-2010 quality standard, and provide filter performance test report.
Technical Specification
The flow rate below is the treatment capacity of compressed air under rated working pressure 7bar g(100psi g).
For the application in other working pressure, please refer to the correction factors.
YUKA CE & ISO9001-2015 Certificate
YUKA Patents

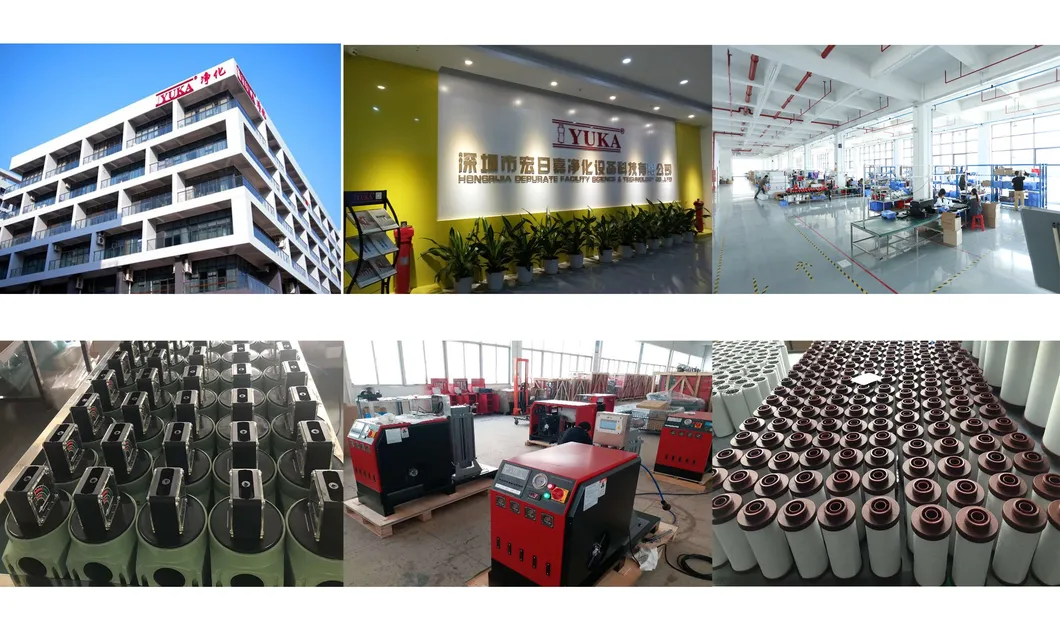

YUKA Factory

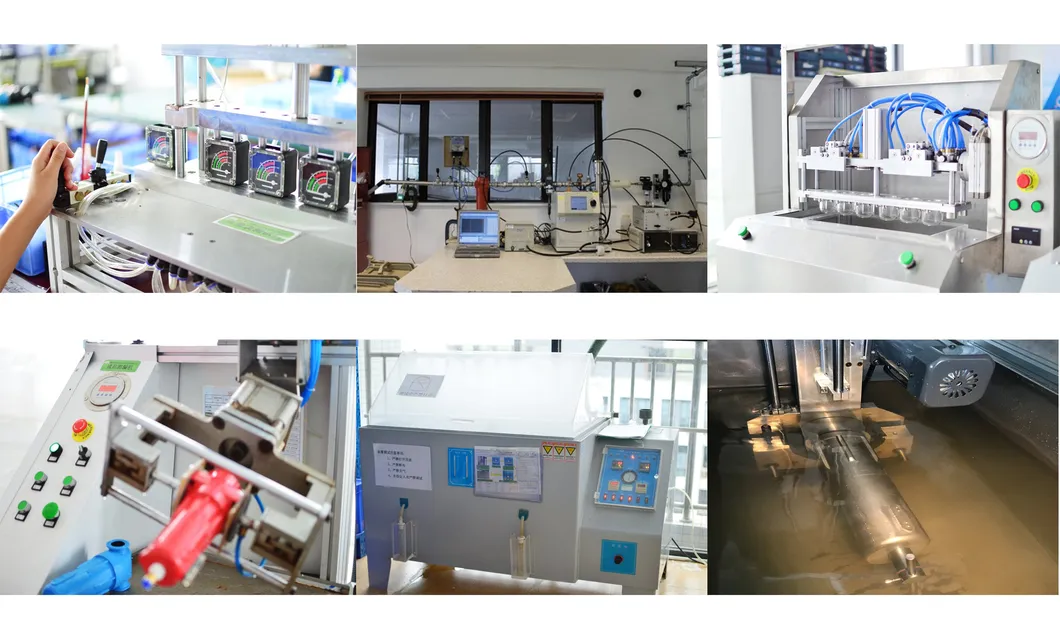

YUKA Facility
YUKA Exhibitions in Shanghai ComVac Asia & Hannover Messe
YUKA service
a. Providing professional consultation, technical support and special solutions
b. Providing timely feedback on complaints
c. Providing perfect after sales service and warranty
Q:Why choose us?
a. 22 years' practical experiences in R&D and manufacturing Compressed air treatment;
b. Founder of Compressed Air Nation Standard GB/T30475.1-2013 and GB/T30475.2-2013;
c. ISO 9001:2015, CE and product follow ISO8573-1;
d. With Germany Imported high efficiency filtration Test Instrument;
e.All goods had been 100% test before dispatched.
Frequently Asked Questions
Q1. What kind of your company is it?
We're the manufacturer integrated with R&D, production and sales.
Q2. How about your technical conditions and production capability?
Complete process documents and equipment, mass production.
Q3. What is the delivery time?
Delivery time depends on the order quantity, normally is 3-5 working days after 30% payment.
Q4. Do you have a warranty?
Yes, for filter, it is 1 year normally.
Q5. Can you supply customized product?
Yes, we have a professional technical team to provide you with the best solution and complete production processes and control to provide you with satisfied product.

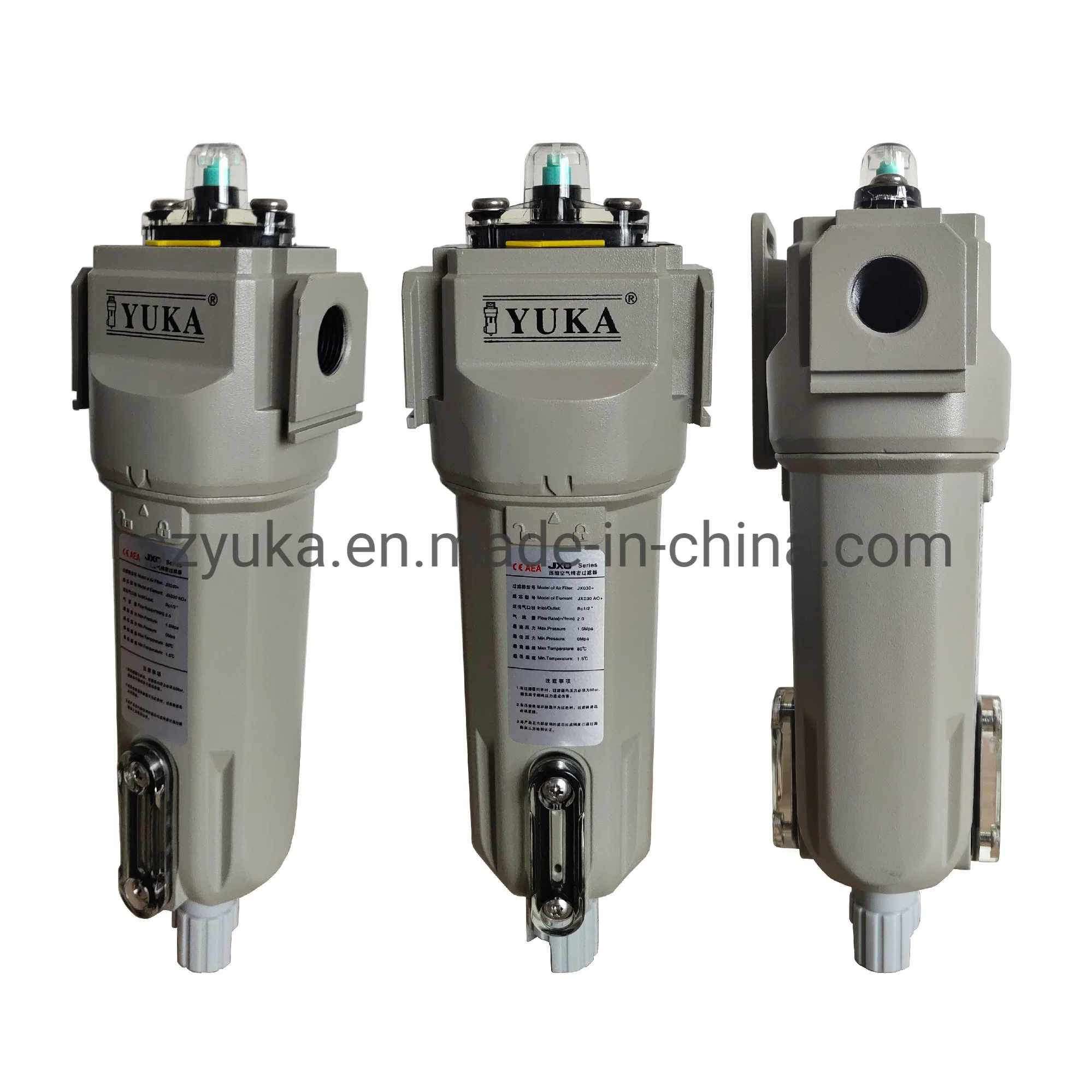

1. The new dual-level design makes it easier for users to observe the condensate discharge inside the filter and judge whether the drain is blocked;

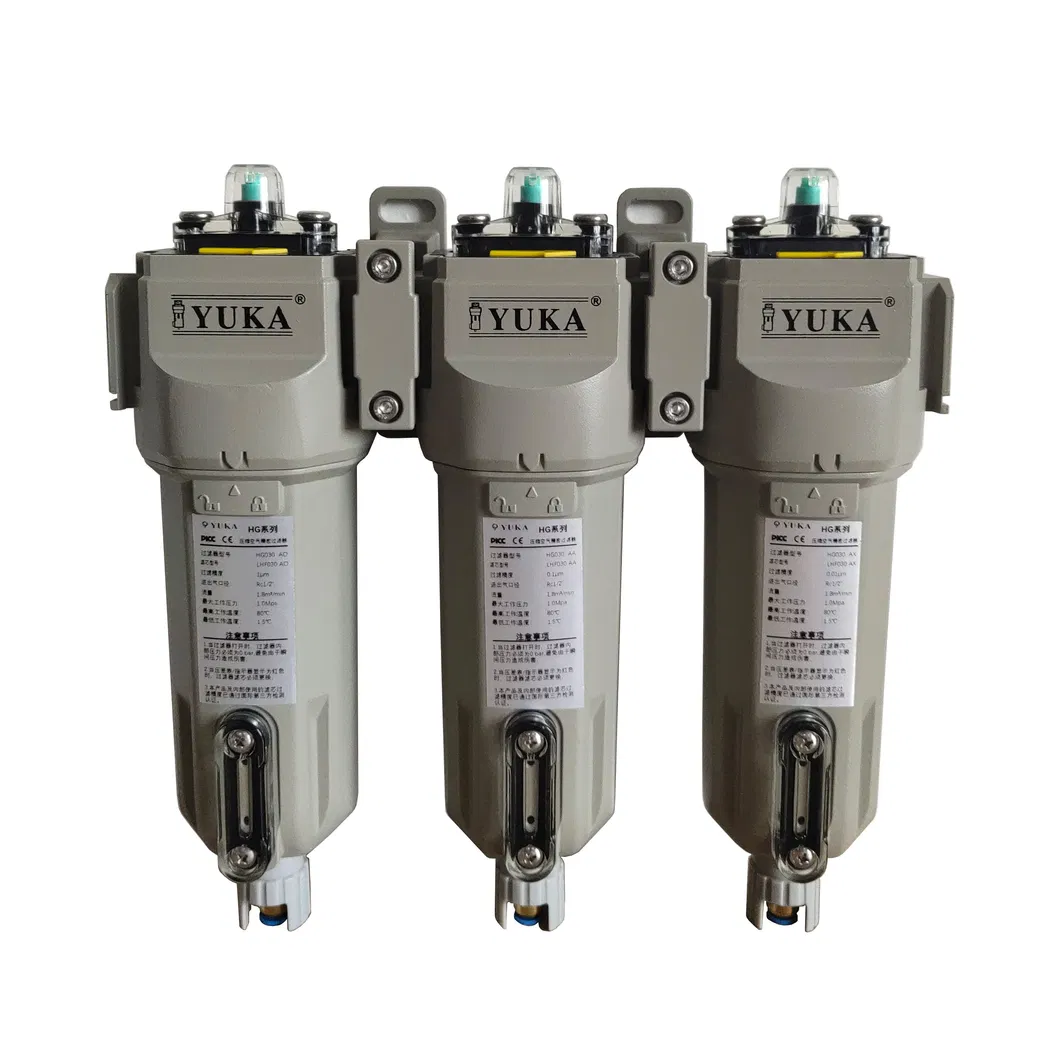

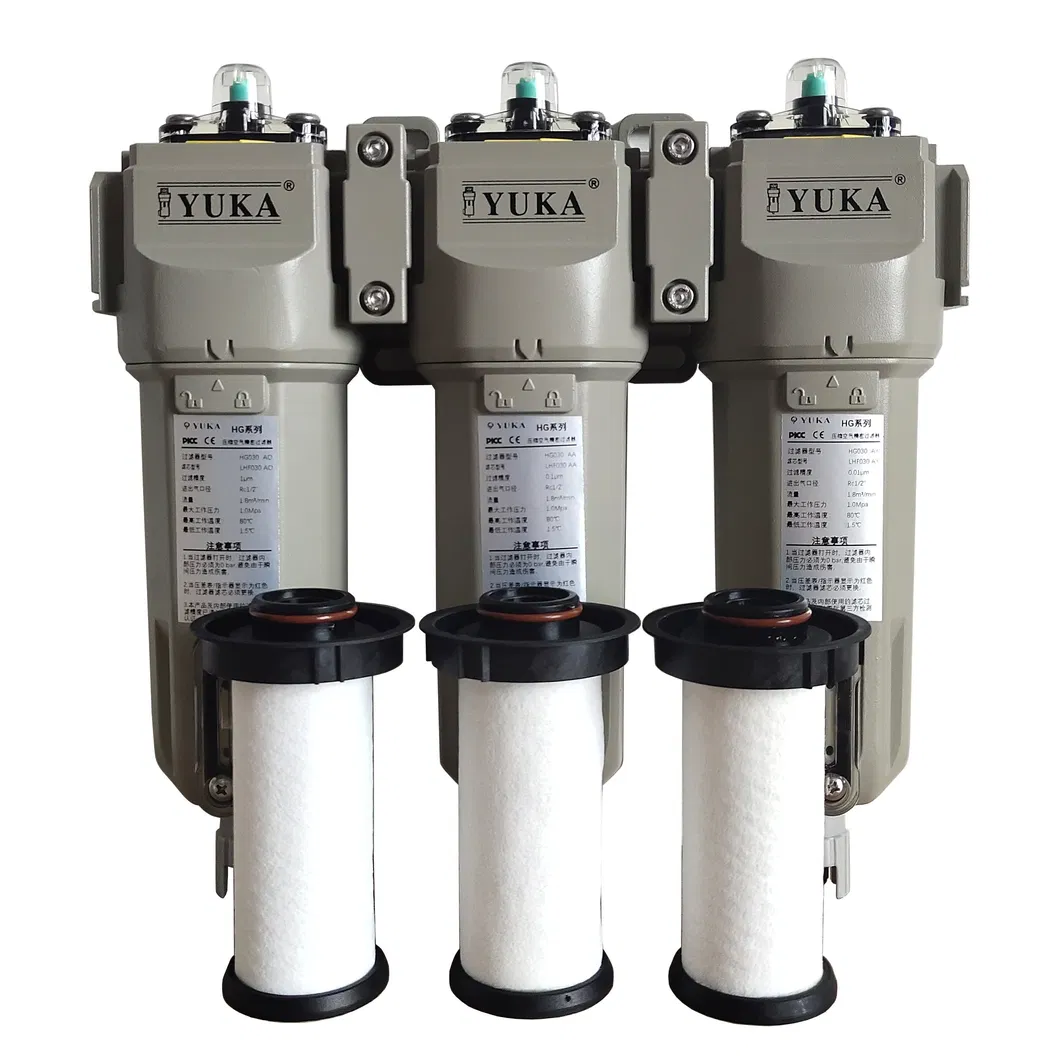

2. Parallel design, reducing the time of installation and paralleling;
3. No screw design, easy to replace the filter element;
4. The material of the sodium borosilicate glass fiber filter element ensures high-efficiency filtering effect and meets the ISO8573.1-2010 standard;
5. The shell has a service life of 15 years, and the filter element has 6000-8000 hours of filtration level except ACS;
6. Wall buckle design, easy to install on the wall.
2. Parallel design, reducing the time of installation and paralleling;
3. No screw design, easy to replace the filter element;
4. The material of the sodium borosilicate glass fiber filter element ensures high-efficiency filtering effect and meets the ISO8573.1-2010 standard;
5. The shell has a service life of 15 years, and the filter element has 6000-8000 hours of filtration level except ACS;
6. Wall buckle design, easy to install on the wall.
Guaranteed Quality
All YUKA series Compressed Air Filters have TWO GUARANTEES.
The first guarantee is a filter element PF/AO/AA/AX grade with 6000-8000 hours serve life. ACS/AR/AAR grade with 2000-3000 hours.
This ensures that the solid particle, oil aerosol and vapor content selected conforms to the ISO 8573.1 international standard.
The second guarantees the compressed air filter housing for fifteen years under recommended operating conditions.
7 Grades Filter Element : PF/AO/AA/AX/ACS/AR/AAR
International test and measurement standard ISO12500
>ISO 12500 has made clear a general test and definition method for the compressed air filter manufacturers. The main performance
parameters are the air inlet oil content and particles size distribution of the solid particles.
>ISO12500-1 specifies the test requirements for the filtration performance of oil aerosol in the coalescing filter.
>ISO12500-2 specifies the test requirements of adsorption filters for the removal performance of steam adsorption.
>ISO12500-3 specifies the requirements for removal of particulate matter from solid pullutants.
Product are test with the international advanced testing equipment based on standard ISO12500, Which is equivalent to the standard
ISO8573.1-2010 quality standard, and provide filter performance test report.
| Filtration Grade | PF | AO | AA | AX | ACS | AR | AAR |
| Size of solid particles(ISO12500-3) | 5μm | 1μm | 0.01μm | 0.01μm | - | 1μm | 0.01μm |
| Filtration performance of solid particles(ISO12500-3) | - | 99.999+% | 99.999+% | 99.999+% | 99.999+% | 99.999+% | 99.999+% |
| Filtration performance of oil(ISO12500-1) | 50% | 80+% | 99.9+% | 99.99+% | - | - | - |
| Residual oil content(ISO12500-1) | 5mg/m³ | 0.6mg/m³ | <0.01mg/m³ | <0.001mg/m³ | <0.004mg/m³ | - | - |
Technical Specification
The flow rate below is the treatment capacity of compressed air under rated working pressure 7bar g(100psi g).
For the application in other working pressure, please refer to the correction factors.
| Model | Pipe size | Flow rates | Dimension (mm) | |||||||
| L/S | m3/min | scfm | W(Width) | D(Depth) | H(Height) | A | B | C(clearance for housing) | ||
| HG017 | RC1/2" | 16.7 | 1.0 | 35.3 | 92 | 83 | 265 | 17.5 | 164 | 140 |
| HG025 | RC3/4" | 25.0 | 1.5 | 53.0 | 92 | 83 | 265 | 17.5 | 164 | 140 |
| HG030 | RC1/2" | 30.0 | 1.8 | 63.6 | 92 | 83 | 285 | 17.5 | 193 | 158 |
| HG035 | RC3/4" | 33.3 | 2.0 | 70.6 | 92 | 83 | 285 | 17.5 | 193 | 158 |
| HG058 | R3/4" | 46.7 | 2.8 | 98.9 | 132 | 120 | 393.5 | 24.4 | 257.6 | 195 |
| HG068 | RC1" | 60.0 | 3.6 | 127.1 | 132 | 93.3 | 393.5 | 24.4 | 257.6 | 195 |
| HG080 | RC1" | 80.0 | 4.8 | 169.5 | 132 | 119.6 | 502 | 24.4 | 356.2 | 300 |
| HG145 | RC1" | 120.0 | 7.2 | 254.2 | 132 | 19.6 | 502 | 24.4 | 356.2 | 300 |
| Technical requirements | Maximum operating pressure: 10 barg Maximum operating temperature: 80°C Minimum operating temperature:1.5°C | |||||||||
| Pressure | Barg | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
| Psig | 15 | 29 | 44 | 59 | 73 | 87 | 100 | 116 | 131 | 145 | 160 | 174 | 189 | 203 | 219 | 232 | |
| Correction factor | 0.38 | 0.53 | 0.65 | 0.76 | 0.85 | 0.93 | 1.00 | 1.07 | 1.13 | 1.19 | 1.23 | 1.31 | 1.36 | 1.41 | 1.46 | 1.51 | |
YUKA CE & ISO9001-2015 Certificate
YUKA Patents
YUKA Factory
YUKA Facility
YUKA Exhibitions in Shanghai ComVac Asia & Hannover Messe
YUKA servicea. Providing professional consultation, technical support and special solutions
b. Providing timely feedback on complaints
c. Providing perfect after sales service and warranty
Q:Why choose us?
a. 22 years' practical experiences in R&D and manufacturing Compressed air treatment;
b. Founder of Compressed Air Nation Standard GB/T30475.1-2013 and GB/T30475.2-2013;
c. ISO 9001:2015, CE and product follow ISO8573-1;
d. With Germany Imported high efficiency filtration Test Instrument;
e.All goods had been 100% test before dispatched.
Frequently Asked Questions
Q1. What kind of your company is it?
We're the manufacturer integrated with R&D, production and sales.
Q2. How about your technical conditions and production capability?
Complete process documents and equipment, mass production.
Q3. What is the delivery time?
Delivery time depends on the order quantity, normally is 3-5 working days after 30% payment.
Q4. Do you have a warranty?
Yes, for filter, it is 1 year normally.
Q5. Can you supply customized product?
Yes, we have a professional technical team to provide you with the best solution and complete production processes and control to provide you with satisfied product.
