Washable Pleated Pre Panel Filter HEPA Filter
Washable Pleated Pre Panel Filter HEPA FilterSpecification:TypeDimensions W*H*D(mm)Rated Airflow(m³/h)Average ArrestanceInitial Resistance(Pa)Recommended FinalResistance(Pa)Continuous TemperatureFrameAR-KX-G3595*595*46320085%3025080ºCAluminum alloy / Galvanized sheet595*495*4627005......
Send Inquiry
Product Description
Washable Pleated Pre Panel Filter HEPA Filter
Specification:
Speciality:
- Washable pre filter is processed by high quality fiber and featured with high dust holding and low resistance. The material is designed into pleated type which will provide the current air with the largest filtration area,it is five time's filtration area as the common panel mesh.
- Relative humidity is 100%, temperature resistance 80%. It can be used for several times to reduce the cost.
- conforms to the fire resistant standard and classification of European DIN53438-F1 and American UL900-Class2
Application:
- Pleated filter is designed for pre-filter in HVAC system.

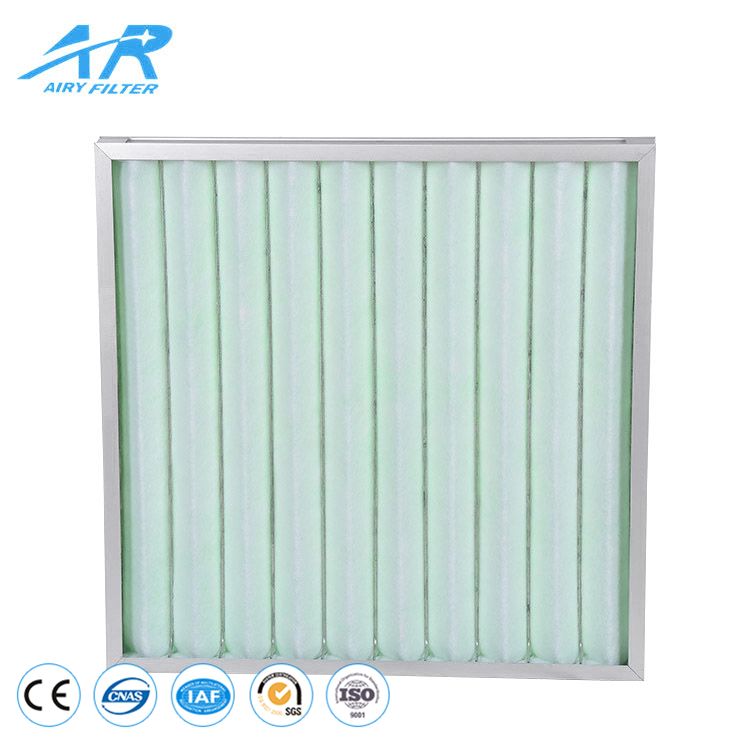

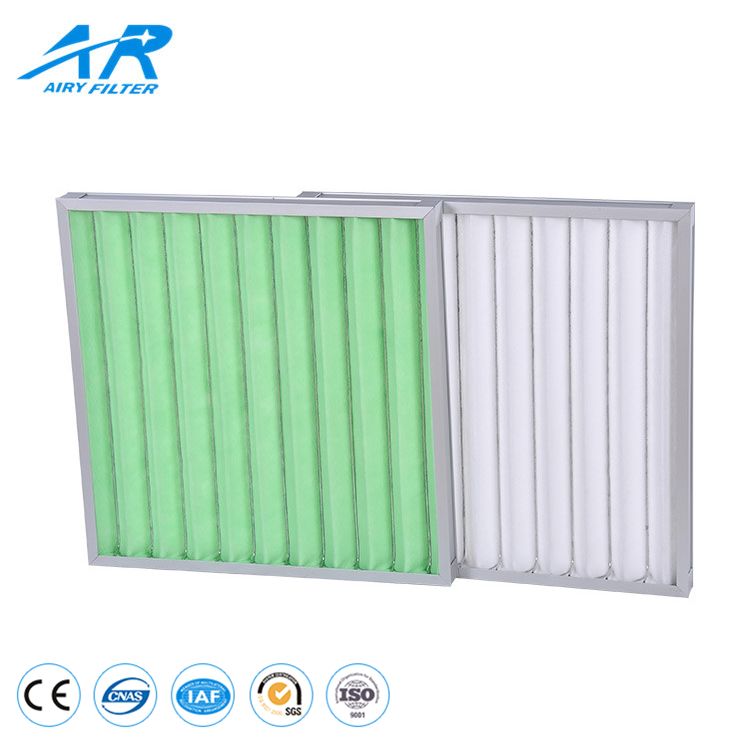

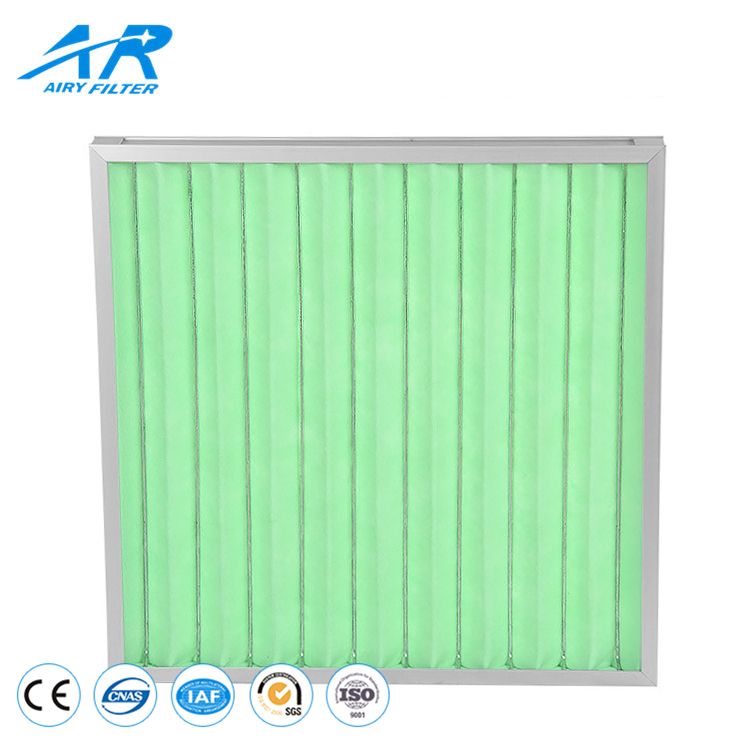

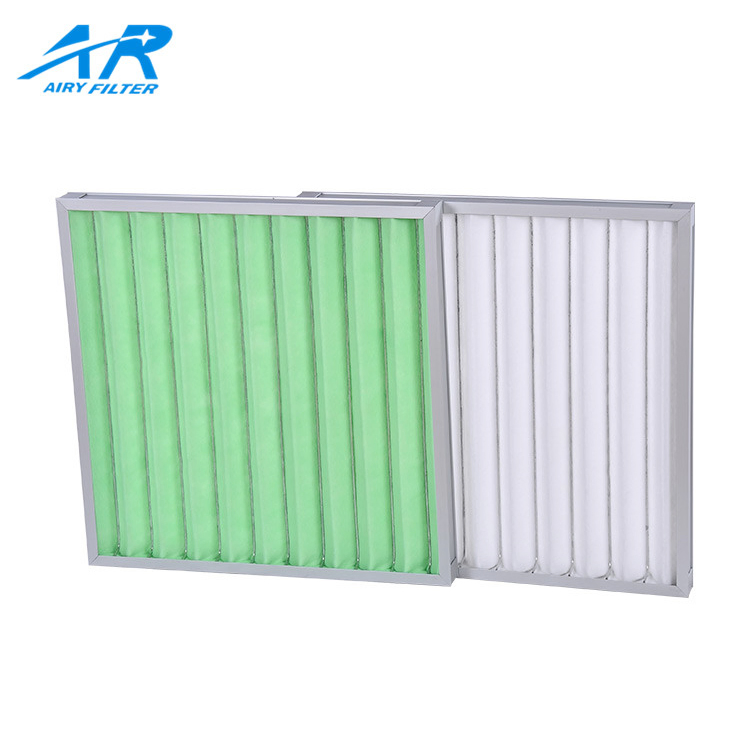

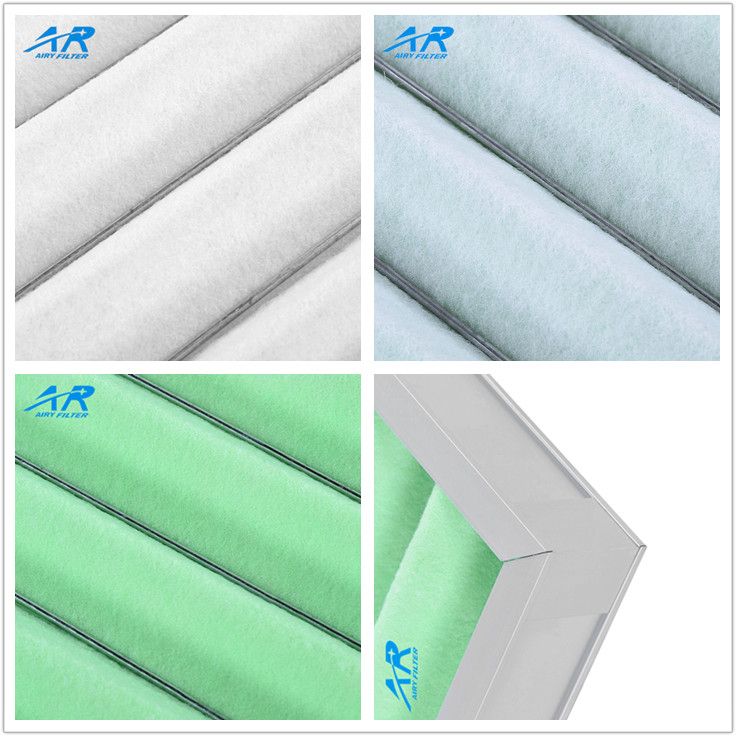

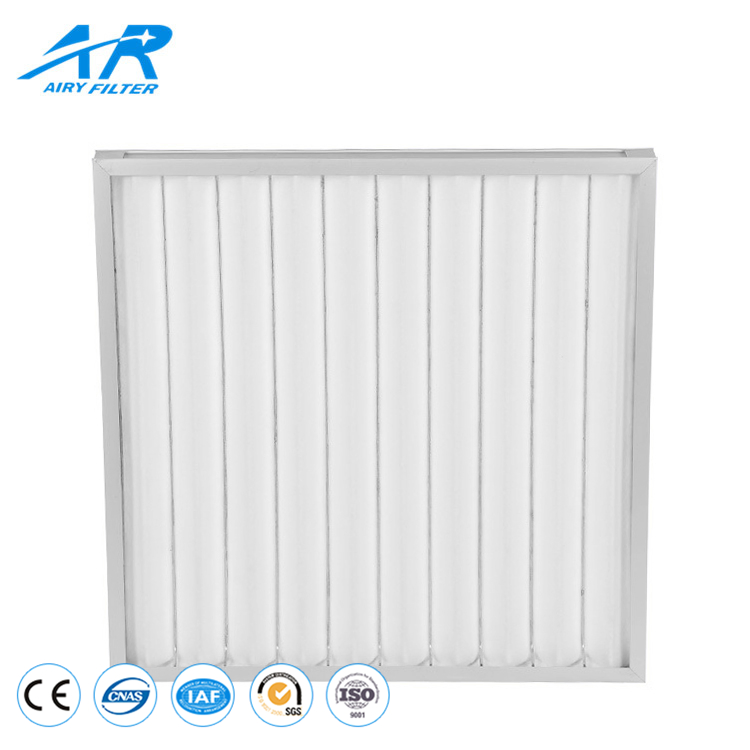

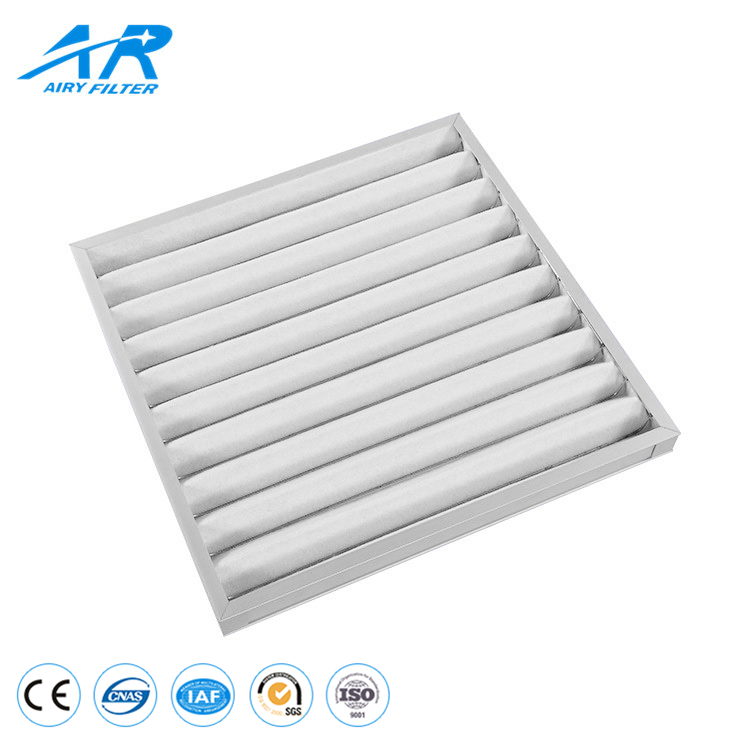

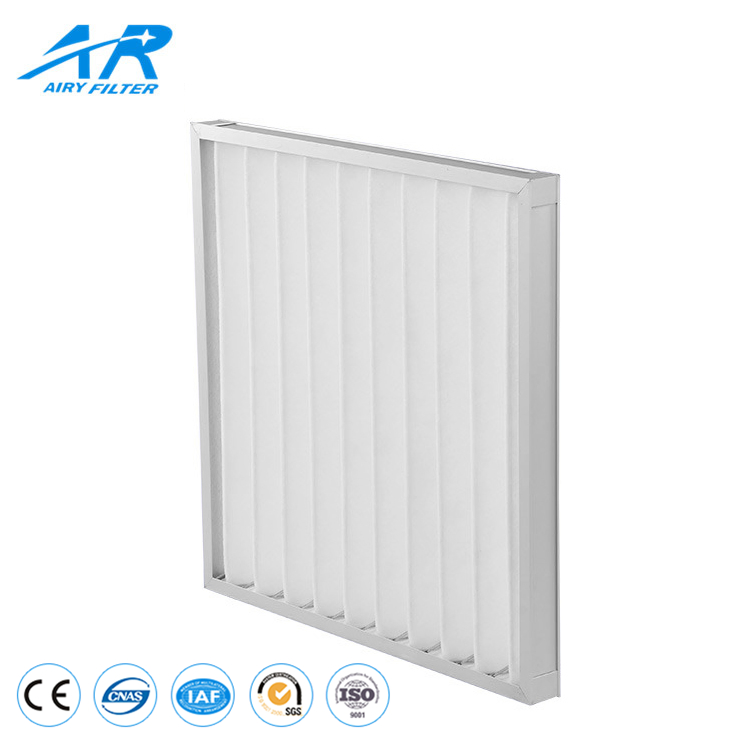

Product picture
Company Information
Guangzhou Airy Filter Media Co., Ltd, a professional air filtering media manufacturing and trading combo which found in 2009. Our company has completed management system, best technical specialists, advance equipment. With over 12 years of experience our products are distributed throughout the World.
Our filters are made to perform second to none. Our products are constructed from top-quality filter material, designed for best efficiency, maximum holding capacity and minimum air flow restrictions.
We are specialized in all kinds of air filter, the main products are: paint arrestor filter mat, pre-filter, ceiling filter, paint stop filter, paint filter paper, sepa paint, HVAC filter, rigid box filter, exhaust filter, non-woven, high temperature resistance filter, plank filter, pleated filter, auto filter, pocket filter, disposable filter, ULPA filter& HEPA filter, activated carbon filter, face mask, mesh filter, paper filter, V cell filter, FFU, HEPA filter box, fiberglass, air filter paper, HEPA media, ceiling filter module, and products for HVAC ventilation system. All sorts of products are widely used in air purification industrial, such as: Spray Coating Industry, Automotive plant, high-tech electron, pharmaceutical factory, Food sanitation, Furniture Manufacturing, Precision Industry, hospital, research institutions and so on. Till now our products have big market share in many countries and areas, like European, USA, Japan, and Southeast Asia etc.
We always adhere to principle'Quality first,Faith root, Service foremost'. We are looking forward to making business relationship with you and having the deep cooperation with the world partners.
Related Products
FAQ
1. Factory or trading company?
We are a manufacturing and trading combo for air filter in China more than 12 years.
2.Free Sample
Free sample will be sent on request in 2 days for your testing.
3.Timely delivery
Production time: 5-7days. We have 9 production lines for filter media with the most advanced equipments and stable workers to control the quanlity and capacity.
4.OEM made
OEM is warmly welcomed,we can arrange your own color or label,print your OEM package,and make your own shape according to your drawing.
5.Payment terms
T/T, D/P, L/C, Western Union
Specification:
| Type | Dimensions W*H*D(mm) | Rated Airflow(m³/h) | Average Arrestance | Initial Resistance(Pa) | Recommended FinalResistance(Pa) | Continuous Temperature | Frame |
| AR-KX-G3 | 595*595*46 | 3200 | 85% | 30 | 250 | 80ºC | Aluminum alloy / Galvanized sheet |
| 595*495*46 | 2700 | ||||||
| 595*295*46 | 1600 | ||||||
| 495*495*46 | 2200 | ||||||
| AR-KX-G4 | 595*595*46 | 3200 | 95% | 35 | 250 | 80ºC | |
| 595*495*46 | 2700 | ||||||
| 595*295*46 | 1600 | ||||||
| 495*495*46 | 2200 | ||||||
| Note: Special Size Available Upon Request. | |||||||
Speciality:
- Washable pre filter is processed by high quality fiber and featured with high dust holding and low resistance. The material is designed into pleated type which will provide the current air with the largest filtration area,it is five time's filtration area as the common panel mesh.
- Relative humidity is 100%, temperature resistance 80%. It can be used for several times to reduce the cost.
- conforms to the fire resistant standard and classification of European DIN53438-F1 and American UL900-Class2
Application:
- Pleated filter is designed for pre-filter in HVAC system.
