Filter Plate are made of strengthened PP & TEP through 4000 Tons mold pressing, high in strength, light in weight, corrosion-resisted, non-poisonous and odorless; Advantages:Simple in operation, convenient in maintenance, it adopts hydraulic pressing system, with manual plate shifting meth......

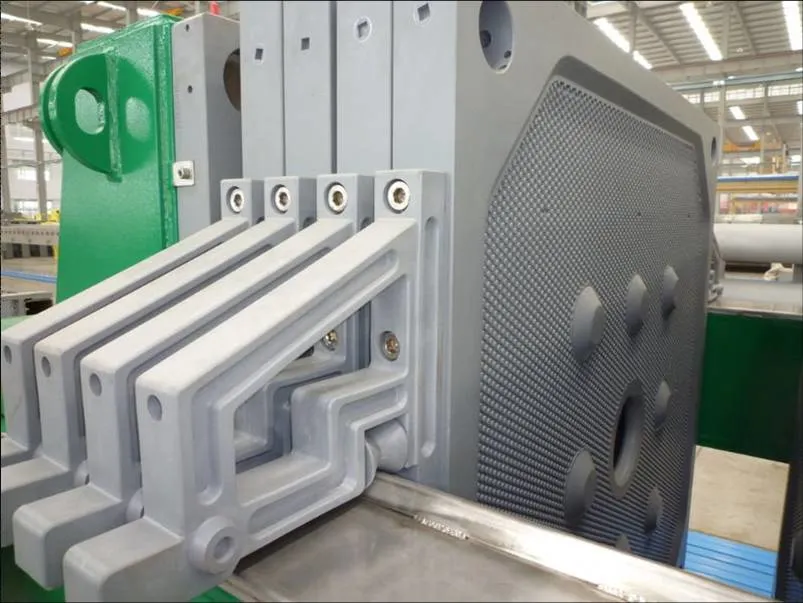

Filter Plate are made of strengthened PP & TEP through 4000 Tons mold pressing, high in strength, light in weight, corrosion-resisted, non-poisonous and odorless;
Advantages:Simple in operation, convenient in maintenance, it adopts hydraulic pressing system, with manual plate shifting method, Air or water squeeze can be selected freely with normal pressure between 1.0~1.6 Mpa, this special design can reduce moisture content in cake a by 8%-35%.
Filter presses:
1.Chamber filter presses
Pressure generated in the feed pump supports suspension in the the filter chambers.
2.Membrane filter presses
Suspension in the filter chambers is supported with only limited pressure.Ultimate dewatering is achieved through pressurization of the membranes.
3.Frame filter presses
The same procedure is applied as for the chamber filter press.The filter chambers are formed by the frame plates used.
For your consideration:
1.Size of Filter plate ranges from 470mm to 2000mm
2.Press Size available:small,medium and large side-bar filter presses
3.Mobile filter presses is available.
4.Max Filtration pressure:up to 25 bar
5.Operation type:manual,semi-automatic,fully automatic.
More details
1.Close/open filter press automatically
2.Fully automatic plate transportation but with safety device.
3.PP/steel/stainless steel drip tray/bomb door driven by hydraulic cylinder
4.Different craftsmanship such as Cake washing,core blow,dry blow,etc. is available
5.New and smart PLC control that is real duty-free
6.Tailored filter clothes testing only for your project
7.Fully automatic filter cloth cleaning
8.Drip-tight filter plate packages
9.Two-side feed and fast slurry feed can save your cost and time
10.Explosion-protection design.
Quick Sample Details Given to Us Before Enquiry(example)
Place of Origin:Shandong, China (Mainland) Brand Name:Zhongda Bright Model Number:
1250x1250mm
Type:Auto hydraulic Plate
type:Membrane
Max feeding pressure:0.6~1.0 Mpa
Squeezing pressure:1.2~1.6 Mpa
Feeding type:Centre feed:
Filtration area:
250~600:
Chamber volume:4.97~12.08
Drip tray is controlled by PLC and drove by hydraulic system, it is designed for collecting filtrate. Other special filter press automatic functions also can be added such as filter cloth washing system,filtrate collecting system, filter cloth shaking system, etc.
Basic Info
Model NO.: XMGY
Filter Volume: 498-19651 L
Weight: 3046-70780 Kg
Plate Material: Reinforced Polypropylene
Foundation Size: 2920-15880 mm
Trademark: Bright
Transport Package: Seaworthy Package
Specification: 870, 1000, 1250, 1500, 2000
Origin: Shandong Province of China
HS Code: 8421291090
Technical Data:
Model | Filter area | Filter | Plate NO. | Power | Weight | Dimension |
XMGY30/870 | 30 | 498 | 23 | 4.0 | 3046 | 3880*1250*1300 |
XMGY40/870 | 40 | 623 | 29 | 3593 | 4270*1250*1300 | |
XMGY50/870 | 50 | 789 | 37 | 4057 | 4790*1250*1300 | |
XMGY60/870 | 60 | 955 | 45 | 4597 | 5310*1250*1300 | |
XMGY70/870 | 70 | 1121 | 53 | 5136 | 5830*1250*1300 | |
XMGY80/870 | 80 | 1287 | 61 | 5636 | 6350*1250*1300 | |
XMGY50/1000 | 50 | 776 | 27 | 4.0 | 4352 | 4270*1500*1400 |
XMGY60/1000 | 60 | 943 | 33 | 4480 | 4770*1500*1400 | |
XMGY70/1000 | 70 | 1109 | 39 | 5263 | 5130*1500*1400 | |
XMGY80/1000 | 80 | 1275 | 45 | 5719 | 5560*1500*1400 | |
XMGY100/1000 | 100 | 1608 | 57 | 6555 | 6410*1500*1400 | |
XMGY120/1000 | 120 | 1941 | 69 | 7466 | 7260*1500*1400 | |
XMGY80/1250 | 80 | 1560 | 29 | 5.5 | 10900 | 4830*1800*1600 |
XMGY100/1250 | 100 | 1975 | 37 | 11750 | 5440*1800*1600 | |
XMGY120/1250 | 120 | 2391 | 45 | 12600 | 6060*1800*1600 | |
XMGY150/1250 | 150 | 2911 | 55 | 13620 | 6820*1800*1600 | |
XMGY160/1250 | 160 | 3119 | 59 | 14470 | 7130*1800*1600 | |
XMGY200/1250 | 200 | 3847 | 73 | 15320 | 8200*1800*1600 | |
XMGY240/1250 | 240 | 4679 | 89 | 16170 | 9420*1800*1600 | |
XMGY250/1250 | 250 | 4783 | 91 | 17020 | 9570*1800*1600 | |
XMGY200/1500 | 200 | 3809 | 49 | 11 | 26120 | 7140*2200*1820 |
XMGY250/1500 | 250 | 4723 | 61 | 26930 | 7730*2200*1820 | |
XMGY300/1500 | 300 | 5637 | 73 | 28160 | 8720*2200*1820 | |
XMGY350/1500 | 350 | 6551 | 85 | 29600 | 10110*2200*1820 | |
XMGY400/1500 | 400 | 7618 | 99 | 31500 | 11260*2200*1820 | |
XMGY450/1500 | 450 | 8532 | 111 | 33400 | 12250*2200*1820 | |
XMGY500/1500 | 500 | 9446 | 123 | 33380 | 13240*2200*1820 | |
XMGY600/2000 | 600 | 11901 | 85 | 15 | 54164 | 13030*3000*2500 |
XMGY700/2000 | 700 | 13838 | 99 | 58300 | 14390*3000*2500 | |
XMGY800/2000 | 800 | 14945 | 107 | 62460 | 15770*3000*2500 | |
XMGY900/2000 | 900 | 17713 | 127 | 66620 | 17150*3000*2500 | |
XMGY1000/2000 | 1000 | 19651 | 141 | 70780 | 18530*3000*2500 |
Applicable field
1) Chemical Industry
Coating, paint, silica, caustic soda, soda ash, alkali, salt mud, new, water purification machines (aluminum, aluminum polymerization acetylacetonate, gypsum, insurance, phosphor, lithopone)
2)Food Industry
Vegetable oil, monosodium glutamate, glucose, starch sugar, plant sweet, maltose, starch, maize, rice, Joan, seaweed, kara glue, milk, oral liquid, beer yeast, soy sauce, rice wine, white wine, fruit juice, beverage, plant protein, and so on
3)Sewage Treatment
Printing and dyeing wastewater, sewage, smelting, leather, pharmacy sewage water brew, electroplating wastewater, sewage and waste, chemical electrolysis of water environment
4) Pharmacy Industry
Phytic acid, calcium, chinese traditional medicine, saccharification, organophosphate etc
5) Pottery Clay Industry
Bentonite, electronic ceramic soil, kaolin, active soil, porcelain clay, limestone, granite furnaces
6) Metallurgy, Coal Industry
Gold, silver, copper, zinc ore mineral powder, etc
7) Other solid liquid separation industries.
Technical Advantage:
1. Bright Filter Press is the biggest factory in north of China, and we have the biggest injection molding machine with 4000 tons.
2. The oil cylinder seat, pressing plate and thrust plate are formed by carbon dioxide protection welding.
3. Bright self-developed flter press with the biggest filter area of 1000M2 goes well in Vietnam.
4. The main beam of Bright filter press is designed by adopting welded box construction, and manufactured by making use of submerged arc auto welding technology.
5. The chain cover which is indenpendently developed by Bright has the characteristic of high hardness and anti-corrosion.
6. All the spare parts that need painted are dealed with high speed centrifugal ball blast descaling and iron scale. After painting MIO exoxy build primer, paint acrylic polyurethane coating directly to make it have the best adhesion. It can save hundreds tons of putty every year, thus not only reduce the cose, but also protect the environment. More important, it improves the adhesion of the paint and antisepsis class of the filter press.
FAQ:
Q: Are you filter press manufacturer?
A: Yes, we are the company which is the joint of trade and industry, and we cal provide sample test, equipment manufacture, after-sale service, etc.
Q: Which country have your products been exported?
A: Many countries around the world, such as Australia, EU, America and so on. And our company has agencies in Vietnam.
Q: Can your company help the customers design the project in mining processing?
A: Yes, our professional team can design perfect projects for our customers.
Q: What kind of filter press can you produce?
A: Chamber filter press, membrane filter press, plate and frame filter press, belt filter press,vacuum belt filter, round filter press, cast iron filter press, stainless steel filter machine, filter plate and filter cloth etc.
Q: What's your MOQ?
A: We will indicate the MOQ for each item in the quotation list, generally the MOQ is 1set.
Q: What is the payment terms?
A: TT and L/C are acceptable and TT will be more appreciated.
30% advance payment by T/T, 70% to be paid before delivery of goods by T/T.
Q: Do you accept OEM?
A: Yes, we can manufacture according to your requirement.
Q: What is the machine warranty?
A: All the machines from my factory have 12 months warranty.
Q: Is on site installation & commissioning available?
A: Yes.
Q: Can I visit your factory?
A: Sure, of course, welcome to visit our factory at any time!
Our product line:
Automatic Membrane Filter Presses,
Automatic Chamber/Racessed Filter Presses,
Hydraulic/Mechanical/Manual Filter Presses,
Special Filter Presses,
Filter Plates(including CGR Gasketed Filte Plates),
In order to meet different filtration needs of customers, we have been constantly developing and improving our prduct technology, quality, process automation and after-sales services. Our unremitting efforts for years have bought us great trust from customers and our products enjoy fast sales abroad.
