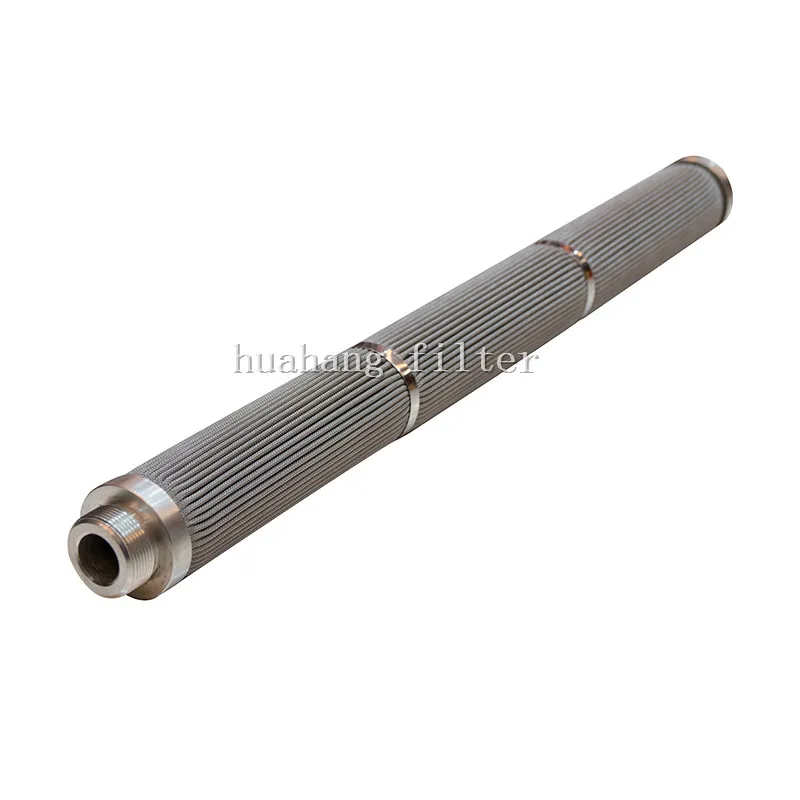

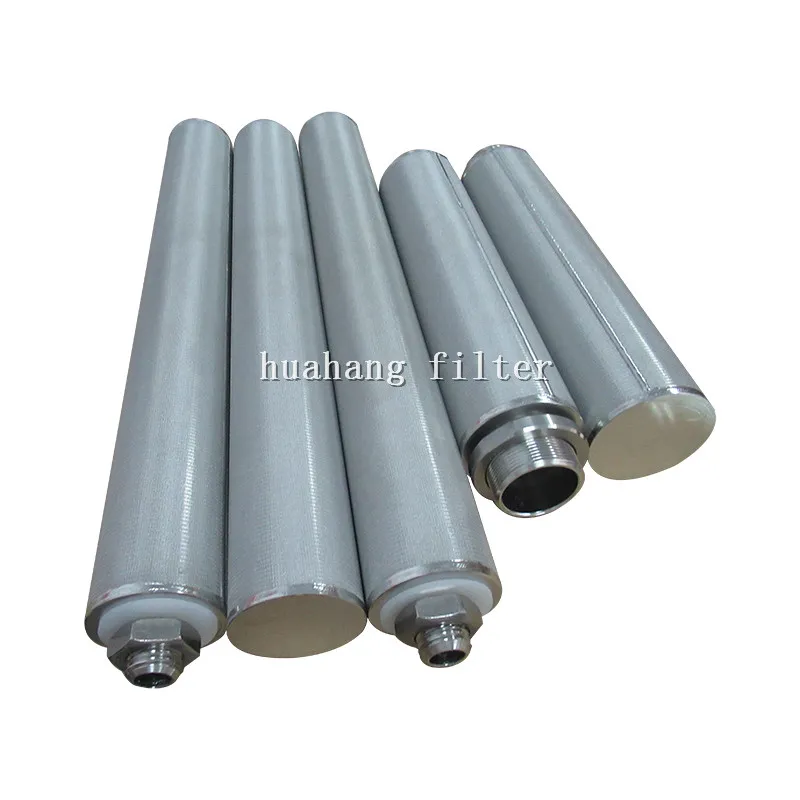

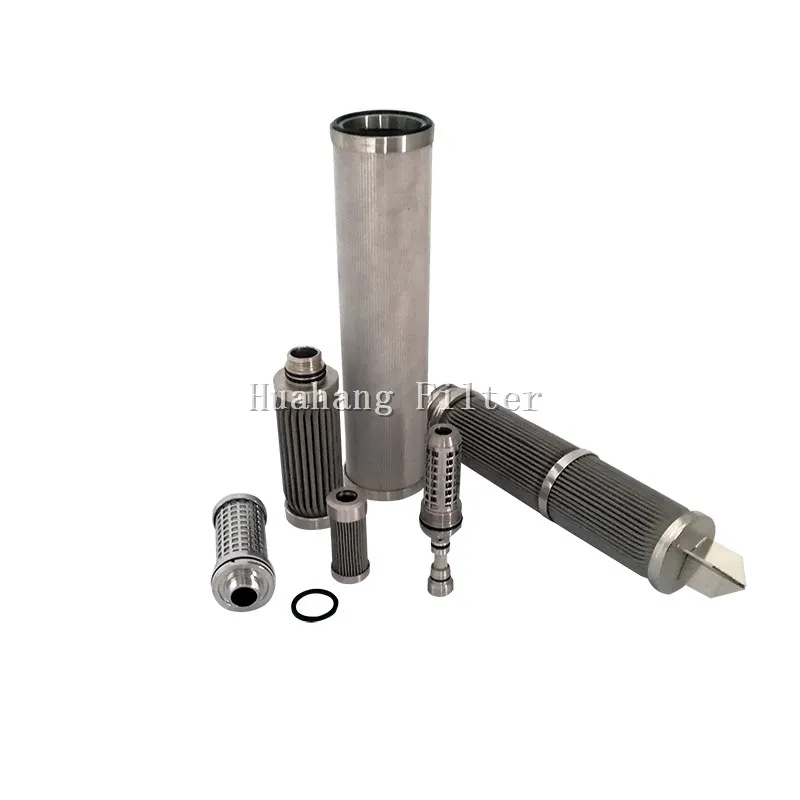

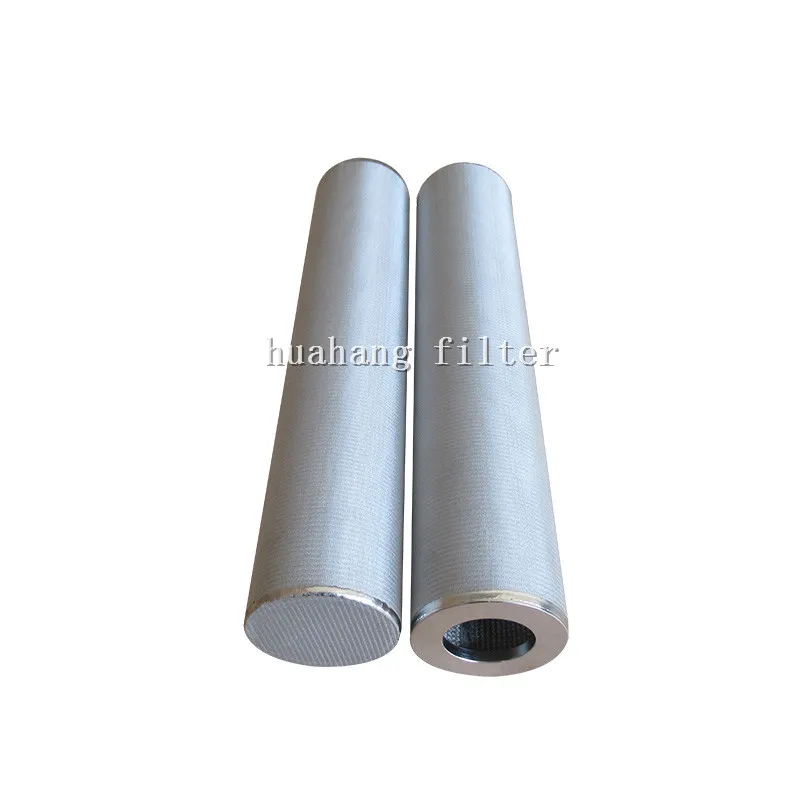

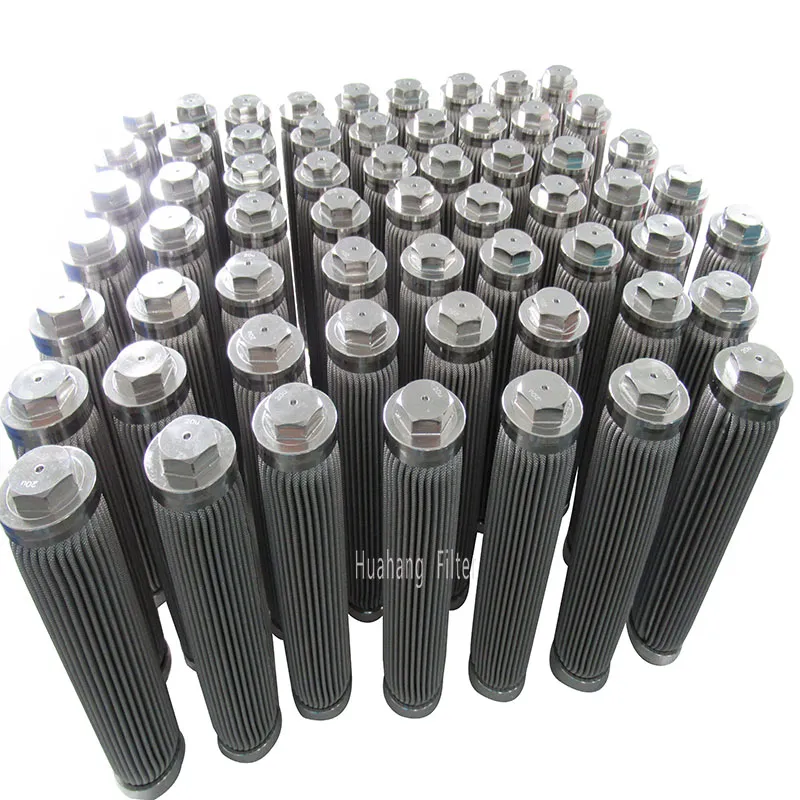

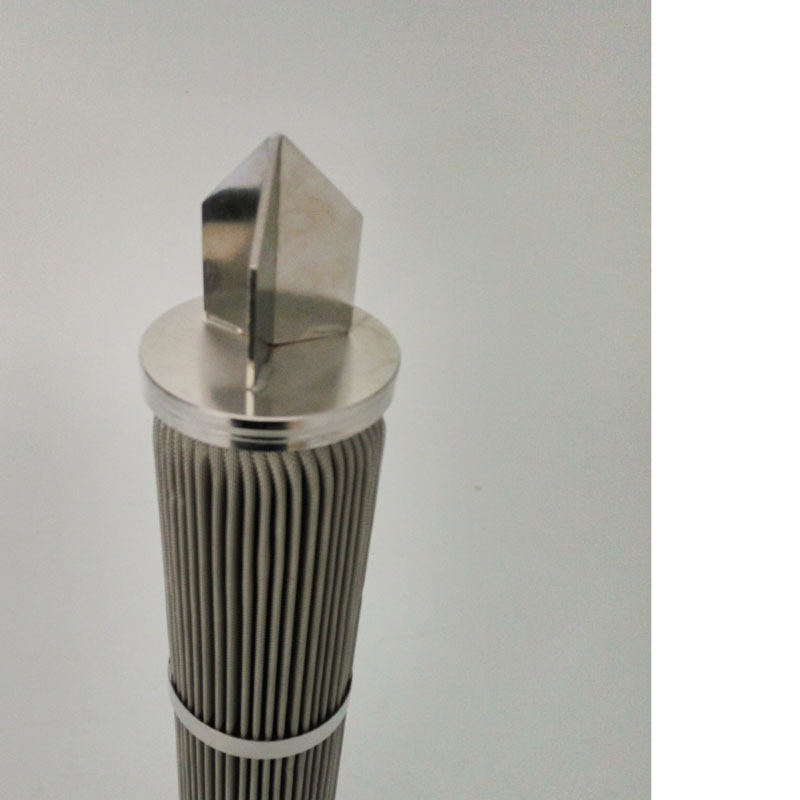

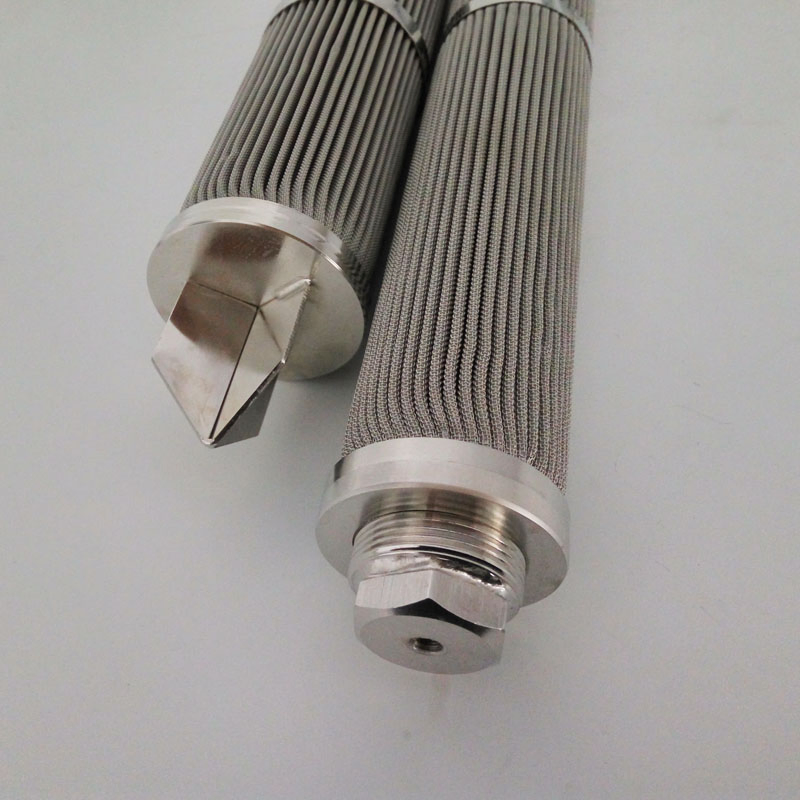

10/20/30/40 Inch Stainless Steel Sintered Filter Plain/Pleated Mesh Cartridge Filter with DOE/222/ 226 Adaptor
We can manufacture filter as your requirement .Please kindly advise photo and size . Welcome OEM & ODM !Welcome OEM ! Kindly inform us following information 1,Photo2,ID,OD,Height3,Filtration Precision4,End CapDescriptionStainless Steel Filter Cartridges are the perfect choice for high temperatur......
Send Inquiry
Product Description
Welcome OEM ! Kindly inform us following information
1,Photo
2,ID,OD,Height
3,Filtration Precision
4,End Cap
Description
Stainless Steel Filter Cartridges are the perfect choice for high temperature and High viscosity applications. Manufactured with 304 or 316L sintered stainless steel mesh / Sintered Powder / pleated mesh cartridge offers excellent reliability for critical applications.
Stainless steel cylindrical, sintered SUS 316/316L powder or pleated wire mesh filter cartridge can get a larger filtration area and with high flow rate. It extends cartridge life and have more dirt holding capacity. The perforated mesh welded outside gives stainless steel cartridges the highest mechanical strength to work in high pressure working condition.

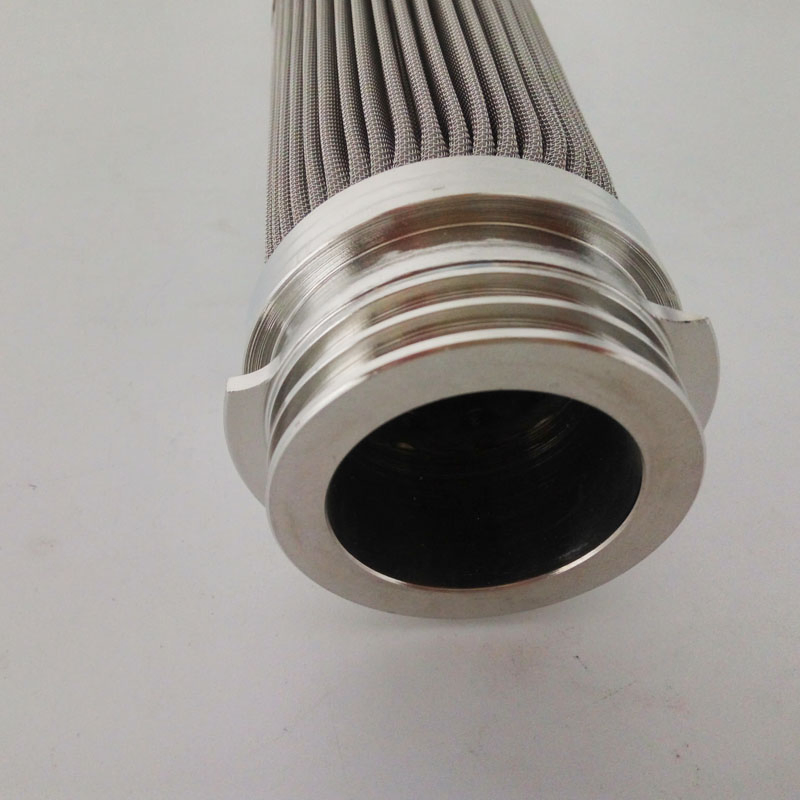

The stainless steel filter cartridges are designed for cleanable and reusable applications thereby eliminating frequent cartridge change out. Optional pleat protector available to prevent denting and damage to the pleated surface.
Stainless Steel filter cartridge feature:
1. Filter cartridges are manufactured from 304 or 316 stainless steel wire cloth material.
2. Mesh Patterns - Square Weave, Twilled Dutch Weave, Plain Dutch Weave etc.
3. High pressure resistance, withstand collapse pressure ratings of 300-6,000 PSID.
4. Temperature ratings from -73°C to 260°C.
5. Various micron ratings available from 2um to 1000um nominal.
6. Various mesh sizes available.
7. Stainless Steel filter cartridge elements are cleanable for long service life.
8. SUS 316L stainless steel material available for wide chemical resistance.
Non-standard Stainless steel filter cartridge specifications (special size, shape, connection, etc) can be customized according to customer's requirement.
Stainless Steel Filter Element Specification:
| SS Fiter Cartridge dimensions | |
| Length | 5'' (125mm), 10'' (250mm), 20'' (500mm), 30'' (750mm), 40'' (1000mm) |
| Diameter | Ø25, 30, 50, 60, 65, 70mm |
| Other dimensions | Customized by customer's request. |
| Material of constructions | |
| Filter media | SUS304, 316, 316L stainless steel |
| Connector type | Flat, Insert type, Thread type, Fin type or as request |
| End caps/adaptors | DOE, SOE, 215, 222, 226, M20, M30, M42, 1'' NPT/BSP or as customer's request. |
| Outside protection net | Optional |
| Sealing material | Silicone, NBR, EPDM, Buna, Viton, Teflon, etc |
| Performance | |
| Removal rate | 1, 3, 5, 10,20, 30, 40, 50, 100um, etc |
| Effective Surface area | 0.65sqm per 10" cartridge element |
| Operation Temperature | <=480ºC |
| Cleaning method | back flushing/ backwash, ultrasonic or other non-abrasive cleaning |
| Maximum Operating Pressure differential | 4.0bar |
Stainless steeel Filter Cartridge Applications:
1. Water filtrations
2. Hydraulics
3. Automotive
4. Pneumatics
5. Chemical
6. Petrochemical
7. Medical
8. Oil & gas
9. Aeronautical
10. Mining
11. Food & beverage
Why choose us
1. Domestic filter industry leader, passed ISO9001:2008, CE, SGS and many other certifications
2.we are factory and more than 9 years export experiences ,guarantee good quality and low price.
3. Products are sold in 68 countries around the world
4. Custom sample processing, engineer one-on-one service
5. Fast delivery
6.24 hours customer service online service
Our Services
1.Pre-sale service :
Provide you best products price you need
Answer all your questions about the products patiently .
2.Medium-sale service :
All filter element will be tested before shippment
Provide you newest goods transport conditions until you receive our products
3.After-sale service :
Technical advisory for any time
If the products have quality problem , and because of us , we will make the new products to youMain Products
Main Products
| 1. Alternative Argo filter |
| 2. Alternative EPE oil filter |
| 3. Alternative FILTREC oil filter |
| 4. Alternative HYDAC oil filter |
| 5. Alternative INTERNORMEN oil filter |
| 6. Alternative Leemin oil filter |
| 7. Alternative MP FILTRI oil filter |
| 8. Alternative PARKER oil filter |
| 9. Alternative SOFIMA oil filter |
| 10. Alternative STAUFFF oil filter |
| 11. Alternative TAISEI KOGYO oil filter |
| 12. Alternative VERKERS oil filter |
| 13. Alternative PALL oil filter |
| 14. Alternative Donaldson oil filter |
Company Information
Xinxiang City Huahang Filter Co., Ltd. is a professional industrial filter manufacturer integrating design, production and marketing. With strong technical force, perfect testing means, and excellent after-sales service, we provide users with a variety of high-quality products.
Our main products include hydraulic filters, air filters and pipe filters. Products are widely used in petroleum, chemical and metallurgical machinery, textile, pharmaceutical, automobile, chemical fiber, and air-conditioning.
"Quality first, customer first" is our business objective. We will, as always, offer new and old customers with the best quality service.
FAQ
1.How about your quality?
&Our company go through ISO9001:2015 quality management system certification.
& The company has an on-site certification SGS that you can trust.
& Most products pass CE production certification.
2.What's the warranty ?
Our warranty is 1 year. it means in the correct installation and normal Instructions, If our goods have any quality problem, we will re-produce for you again for free.
3.What is your delivery time?
Usually 7-10 working days after payment.
4.What is your packaging and shipment?
&Carton inside, wooden outside or as your requirements
&By international express, air and sea
&Shipment port: Shanghai or any other Chinese ports
5.What's your service?
&Answer all your questions about the products patiently and technical advisory for any time
&All filter element will be tested before shipment
&Provide you newest goods transport conditions until you receive our products
6. What's your sample policy?
We can supply the sample if we have stock, but the customers have to pay the sample cost and the courier cost at first, and we will refund sample cost in your next order.
7. What's the terms of payment?
T/T 30% as deposit, and 70% before delivery
8. Can I use my own logo on the products?
A:Yes,customize logo on the products are available
