Product Description
Stainless Steel Filter Housing Description:
Stainless Steel Filter Housing made of SUS316L or SUS304, and take filter cartridge as its element. The stainless steel filter housing can be used for filtration of liquid, gas and 0.1um above particles and bacteria, with high removal rating and flow rate. It possess properties of lower absorption, no medium shedding, no leakage, acid and alkali Resistance, and corrosion resistance. In addition, it is easy to wash and function as back flush, and is ideal filtration equipment for the industry of biology & pharmacy, beer & beverage, textile, power plant, chemical, and water treatment etc.
Different stainless steel multi-cartridges filter housing could be customized, as long as you offer us picture and drawing.
Stainless Steel Filter Housing Specification:
Material: SUS304L, SUS316, SUS316L
Cartridge Capacity: 1 element, 3 element.. 160 element
Connection Available: Flange, clamp, Lifting bolts
Cartridge Configuration Accepted: 222/Fin, 226/Fin, DOE, etc
stainless steel cartridge water filter housing Parameters
material | SS304 or SS316 |
cartridge length | 5'', 10", 20" ,30" ,40", 50'' |
cartridge core | single or multi-cartridge |
Cartridge Quantity | 1 to 160 pcs for option |
surface treatment | Polished or sandblast external |
Top Cap installed type | lifting bolts type, flange type, clamp type, |
inlet/outlet connection | thread type, flange type, pogoda type |
seal O-ring | silicon,NBR, EPDM, Viton |
usage | liquid,gas filter |
accept | OEM |

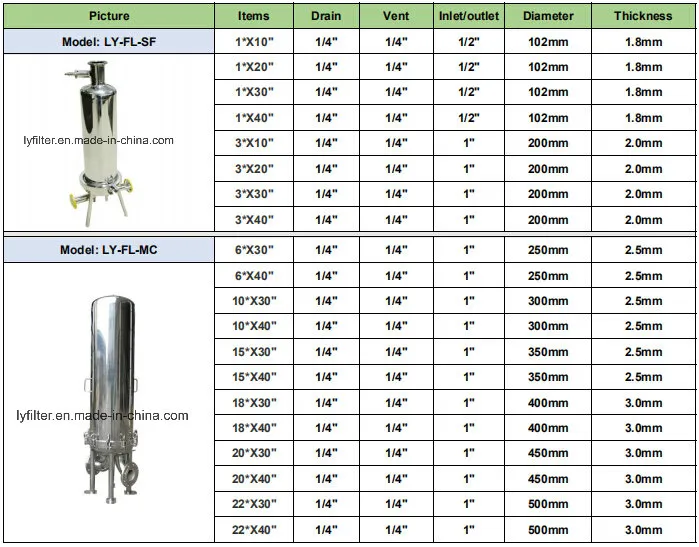

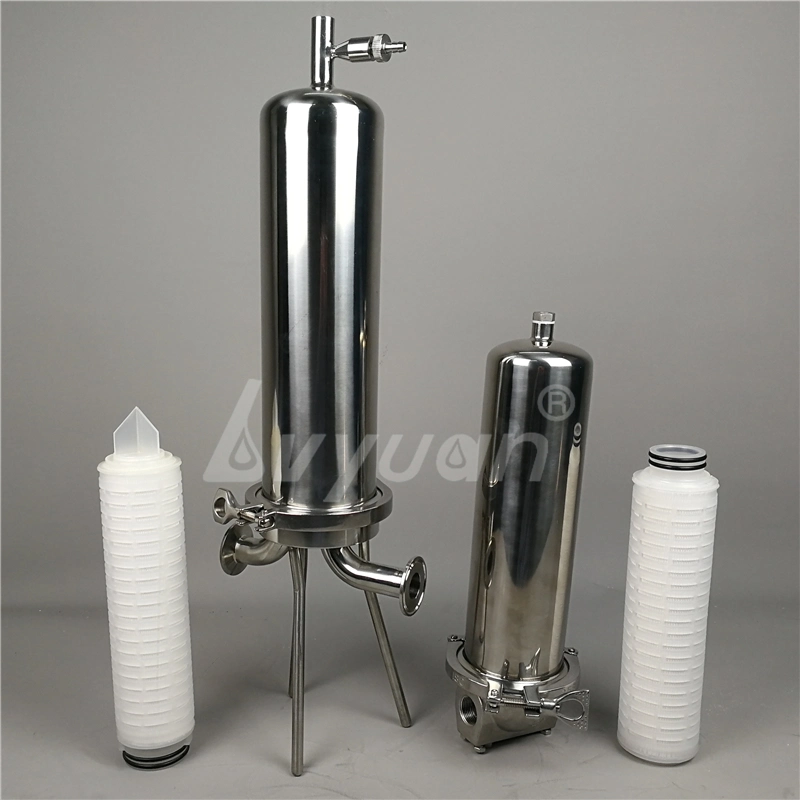

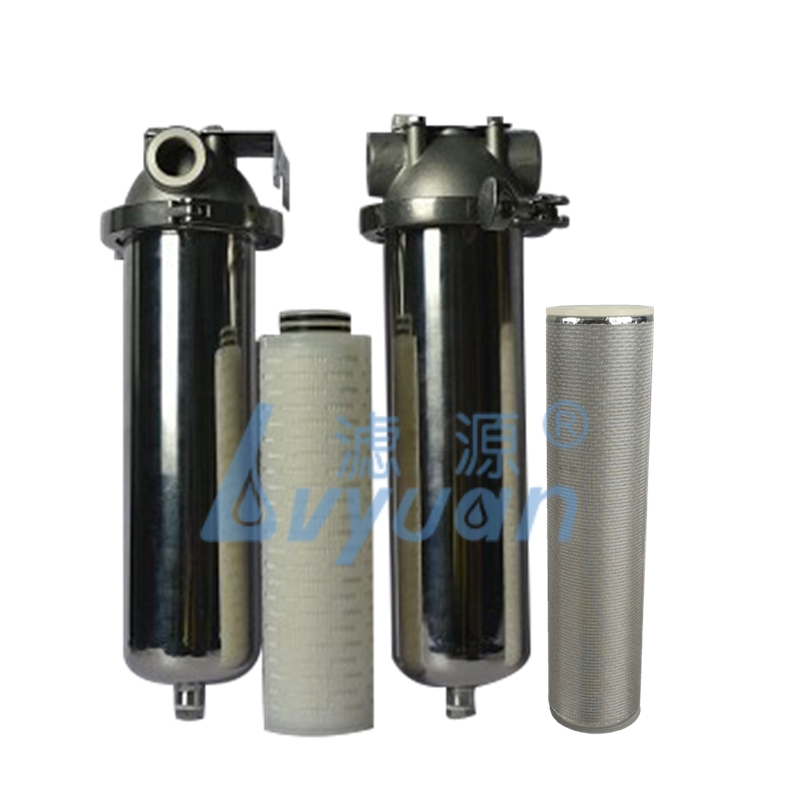

Stainless Steel single cartridge filter housing series:

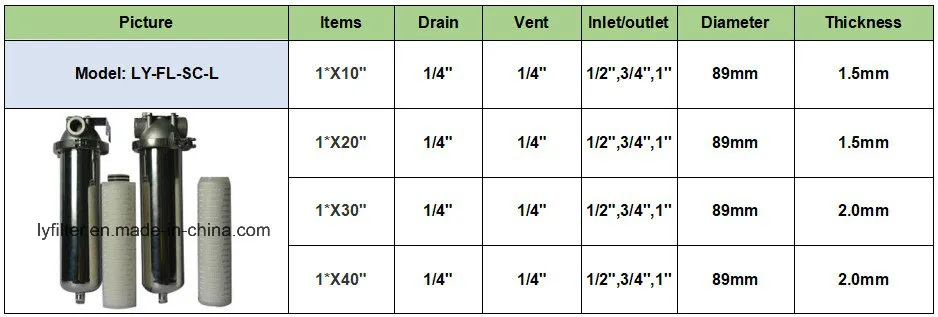

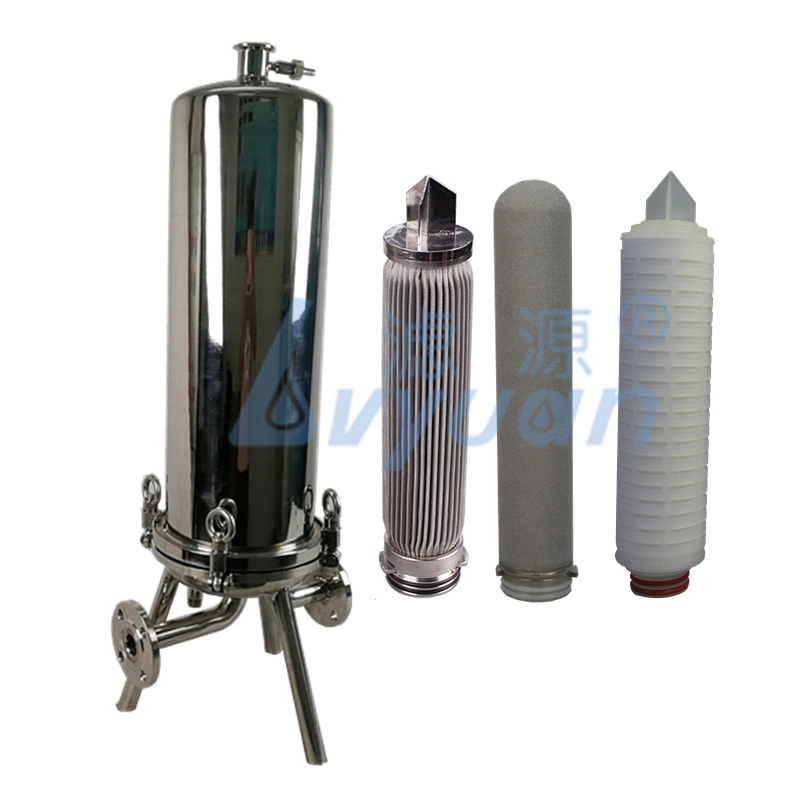

Precision stainless steel cartridge filter housing series:

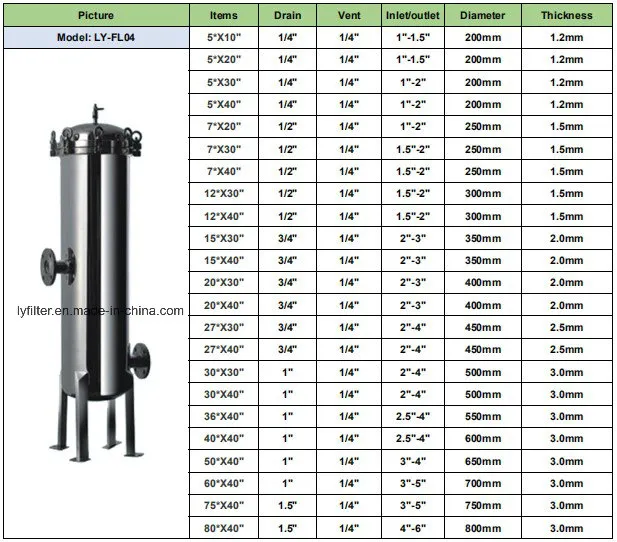

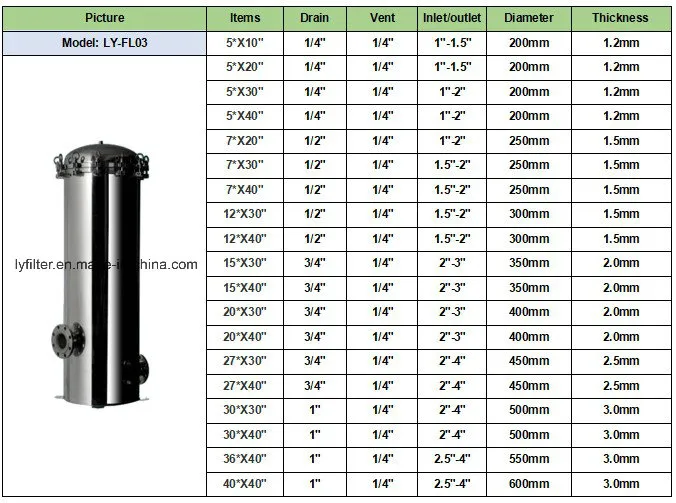

stainless steel Multi-cartridge water filter housing Series:
Clamp type -----------------------------------------------------------------------------------------------------------------------

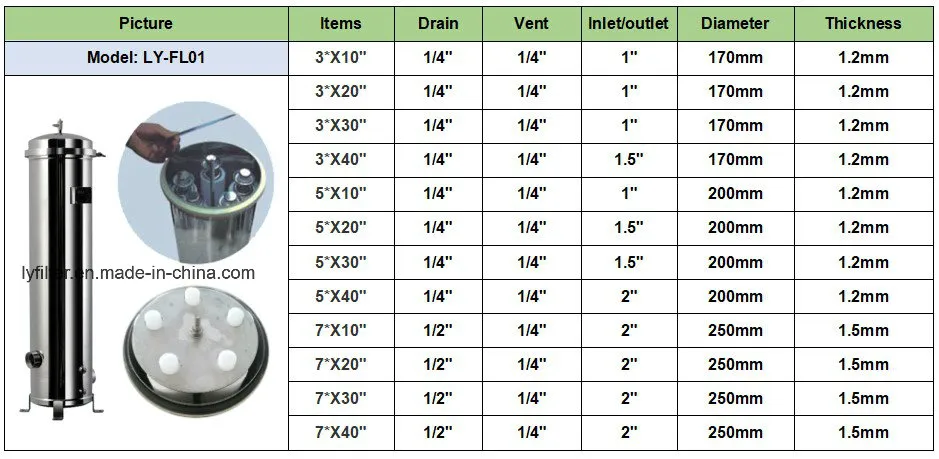

Quick bolt connected with standing feet type ----without stand feet is available-------------------------------

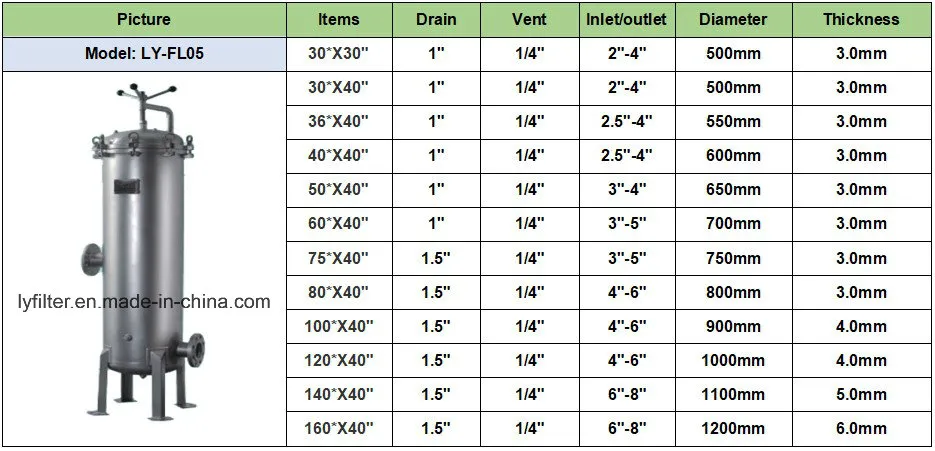

Quick bolt connected with rocker arm --------------------------------------------------------------------------------------
Sanitary stainless steel multi cartridge filter housing with flange----------------------------------------

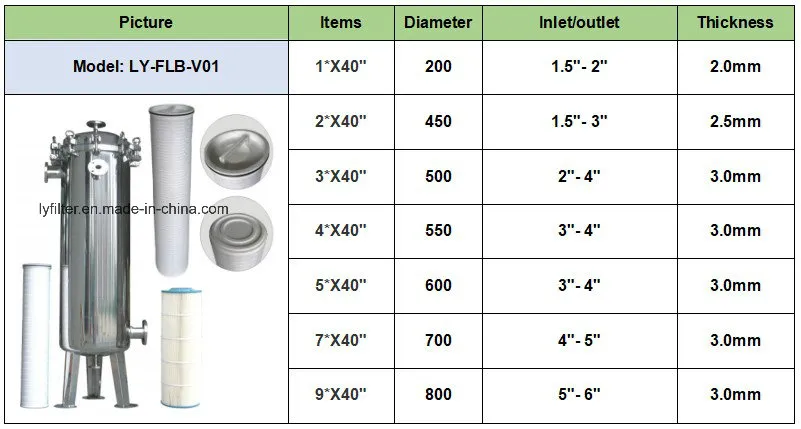

High pressure high flow stainless steel single and multi cartridge filter housing for Pa88ll replacement :

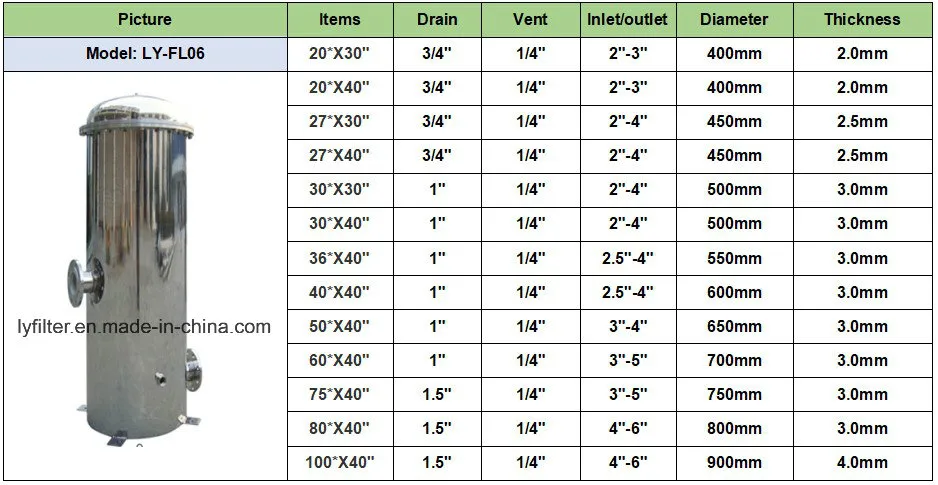

Large flow vertical cartridge filter housing:

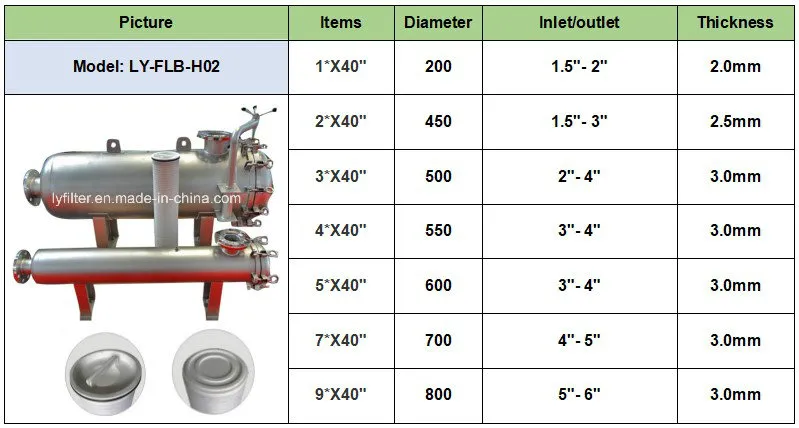

Large/high flow horizontal cartridge filter housing for pa88ll stainless steel filter housing replacement:
OEM & ODM service are welcome.
Welcome to send us inquiry for more product information.
