2540 4021 4040 8040 RO Membrane Water Filter Cartridge Housing Stainless Steel
Products Details:SS membrane housing is the basic component of reverse osmosis equipment and the RO system. The material is 304 or 316L stainless steel seamless tubes. The sealing form of the end cover includes: clamp, flange, built-in; Water inlet mode covers end port and side port. The length is......
Send Inquiry
Product Description
Products Details:

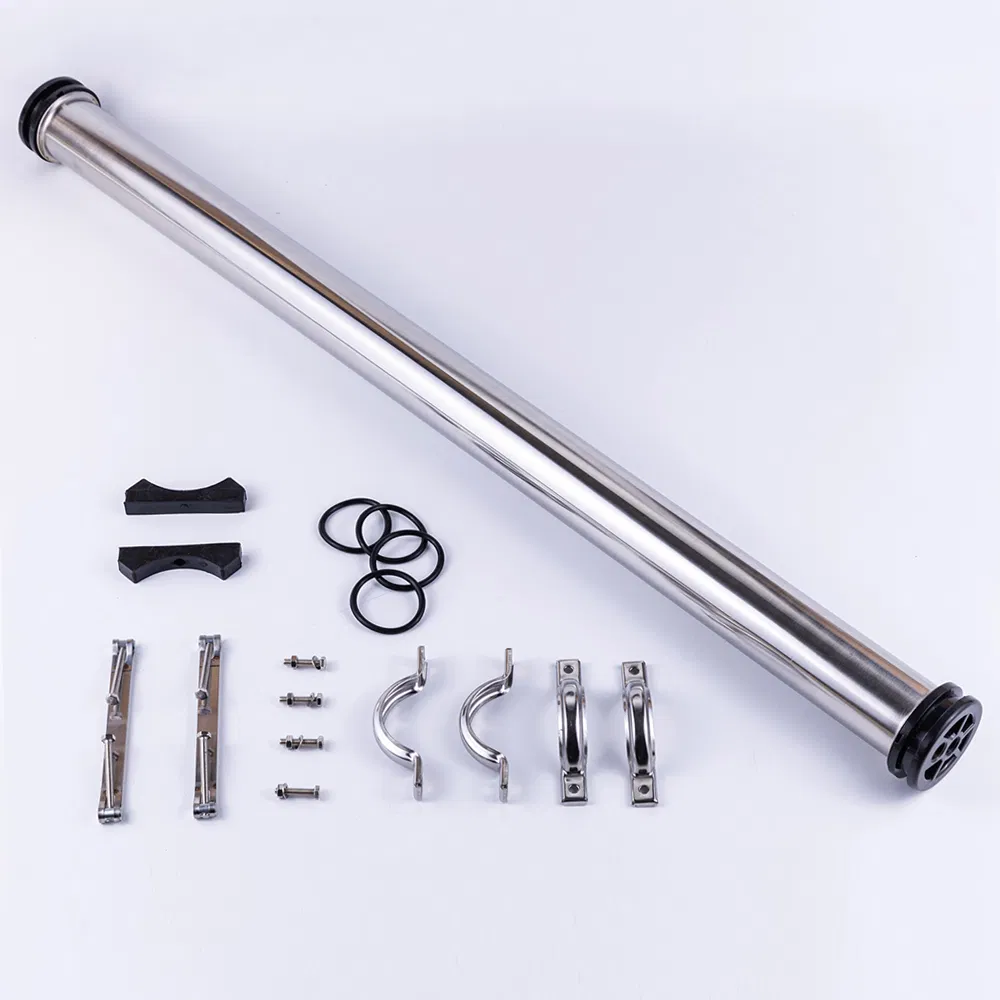

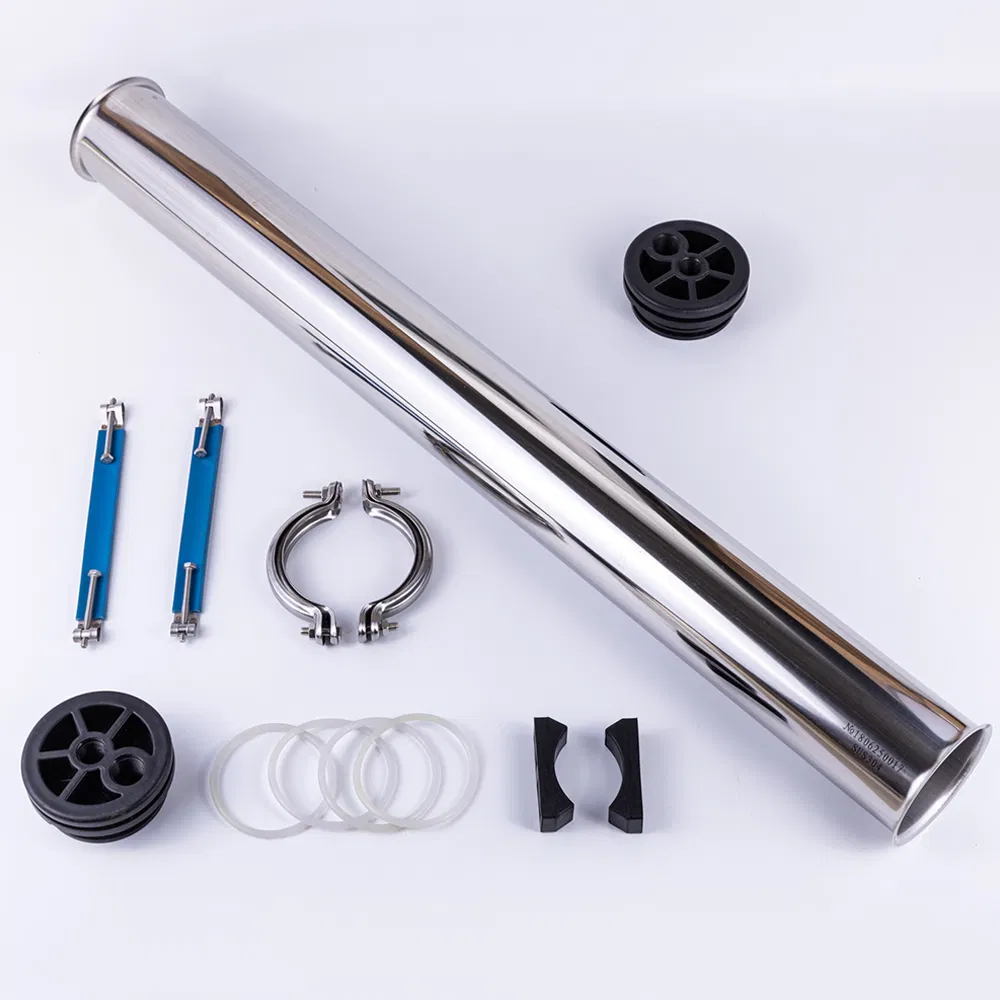

SS membrane housing is the basic component of reverse osmosis equipment and the RO system. The material is 304 or 316L stainless steel seamless tubes. The sealing form of the end cover includes: clamp, flange, built-in; Water inlet mode covers end port and side port. The length is matched with the number of reverse osmosis membrane components. Inside and outside of the tube is polished.
| Specifications | End port | |
| Available pressure rating (psi) | 300 | |
| Length (No. of elements) | Single Membrane | |
| Housing Material | 304 Stainless Steel or 316L Stainless Steel | |
| Cap Material | ABS, Nylon, Stainless Steel | |
| Closure | Victaulic,Tri-clover, Clamp | |
| Design Pressure | 300PSI | |
| Finishing | Polished or Mirror Polish | |
| Operating Temp | 0-95ºC | |

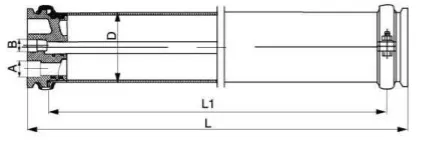

Membrane Housing Dimension:
| Model | L (mm) | L1 (mm) | D (mm) | A | B |
| 4021 | 605 | 545 | 102 | 1/2'' 3/4'' | 1/2'' |
| 4040-1 | 1084 | 1024 | 102 | 1/2'' 3/4'' | 1/2'' |
| 4040-2 | 2100 | 2040 | 102 | 3/4'' | 1/2'' |
| 4040-3 | 3119 | 2056 | 102 | 3/4'' | 1/2'' |
| 4040-4 | 4132 | 4072 | 102 |
