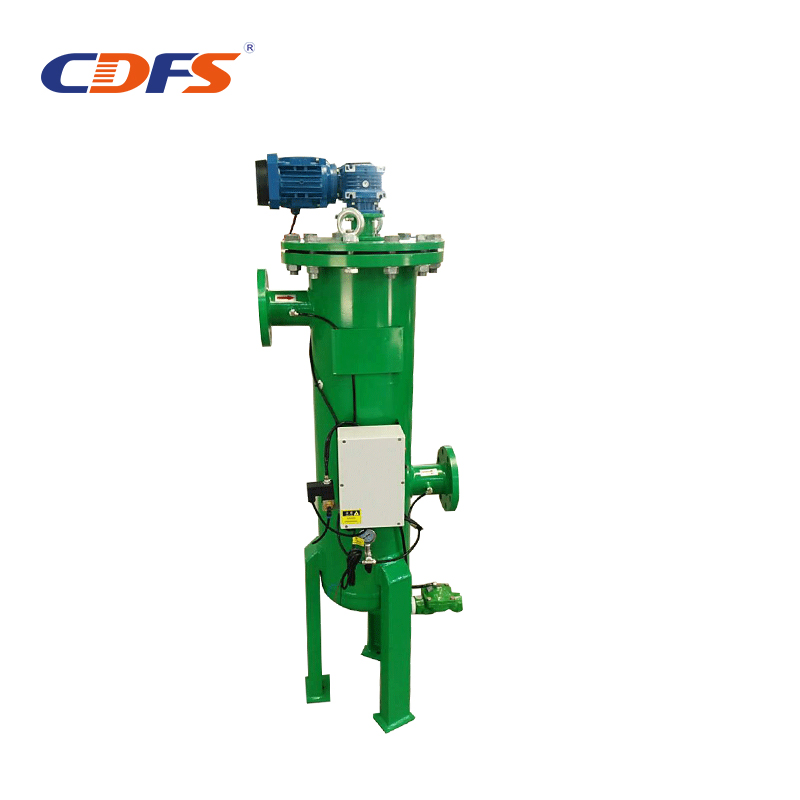

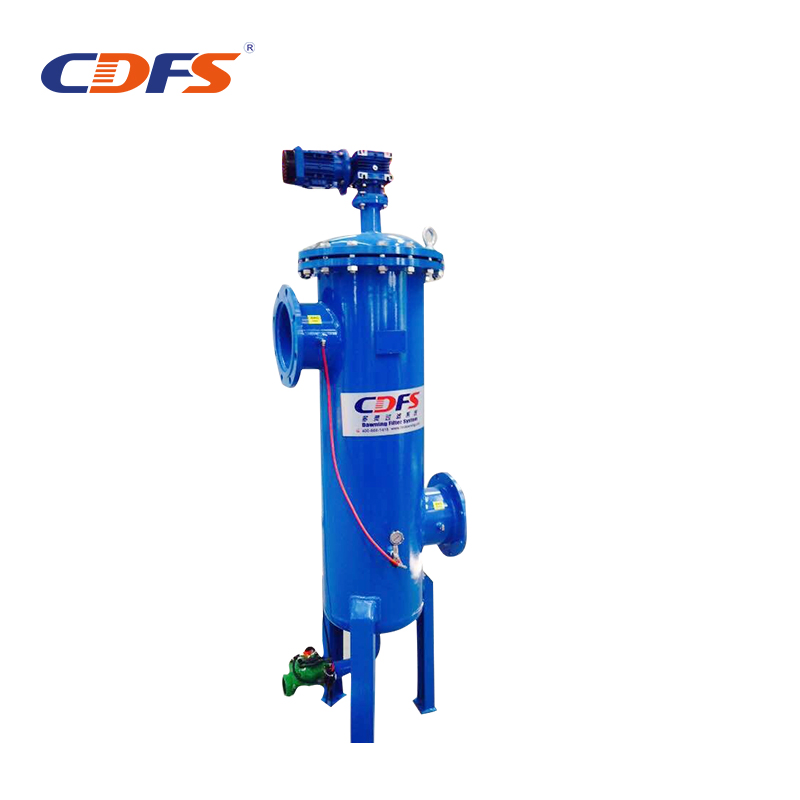

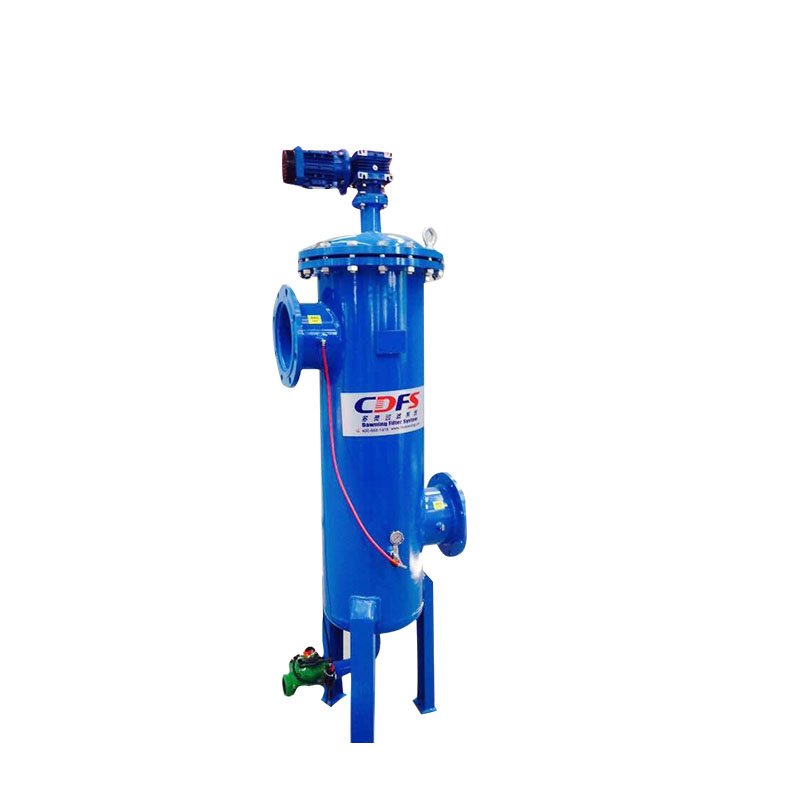

Automatic Self-Cleaning Brush Filter

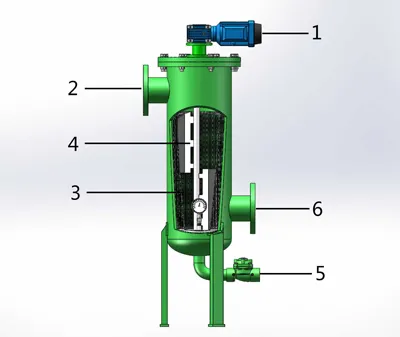

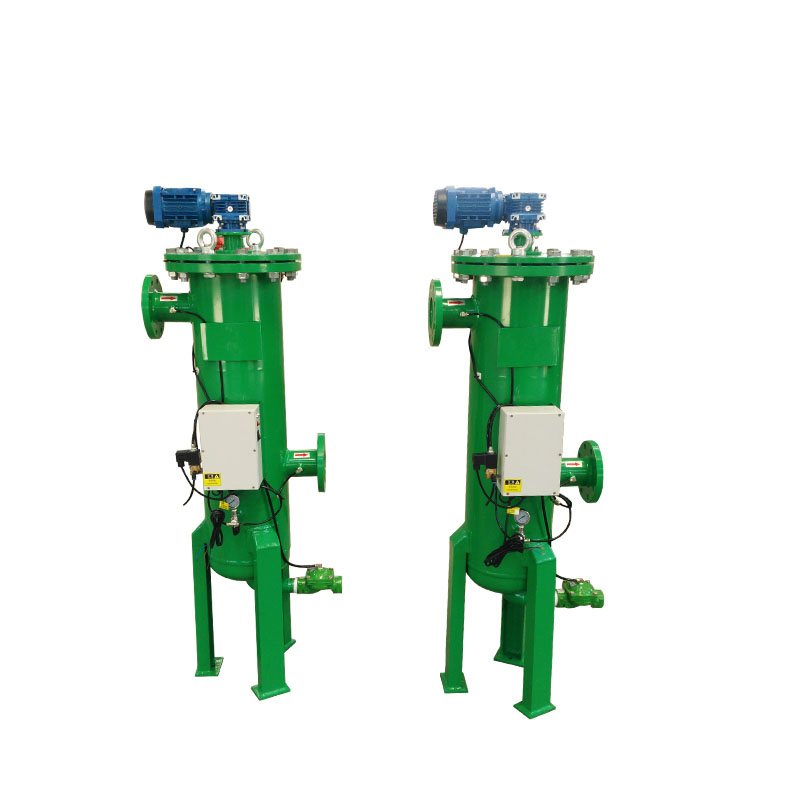

Product structure




1:Electirc motor
2.Water inlet
3.Screen
4.Cleaning brush
5.Automatic drain valve
6.Water outlet



Product principle
The water flows through the screen and the particles are retained on the inside of the screen of the filter element. The filtered water then flows out through the outlet.

 When the particles accumulated to a certain number and the pressure differential increases to the pre-determined level, the flushing cycle starts.
It include two steps: First, the automatic drain valve opens on the drainage outlet. Then, electronic motor drives the cleaning brushes which are inside the screen, the solids are expelled through the drain valve.
Filters continue to supply filtered water even during the flushing cycle.The whole working system is controlled by a smart box which has several control modes: pressure differential, time, manual and PLC.

Technical parameters
A single maximum flow capacity is up to 4000m3 / h
Wide filtration range:screens from 4000 to 20 microns
Working pressure(min)≥0.18Mpa
Working pressure(max)≤1.6MPa(customized is available)
Working temperature ≤65ºC
Power supply: 380 v / 50 Hz (Customized is availabel)
Cleaning method: brush type
Adjustable cleaning time: 10-200 seconds

Filter material
Shell: carbon steel, 304 stainless steel, 316L stainless steel
Screen: 304 stainless steel, 316L stainless steel
Brush holder: 304 stainless steel, 316L stainless steel
Drain valve, cast iron,copper,stainless steel,PVC,nylon
Controller: PVC, aluminum
Seal ring: EPDM rubber
Cleaning brush: stainless steel, nylon

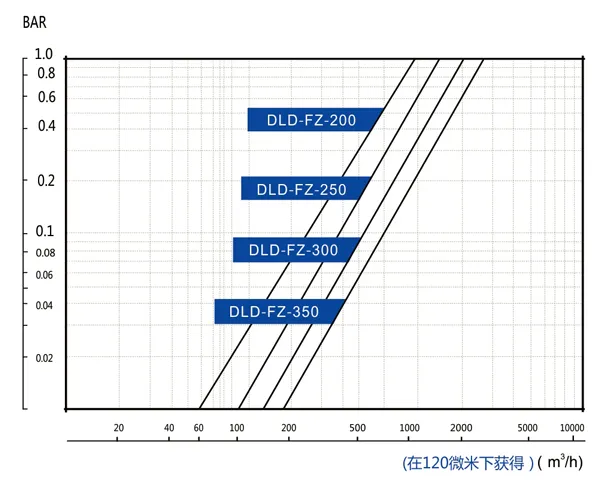

Loss of pressure table

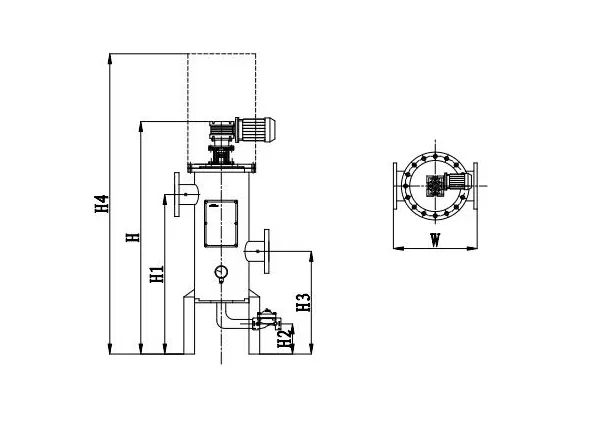

FZ SERIES self-cleaning filter specification table
