China High Flow Ultipleat Filters Cartridges Hfu660uy100j
China High Flow Ultipleat Filters Cartridges HFU660UY100JThe Ultipleat®High Flow filter is suited for applications such as cooling water, pre-RO, and resin trap filtration. It is a large diameter, coreless, single open-ended, pleated cartridge with an inside to outside flow pattern. The filt......
Send Inquiry
Product Description

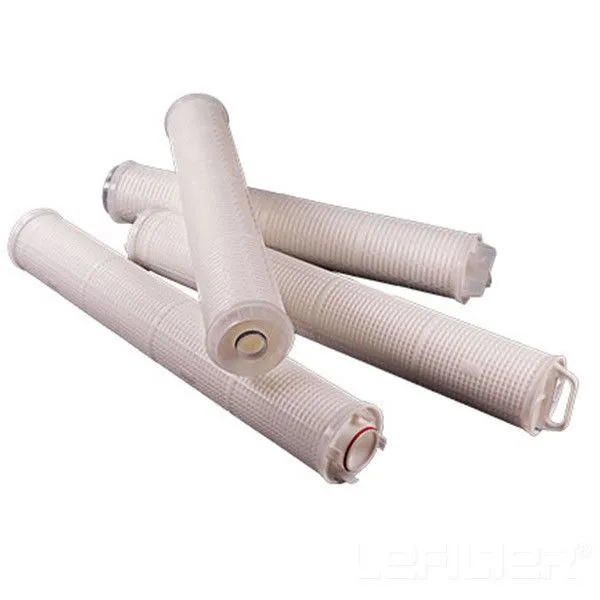

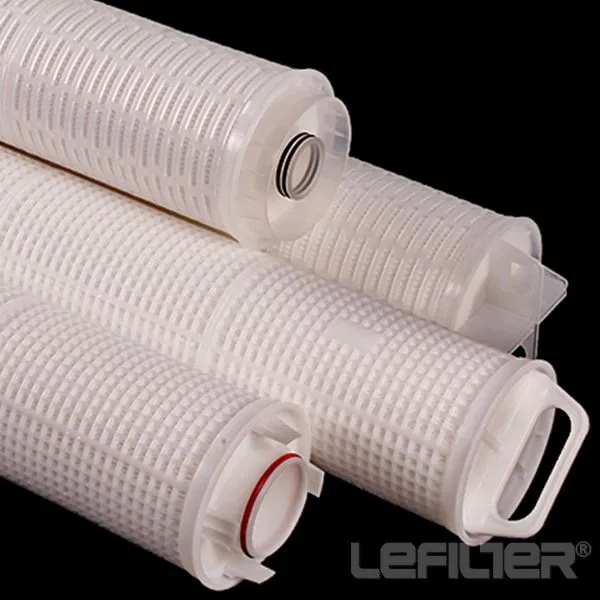

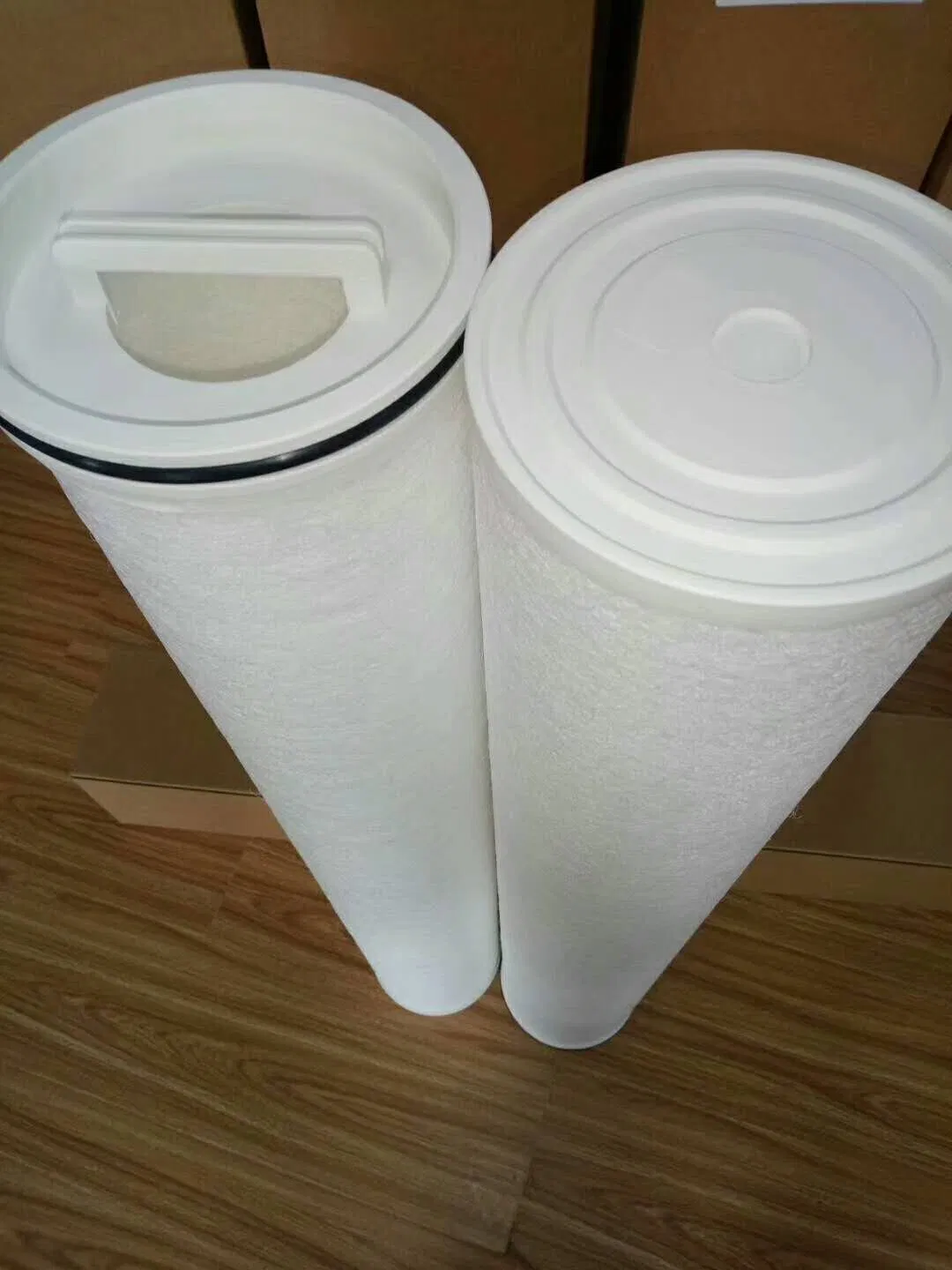

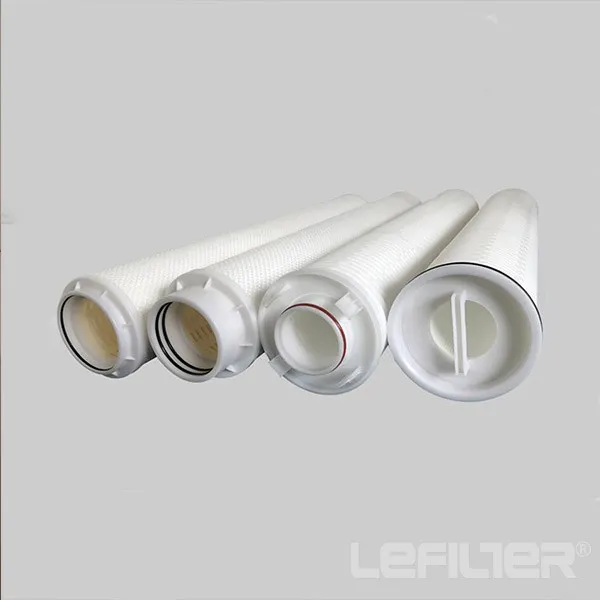

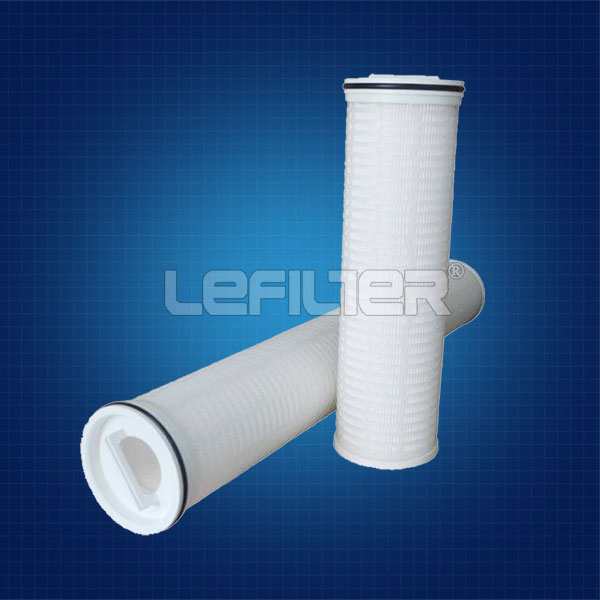

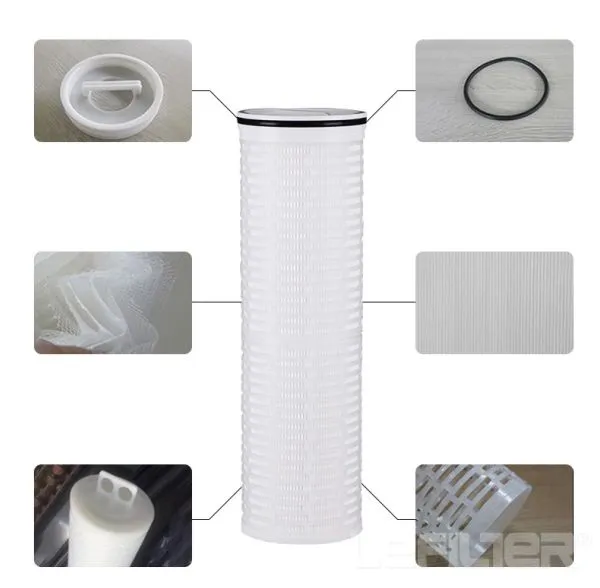

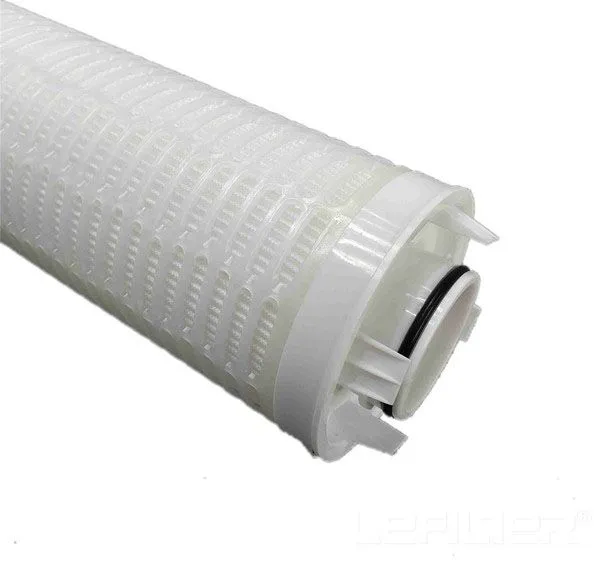

The Ultipleat®High Flow filter is suited for applications such as cooling water, pre-RO, and resin trap filtration. It is a large diameter, coreless, single open-ended, pleated cartridge with an inside to outside flow pattern. The filter's unique crescent-shaped pleat geometry, combined with its large 152 mm / 6 in diameter, reduces the number of filters and size of housing required. The cartridge is also available in a wide range of media types for other applications.
Up to 50% smaller filter system possible
Up to forty times fewer elements to change out
Very high flow rates per filter cartridge, up to 500 gpm / 114 m3/hr
Available in 508 mm / 20 in., 1016 mm / 40 in. and 1524 mm / 60 in. lengths
Coreless construction to minimize waste disposal
Absolute rated filter medium for reproducible performance
Inside to outside flow configuration - all contaminants held within the single open ended filter
Technical Parameters
| Filter medium | Pleated polypropylene depth structure |
| Support/Drainage | Polypropylene |
| Endcaps | Glass filled polypropylene |
| O-ring | Ethylene propylene |
| Removal Ratings | 2.0 μm2, 4.5 μm, 10 μm, 20 μm, 40 μm, 70 μm, 100 μm |
| Configuration | Single open end, 152 mm / 6 in diameter filter |
| Operating Conditions | Maximum Operating Temperature: 82°C / 180°F Maximum Differential Pressure3 (nominal inside to outside flow): 3.4 bar at 82°C / 50 psid at 180°F |
ORDER INFORMATION:
HFU620UY200H4
HFU620UY200H4W
HFU620UY200HW
HFU620UY200J
HFU620UY400H
HFU620UY400H1
HFU620UY400H13
HFU620UY400H13W
HFU620UY400H4
HFU620UY400H4W
HFU620UY400HW
HFU620UY400J
HFU620UY700H1
HFU620UY700H13
HFU620UY700H13W
HFU620UY700H4
HFU620UY700H4W
HFU620UY700HW
HFU620UY700J
HFU640UY200H4
HFU640UY200H4W
HFU640UY200HW
HFU640UY200J
HFU640UY400H
HFU640UY400H1
HFU640UY400H13
HFU640UY400H13W
HFU640UY400H4
HFU640UY400H4W
HFU640UY400HW
HFU640UY400J
HFU640UY700H1
HFU640UY700H13
HFU640UY700H13W
HFU640UY700H4
HFU640UY700H4W
HFU640UY700HW
HFU640UY700J
HFU640J100J
HFU660UY200H4
HFU660UY200H4W
HFU660UY200HW
HFU660UY200J
HFU660UY400H
HFU660UY400H1
HFU660UY400H13
HFU660UY400H13W
HFU660UY400H4
HFU660UY400H4W
HFU660UY400HW
HFU660UY400J
HFU660UY700H1
HFU660UY700H13
HFU660UY700H13W
HFU660UY700H4
HFU660UY700H4W
HFU660UY700HW
HFU660UY700J
HFU640J200H1
XLDM large flow water filter element series:
XLDM30-20U-HFJ
XLDM70-20U-HFJ
XLDM1.5-40U-HFJ
XLDM3-40U-HFJ
XLDM4.5-40U-HFJ
XLDM10-40U-HFJ
XLDM20-40U-HFJ
XLDM30-40U-HFJ
XLDM70-40U-HFJ
XLDM1.5-60U-HFJ
XLDM3-60U-HFJ
XLDM4.5-60U-HFJ
XLDM10-60U-HFJ
XLDM20-60U-HFJ
XLDM30-60U-HFJ
XLDM70-60U-HFJ
XLDM1.5-20U-HFJ
XLDM3-20U-HFJ
XLDM4.5-20U-HFJ
XLDM10-20U-HFJ
XLDM20-20U-HFJ
Xinxiang Lifeierte Filter Corp.,Ltd (Stock code:837936)is specialized in manufacture of filters ,filter equipment,and environment system . Located in Xinxiang City-the center of Filtration in China.Lefilter has superior R & D team, professional technical team,experienced overseas sales team and perfect after-sales service system.We Lefilter people will try our best to satisfy customers' requirements.The develop philosophy of LEFILTER is "To purify environment,To serve society,To manage faithfully and To oyrsye excellence"!What's more,there're advanced production line,test machine and R & D department.They also obtained certification like ISO9001, IQNet & CQM,SGS,CNEX etc.
