Drinking Water Filter Machine/Water Filter Making Machine/Mineral Water Filter Machine
Product DescriptionA. Description:Bore water/well water/tap water/sea water/underground water treatment plant deliver high performance at the lowest life-cycle costs. Our pre-engineered systems allow fast delivery and are built with high-quality components designed to meet your specific process need......
Send Inquiry
Product Description
Product Description
A. Description:
Bore water/well water/tap water/sea water/underground water treatment plant deliver high performance at the lowest life-cycle costs. Our pre-engineered systems allow fast delivery and are built with high-quality components designed to meet your specific process needs. They arrive at your facility ready to run with all filters, membranes, pumps, piping, controls and automation.

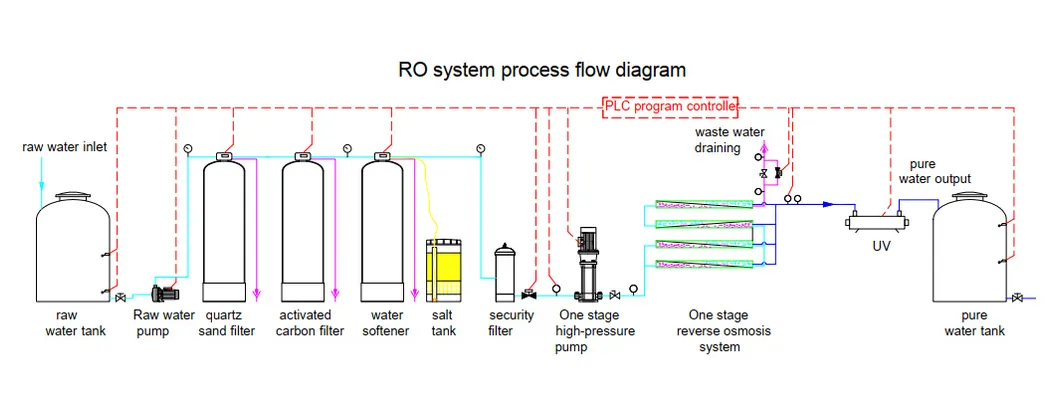

B. Process of borehole water RO treatment /water system/ RO plant/ RO system:

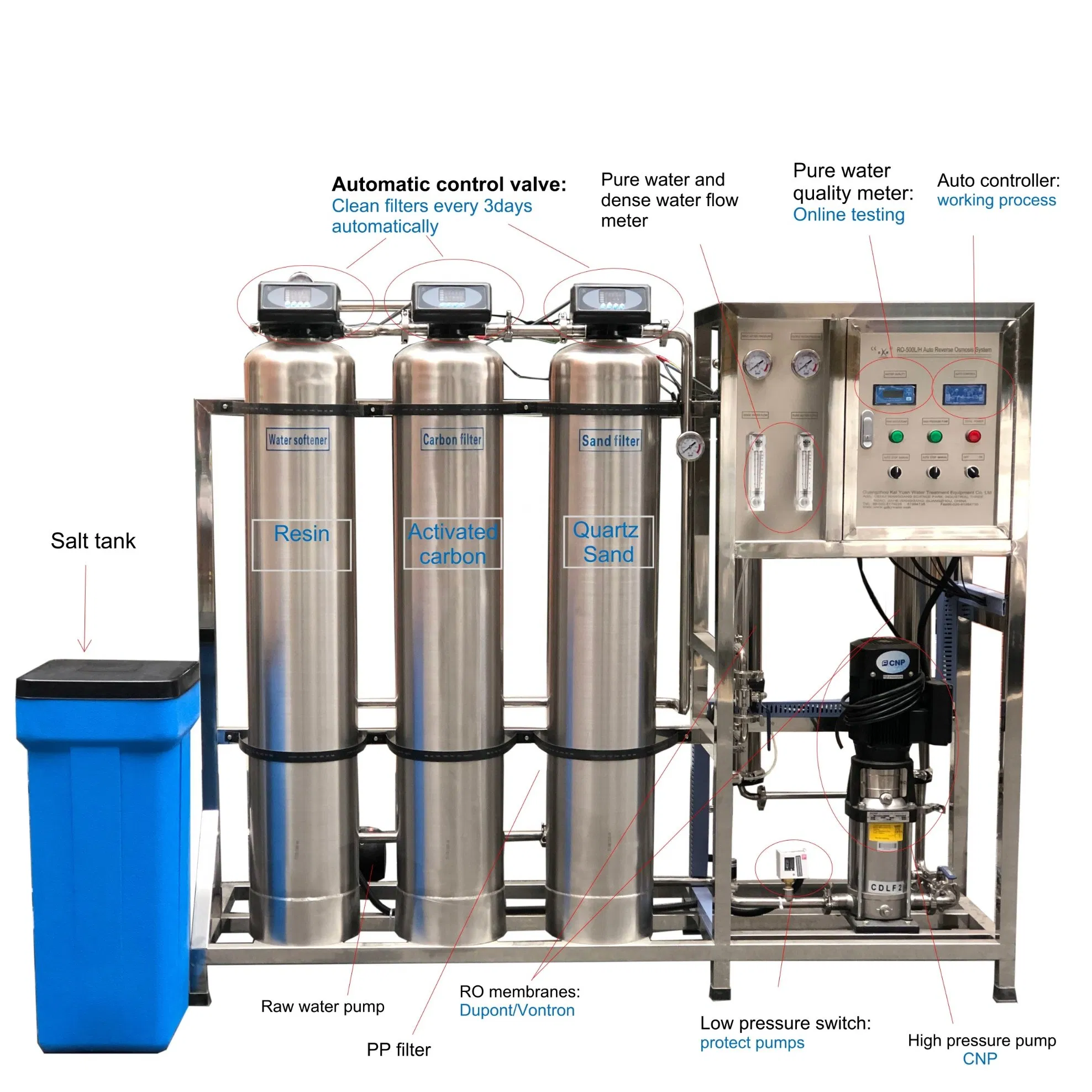

Raw water+ raw water tank+ raw water pump+ sand filter + carbon filter+ water softener ( optional) + security filter +high pressure pump+ reverse osmosis+ pure water tank + UV sterilizer (ozone generation)+ precision filter + water supply points
C. Parameters of borehole water RO treatment /water system/ RO plant/ RO system:
1. Capacity: 500L/H
2. Rated power: 1.5Kw/H
3. Voltage: 220V/50Hz, 380V/50Hz
4. Desalting rate: 97-98%
5. Water recovery rate: 50-70%
6. Conductivity of raw water: ≤ 400μ S
7. Conductivity of pure water: ≤ 10μ S
8. With water softener
D. Feature OF borehole water RO treatment /water system/ RO plant/ RO system:
1. This filter is designed for drinking water treatment.
2. It can clear away alien color and foreign substance from the water and can remove heavy metal such as Mercury, Lead, Cadmium, Zink, Iron, Manganese, Chromium and Hydrogenate, Sulfide, Residual chlorine and other polymer organic compounds.
3. The filter is the ideal equipment for drinking water, foodstuff, beverage, pharmaceutical industries.
4. The production capacity: 500LPH -50000LPH
Other capacity:
Machine pictures:

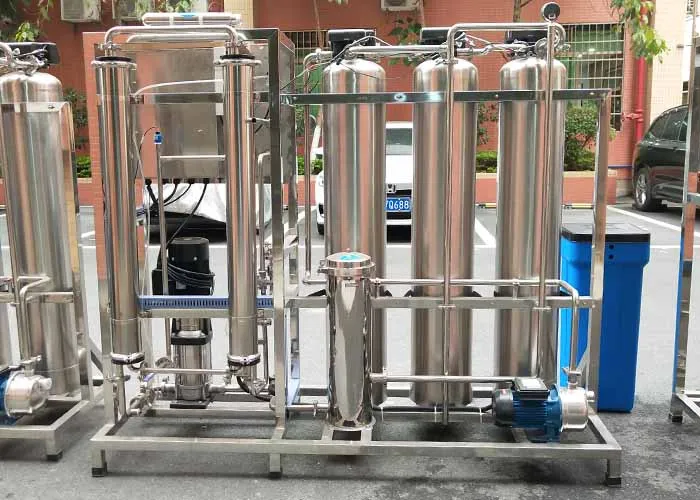

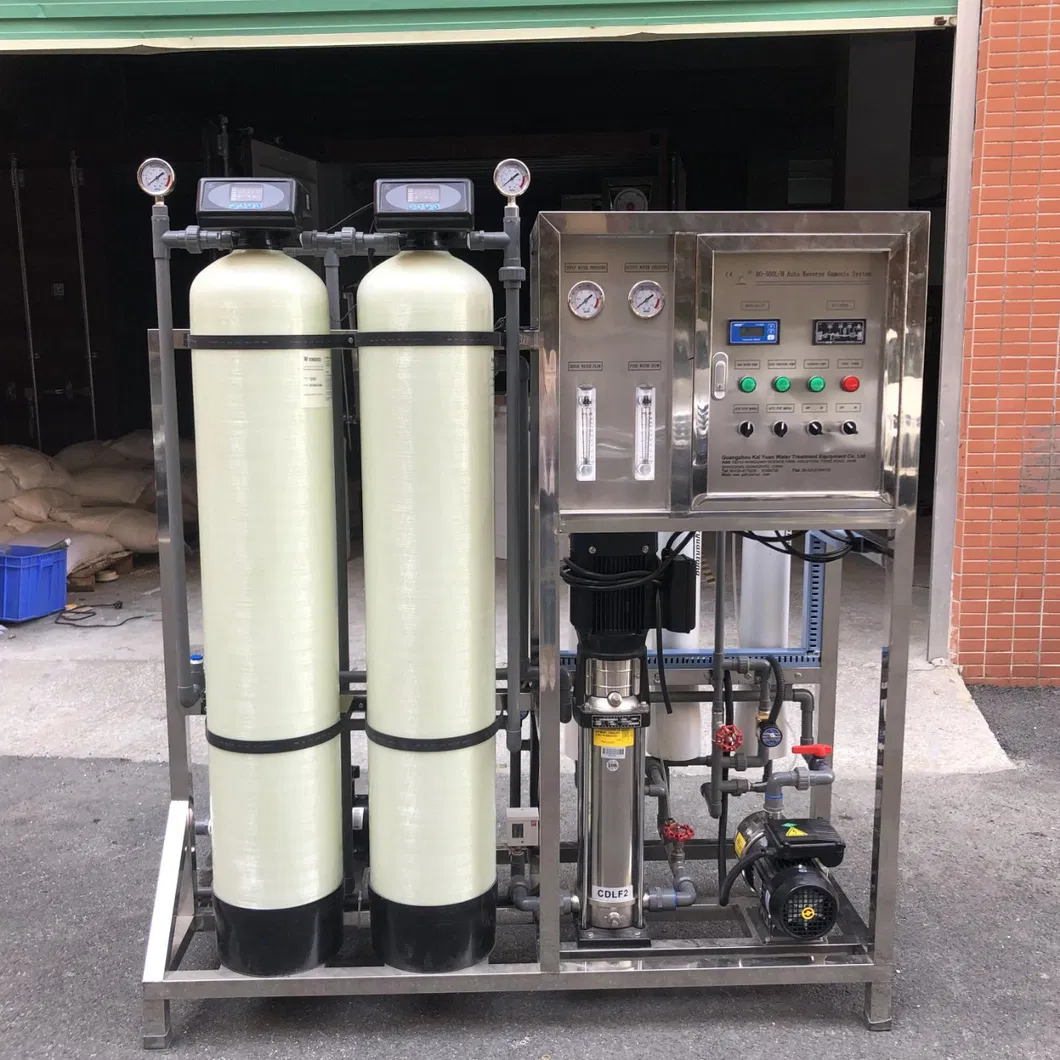

Stainless steel 500L/H RO system with water softener for drinking water making machine

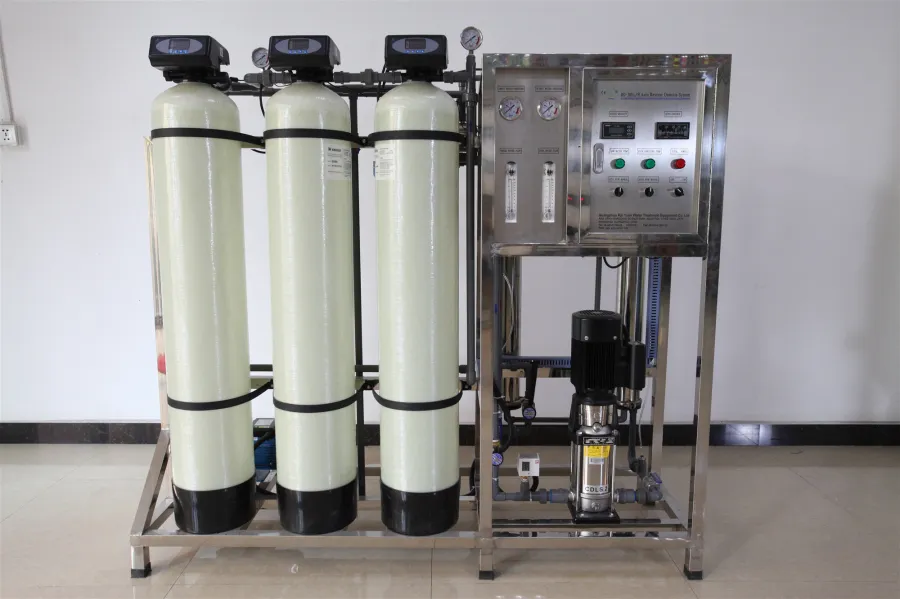

Fiberglass automatic RO plant salty borehole water treatment machine

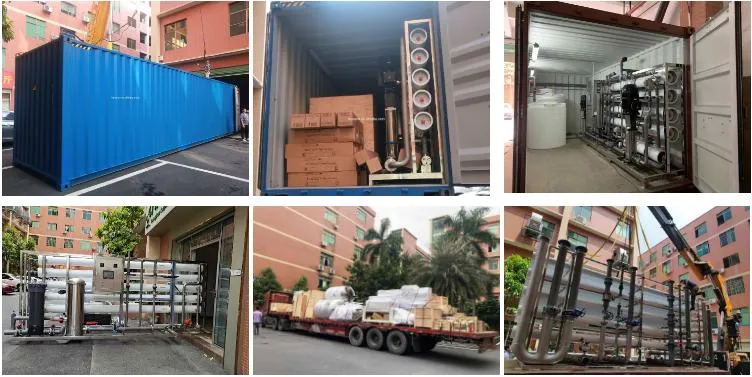

Packing and delivery:

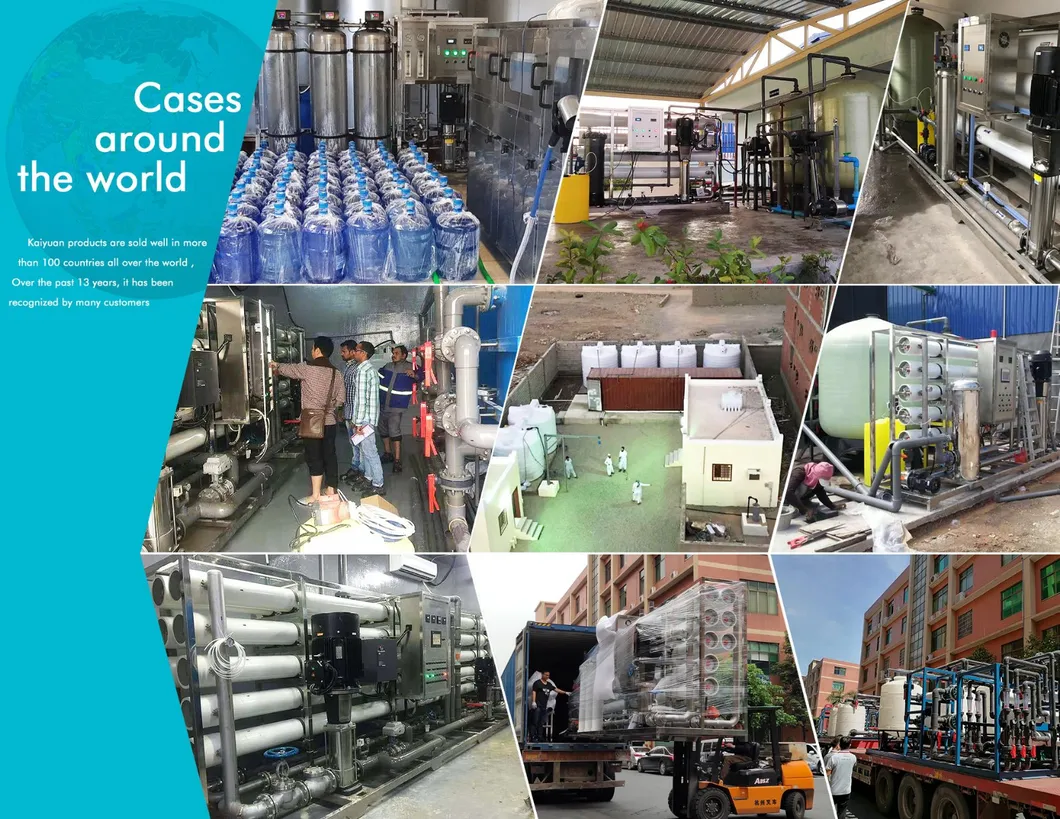

Our projects:
A. Description:
Bore water/well water/tap water/sea water/underground water treatment plant deliver high performance at the lowest life-cycle costs. Our pre-engineered systems allow fast delivery and are built with high-quality components designed to meet your specific process needs. They arrive at your facility ready to run with all filters, membranes, pumps, piping, controls and automation.
B. Process of borehole water RO treatment /water system/ RO plant/ RO system:
Raw water+ raw water tank+ raw water pump+ sand filter + carbon filter+ water softener ( optional) + security filter +high pressure pump+ reverse osmosis+ pure water tank + UV sterilizer (ozone generation)+ precision filter + water supply points
C. Parameters of borehole water RO treatment /water system/ RO plant/ RO system:
1. Capacity: 500L/H
2. Rated power: 1.5Kw/H
3. Voltage: 220V/50Hz, 380V/50Hz
4. Desalting rate: 97-98%
5. Water recovery rate: 50-70%
6. Conductivity of raw water: ≤ 400μ S
7. Conductivity of pure water: ≤ 10μ S
8. With water softener
D. Feature OF borehole water RO treatment /water system/ RO plant/ RO system:
1. This filter is designed for drinking water treatment.
2. It can clear away alien color and foreign substance from the water and can remove heavy metal such as Mercury, Lead, Cadmium, Zink, Iron, Manganese, Chromium and Hydrogenate, Sulfide, Residual chlorine and other polymer organic compounds.
3. The filter is the ideal equipment for drinking water, foodstuff, beverage, pharmaceutical industries.
4. The production capacity: 500LPH -50000LPH
Other capacity:
| Model No. | Capacity (M3/H) | Power (kw) | Recovery Rate (%) | Total land area LX W X H (mm) |
| RO-250 | 0.25 | 1.5 | 50 | 2500X1000X2800 |
| RO-500 | 0.5 | 1.5 | 50 | 2500X1000X2800 |
| RO-1000 | 1 | 2 | 50 | 3500X1200X2800 |
| RO-2000 | 2 | 4 | 50-60 | 6500X1500x2800 |
| RO-3000 | 3 | 4.5 | 55-65 | 7500X1500X2800 |
| RO-4000 | 4 | 6.5 | 55-65 | 7500X1500X2800 |
| RO-5000 | 5 | 11 | 60-70 | 10000X2500X3500 |
| RO-6000 | 6 | 11 | 60-70 | 10000X2500X3500 |
| RO-8000 | 8 | 18 | 60-70 | 10000X3500X3500 |
| RO-10000 | 10 | 20 | 60-70 | 10000X4000X3800 |
| RO-20000 | 20 | 30 | 70-75 | 15000X5000X5000 |
| RO-30000 | 30 | 40 | 70-75 | 20000X6000X5000 |
| RO-50000 | 50 | 50 | 70-75 | 30000X8000X5000 |
Machine pictures:
Stainless steel 500L/H RO system with water softener for drinking water making machine
Fiberglass automatic RO plant salty borehole water treatment machinePacking and delivery:
Our projects:Related Category
