HDPE Material Protein Skimmer for Ras , Indoor Fish Farming Indusrtrial Machine

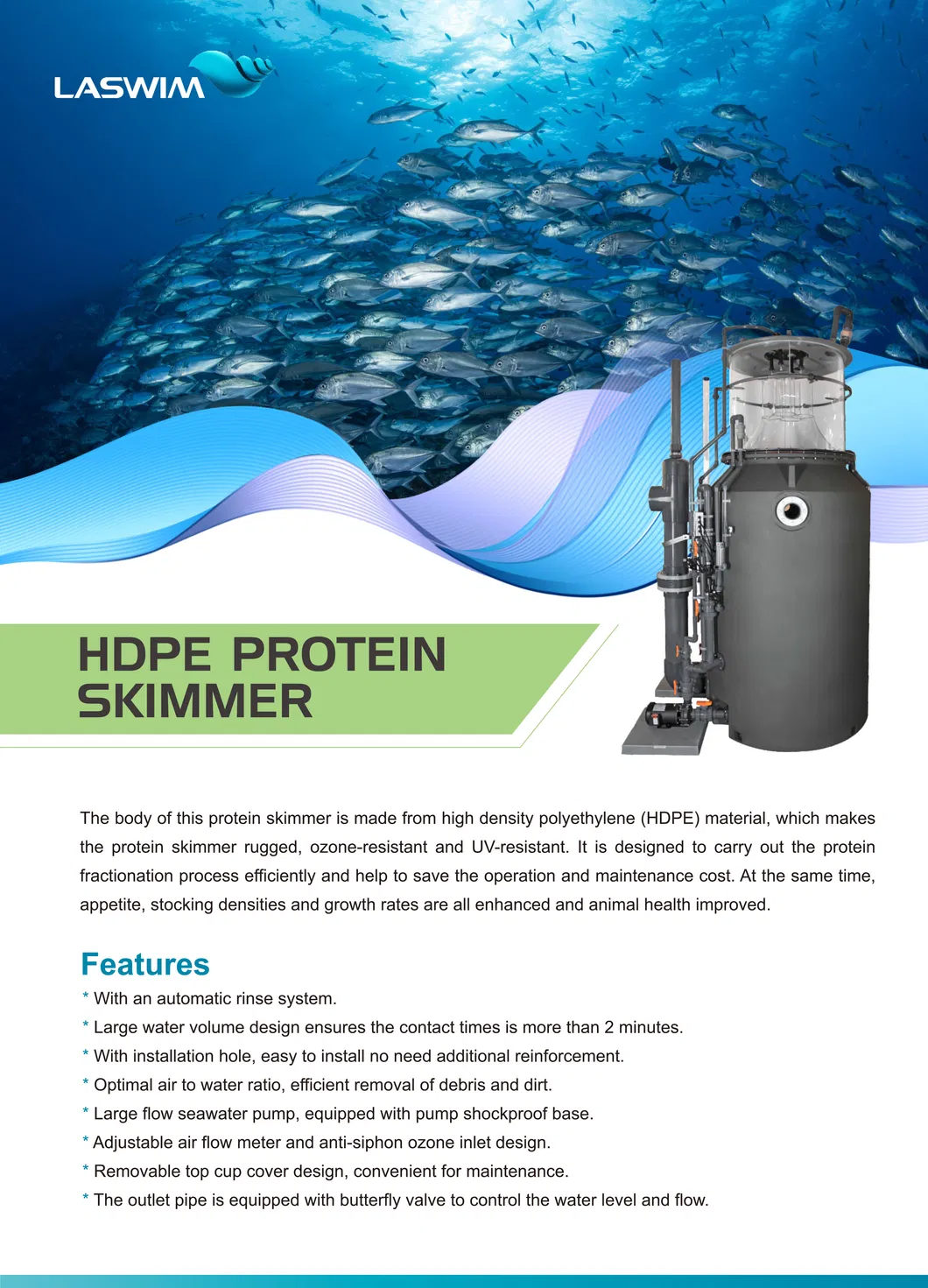

The body of this protein skimmer is made from high density polyethylene (HDPE) material, which makes the protein skimmer rugged, ozone-resistant and UV-resistant. It is designed to carry out the protein fractionation process efficiently and help to save the operation and maintenance cost. At the sam......
Send Inquiry
Product Description
The body of this protein skimmer is made from high density polyethylene (HDPE) material, which makes the protein skimmer rugged, ozone-resistant and UV-resistant. It is designed to carry out the protein fractionation process efficiently and help to save the operation and maintenance cost. At the same time, appetite, stocking densities and growth rates are all enhanced and animal health improved.
Features:
• With an automatic rinse system.
•Large water volume design ensures the contact times is more than 2 minutes.
•With installation hole, easy to install no need additional reinforcement.
•Optimal air to water ratio, efficient removal of debris and dirt.
•Large flow seawater pump, equipped with pump shockproof base.
•Adjustable air flow meter and anti-siphon ozone inlet design.
•Removable top cup cover design, convenient for maintenance.
•The outlet pipe is equipped with butterfly valve to control the water level and flow.

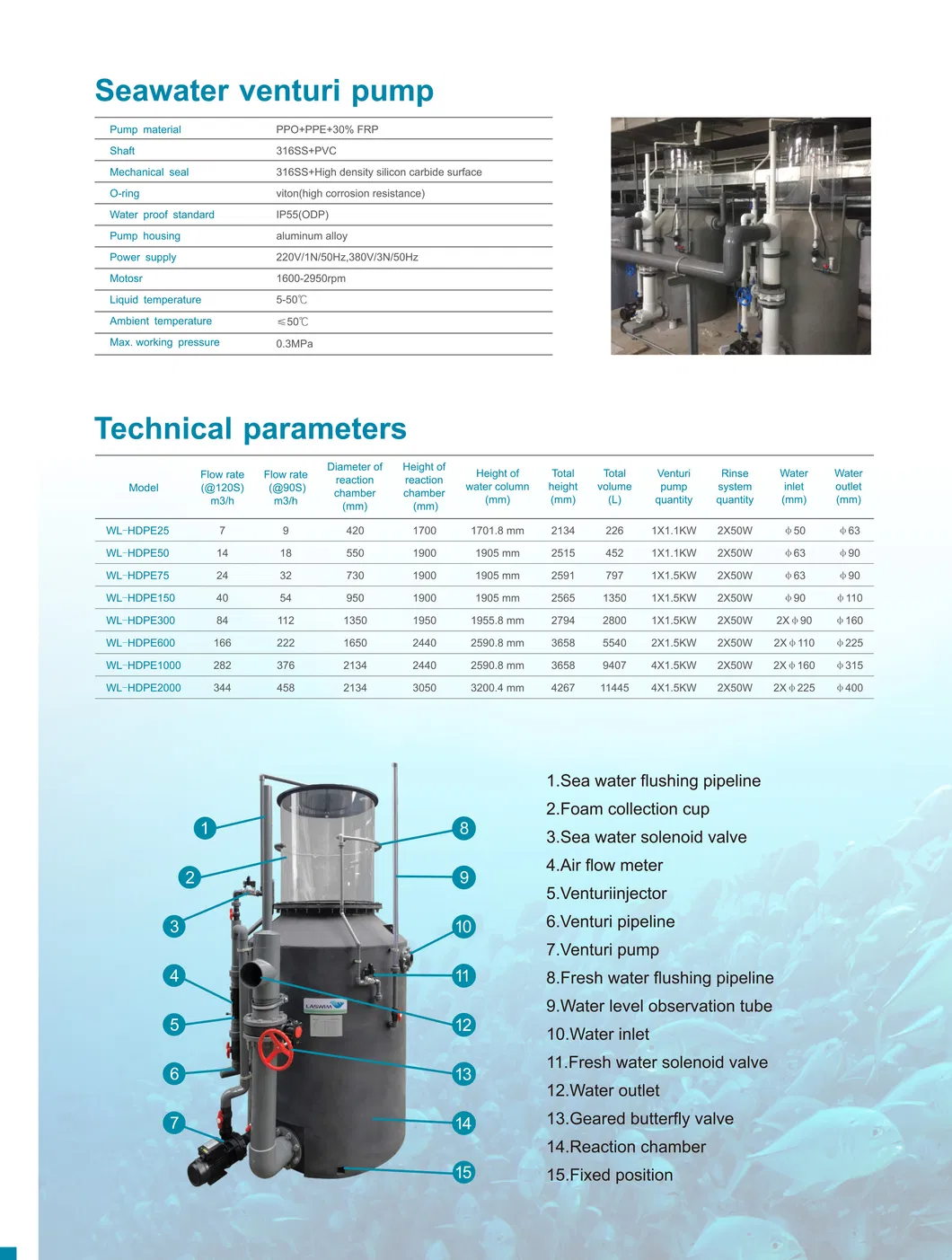

Seawater venturi pump
Technical parameters
Features:
• With an automatic rinse system.
•Large water volume design ensures the contact times is more than 2 minutes.
•With installation hole, easy to install no need additional reinforcement.
•Optimal air to water ratio, efficient removal of debris and dirt.
•Large flow seawater pump, equipped with pump shockproof base.
•Adjustable air flow meter and anti-siphon ozone inlet design.
•Removable top cup cover design, convenient for maintenance.
•The outlet pipe is equipped with butterfly valve to control the water level and flow.
Seawater venturi pump
| Pump material | PPO+PPE+30%FRP |
| Shaft | 316SS+PVC |
| Mechanical seal | 316SS+High density silicon carbide surface |
| O-ring | viton(high corrosion resistance) |
| Water proof standard | IP55(ODP) |
| Pump housing | aluminum alloy |
| Power supply | 220V/1N/50Hz,380V/3N/50Hz |
| Motoser | 1600-2950rpm |
| Liquid temperature | 5-50ºC |
| Ambient temperature | ≤500ºC |
| Max.working pressure | 0.3MPa |
Technical parameters
| Model | Flow rate (@120S)m³/h | Flow rate (@90S)m³/h | Diameter of reaction chamber(mm) | Heignt of reaction chamber(mm) | Height of water column(mm) | Total height (mm) | Total volume(L) | Venturi pump quantity | Rinse system quantity | Water inlet(mm) | Water outlet(mm) |
| WL-HDPE25 | 7 | 9 | 420 | 1700 | 1701.8 | 2134 | 226 | 1*1.1KW | 2*50W | φ50 | φ63 |
| WL-HDPE50 | 14 | 18 | 550 | 1900 | 1905 | 2515 | 452 | 1*1.1KW | 2*50W | φ63 | φ90 |
| WL-HDPE75 | 24 | 32 | 730 | 1900 | 1905 | 2591 | 797 | 1*1.5KW | 2*50W | φ63 | φ90 |
| WL-HDPE150 | 40 | 54 | 950 | 1900 | 1905 | 2565 | 1350 | 1*1.5KW | 2*50W | φ90 | φ110 |
| WL-HDPE300 | 84 | 112 | 1350 | 1950 | 1955.8 | 2794 | 2800 | 1*1.5KW | 2*50W | 2*φ90 | φ160 |
| WL-HDPE600 | 166 | 222 | 1650 | 2440 | 2590.8 | 3658 | 5540 | 2*1.5KW | 2*50W | 2*φ110 | φ225 |
| WL-HDPE1000 | 282 | 376 | 2134 | 2440 | 2590.8 | 3658 | 9407 | 4*1.5KW | 2*50W | 2*φ160 | φ315 |
| WL-HDPE2000 | 344 | 458 | 2134 | 3050 | 3200.4 | 4267 | 11445 | 4*1.5KW | 2*50W | 2*φ225 | φ400 |
