China Mbr Membrane Module for Sewage Treatment Industrial Water Purification

Product Description

Mbr Membrane Module for Sewage Treatment Industrial Water Purific

About LITREE:

LITREE is a specialized hollow fiber UF membrane manufacturer in China, we provide quality pressure vessel UF module, integrated UF purifying equipment, immersed membrane for MBR system, and we are also the first brand in Chinese residential UF filter market.

Advantages of MBR system:

MBR technics is a perfect integration by membrane separation technology and normal biological treatment. Instead of traditional secondary sedimentation tank, sand filter tank by capillary hollow fiber UF membrane, the effluent water quality of this system can match reclaimed water reuse or Reverse Osmosis input water standard. MBR system is especially suitable for high discharge standard water treatment plants and old plants' upgrades and transformation.

In wastewater treatment, MBR system has obvious advantages compared with other biological treatment methods:
1. High remove rate of contamination, stable effluent water quality, and dispense with disinfection;
2. Realized the separation of HRT (Hydraulic retention time) and SRT (sludge age time), simplify the system design and operation;
3. The mechanical cut-off of UF membrane can avoid the microorganism spillage, maintain high sludge concentration, effectively increased the volume loading, reduce the sludge loading and floor space;
4. Long SRT in MBR system is helpful to the long generation period microorganisms growth, in favor of biodegradation on difficult degradation organic matter.
5. The longer SRT also make the MBR system has the effect same as aerobic sigestion pool, and reduce the sludge volume observably and save the process cost;
6. MBR technics has well control on SRT in order to adapt with the growth of nitrobacteria, enhance the nitriability.
7. MBR system has compact structure, easy for integrate autocontrol and operation manage.

Applications:

Municipal water supply
Industrial water purification
Municipal waste water treatment
Industrial waste water treatment
Landfill leachate advanced treatment
Reclaimed water reuse
Pretreatment of RO system

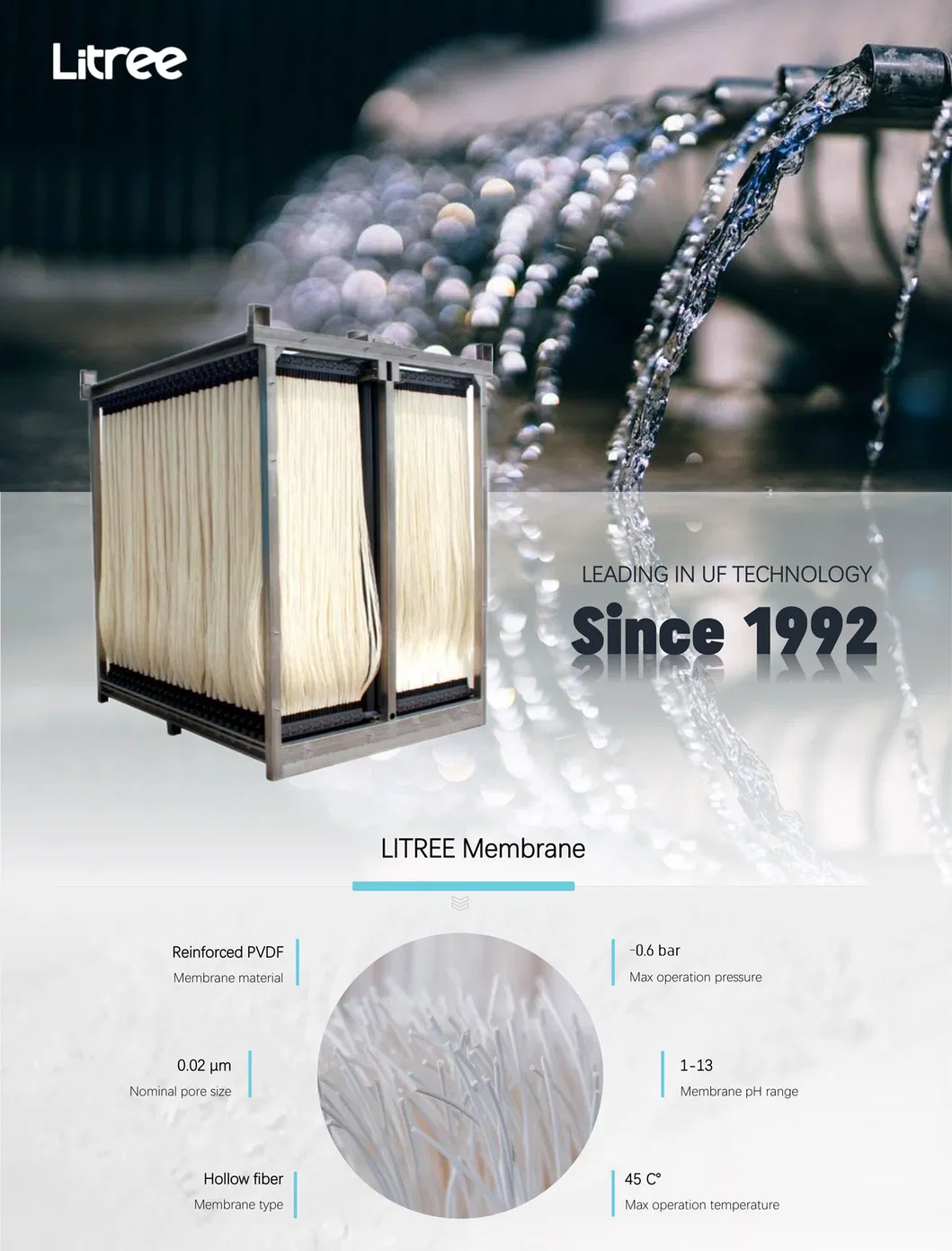

Specification:

Model No.	GEMINI-U	GEMINI-S	GEMINI-E
Membrane Material	Reinforced hollow fiber	Reinforced hollow fiber	Reinforced hollow fiber
Fiber ID/OD (mm)	1.0/2.0	1.0/2.0	1.0/2.0
Membrane Area (m 2 )	31	23	14
Pore Size (μm)	0.02	0.02	0.02
System Structure	Immersed	Immersed	Immersed
Filtration Model	Outside-in	Outside-in	Outside-in
Max. Operation Pressure (-kPa)	60	60	60
Max. Temperature ( °C )	40	40	40
pH Range	1~13	1~13	1~13
Dimension L×W×H (mm)	721×70×2122	721×70×1622	721×70×1082
Weight (dry) kg	16	13	9

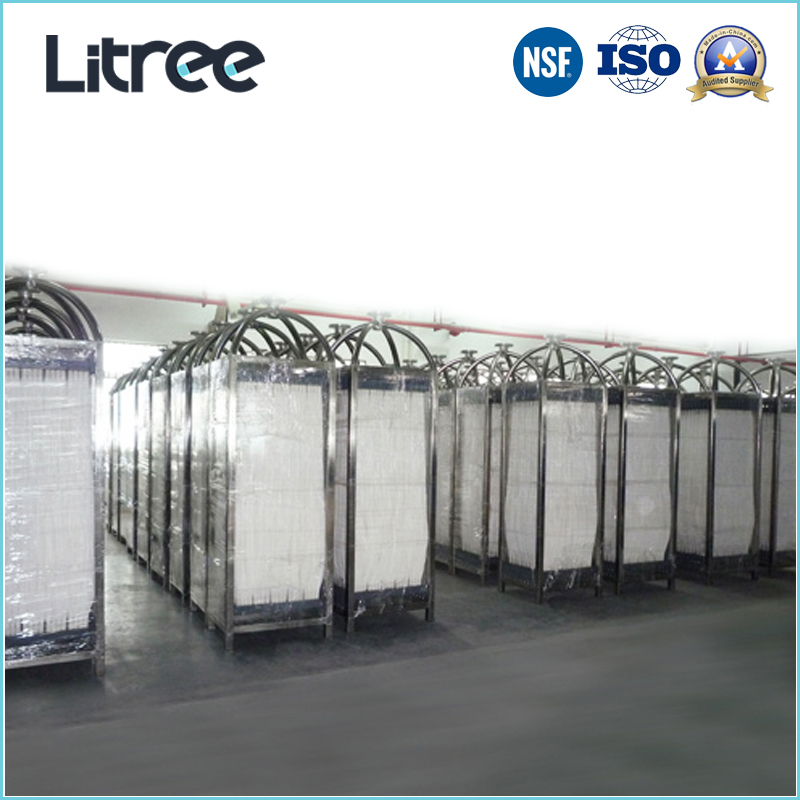

Cassette No.	Dimension(mm) ( L × W × H )	Active membrane area(m 2 )
GEMINI-E14	1210×805×1485	196
GEMINI-S14	1210×805×2010	322
GEMINI-U14	1210×805×2510	434
GEMINI-E26	2110×805×1505	364
GEMINI-S26	2110×805×2030	598
GEMINI-U26	2110×805×2530	806
GEMINI-U52	2100×1560×2520	1612
