Sdm Directed High Quality Pull Force Rare Earth Magnetic Grid Magnet

SDM Directed High Quality Pull Force Rare Earth Magnetic Grid Magnet
Description of product

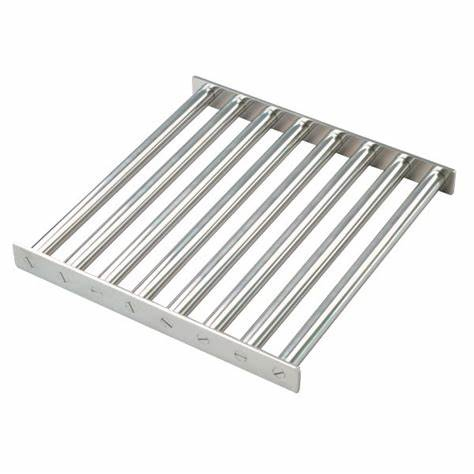

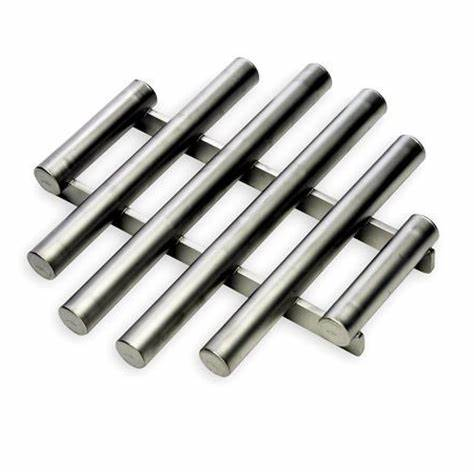

Permanent Magnetic Grill are used for separation of iron particles mixed with dry, granular or free flowing material. Magnetic Grill manufactured by employing stainless steel frames (Round, Square or Rectangular) with Magnetic Rods inside the frame.

These Magnetic Grill are made up of Magnetic Elements which can be fitted inside a required size frame. The Magnetic Elements manufactured of hard Ferrite Ceramic Magnets or Extremely high intensity Rare Earth NdFeB Magnets. All the components are made up of Stainless Steel 304/316 material. The overall construction of the Magnetic Grill can also be made as per the customer specification and sizes

The grills are efficiently utilized if contamination is within 1% to 1.5% by weight. For higher levels of contamination Drawer Grills or Multi Drawer Grills should be used.

Low Intensity Magnetic Grill having Gauss value of approximately 2,500 Gauss are perfect for trapping contamination such as Nuts, Bolts, Screws, broken washers etc. these grills are designed to attract larger iron pieces from relatively larger distance.

Medium Intensity Magnetic Grill having Gauss value of approximately 5,500 Gauss are used where the contamination is in particle form, however there may or may not be continuous movement of material to be separated. The contamination size may be as low as 150 microns but not lower than that. The material should be free flowing and non sticky.

High Intensity Magnetic Grill having Gauss value of approximately 10,000 Gauss are employed at locations where separation of contamination particles as small as 1 microns is required. These grills have been designed to attract super fine particles from the carrier material.

In all the three kinds of grill, it is a necessity to clean the grills at regular intervals. It is strongly recommended to clean the grill thoroughly before every pass (or as scheduled as per users requirement and knowledge). More accumulation of Iron particles for long time will decrease effectiveness of the grill. For highest attraction, the grill needs to be fully clean.
