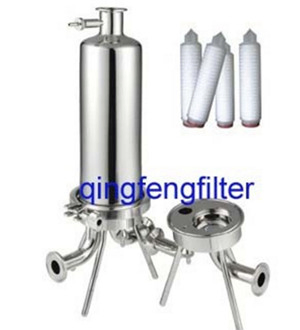

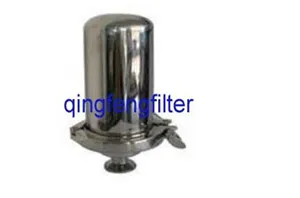

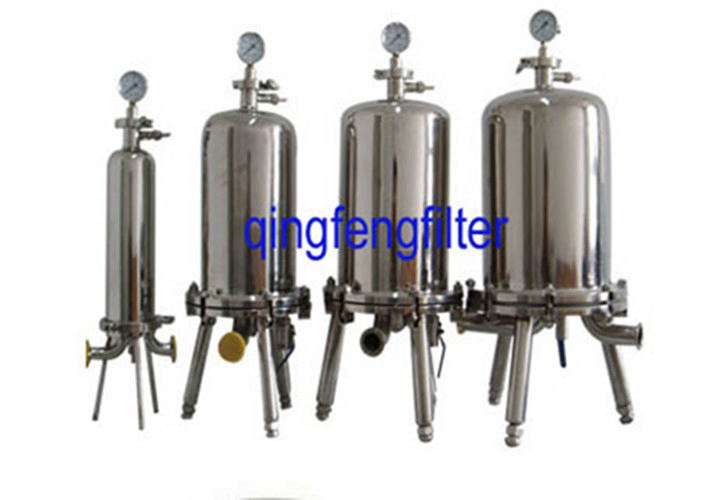

Soe/DOE/Code7 Cartridges Stainless Steel Liquid Filter Housing
Soe/DOE/Code7 Cartridges Stainless Steel Liquid Filter HousingStainless Steel filter housing is made of 100% SUS304 or SUS316L; Electropolished, smooth and round corner design, no dead space; small flow resistance; wide chemical compatibility, can be used in acid and alkaline solvents; easy to clean......
Send Inquiry
Product Description
Stainless Steel filter housing is made of 100% SUS304 or SUS316L; Electropolished, smooth and round corner design, no dead space; small flow resistance; wide chemical compatibility, can be used in acid and alkaline solvents; easy to clean; wide range of connections sizes and types of filter cartridge for choice. Meet GMP requirements. Ideal for the filtration of food and beverage industry
Technical Data:
Designed pressure: 7.2 bar(104psi) within 30 minutes
Max operation pressure: 6.0 bar; Also can be customized
Surface Finish: Ra≤0.2
Design Flow Rate: 0.2-100T/h
Technical Specification:
| Specifications | Length | inlet(mm) | Out shape size(mm) | ||||
| Quantity of cartridge | Inch | Diameter(¢) | Closure | D(¢) | B | H1 | H |
| 1 | 5 | 25 | Ferrule Clamp | 102 | 180 | 120 | 570 |
| 10 | 690 | ||||||
| 20 | 940 | ||||||
| 30 | 1190 | ||||||
| 3 | 10 | 32 | flanged and thread connections | 184 | 240 | 180 | 720 |
| 20 | 980 | ||||||
| 30 | 1210 | ||||||
| 5 | 10 | 38 | flanged and thread connections | 219 | 280 | 200 | 730 |
| 20 | 990 | ||||||
| 30 | 1220 | ||||||
| 40 | 1460 | ||||||
| 7 | 20 | 45 | flanged and thread connections | 273 | 420 | 210 | 1060 |
| 30 | 1290 | ||||||
| 40 | 1530 | ||||||
| 9 | 20 | 51 | flanged and thread connections | 325 | 460 | 210 | 1150 |
| 30 | 1380 | ||||||
| 40 | 1620 | ||||||
| 12 | 20 | 57 | flanged and thread connections | 350 | 480 | 240 | 1150 |
| 30 | 1380 | ||||||
| 40 | 1620 | ||||||
| 18 | 20 | 76 | Flanged | 400 | 500 | 260 | 1160 |
| 30 | 1390 | ||||||
| 40 | 1630 | ||||||
| 21 | 20 | 89 | Flanged | 450 | 600 | 280 | 1190 |
| 30 | 1420 | ||||||
| 40 | 1660 | ||||||

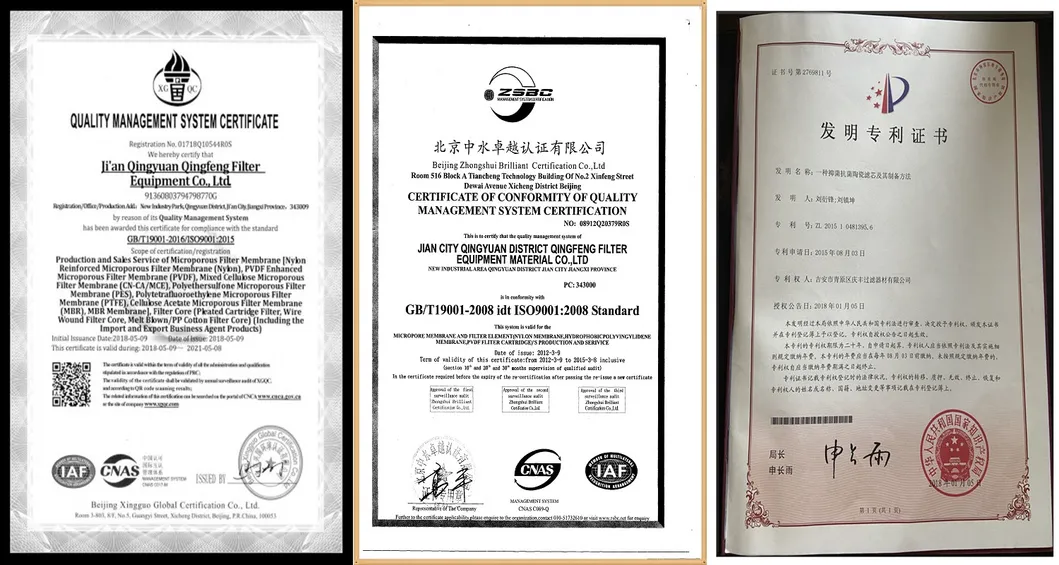

Certifications:
Exhibition:
Shipping&Delivery
Delivery time:
1.If products is in stock, the lead time will be 1-3 days after payment.
2.If not in stock, the lead time will be about 7-15days after payment.

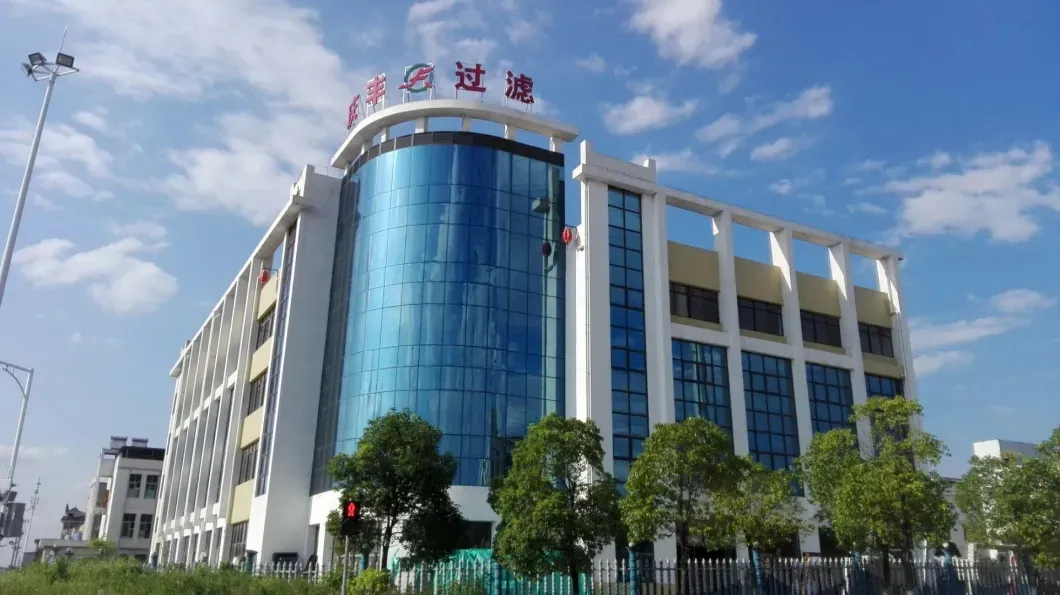

Company Profile:

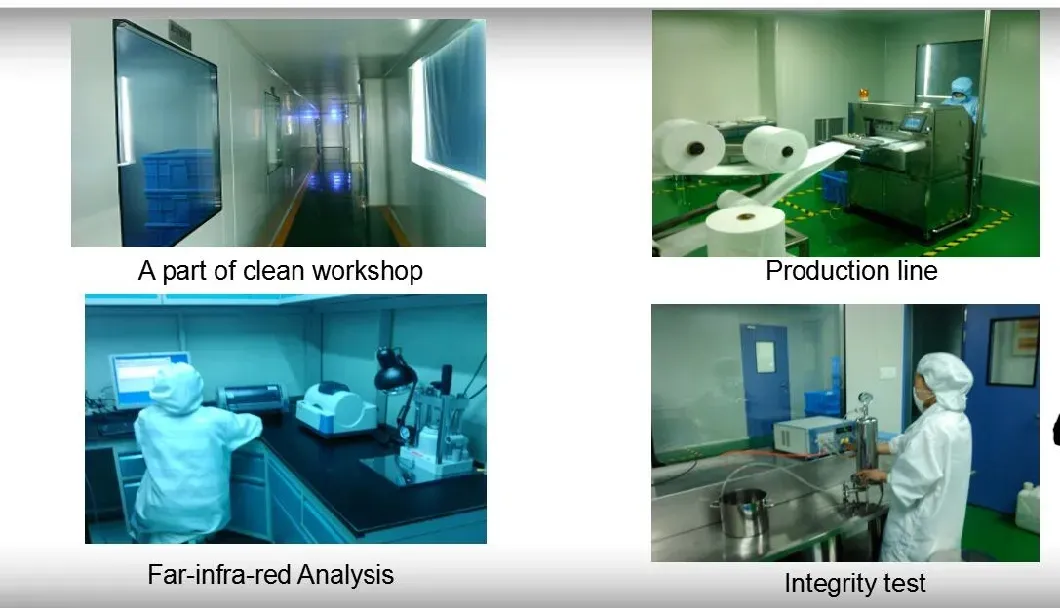

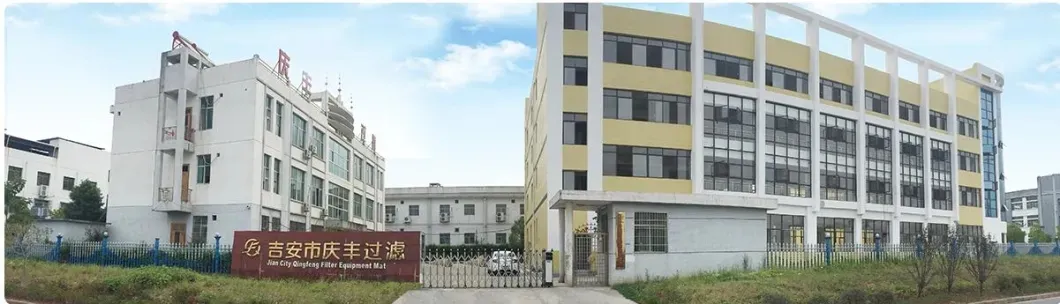

JiAn city QingFeng Filter Equipment Co., Ltd ,located in new industrial park, QingYuan area, Ji'an Jiangxi Province, QingFeng Filter Equipment Material Co., Ltd is an ISO9001 certified company.Since 2006,We focused on developing, producing and marketing micropore filter membrane,filter cartridge and filter housing.
We are a professional manufacturer who are developing, producing and marketing filter membrane, filter cartridge and filter housing,Filter bag for more than 30 years, We are the first factory who developed and produced the nylon reinforced microfiltration membrane (JN) and polyvinylidene fluoride reinforced microporous membrane(PVDF) in China in 1994. All our products with ISO9001/SGS/FDA approved and shipped to all over the world, USA, Australia, England. Canada, Russia, Thailand, India....... Strictly inspected by advanced instrument before packing.Welcome to contact with us.
