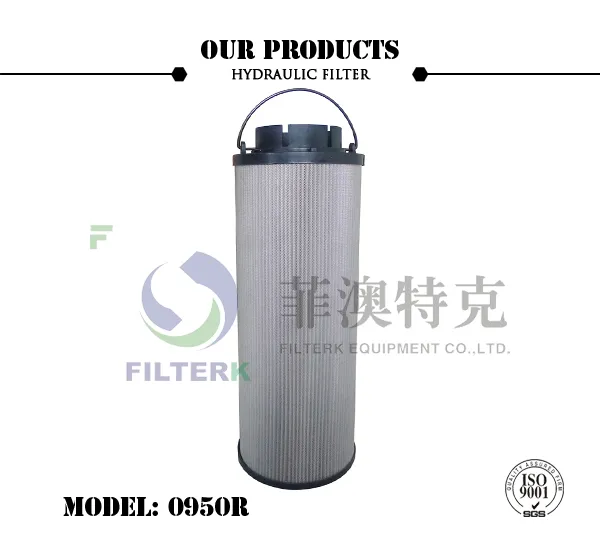

10 Micron Hydraulic Oil Hydac Filter Cartridge
10 Micron Hydraulic Oil Hydac Filter CartridgeTechnical Details:Absolute filtration typically ßx(c) ≥ 1000High ßx value stability across a wide range of differential pressuresHigh contamination retention capacityDisposable elements and cleanable elementsElements pleatedFlo......
Send Inquiry
Product Description
Technical Details:
Absolute filtration typically ßx(c) ≥ 1000
High ßx value stability across a wide range of differential pressures
High contamination retention capacity
Disposable elements and cleanable elements
Elements pleated
Flow direction from out to in to maximize stability
Excellent flow fatigue stability due to solid filter material support
Standard filtration ratings: 3μm, 5μm, 10μm, and 20μm absolute
Advantages:
Longer Equipment Life
Less Downtime
Higher System Efficiency
Less Energy Loss
Longer Fluid Life
Lower Operating Cost
Lower Maintenance Cost
| Part # | 0950R010BN3HC |
| Type | Return Line Filter Element |
| Dimension | (OD)143.5*(ID)96.5*(H)325 mm |
| Filter Material | Fiberglass |
| Micron Rating | 10 Micron |
| End Caps | ABS Plastic |
| Inner Core | Galvanized perforated plates |
| O-Ring | Buna |
| MOQ | NO MOQ . But advice full container to save cost. 20GP FCL: 2702 pieces 40GP FCL: 5438 pieces 40HQ FCL: 6244 pieces |
| Loading Port | Shanghai |
| Lead Time | Around 20 days for 20GP container |
| Payment | T/T ; West Union ; Paypal |
| Shipment | By sea to your nearest port By air to your nearest airport By express (DHL,UPS,FEDEX,TNT,EMS) to your door |
| Package | Carton |
| Max Capacity | Around 1000 pcs per week |
