100lph Water Treatment Equipment/Water Treatment System/Reverse Osmosis RO Drinking Water Treatment Plant
Water treatment system machine 1000L RO water treatment plant for pure waterThis system is a water production 100L/ H reverse osmosis pure water preparation and supply system,which uses tap water as raw water, which is pre-treated first and then RO reverse osmosis treated.The system's desalinati......
Send Inquiry
Product Description
Water treatment system machine 1000L RO water treatment plant for pure water
This system is a water production 100L/ H reverse osmosis pure water preparation and supply system,
which uses tap water as raw water, which is pre-treated first and then RO reverse osmosis treated.
The system's desalination rate is as high as 96-98%. The system includes a pretreatment part (booster pump,
mechanical filter, 5μm security filter), first-class RO reverse osmosis (equipment electronic
control, high-pressure water pump, RO components, control sensors), RO pure water last Enter the pure water tank for use.
100L/H Water treatment plant Product description
1. Host Dimension: 70*60*95CM; Weight about: 100kg;
2. Water production:pure water 100L / H; water quality: conductivity ≤ 10us / cm;
3. Raw water quality: Underground water, Tap water(see water quality report);
4.Power:220V/380V;Frequency:50±0.5HZ(Choose); Rated total power:0.75kw;
5. Installation conditions: indoor installation, temperature:5-45ºC;
Material of reverse osmosis system?
We have different material for different application. Before choosing RO System and Type please contact with our
Pro- fessional CHUNKE technical service.
1.Tanks:SS304/SS316/PE
2. Pipes:UPVC/SS304/SS316
3. Frame: SS304/Carbon steel
4. Filter Housing:SS304/SS316/FRP
5. Memrane Housing:FRP/SS304/SS316
RO System Design Basis
1.Raw water source: Underground water,Tap water:TDS<1000PPM
2.Raw water analysis report : unconfirmed
3.RO system rated flux : 100L/H
4.RO system recovery : 50-65%
5.Salt rejection : 96%
6.RO working voltage : 220V/380V/50Hz
7.Water feeding pressure : 0.15-0.25Mpa
Specifications
| NO. | DESCRIPTION | QTY |
| 1 | Raw water pump 304 stainless steel | 1 SET |
| 2 | Mechanical filter φ180×430MM | 1 SET |
| 3 | 5μm security filter | 1 SET |
| 4 | Horizontal high pressure pump 102E100F | 1 SET |
| 5 | Reverse Osmosis Unit Water production: 100L/h, Desalination rate: 95 to 98%, Recovery rate: 40-60% | 1 SET |
| 6 | Pure water tank 0.5m3 | 1 SET |
| 7 | Connection Fittings. Valves - Food Grade UPVC | 1 SET |
| 8 | Electronic control system | 1 SET |
| General control cabinet: PC program controller automatic control, Zhengtai electrical components, pressure controllers, middle relays. | ||
| 9 | Pressure gauge | 1 SET |

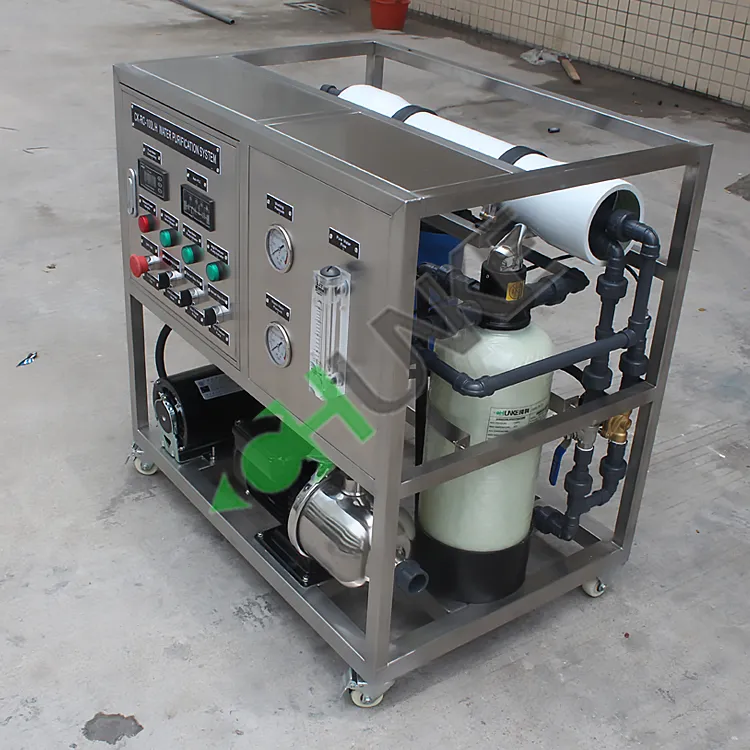

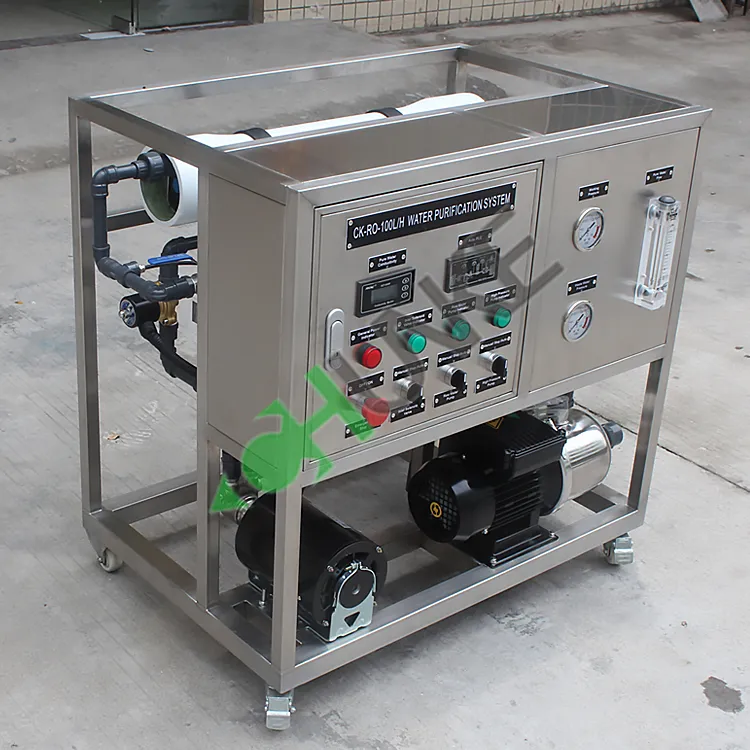

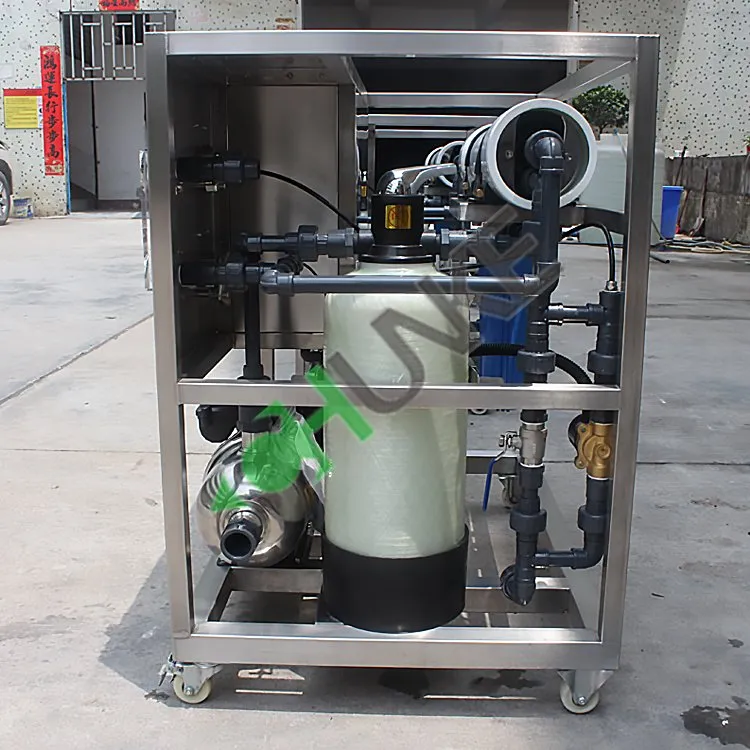

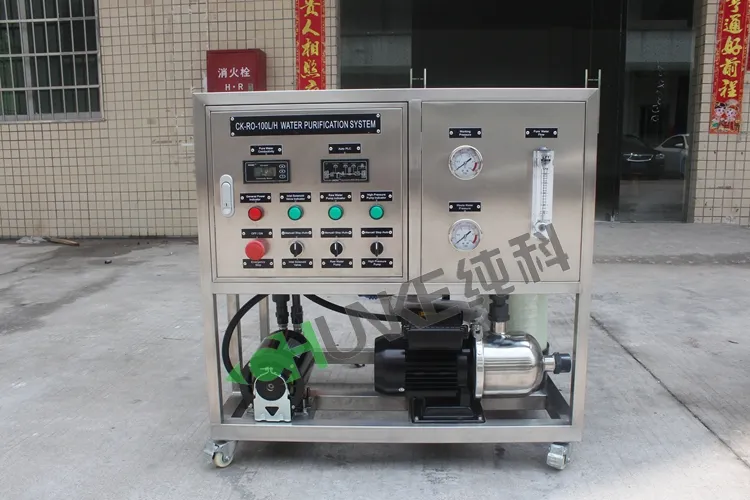

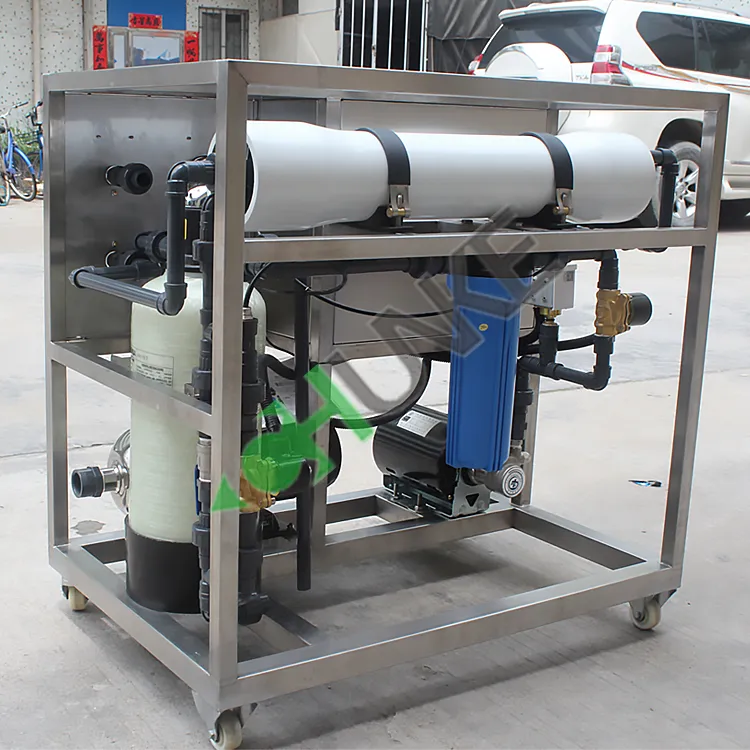

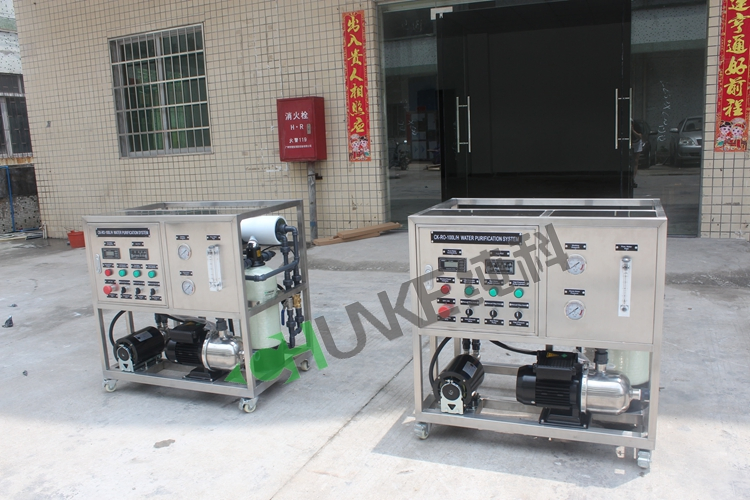

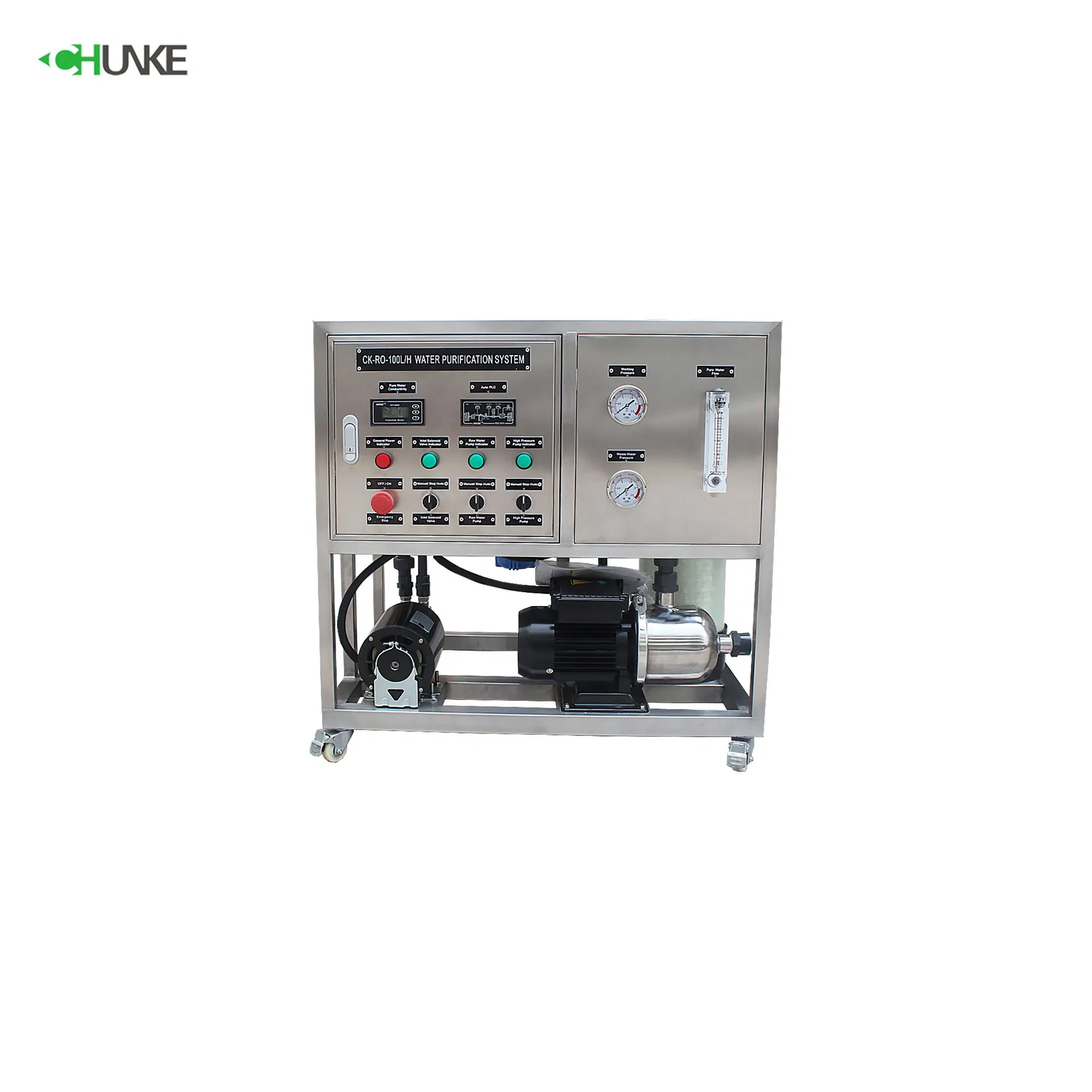

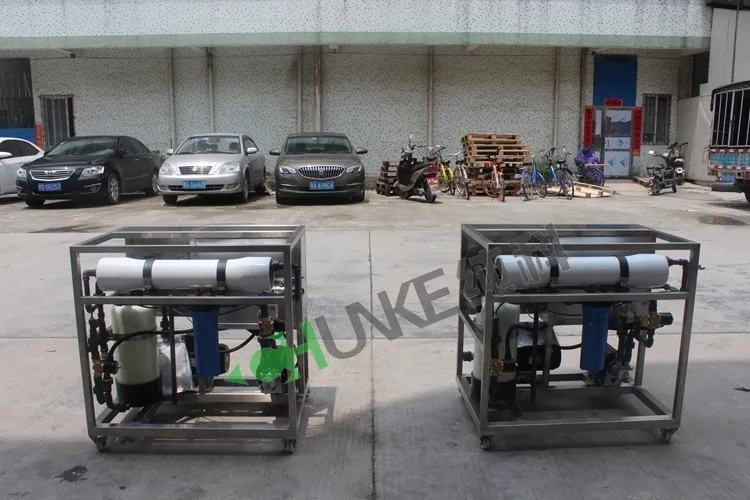

100L/H Water treatment plant details pictures:

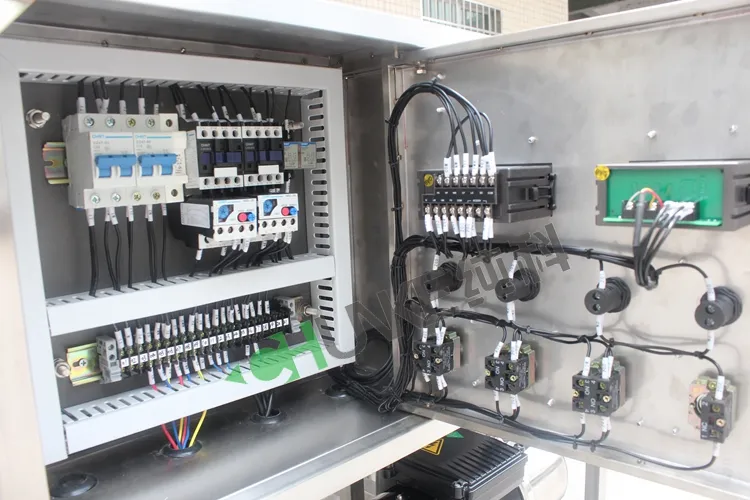

Electronic Parts:
PC programmable automatic control is Mitsubishi,if you want PLC touch screen panel, we use driver Siemens or Danfoss.
All electronic parts are France Schneider contactors, thermal relays, knobs, switches, lights, Korean pressure controller,
time controller.
Why is Reverse Osmosis a Good Water Filtration Option?
We've been in the water filtration business since 2000 and have found Reverse Osmosis filtration to consistently be
one of the best ways to achieve superior water for the home and business.
RO system is key part for the water treatment system, which is widely used to make the pure water and drinking water.
RO membrane removes many types of large molecules and ions from solutions by applying pressure to the solution when
it is on one side of a selective membrane. The result is that the solute such as iron, Virus, bacteria and solids is retained
on the pressurized side of the membrane and the pure solvent is allowed to pass to the other side.
Packing and shipping
Packed in carton case and wooden box.
Delivery: Negotiation
About our company
Guangzhou Chunke Environmental Technology Co., Ltd is a scientific enterpruise, which is specialized in water
treatment equipment and accessories of research and development, production, sales and service.
Production and management: Cartridge filter, bag filter, mechanical filter, lon Exchanger, Imitation FRP barrels,
ozone mixing tower, sterile water tank, stainless steel membrane shells, hollow-fiber mambrane, ultraviolet radiation
sterialization device, ozone generator, and water treatment equipment and so on.
If you have another question, please feel free to contact me soon!
