20-30m/H RO System Salt Water Softener for Water Purifier Treatment
20-30m/H RO System Salt Water Softener for Water Purifier TreatmentWater softener filterIon exchange resin is used in water softening system for Ca+,Mg+ and other cation exchange.To prevent undissolved saltfrom depositing in the surface of reverse osmosis membrane ,the resin which ensures well perme......
Send Inquiry
Product Description
20-30m/H RO System Salt Water Softener for Water Purifier Treatment

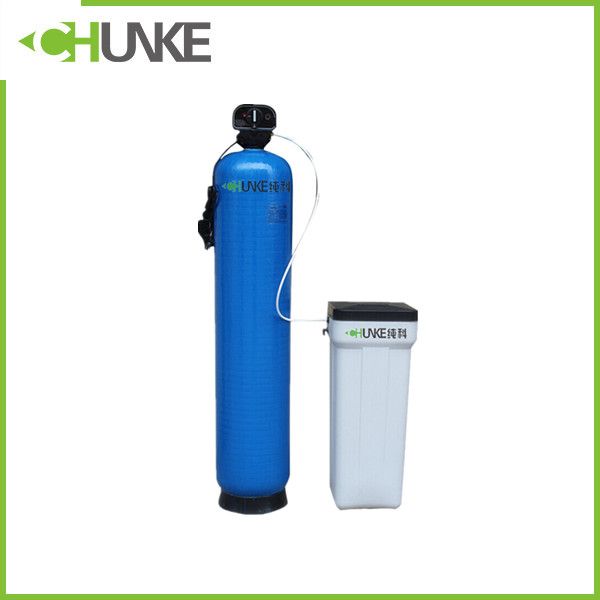

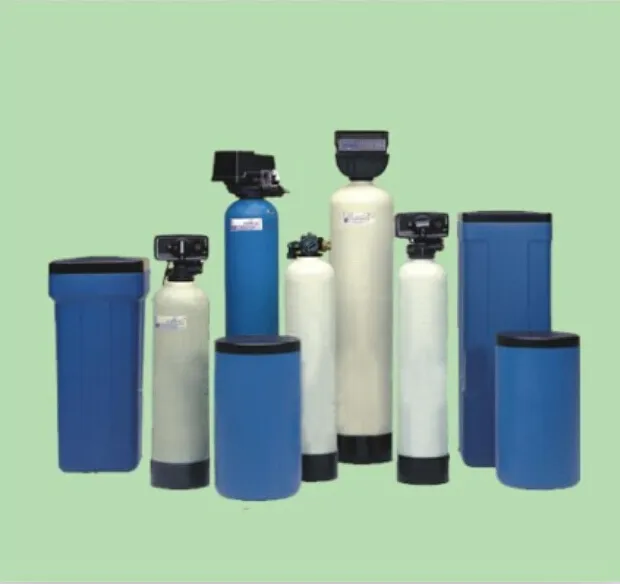

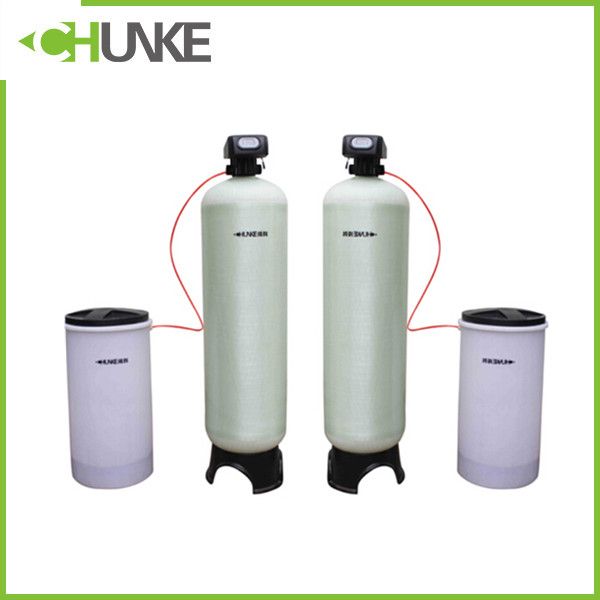

Water softener filter

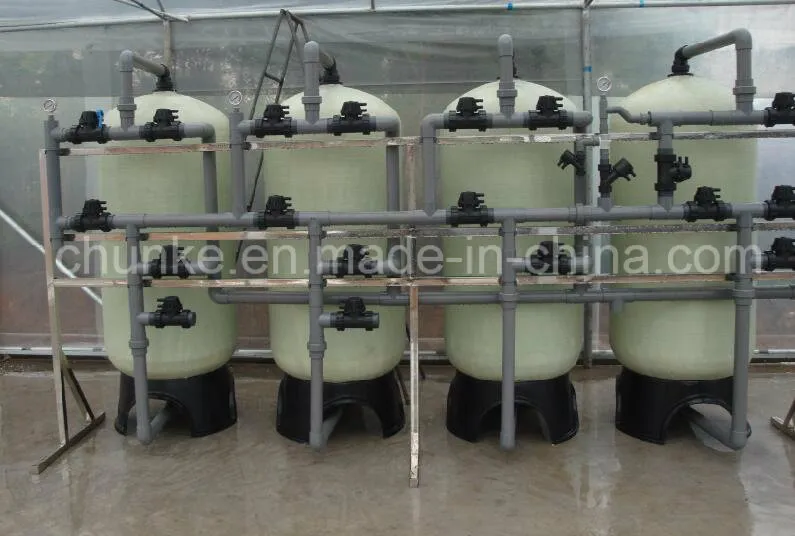

Ion exchange resin is used in water softening system for Ca+,Mg+ and other cation exchange.To prevent undissolved saltfrom depositing in the surface of reverse osmosis membrane ,the resin which ensures well permeable ability of membrane module after it works a long time and extends lifetime of membranes , enhances quality stability of ro purified water . Water softener is vertical structure which use frp material , produced as vessel standard, designed pressure for 8kg/cm2 that American auto valve is used for full-automatic salt regeneration
working principle
There are two kinds of soft water technologies commonly used in water softeners. One is to remove calcium and magnesium ions from water by ion exchange resin to reduce the hardness of water; the other is nanocrystalline TAC technology, namely Template Asisted Crystallization, using nanometers. The high energy produced by the crystal packs the free calcium, magnesium and bicarbonate ions in the water into nano-scale crystals, thus preventing free ions from forming scale. Compared with tap water, soft water has a very obvious taste and feel. Soft water has high oxygen content and low hardness, which can effectively prevent stone disease, reduce heart and kidney burden, and be healthy.
About our company
Guangzhou Chunke Environmental Technology Co., Ltd is a scientific enterpruise, which is specialized in water treatment equipment and accessories of research and development, production, sales and service.
Production and management: Cartridge filter, bag filter, mechanical filter, lon Exchanger, Imitation FRP barrels, ozone mixing tower, sterile water tank, stainless steel membrane shells, hollow-fiber mambrane, ultraviolet radiation sterialization device, ozone generator, and water treatment equipment and so on.
If you have any question of this product,please contact me soon~
Name:Miss Daisy Li
Website: chunke.en.made-in-china.com
Address: No.8, Suyuangzhuang, QingHu Village, Junhe Street,
Baiyun District, Guangzhou. China
Water softener filter
Ion exchange resin is used in water softening system for Ca+,Mg+ and other cation exchange.To prevent undissolved saltfrom depositing in the surface of reverse osmosis membrane ,the resin which ensures well permeable ability of membrane module after it works a long time and extends lifetime of membranes , enhances quality stability of ro purified water . Water softener is vertical structure which use frp material , produced as vessel standard, designed pressure for 8kg/cm2 that American auto valve is used for full-automatic salt regeneration
working principle
There are two kinds of soft water technologies commonly used in water softeners. One is to remove calcium and magnesium ions from water by ion exchange resin to reduce the hardness of water; the other is nanocrystalline TAC technology, namely Template Asisted Crystallization, using nanometers. The high energy produced by the crystal packs the free calcium, magnesium and bicarbonate ions in the water into nano-scale crystals, thus preventing free ions from forming scale. Compared with tap water, soft water has a very obvious taste and feel. Soft water has high oxygen content and low hardness, which can effectively prevent stone disease, reduce heart and kidney burden, and be healthy.

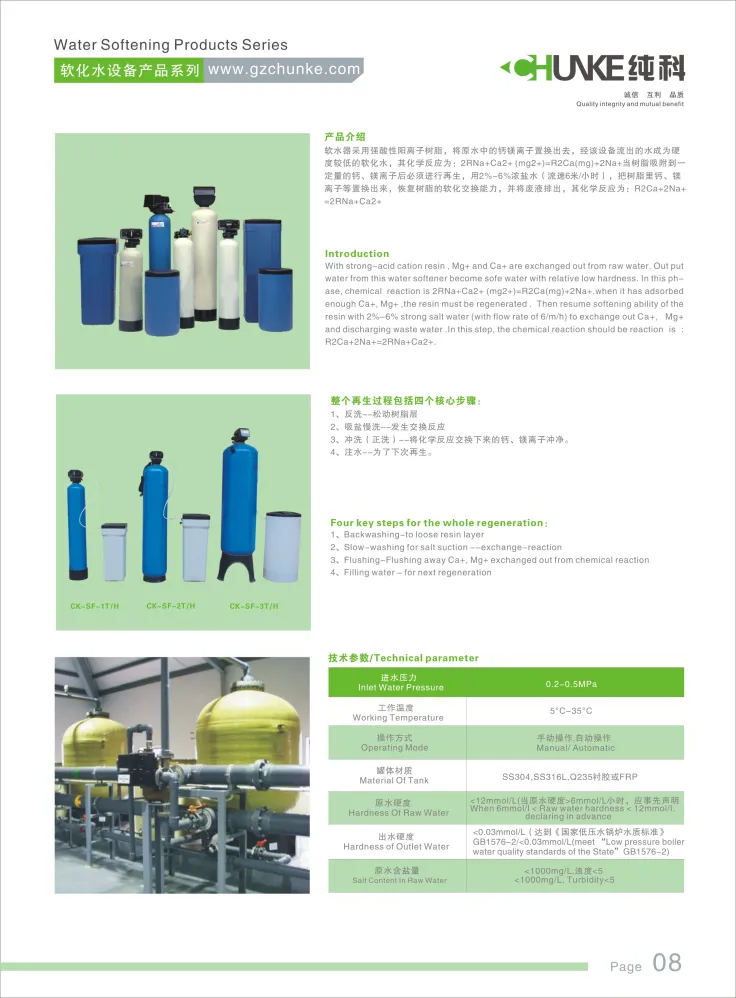

Four key steps for the whole regeneration:
1. Backwashing-to loose resin layer
2. Slow-washing for salt suction---exchange-reaction
3. Flushing-Flushing away Ca+, Mg+exchanged out from chemical reaction
4. Filling water - for next regeneration

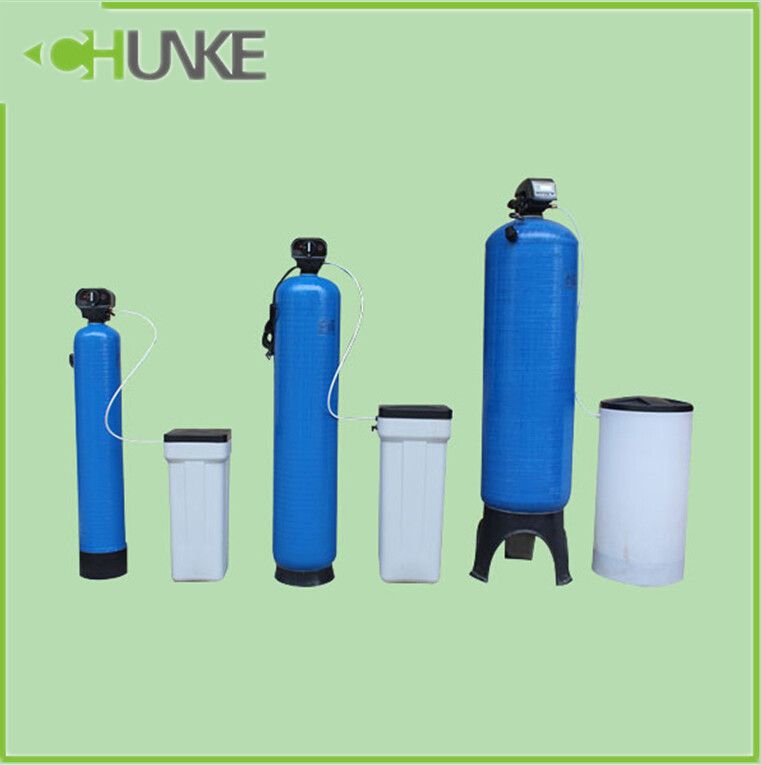

Specifications:
| Model No.: | Product ivity | Resin tank | Resin loading quantity | Brine tank size | Pipe size |
| CK-SF-500L | 0.5 | 844 | 30 | 25L | 3/4" |
| CK-SF-1000L | 1 | 1054 | 50 | 60L | 3/4" |
| CK-SF-2000L | 2 | 1252 | 80 | 60L | G1" |
| CK-SF-3000L | 3 | 1465 | 100 | 100L | G1" |
| CK-SF-4000L | 4 | 1665 | 150 | 200L | 41 1/4" |
| CK-SF-5000L | 5 | 2072 | 200 | 200L | G1 1/4" |
| CK-SF-8000L | 8 | 2472 | 300 | 300L | G1 1/2" |
| CK-SF-10000L | 10 | 3072 | 475 | 500L | G2 |
| CK-SF-12000L | 12 | 3072 | 475 | 500L | G2" |
| CK-SF-15000L | 15 | 3672 | 650 | 800L | G2" |
