2021 New Reverse Osmosis System Drinking Water Treatment Plant Water Purifier
Product DescriptionWater treatment plant: reverse osmosis equipmentOur equipment adopts the osmosis filtration process of reverse osmosis membrane, which is a modern new pure water treatment technology. Reverse osmosis membrane by means of choice through membrane function to pressure as the driving ......
Send Inquiry
Product Description

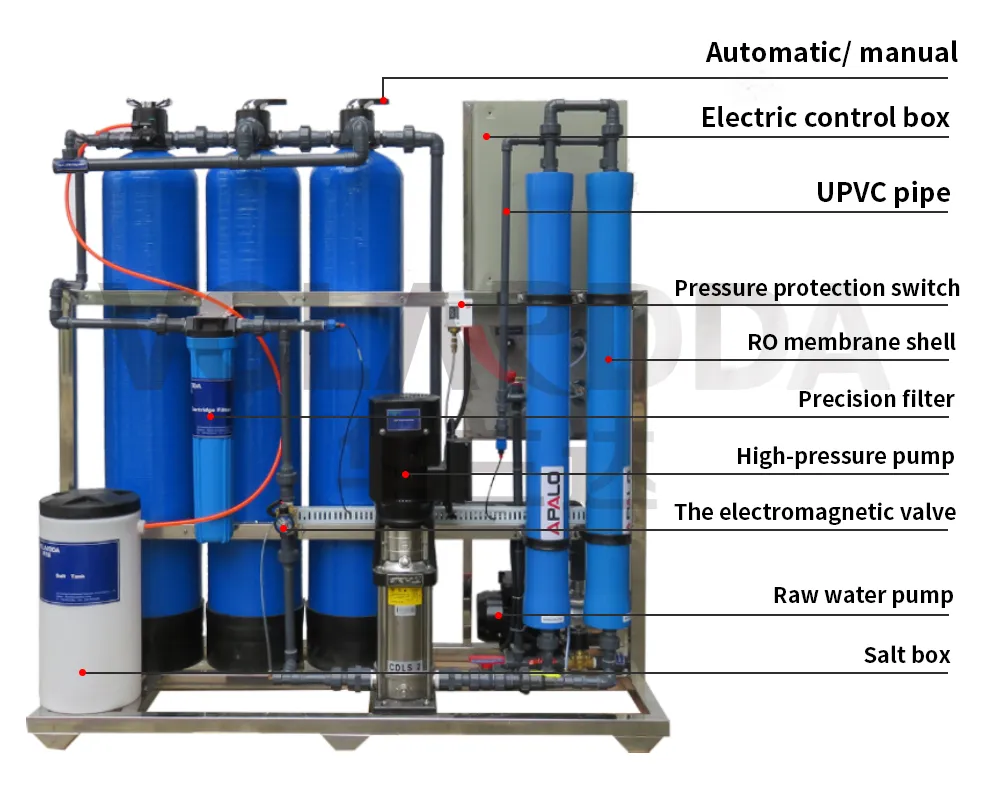

Water treatment plant: reverse osmosis equipment
Different Water TDS(Total Dissolved Solids)compare and usuage
| Raw water/Application | Bottled water,Bag water | City tap water | Brackish water | Seawater |
| TDS Range | 2-10ppm | 100-1000ppm | 2000-20000ppm | 20000-40000ppm |
| Direct Drinking | Yes | Yes/No | No | No |
| cooking, human consumption,washing | Yes | Yes/No | No | No |
| Irrigation,Industry,Animal Drinking | Yes | Yes | No | No |

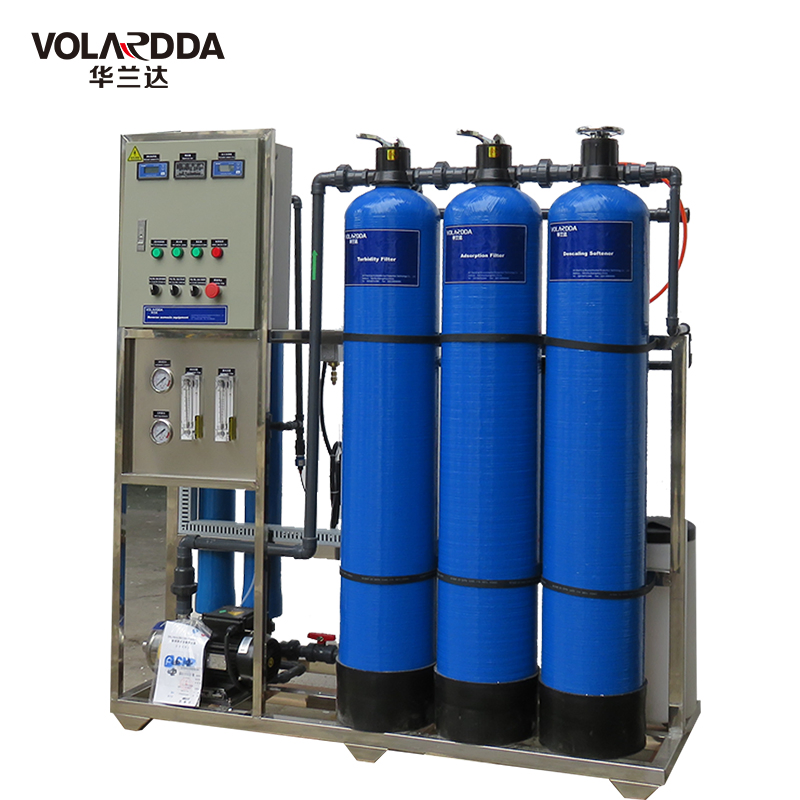

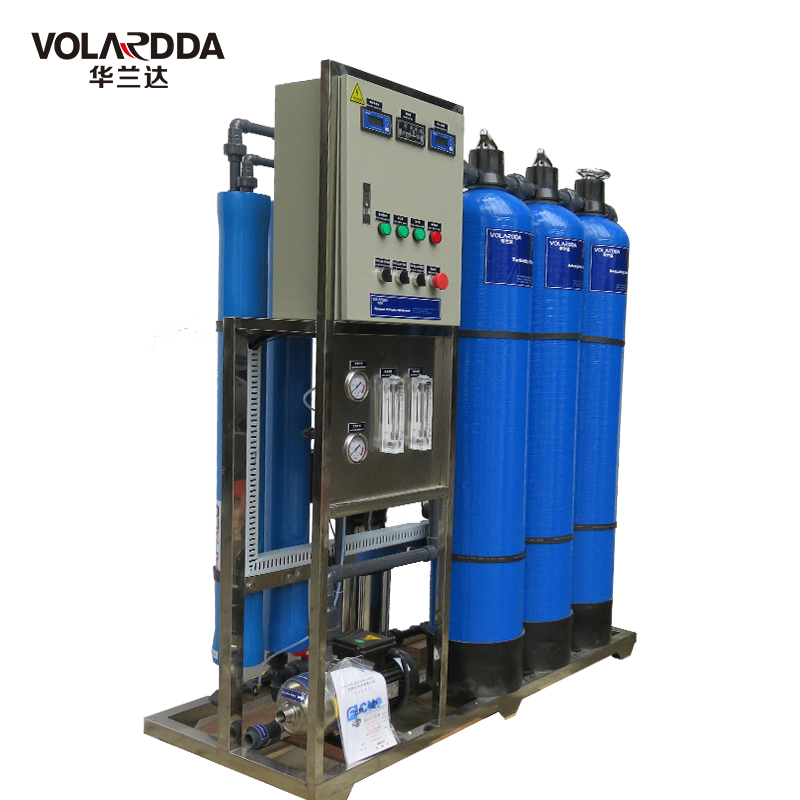

| Product name | Reverse osmosis pure water equipment | Inlet water quality | TDS≤1000ppm |
| Brand | Volardda | Desalination rate | 96-99% |
| Model | HLDRO1 | Recovery rate | 50-70% |
| Voltage | 380V/50hz,220V/50hz | Working temperature | 0≤45ºC |
| Power | 1.5KW | Working pressure | Pretreatment:0.2≤0.4Mpa RO host:0.8≤1.7Mpa |
| Productivity | 250-20000L/H (1L=0.264 gallon) | Dimensions | L*W*H=165*60*170cm |
| Control mode | Automatic/Manual | Weight | 245KG-685KG |
| Warranty | 1 Year | Package | Wooden frame |

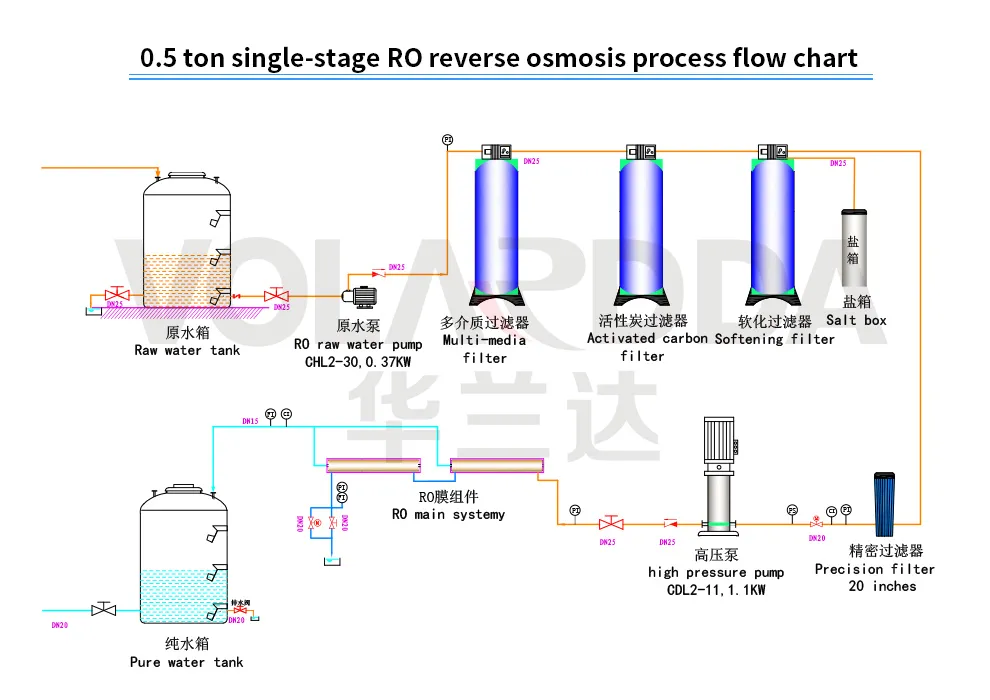

Raw water tank→Raw water pump→Sand filter→Activated carbon adsorption
filter→watersoftener→Precision filter→High-pressure pump→RO membrane→Pure water tank
Reverse osmosis is a membrane separation technology that uses pressure as the driving force by means of the function of selective permeable (semi-permeable) membranes. When the pressure applied in the system is greater than the osmotic pressure of the aqueous solution, water molecules continuously penetrate the membrane It flows into the central pipe through the water production channel, and then flows out of impurities in the water at one end, such as ions, organic matter, bacteria, viruses, etc., which are trapped on the inlet side of the membrane, and then flow out at the outlet end of the concentrated water to achieve the purpose of separation and purification. The reverse osmosis equipment is to pass the raw water through a fine filter, granular activated carbon filter, compressed activated carbon filter, etc., and then pressurize by a pump, using a pore size of 1/0000μm (equivalent to 1/6000 the size of E. /300) reverse osmosis membrane (R membrane), which turns high-concentration water into low-concentration water, and at the same time isolates all the impurities mixed into the water such as industrial pollutants, heavy metals, bacteria, and viruses, so as to achieve the physical and chemical drinking regulations Indicators and hygienic standards, to produce pure to pure water, which is the best choice for the human body to replenish high-quality water in time. Because the purity of water produced by RO reverse osmosis technology is the highest among all water production technologies currently mastered by humans, the cleanliness Almost 100%, so people call this water production machine a reverse osmosis pure water machine.
Reverse osmosis is a modern new type of pure water treatment technology. Through the reverse osmosis element to improve the purity of the water quality, to remove impurities and salt in the water, the purified water we drink daily is processed by reverse osmosis equipment, and the water quality is clear.
The main products of our Volardda are: Reverse Osmosis Systems,EDI Systems,Water sterilization products, pure water tank,Drinking Water Filling Machine, Household ro system,Pretreatment Systems, Ultrafiltration Systems, Water Softeners, Water treatment accessories etc. Learn more pls click:
Any question about our product pls click:

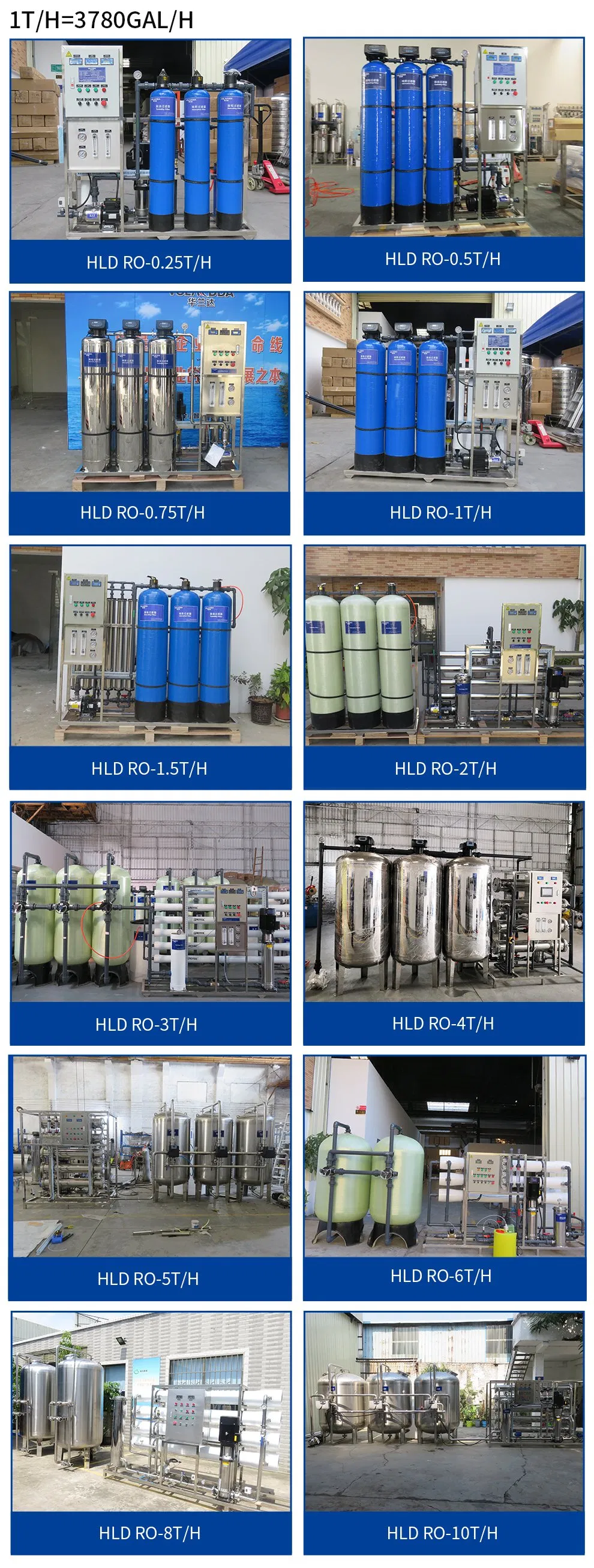

| Model | Water production | Power(KW) | Inlet diameter(mm) | Outlet diameter(mm) | Equipment size | Equipment volume(m³) | Packing volume(m³) | weight(kg) |
| HLDRO1-250L | 250L/H | 1.5KW | dn25 | dn20 | 140*50*150cm | 1.2m³ | 1.5m³ | 245KG |
| HLDRO1-500L | 500L/H | 1.8KW | dn32 | dn20 | 155*55*160cm | 1.4m³ | 1.7m³ | 275KG |
| HLDRO1-1000L | 1000L/H | 1.8KW | dn32 | dn20 | 165*65*165cm | 1.8m³ | 2.3m³ | 370KG |
| HLDRO1-1500L | 1500L/H | 2.4KW | dn40 | dn25 | 180*70*180cm | 2.3m³ | 2.6m³ | 495KG |
| HLDRO1-2000L | 2000L/H | 2.8KW | dn40 | dn32 | 190*80*180cm | 2.7m³ | 3.4m³ | 685KG |
| HLDRO1-3T | 3T/H | 4KW | dn50 | dn40 | Pretreatment:2*0.8*2.1m Host:1.5*0.6*1.6m | 4.8m³ | 5.9m³ | 1400KG |
| HLDRO1-4T | 4T/H | 6KW | dn50 | dn40 | Pretreatment:2.6*0.95*2.1m Host:1.5*0.6*1.9m | 6.9m³ | 8.3m³ | 2500KG |
| HLDRO1-5T | 5T/H | 7.5KW | dn50 | dn40 | Pretreatment:3.2*1.2*2.2m Host:1.5*0.7*2.3m | 11m³ | 13m³ | 4000KG |
| HLDRO1-6T | 6T/H | 9.5KW | dn65 | dn40 | Pretreatment:3.8*1.3*2.2m Host:2.4*0.6*1.6m | 13m³ | 15m³ | 5200KG |
| HLDRO1-8T | 8T/H | 18KW | dn65 | dn40 | Pretreatment:3.8*1.3*2.2m Host:2.4*0.6*2m | 13.7m³ | 16m³ | 5500KG |
| HLDRO1-10T | 10T/H | 25KW | dn65 | dn40 | Pretreatment:4*1.4*2.2m Host:2.4*0.75*2m | 18m³ | 20m³ | 7500KG |
| HLDRO1-12T | 12T/H | 27KW | dn65 | dn50 | Pretreatment:4*1.4*2.2m Host:2.4*0.75*2m | 18m³ | 20m³ | 8200KG |
| HLDRO1-15T | 15T/H | 29KW | dn80 | dn50 | Pretreatment:5.2*1.7*2.4m Host:3.6*0.75*2m | 27m³ | 28m³ | 10500KG |
| HLDRO1-16T | 16T/H | 30KW | dn80 | dn50 | Pretreatment:5.2*1.7*2.4m Host:2.4*0.75*2.2m | 25m³ | 27m³ | 11000KG |
| HLDRO1-18T | 18T/H | 32KW | dn80 | dn65 | Pretreatment:5.2*1.7*2.4m Host:3.6*0.75*1.6m | 25m³ | 27m³ | 11200KG |
| HLDRO1-20T | 20T/H | 32KW | dn80 | dn65 | Pretreatment:5.2*1.7*2.4m Host:6.5*0.75*1.6m | 29m³ | 29m³ | 11700KG |
| HLDRO1-25T | 25T/H | 35KW | dn80 | dn65 | Pretreatment:6*1.85*2.6m host:6.5*0.75*1.6m | 37m³ | 37m³ | 125000KG |
| HLDRO1-30T | 30T/H | 38KW | dn100 | dn65 | Pretreatment:6*1.85*2.6m Host:6.5*0.75*1.6m | 37m³ | 37m³ | 128000kG |
| HLDRO1-35T | 35T/H | 45KW | dn100 | dn65 | Pretreatment:6.5*2*2.8m Host:6.5*0.75*2m | 46m³ | 46m³ | 132000KG |
| HLDRO1-40T | 40T/H | 75KW | dn100 | dn80 | Pretreatment:8*2.3*2.8m Host:6.5*0.75*2m | 62m³ | 62m³ | 145000KG |
| HLDRO1-50T | 50T/H | 75KW | dn100 | dn80 | Pretreatment:8*2.3*2.8m Host:6.5*0.75*2.3m | 63m³ | 63m³ | 15000KG |
Guangdong Volardda Water Purification Equipment Co., Ltd is located in Guangzhou Nansha Free Trade Zone, and our factory area more than 5,000 square meters. Volardda is a new intelligent direct drinking water equipment technology manufacturing enterprise integrating R&D, design, manufacturing, installation, operation and service.
The main products of our Volardda are: Reverse Osmosis Systems,EDI Systems,Water sterilization products, pure water tank,Drinking Water Filling Machine, Household ro system,Pretreatment Systems, Ultrafiltration Systems, Water Softeners, Water treatment accessories etc. We have provided overall water treatment for more than 1,200 customers solution.
What's more, our products have been exported to Southeast Asia, the Middle East, Africa, America, Australia and many other countries for many years. With profession team, unique design, high-quality products, and perfect after-sales, we can firmly established the Volardda water purification brand !
Our packaging is a wooden frame. The packaging is sealed and transported to the port by special vehicles to ensure product safety and quality.
Q: Are you trading company or manufacturer ?
A: Yes, we are a manufacture with designing, manufacturing, marketing and exporting(Guangzhou port).We have experience over 10 years.Our plant is 5000 square meters.
Q: What's the information you need to know before order?
A: what's your raw water ?
B: what's the capacity per hour of the equipment ?
C: What's the application of purifier water ?
Q:Which machine should I choose?
A:It depends on your raw water quality and your requirements, you can Initiate an inquiry, we have a professional customer service teams to answer your questions and recommend the product to you.
Q: Do you recruit agents? ?
A: Of course! We sincerely recruit agents, welcome to consult.
Q: How long is your delivery time?
A: Generally it is 15-30 days, Depends on your project.
Q:How can you control the quality and delivery?
A:Production strictly according to CE / ISO standards.
B:All our machines will be tested before packaging. wooden packaing is strong and safety for long delivery.
Q:What's your warranty?
A:Our warranty is 1 year. But normally, our machine can work 5 years before repair.
Why Choose us?
1. 24 hour online service
2. Customized design
3. Factory Direct Sales price&Competitive Price
4. Design Plan According to Your Needs
5. Professional Construction Team on-site service
6. Quality Assurance
7. Energy Saving and Environmental Protection less noise
8. Long Service Life of Equipment
9. Low Transportation Cost, Compact Design, Small Size
10. After-Sale Guarantee Solve Problem in Time
