3000 Gpd Water Filter Purifier RO System for Commercial
3000 GPD water filter purifier ro system for commercialRo system for commercial 1)Brief ProfileRo system for commercial is professionally used for turning city water into industrial water.This kind of equipment adopts specialized reverse osmosis technology design and other advanced technology. It ob......
Send Inquiry
Product Description

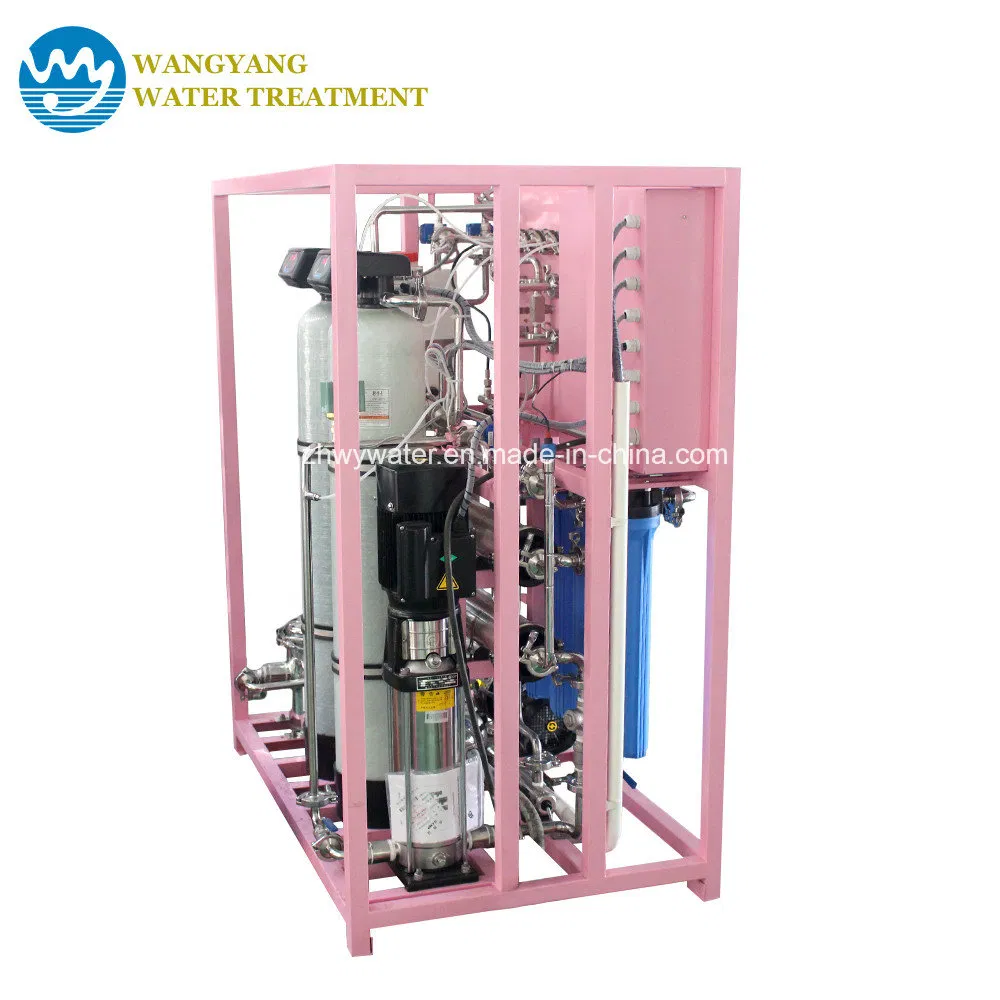

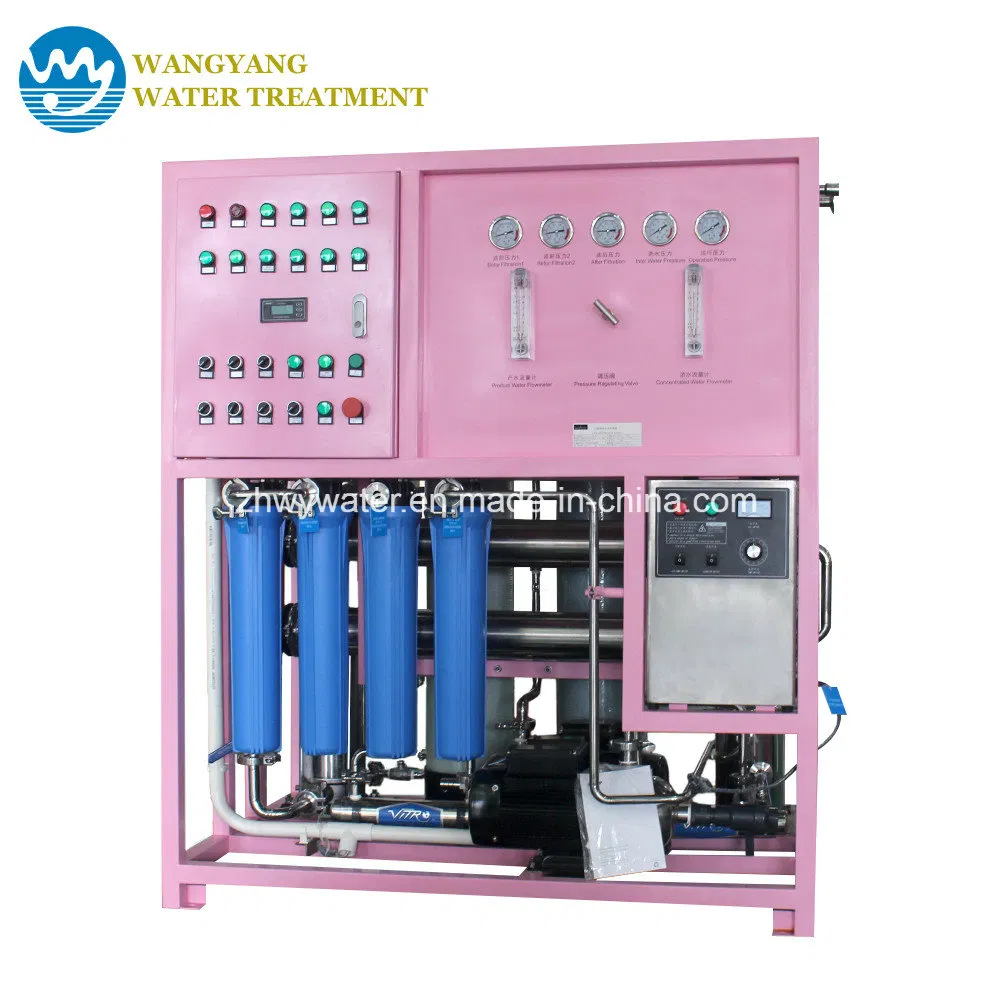

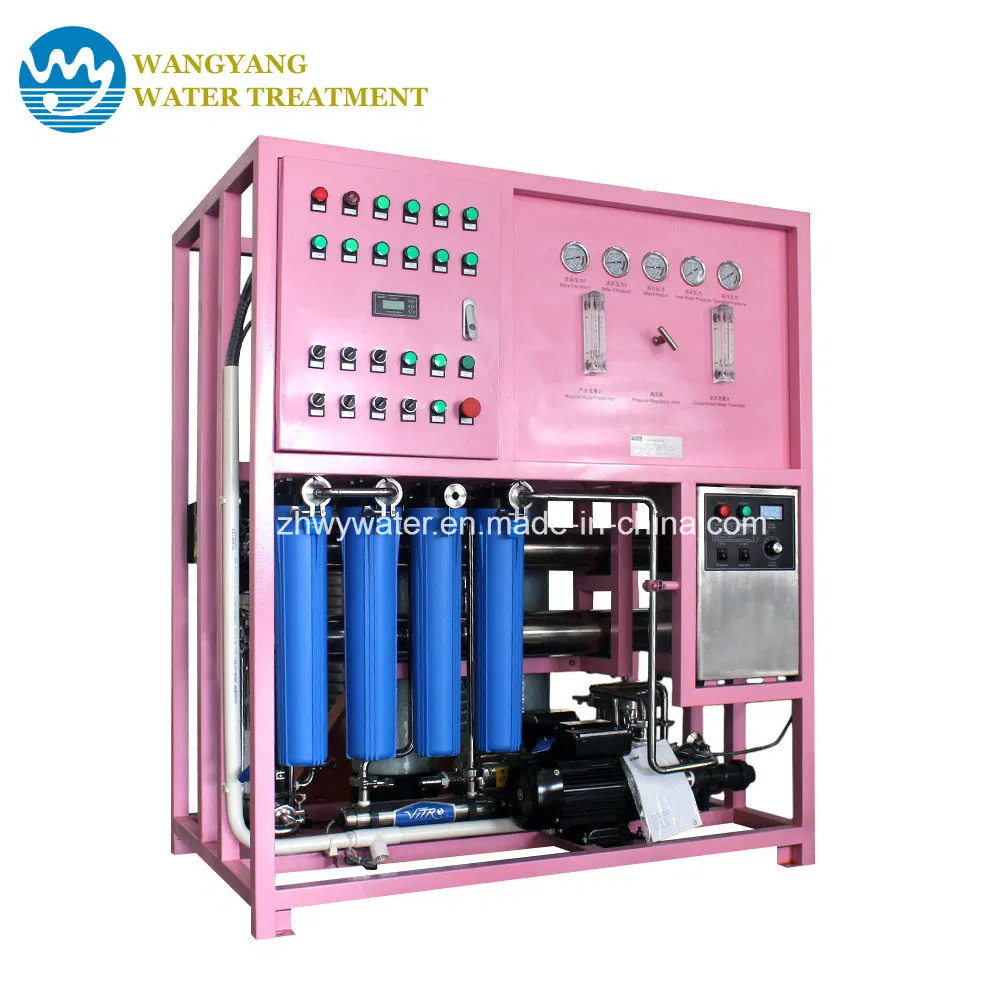

3000 GPD water filter purifier ro system for commercial
Ro system for commercial
Ro system for commercial
1)Brief Profile
Ro system for commercial is professionally used for turning city water into industrial water.This kind of equipment adopts specialized reverse osmosis technology design and other advanced technology. It obtains customers' favor with various advantages.

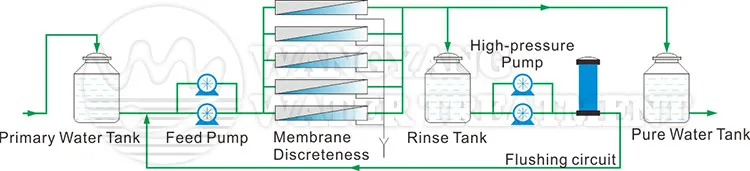

3)Process Overview of Ro system for commercial
3.1)Primary water tank: to store raw water (tap water).
3.2) Feed pump: to provide sufficient pressure for subsequent filtration.
3.3) Membrane Discreteness: almost all soluble salt, colloid, organics will be removed.
3.4) Rinse tank: protect the membrane system without polluted by using chemical agent.
3.5) High-pressure pump: provide enough pressure for reverse osmosis system.
3.6) Flushing circuit: to clean membrane element and prevent the deposition of pollutants.
3.7) Pure water tank: the storage of pure water.
4)Main Features of Ro system for commercial
4.1)Small volume & elegant appearance;
4.2)Simple installation,operation and maintenance;
4.3)Reliable quality & high scalability;
4.4)High water utilization rate with low power consumption.
5)Package & Shipment
5.1)Package
Ro system for commercial is with international standard export package.
(Wooden Case,Carton Box & Export Neutral Packing available)
5.2)Shipment:
We will choose the most suitable shipment according to customers' need.
6)Our Services
6.1)Installation & Commissioning
As the supplier,we have the responsibility to complete the installation & commissioning for customers before shipment.For customers need,we're available to finish that in customers' requested place.
6.2)Training
We will provide clients technical training,which includes equipment structure & maintenance, control & operation. In this way, the technicians of customers can grasp relevant skills after training.
6.3)Quality Assurance & After-sales
Equipment mechanical part is given total quality assurance within two years from the equipment installation and commissioning completed acceptance.During the warranty period,our company will arrange technologist to call you and ask about the equipment using situation very quarter.Consumable materials and vulnerable parts which are normal wear and tear are not within the warranty.Outside the quality assurance period,we can also provide comprehensive technical support and maintenance services for customer.
7)Company Information

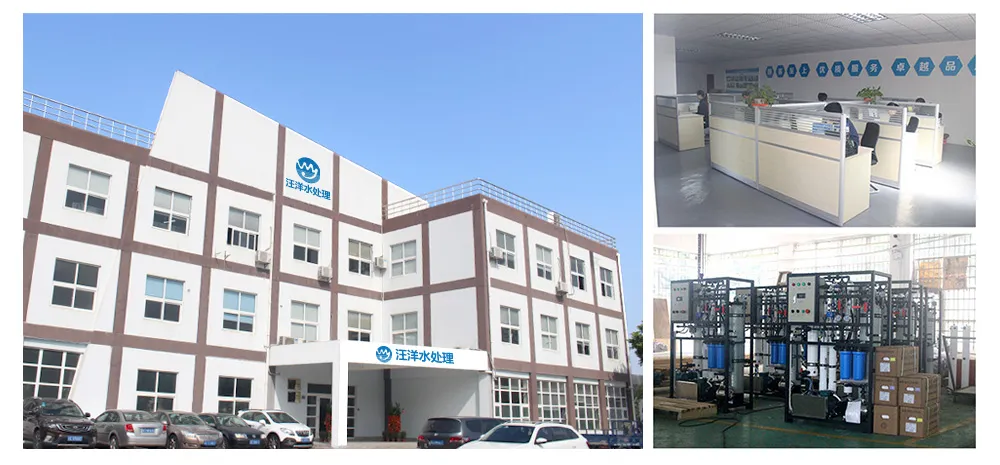

7.1)Profile
Founded in 2010,Zhuhai Wangyang Water Treatment Equipment Co,.Ltd. is a high-tech enterprise integrated with R&D,production,selling and engineering installation.we have professional technical team and after-sales team specializing in seawater and brackish water desalination,reclaimed-water recycling, hyper pure water,boiler-feeding water,electroplating metallurgy,etc.
With continuous innovation and good quality guarantee,we have obtained some certificate like ISO9001,CCS,etc.As well,we have our own patent.
We persist in the principle "Customers come first,High-quality service,Excellent product".Integrity is the root of our long-term development while customers' satisfaction is our persistent pursuit.
4.2)Exhibition
8)FAQ
Q1:Why choose us?
A:1)We have sophisticated experience and professional knowledge & technology;
2)Both OEM and ODM orders are available;
3)We offer high-quality product with competitive price;
4) We offer 2-year-warranty and good after-sales service.
Q2:Are you manufacturing company or trading company?
A:We're a professional manufacturer for water treatment equipment.And always welcome to visit our factory.
Q3:How should I select the plant?
A:It depends on your requested parameters,such as raw water source,water quality,water yield,voltage,etc.
Q4:What's your suggest for maintenance?
A: 1)check all circuit whether damaged;
2)check valve whether malfunctioning phenomenon;
3)check all pipes for leaks;
4)If long time no use,you should add protective solution to protect the reverse osmosis:
4.1)Open inlet which in the front of the high-pressure pump (see illustration), make well the protective solution in the water tank ,then connect with the tank via pipe , start the water tank pump, when the protective solution full filled with reverse osmosis membrane group, turn off the water tank pump, close the inlet. Meanwhile every day to observe, such as protection fluid leakage situation, should replenish the above step.
4.2)Before equipment start-up , protective solution should be clear up.
Q5:Could you offer some info about troubleshooting?
A:Our pleasure in doing that.
1)high-pressure pump:
Each work 200 hours to inspect, pressure whether normal, whether the crankcase short of oil, the pump whether abnormal and other tests, such as abnormal working, in accordance with the manufacturers instructions for maintenance. If do not have maintenance skills, please timely contact with the manufacturer, we will maintenance for client.
2)booster pump:
Maintenance, inspection, refer to the high-pressure pump, the specific details, see the lift pump manual requirements. Equipment failure, if you are able to maintenance and repair, the manufacturer can provide technical support. If do not have skills to repair, made it clear that the cause of the malfunction and fault coverage, please contact the manufacturer.
Q6:What's your payment term?
A:PayPal,T/T,Western Union,L/C available;40% deposit before manufacturing,and the rest should be paid before shipment.
Ro system for commercial is professionally used for turning city water into industrial water.This kind of equipment adopts specialized reverse osmosis technology design and other advanced technology. It obtains customers' favor with various advantages.
2)Spec.
Product Name | Ro system for commercial |
Model | WY-TW-12 |
Raw Water | Tap Water |
Water Yield | 12m³/d |
Voltage | 110~450V ; 50HZ / 60Hz |
Desalination Rate | ≥99% |
TDS of Output Water | ≤25mg/L |
Recovery Rate | 65% |
Operation Pressure | 1~2MPa |
Inlet Water Temp Suggest | 5~45°C |
Working Environment Temp | 0~45°C |
Working Environment Air Humidity | 20%~90% |
Main Material | SS 304 |
Protection Level | IP54 |
| Maintenance space | The front 1000mm, the back 700mm,the left & right each side1000mm. |
| Input Pipe | DN25 |
| Output Pipe | DN15 |
| Discharge Pipe | DN15 |
Control System | Automatic / Manual |
Certificate | ISO9001 , CCS |
Life Time | 15 Years |
Warranty | 2 Years |
Customized | Available |
3)Process Overview of Ro system for commercial
3.1)Primary water tank: to store raw water (tap water).
3.2) Feed pump: to provide sufficient pressure for subsequent filtration.
3.3) Membrane Discreteness: almost all soluble salt, colloid, organics will be removed.
3.4) Rinse tank: protect the membrane system without polluted by using chemical agent.
3.5) High-pressure pump: provide enough pressure for reverse osmosis system.
3.6) Flushing circuit: to clean membrane element and prevent the deposition of pollutants.
3.7) Pure water tank: the storage of pure water.
4)Main Features of Ro system for commercial
4.1)Small volume & elegant appearance;
4.2)Simple installation,operation and maintenance;
4.3)Reliable quality & high scalability;
4.4)High water utilization rate with low power consumption.
5)Package & Shipment
5.1)Package
Ro system for commercial is with international standard export package.
(Wooden Case,Carton Box & Export Neutral Packing available)
5.2)Shipment:
We will choose the most suitable shipment according to customers' need.
6)Our Services
6.1)Installation & Commissioning
As the supplier,we have the responsibility to complete the installation & commissioning for customers before shipment.For customers need,we're available to finish that in customers' requested place.
6.2)Training
We will provide clients technical training,which includes equipment structure & maintenance, control & operation. In this way, the technicians of customers can grasp relevant skills after training.
6.3)Quality Assurance & After-sales
Equipment mechanical part is given total quality assurance within two years from the equipment installation and commissioning completed acceptance.During the warranty period,our company will arrange technologist to call you and ask about the equipment using situation very quarter.Consumable materials and vulnerable parts which are normal wear and tear are not within the warranty.Outside the quality assurance period,we can also provide comprehensive technical support and maintenance services for customer.
7)Company Information
7.1)Profile
Founded in 2010,Zhuhai Wangyang Water Treatment Equipment Co,.Ltd. is a high-tech enterprise integrated with R&D,production,selling and engineering installation.we have professional technical team and after-sales team specializing in seawater and brackish water desalination,reclaimed-water recycling, hyper pure water,boiler-feeding water,electroplating metallurgy,etc.
With continuous innovation and good quality guarantee,we have obtained some certificate like ISO9001,CCS,etc.As well,we have our own patent.
We persist in the principle "Customers come first,High-quality service,Excellent product".Integrity is the root of our long-term development while customers' satisfaction is our persistent pursuit.
4.2)Exhibition
8)FAQ
Q1:Why choose us?
A:1)We have sophisticated experience and professional knowledge & technology;
2)Both OEM and ODM orders are available;
3)We offer high-quality product with competitive price;
4) We offer 2-year-warranty and good after-sales service.
Q2:Are you manufacturing company or trading company?
A:We're a professional manufacturer for water treatment equipment.And always welcome to visit our factory.
Q3:How should I select the plant?
A:It depends on your requested parameters,such as raw water source,water quality,water yield,voltage,etc.
Q4:What's your suggest for maintenance?
A: 1)check all circuit whether damaged;
2)check valve whether malfunctioning phenomenon;
3)check all pipes for leaks;
4)If long time no use,you should add protective solution to protect the reverse osmosis:
4.1)Open inlet which in the front of the high-pressure pump (see illustration), make well the protective solution in the water tank ,then connect with the tank via pipe , start the water tank pump, when the protective solution full filled with reverse osmosis membrane group, turn off the water tank pump, close the inlet. Meanwhile every day to observe, such as protection fluid leakage situation, should replenish the above step.
4.2)Before equipment start-up , protective solution should be clear up.
Q5:Could you offer some info about troubleshooting?
A:Our pleasure in doing that.
1)high-pressure pump:
Each work 200 hours to inspect, pressure whether normal, whether the crankcase short of oil, the pump whether abnormal and other tests, such as abnormal working, in accordance with the manufacturers instructions for maintenance. If do not have maintenance skills, please timely contact with the manufacturer, we will maintenance for client.
2)booster pump:
Maintenance, inspection, refer to the high-pressure pump, the specific details, see the lift pump manual requirements. Equipment failure, if you are able to maintenance and repair, the manufacturer can provide technical support. If do not have skills to repair, made it clear that the cause of the malfunction and fault coverage, please contact the manufacturer.
Q6:What's your payment term?
A:PayPal,T/T,Western Union,L/C available;40% deposit before manufacturing,and the rest should be paid before shipment.
9)Contract
