500lph EDI Water Treatment Plant Di Deionized Water Distilled Water Plant
500 liter per hour Electrodeionization EDI demineralized deionized water purification system for surface cleaning, industrial boiler EDI (electrodeionization) is also known as electrodeionization, it's a new type of ultra pure water producing technology which gradually developed in the 20th Cent......
Send Inquiry
Product Description
EDI (electrodeionization) is also known as electrodeionization, it's a new type of ultra pure water producing technology which gradually developed in the 20th Century, It is a revolutionary progress in the history of pure water production technology. This technology is skillfully combined electroosmosis technology with ion exchange technology. By means of the selectivity permeation effect on anion and cation by the anion and cation exchange membrane, and exchange effect on ion by ion exchange resin. Under direct-current electric field, realize the directed migration of ions, thus completely make water salt removing, meanwhile, hydrogen ion and hydroxyl ion generated by water electrolysis will continuously make the ion exchange resin regeneration, so it can produce ultrapure water continuously without acid-base chemical regeneration. With the advantages of advanced technology, compact structure and simple operation. It can be widely applied in the fields of power, electronics, medicine, chemical industry, food and laboratory, and it is a green revolution of water treatment technology. The output water quality has the best stability, water quality can reach 5MΩ ~18.2 MΩ.
Advantages of EDI Technology
1). Best stability of water quality
2). Constantly produce ultrapure water as per user requirements.
3). Modular production, can achieve automatic control
4). No need acid and alkali regeneration, no pollution emissions.
5).No need stop because of regeneration
6). No need regeneration equipment and chemical storage
7). Compact equipment, small size, saving shipping cost.
8) Low operation and maintenance cost
9). Simple operation and low labor strength.
EDI High pure water application area:
1). Ultra pure water used in laboratory study
2). High pure water used in pharmaceutical industry
3). Fine chemicals, high purity water in cutting-edge area
4). Ultra pure water for precision machinery industry
5). Ultra pure water in Electronics and semiconductor industry
6). Condensate water treatment of power plant ( feed water for boiler)
7). Desalted water used in the petrochemical iron and steel industry
8). High pure water used in cosmetic industry, surface cleaning and surface coating
8). High purity water for other industries, instead of distilled water

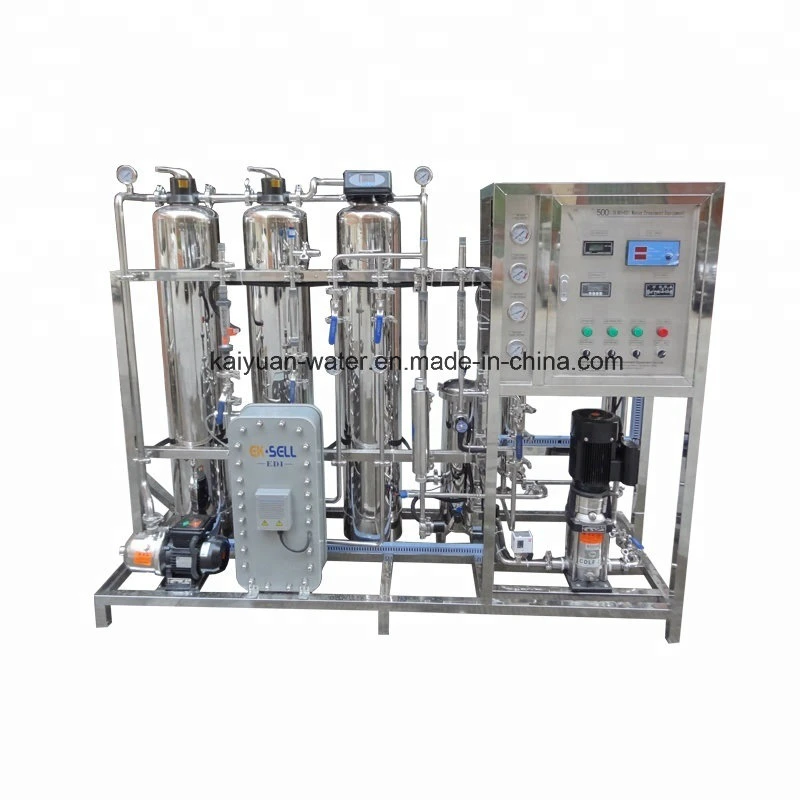

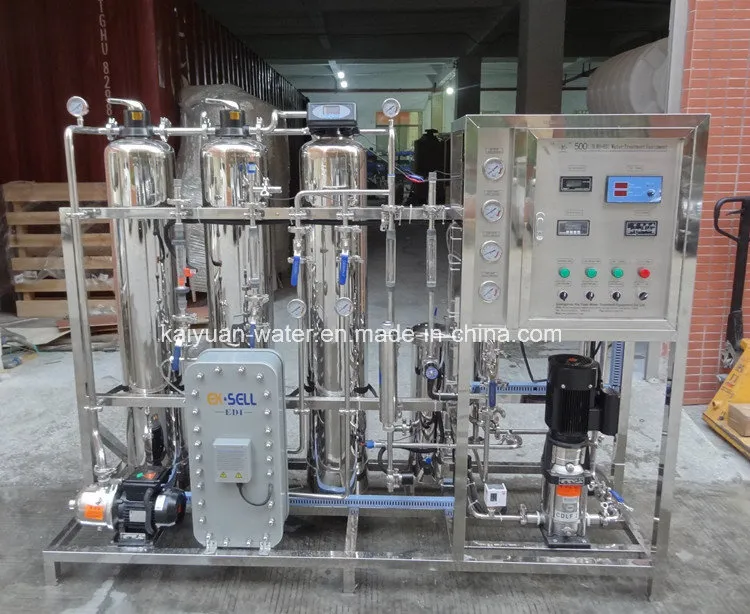

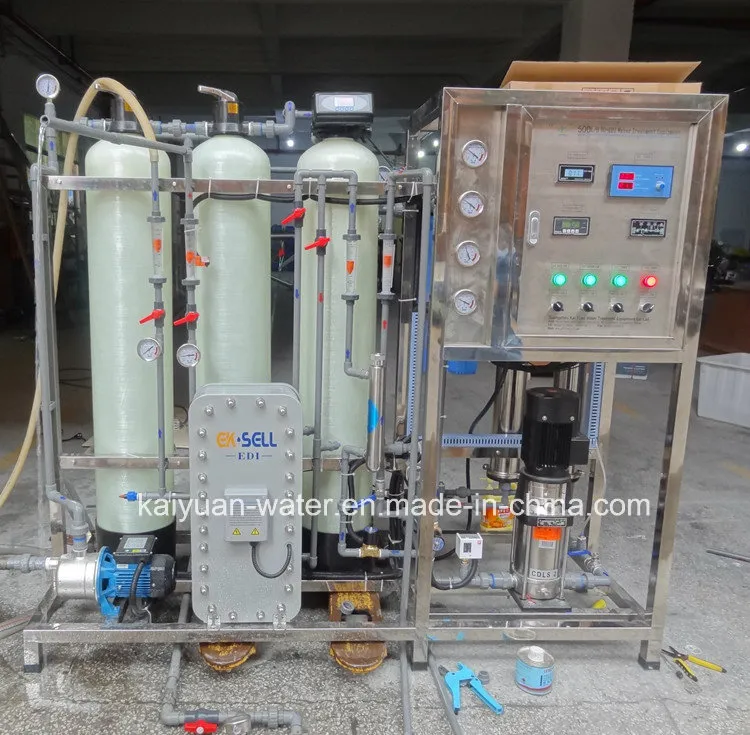

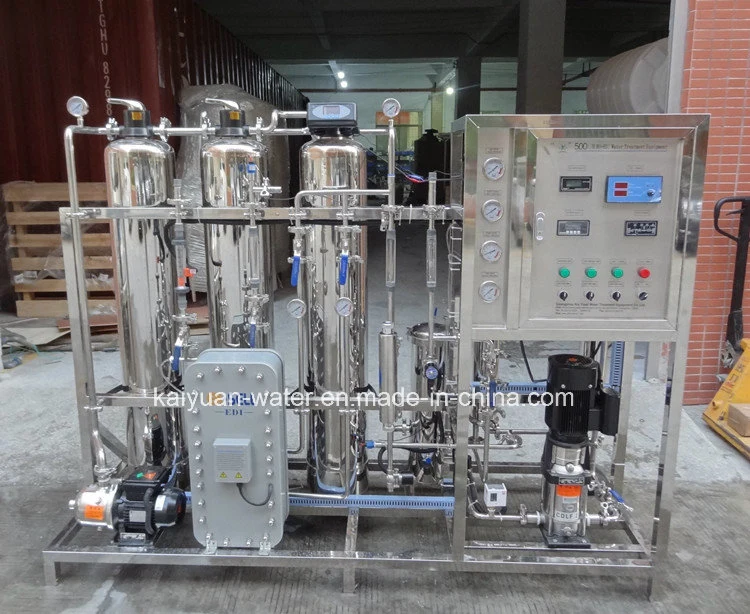

EDI (electrodeionization) ultra pure water equipment 500L/H

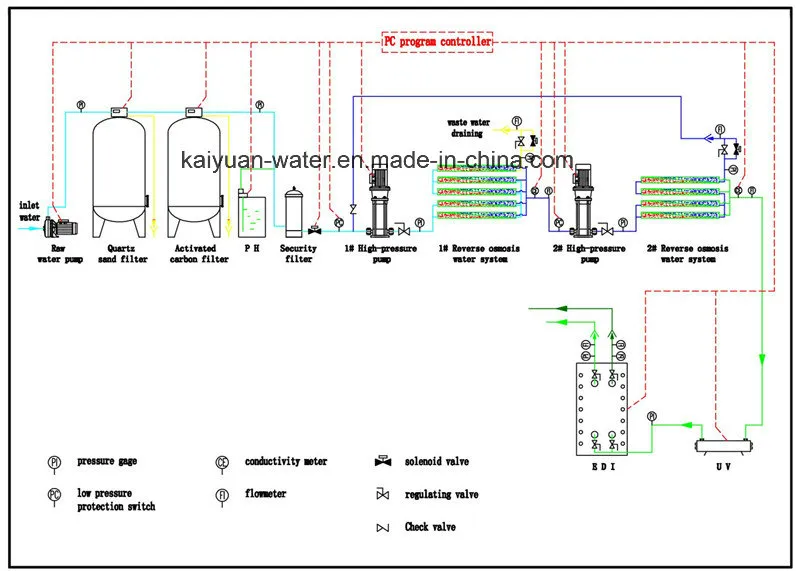

Working process (PI&D)
raw water pump→quartz sand filter→ activated carbon filter→ water softener →security filter→one stage high pressure pump→one stage reverse osmosis system→two stage high pressure pump→two stage reverse osmosis system→UV sterilizer →EDI ultrapure water system→ultra pure water
Production capacity of the reverse osmosis system you may like we can provide as below
| Model | Flow rate (L/h) | Power(KW) | Water use efficiency | RO membrane | Dimension L X W X H(mm) |
| KYRO-250 | 250 | 1.5 | ≥ 15% | 4040 | 1550X620X1670 |
KYRO-500 | 500 | 1.5 | ≥ 50% | 4040 | 1650X630X1800 |
KYRO-750 | 750 | 2.5 | ≥ 50% | 4040 | 1870X 630 X 1850 |
KYRO-1000 | 1000 | 2.5 | ≥ 50% | 4040 | 1870X 650 X 1850 |
KYRO-2000 | 2000 | 3.5 | ≥ 50% | 4040 | 2440X650X1750 (host machine) |
KYRO-3000 | 3000 | 4 | ≥ 50% | 4040 | 2440X620X1850 (host machine) |
KYRO-5000 | 5000 | 7.5 | ≥ 50% | 8040 | 2000X900X1800 (host machine) |
KYRO-6000 | 6000 | 9.5 | ≥ 60% | 8040 | 3000X900X1800 (host machine) |
KYRO-8000 | 8000 | 13.5 | ≥ 60% | 8040 | 3000×900×1800 (host machine) |
KYRO-9000 | 9000 | 14 | ≥ 60% | 8040 | 4000X900X1800 (host machine) |
KYRO-10T | 10T/H | 19 | ≥ 60% | 8040 | 3000X900X1800 (host machine) |
KYRO-12T | 12T/H | 19.5 | ≥ 60% | 8040 | 4000X900X1800 (host machine) |
KYRO-15T | 15T/H | 23 | ≥ 60% | 8040 | 4000X900X1950 (host machine) |
KYRO-20T | 20T/H | 28 | ≥ 60% | 8040 | 5000X900X1950 (host machine) |
KYRO-30T | 30T/H | 55 | ≥ 60% | 8040 | 7000X900X1950 (host machine) |
Buying Guides
1. Send inquiry for the reverse osmosis system to email or mobile:008615102048719
2. Inform us the production capacity of the reverse osmosis system (500L/h, 1000L/h,3000L/h...) you need, source water(tap water, well water, borehole water etc.) and application of output pure water from the reverse osmosis system.
3. We will make a plan and quotation for the reverse osmosis system immediately as your requirements.
4. Confirm details of the reverse osmosis water treatment plants (specification, consumable parts, power supply, delivery time, payment terms, shipping cost, packing details etc. At the same time, you are also welcome to visit our factory and we talk face-to-face.
5. Sign sales contract or proforma invoice for this reverse osmosis system.
6. Pay 30% deposit for confirming this order
7. We confirm receipt of the deposit and start to produce the RO machine.
8. After finish production for ro machine, we take pictures and send to you.
9. Pay balance and we arrange packing for the RO machine (if it is other payment terms(such as L/C), we can negotiate accordingly.
10. Arrange shipment or send the reverse osmosis system to your appointed warehouse.
11. Send the Bill of loading, commercial invoice, packing list, certificate of origin and insurance policy to customers via DHL or UPS or FedEx etc. for custom clearance.
12. Customers receive the reverse osmosis systems, then install and operate it as our manual book or operation video of the RO machine. our engineers are also available to service overseas.
13. Business finished, all our ro machine quality is guaranteed for 1 year and with free lifetime technique support. Please contact us freely.
