500m3/D Reverse Osmosis Desalination Plant
500tpd RO water desalination equipmentComponentRaw Water PumpSS 304Multi Media FilterSS 304Filter MediaTotal : 1,250 KGSActivated Carbon FilterSS 304Filter MediaTotal : 250 KGSCartridge FilterSS 304Filter ElementPPDosing DeviceCombinationDosing PumpPVDFDosing TankPERO UnitCombinationHigh Pressure Pu......
Send Inquiry
Product Description
500tpd RO water desalination equipment
Component
Technical Parameter
RO system process flow
Component
| Raw Water Pump | SS 304 |
| Multi Media Filter | SS 304 |
| Filter Media | Total : 1,250 KGS |
| Activated Carbon Filter | SS 304 |
| Filter Media | Total : 250 KGS |
| Cartridge Filter | SS 304 |
| Filter Element | PP |
| Dosing Device | Combination |
| Dosing Pump | PVDF |
| Dosing Tank | PE |
| RO Unit | Combination |
| High Pressure Pump | SS 304 |
| RO Membrane | Complex |
| Membrane Housing | FRP |
| Membrane Housing | FRP |
| Pressure Gauge | SS 304 |
| Flow Meter | Plexiglass |
| Assembly Valve | SS 304 |
| Frame | SS 304 |
| Name of commodity | Material |
| Pipes & Fitting | SS 304 |
| Electric Control System | |
| Control Panel | SS 304 |
| PLC Programmable | / |
| High & Low | / |
| Pressure Switch | |
| Conductivity Meter | / |
| Electrical Instrument | / |
| Wire & Cable | / |
| Option Terms | |
| Name of commodity | Material |
| Raw Water Tank | PE |
| Purified Water Tank | SS 304 |
| Ozone Generator | / |
| Ozone Mixer Tower | SS 304 |
| UV Sterilizer | SS 304 |
| Housing | |
Technical Parameter
| Model | Flow rate (L/h) | Power(KW) | Water use efficiency | RO membrane | Dimension |
| L X W X H(mm) | |||||
| RO-500L | 500 | 1.5 | ≥ 50% | 4040 | 1650X630X1800 |
| RO-750L | 750 | 2.5 | ≥ 50% | 4040 | 1870X630X1850 |
| RO-1000L | 1000 | 2.5 | ≥ 50% | 4040 | 1870X650X1850 |
| RO-2000L | 2000 | 3.5 | ≥ 50% | 4040 | 2440X650X1750 |
| RO-3000L | 3000 | 4 | ≥ 50% | 4040 | 2440X620X1850 |
| RO-5000L | 5000 | 7.5 | ≥ 50% | 8040 | 2000X900X1800 |
| RO-6000L | 6000 | 9.5 | ≥ 60% | 8040 | 3000X900X1800 |
| RO-8000L | 8000 | 13.5 | ≥ 60% | 8040 | 3000×900×1800 |
| RO-9000L | 9000 | 14 | ≥ 60% | 8040 | 4000X900X1800 |
| RO-10T | 10T/H | 19 | ≥ 60% | 8040 | 3000X900X1800 |
| RO-12T | 12T/H | 19.5 | ≥ 60% | 8040 | 4000X900X1800 |
| RO-15T | 15T/H | 23 | ≥ 60% | 8040 | 4000X900X1950 |
| RO-20T | 20T/H | 28 | ≥ 60% | 8040 | 5000X900X1950 |
| RO-30T | 30T/H | 55 | ≥ 60% | 8040 | 7000X900X1950 |

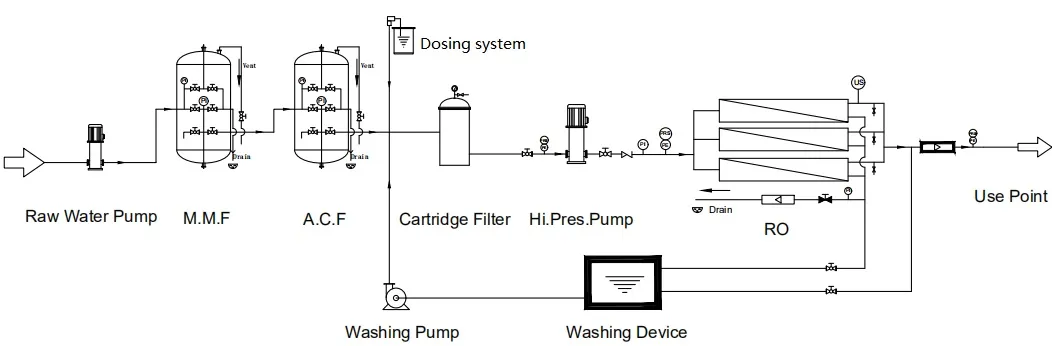

Single stage RO system

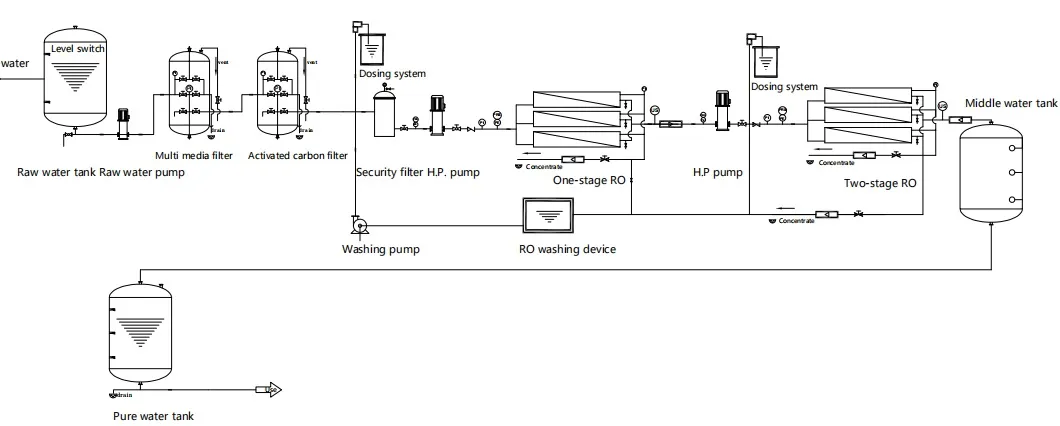

Two-stage RO system

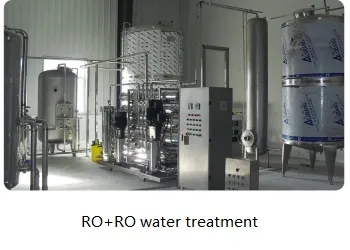

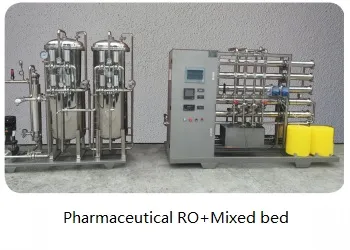

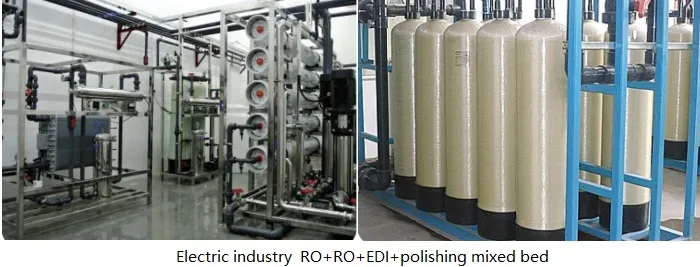

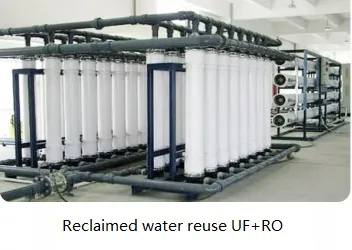

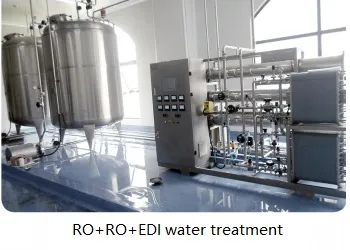

Water treatment equipment show
FAQ1. Q: What products you provide?
A: We are specialized in RO system, EDI system, UF system,Water softener, Sewage water treatment equipment, etc.
2. Q: What's the information you need before order?
A1: what's your raw water ?
A2: what's the capacity per hour of the equipment ?
A3: What's the application of purifier water ?
3. Q: How long is your delivery time?
A: Generally it is 30 days, Depends on your project.
For more information
Wenzhou HengTong Water Treatment CO.,LTD.
ADD:No.922,Jinhai 2nd Avenue,Airport New District,Wenzhou, Zhejiang
Website: wzhengtong.en.made-in-china.com
A: We are specialized in RO system, EDI system, UF system,Water softener, Sewage water treatment equipment, etc.
2. Q: What's the information you need before order?
A1: what's your raw water ?
A2: what's the capacity per hour of the equipment ?
A3: What's the application of purifier water ?
3. Q: How long is your delivery time?
A: Generally it is 30 days, Depends on your project.
For more information
Wenzhou HengTong Water Treatment CO.,LTD.
ADD:No.922,Jinhai 2nd Avenue,Airport New District,Wenzhou, Zhejiang
Website: wzhengtong.en.made-in-china.com
