6000L /H Drinking Pure Water Treatment Machine

Raw Water Tank
Tank Material: Stainless Steel 304
Production Capacity: 6T
Dimension(mm):Φ1600*2200
Weight (kg):600kg
Usage: to store the raw water.
Sand Filter
Tank Material: Stainless Steel 304
Production Capacity: 10T/h
Dimension(mm):Φ1400*2700
Weight (kg):600kg
Filtering material: quartz sand
Usage: remove the suspended solids, organics, colloidal particles etc in the water.
Active Carbon Filter
Tank Material: Stainless Steel 304
Production Capacity: 10T/h
Dimension(mm):Φ1400*2700
Weight (kg):600kg
Filtering material: active carbon
Usage: remove the smell, color, residual chlorine etc in the water.
Sodium Ion Exchanger
Tank Material: Stainless Steel 304
Production Capacity: 10T/h
Dimension(mm):Φ1400*2700
Weight (kg):600kg
Filtering material: Sodium Ion
Usage: soften the water.
Precision Filter
Tank Material: Stainless Steel304
Production Capacity: 10T/h
Dimension(mm):Φ800*2000
Weight (kg):350kg
Usage: adopts filter cartridge as filtering element to further remove the solid particles, bacteria and other impurities in the water.
Guardian Filter
Tank Material: Stainless Steel304
Production Capacity: 10T/h
Dimension(mm):Φ700*1800
Weight (kg):300kg
Usage: to protect the membranes in the Precision Filter.

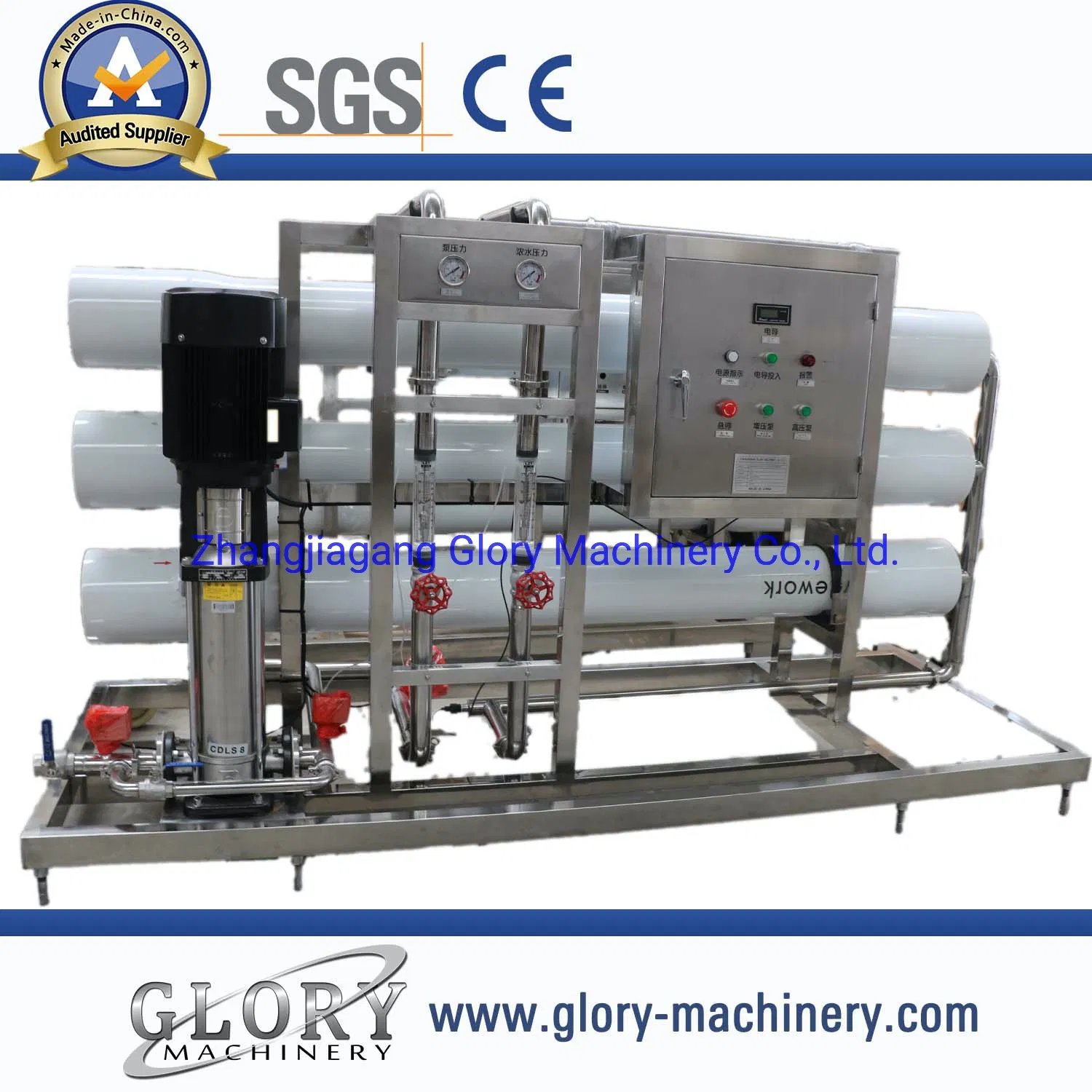

Reverse Osmosis Device
It can remove most inorganic salt, organics and micro organism in the water. The output of water processed by this device would be pure water. The membranes of this machine are from America imported Hydranautics. All the electrical components are from world famous brands like Siemens.
This model FST-6 is with 6 sets of 8040 membranes.
Production Capacity: 6T (Output)
Purity of the Pure Water: 99.99%
Ozone Generator
It produces ozone to sterilize the purified water. The air source is oxygen.
Production Capacity: 6T/h
Pure Water Tank
Tank Material: Stainless Steel 304
Production Capacity: 6T/h
Dimension(mm):Φ1600*2200
Weight (kg):500kg
Usage: to store the pure water.
