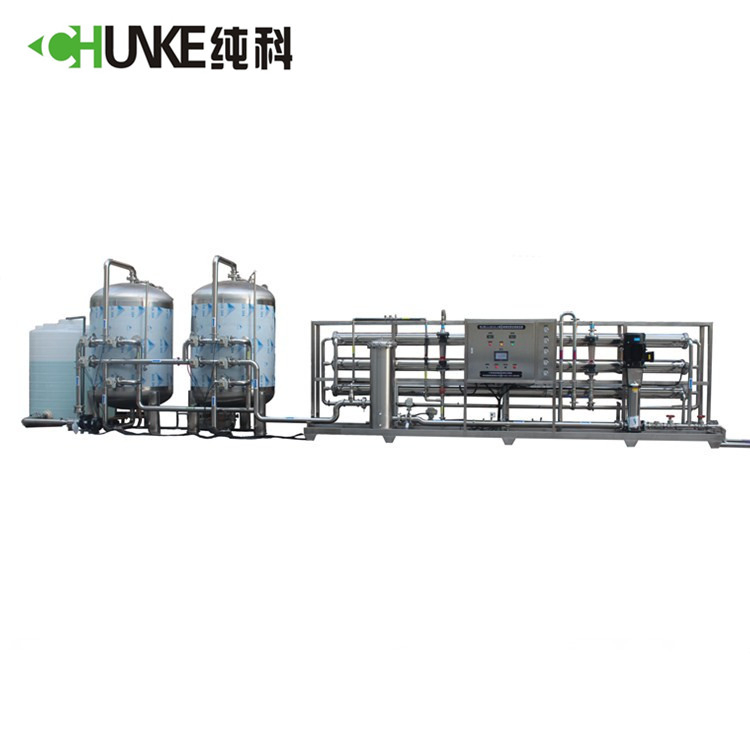

Chunke Stainless Steel Tank Make 15t RO Water Treatment Plant
CHUNKE Stainless Steel Tank Make 15T RO Water Treatment Plant15T/H Water Treatment RO Plant Product descriptiona . Continuously water purifing , without generation , lower labor intensity .b . 97%-99% desalination with original import reverse osmosis membrane ,c . 98% organic mater and bacteria wipe......
Send Inquiry
Product Description
CHUNKE Stainless Steel Tank Make 15T RO Water Treatment Plant
15T/H Water Treatment RO Plant Product description
a . Continuously water purifing , without generation , lower labor intensity .
b . 97%-99% desalination with original import reverse osmosis membrane ,
c . 98% organic mater and bacteria wiped off , over 98 heat source ,
d . Online conductivity monitoring , ensure good effluent .

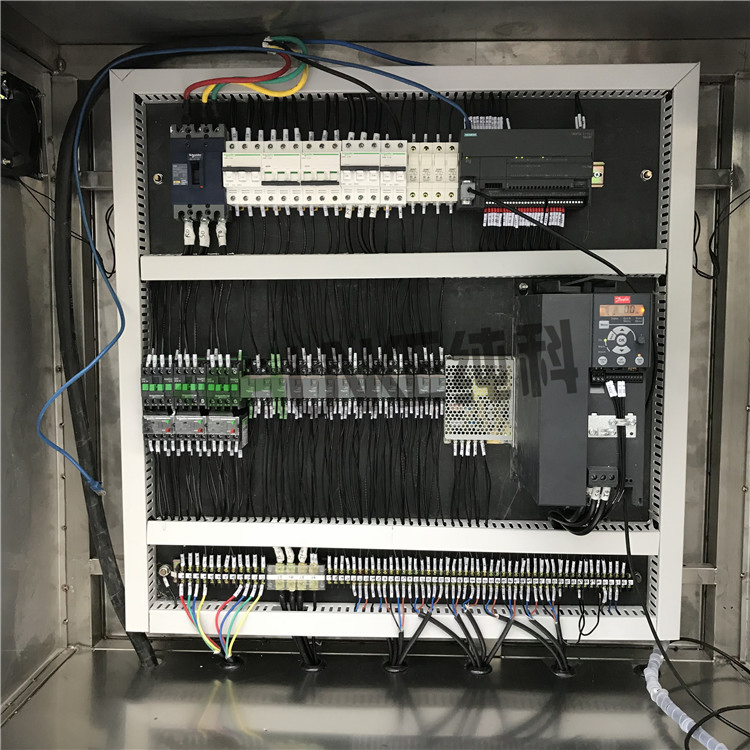

e . PLC microcomputer monitoring , timing flush reverse osmosis membrane to ensure high quality purified water

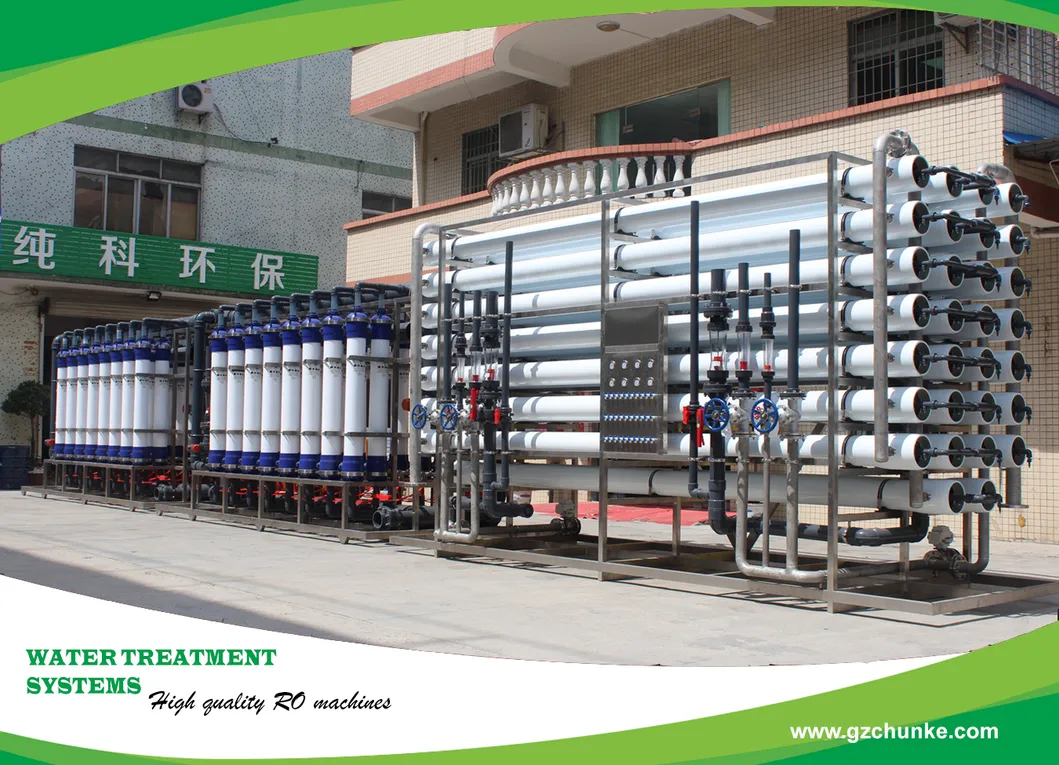

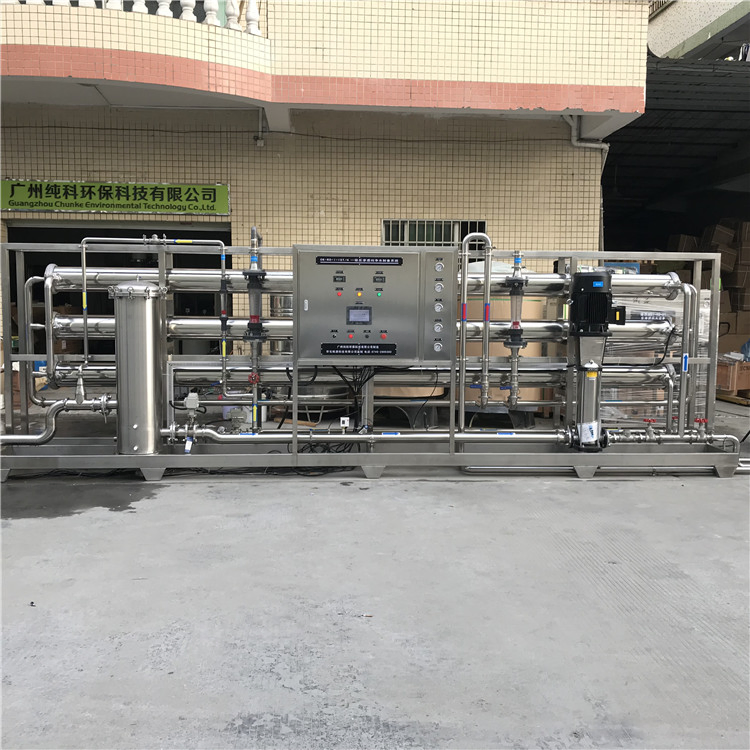

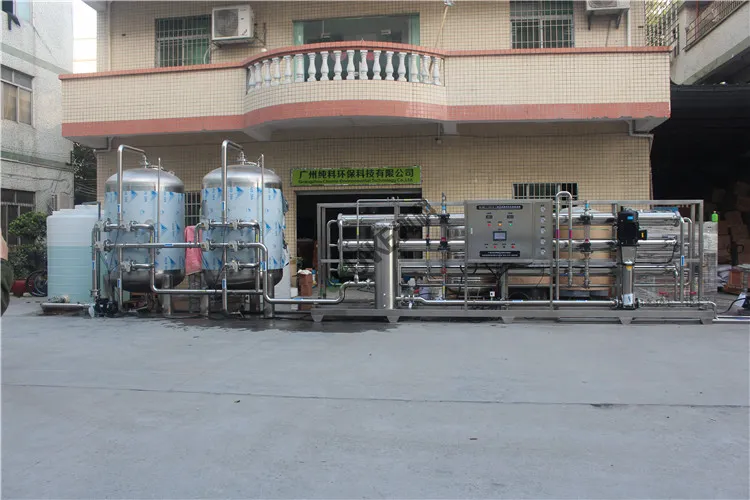

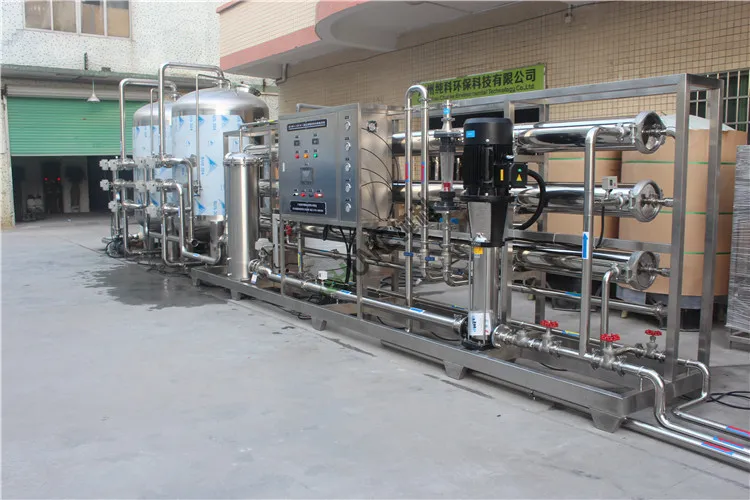

15T/H Water Treatment RO Plant pictures:

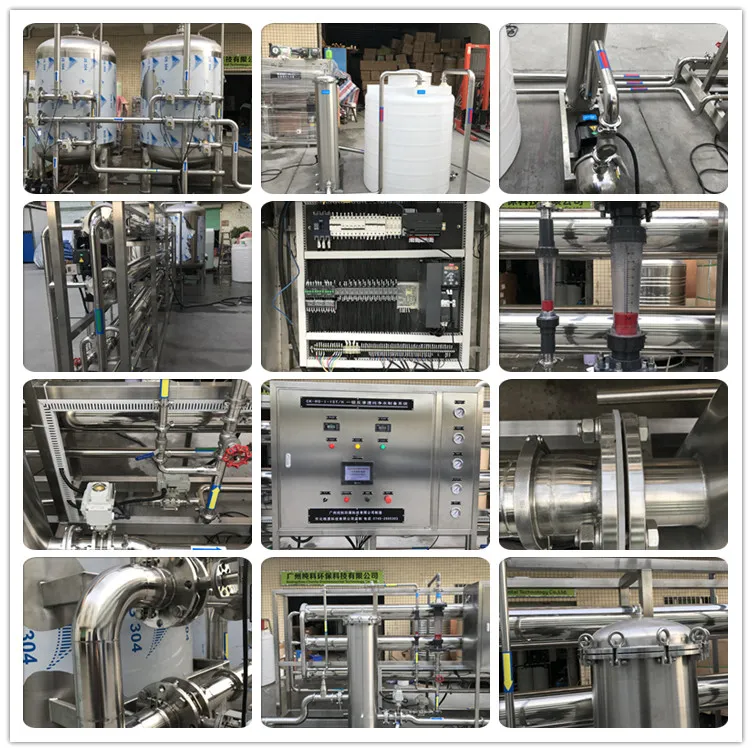

Machine Part :

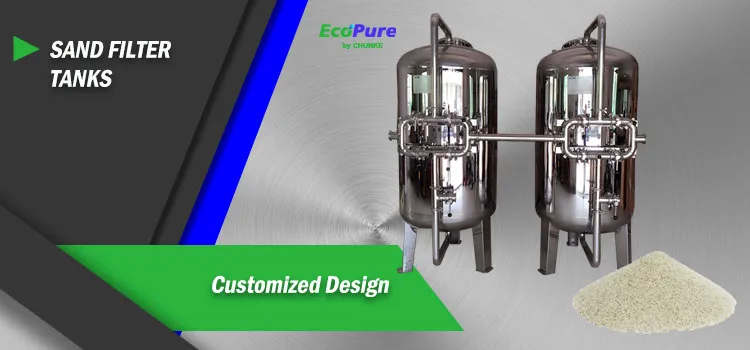

Multi-media filter
The multi-media filter is widely used in drinking water treatment to remove different types of particles, such as suspended solids (turbidity), colloidal compounds and etc, ensuring the filtered water's TDS is less than 5. This process will reduce the load on the back-end fine filters.
Active Carbon filter
The active-carbon filter is the key device, commonly used for removal of organic substance and
heavy metal element, suspended solids, residual chlorine and etc. It can effectively reduce the level of COD and improve the taste of water. The system is a pressure filter. In the filter, the quartz and Coconut shell active carbon bed are employed. The activated carbon is equipped with vent valving at the highest point and a drain connection at the lowest point. The internal systems and components for each tank is constructed of frp material.

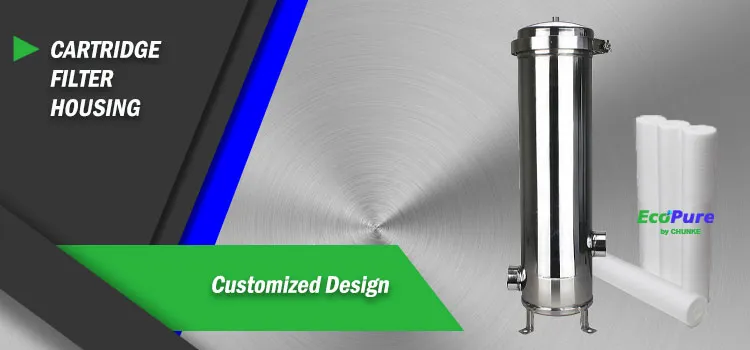

Security filter ( Cartridge Filters)
The security filter is most commonly used for treat water. The whole system adopts one set of stainless filter. There are 3 pieces of polypropylene in every 5μ filter cartridges, filtering the vast majority of particles in the water, which eases the load of RO membrane. This process of filtration benefits to the filter cartridge and prolongs its lifetime in the system.
This apparatus contains filtration component and stainless support layers. The support layer is made of stainless steel 304, with the advantages of compact structure, beautiful shape, high flux, good filtration accuracy and etc. This apparatus is fitted with air drain valve and bottom air drain valve and side drain valve.
Reverse Osmosis Modules( RO)
RO system is key part for the water treatment system, which is widely used to make the pure water and drinking water. RO membrane removes many types of large molecules and ions from solutions by applying pressure to the solution when it is on one side of a selective membrane. The result is that the solute such as iron, Virus, bacteria and solids is retained on the pressurized side of the membrane and the pure solvent is allowed to pass to the other side.
Packing and shipping
Packed in carton case and wooden box.
Delivery: Negotiation
About our company
Guangzhou Chunke Environmental Technology Co., Ltd is a scientific enterpruise, which is specialized in water treatment equipment and accessories of research and development, production, sales and service.
Production and management: Cartridge filter, bag filter, mechanical filter, lon Exchanger, Imitation FRP barrels, ozone mixing tower, sterile water tank, stainless steel membrane shells, hollow-fiber mambrane, ultraviolet radiation sterialization device, ozone generator, and water treatment equipment and so on.
If you have another question, please feel free to contact me as follow
Contact person :Sue Jiang
Website: chunke.en.made-in-china.com
Address: No.8, Suyuangzhuang, QingHu Village, Junhe Street, Baiyun
District, Guangzhou. China
15T/H Water Treatment RO Plant Product description
a . Continuously water purifing , without generation , lower labor intensity .
b . 97%-99% desalination with original import reverse osmosis membrane ,
c . 98% organic mater and bacteria wiped off , over 98 heat source ,
d . Online conductivity monitoring , ensure good effluent .
e . PLC microcomputer monitoring , timing flush reverse osmosis membrane to ensure high quality purified water
| Items | Permissible Value | Probably Consequence of Excessive Standard | Improvement Suggestions | |
| Suspended solids | Tubidity | <1NTU | Sludge ,colloid pollution | Flocculation and filtration |
| SDI15 | <5 | |||
| Metal oxides | Fe ( mg/L) | <0.05 | Iron Pollution | Oxidation precipitation/filtration |
| Mn (mg/L) | <0.05 | |||
| Scale forming matter | CaCO3 | LSI<0 | Concentrated water side does not permit scaling | Decrease recovery rate , PH value , or add scale inhibitor |
| Other insoluble salt | / | |||
| Organics | Oil | 0 | Organics and oil | Air |
| TOC (mg/L) | <10 | Organics pollution | Activated carbon adsorption , filtration | |
| CODcr (mg/L) | <10 | |||
| BOD5 (mg/L) | <5 | |||
| Si (mg/L) | <20 | Colloid pollution | ||
| PH | 3-10 | Too low or too high PH will accelerate the aging speed of membrane | Regulation of Acid-base | |
| Temperature | 5-45°C | Low temperature will easily produce scaling of undissolved salt High temperature will accelerate the aging speed of membrane | Heat exhanger | |
| Oxidizer | Residual chlorine (mg/L) | <0.1 | Membrane system will be oxidized | Reductant or aclivated carbon adsorption |
| Ozone and others | 0 | |||
15T/H Water Treatment RO Plant pictures:
Machine Part :
Multi-media filter
The multi-media filter is widely used in drinking water treatment to remove different types of particles, such as suspended solids (turbidity), colloidal compounds and etc, ensuring the filtered water's TDS is less than 5. This process will reduce the load on the back-end fine filters.
Active Carbon filter
The active-carbon filter is the key device, commonly used for removal of organic substance and
heavy metal element, suspended solids, residual chlorine and etc. It can effectively reduce the level of COD and improve the taste of water. The system is a pressure filter. In the filter, the quartz and Coconut shell active carbon bed are employed. The activated carbon is equipped with vent valving at the highest point and a drain connection at the lowest point. The internal systems and components for each tank is constructed of frp material.
Security filter ( Cartridge Filters)
The security filter is most commonly used for treat water. The whole system adopts one set of stainless filter. There are 3 pieces of polypropylene in every 5μ filter cartridges, filtering the vast majority of particles in the water, which eases the load of RO membrane. This process of filtration benefits to the filter cartridge and prolongs its lifetime in the system.
This apparatus contains filtration component and stainless support layers. The support layer is made of stainless steel 304, with the advantages of compact structure, beautiful shape, high flux, good filtration accuracy and etc. This apparatus is fitted with air drain valve and bottom air drain valve and side drain valve.
Reverse Osmosis Modules( RO)
RO system is key part for the water treatment system, which is widely used to make the pure water and drinking water. RO membrane removes many types of large molecules and ions from solutions by applying pressure to the solution when it is on one side of a selective membrane. The result is that the solute such as iron, Virus, bacteria and solids is retained on the pressurized side of the membrane and the pure solvent is allowed to pass to the other side.
Packing and shipping
Packed in carton case and wooden box.
Delivery: Negotiation
About our company
Guangzhou Chunke Environmental Technology Co., Ltd is a scientific enterpruise, which is specialized in water treatment equipment and accessories of research and development, production, sales and service.
Production and management: Cartridge filter, bag filter, mechanical filter, lon Exchanger, Imitation FRP barrels, ozone mixing tower, sterile water tank, stainless steel membrane shells, hollow-fiber mambrane, ultraviolet radiation sterialization device, ozone generator, and water treatment equipment and so on.
If you have another question, please feel free to contact me as follow
Contact person :Sue Jiang
Website: chunke.en.made-in-china.com
Address: No.8, Suyuangzhuang, QingHu Village, Junhe Street, Baiyun
District, Guangzhou. China
