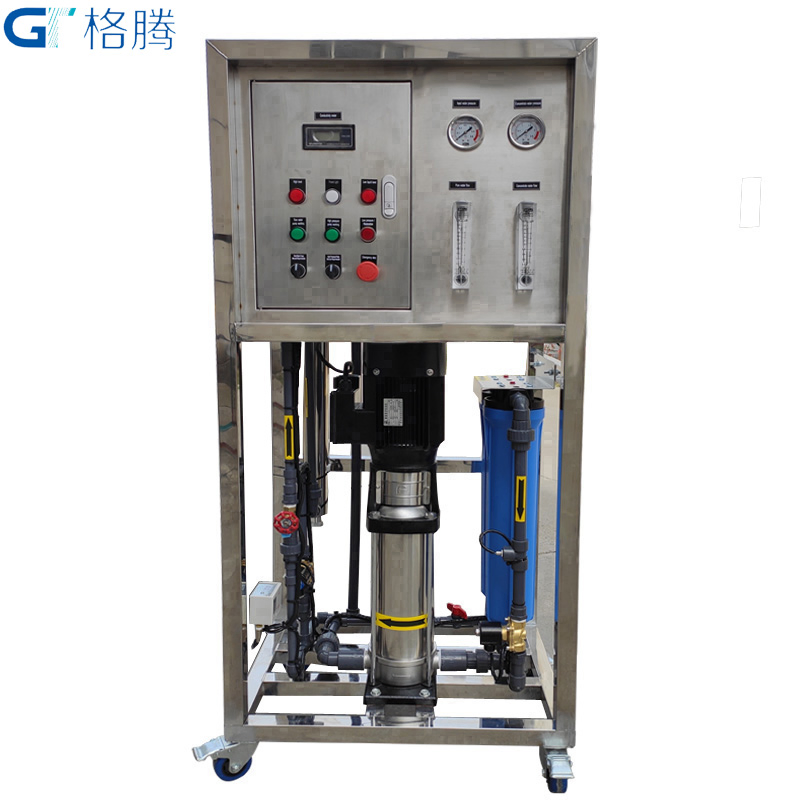

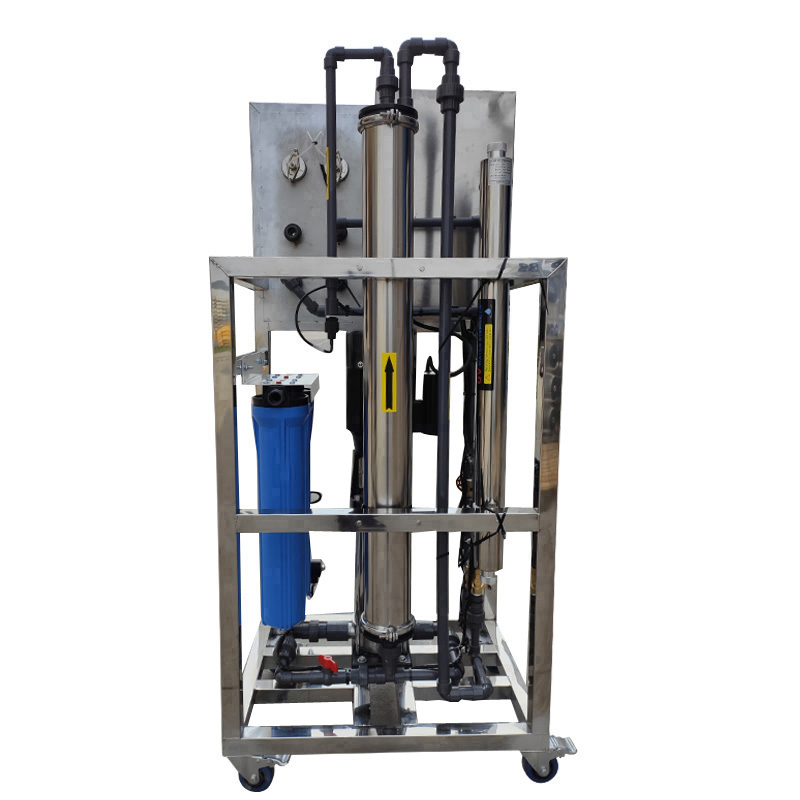

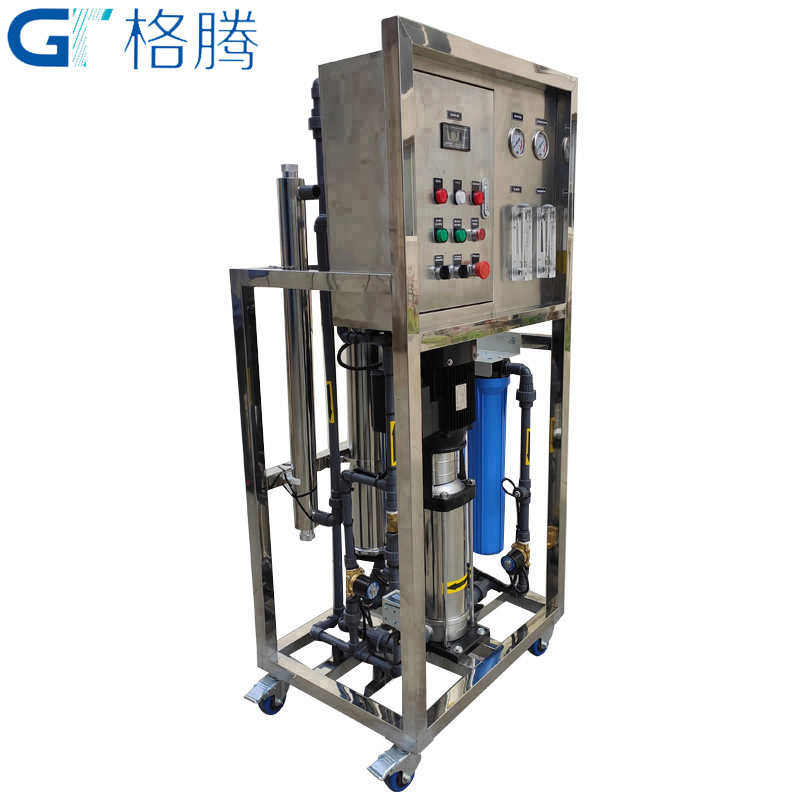

Factory Price 250lph Reverse Osmosis Membrane Filter RO System
GT 0.5T/H Industry RO systemSpecifications:Type: Single stageMembrane: GT 4040 membrane (LP / BW )Available Water Quality: Tap water or well water confirming to GB5749-2006GT Industry RO SystemModel SizeFrameElectricityRate powerInput water pressureWorking pressureAvailable TempertureRO membraneMemb......
Send Inquiry
Product Description
Specifications:
Type: Single stage
Membrane: GT 4040 membrane (LP / BW )
Available Water Quality: Tap water or well water confirming to GB5749-2006
| GT Industry RO System | ||||||||||
| Model | Size | Frame | Electricity | Rate power | Input water pressure | Working pressure | Available Temperture | RO membrane | Membrane housing | Raw water pump |
| GT 0.25T/H-RO | 1500*700*550 | SS201 | AC220(380)V/50HZ | 1.5KW | 0.25Mpa-0.35Mpa | 0.1-1.5Mpa | 5-45ºC | GT 4040(LP/BW/XLE) | SS304 4040 membrane housing | Hangzhou Southern Special Pump |

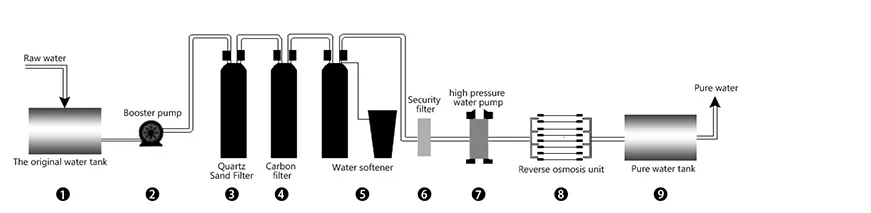

Brief Process:
1. Water tank: storage of tap water, to solve the problem of insufficient tap water pressure and the back booster pump due to the impact of insufficient water, reduce the failure rate
2. Booster pump: equipped with a stainless steel pump, to provide sufficient pressure for subsequent filtration
3. Quartz sand filter: mainly remove the mud, suspended solids and large particles in the tap water
4. Carbon filter: mainly remove organic substances, residual chlorine and odor in tap water
5. Water softener filter: mainly remove the calcium and magnesium in tap water, reduce the hardness of water
6. Security filter: further filtration, protection of reverse osmosis membrane
7. High pressure pump: provide enough pressure for reverse osmosis system
8. Reverse osmosis unit: the core part of pure water equipment, the production of high-purity water.
9. Pure water tank: storage pure water, can change the size of the water tank,after the below process,The water result is pure enough for different application.
- Power-on automatic flushing
- Low pressure protection
- Pure water stops at full water level
- Raw water stops at low water level
- Unit motor with protective device
- Cooperate with preprocessing system
- Recovery downtime

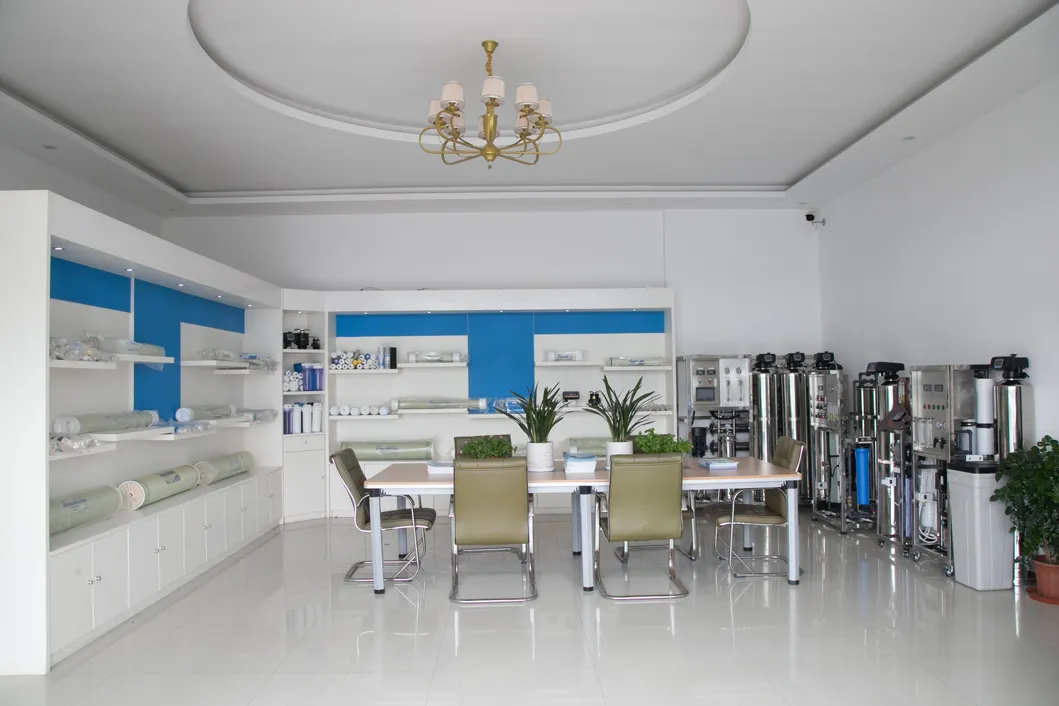

Sample room
FAQ
Q: How Do I Know What Size Unit to Buy?
A: R/O units are rated according to the amount of treated water needed per day or per hour you requested.
Q: Material of reverse osmosis system? A: You can choose FRP filter housing and U-PVC pipe, stainless steel filter housing and U-PVC pipe or total stainless steel.
Q: What kind of water RO system can treat?
A: City water, underground water, river water, spring water, lake water,brackish water...
Q: How can we install it? Will you arrange engineer to help me ? A: The machine was assembledis when you get it and easy for operation. You just need to put the membrane into housing, and then powe on. It will work.
Q: What is packing of this machine? Is it suitable for shipment?
A: Machine will be packed by crate wooden case. We make sure the machine safe when it on teh way to you. No worriers.
