Industrial Used RO DI Deionized Water System
Description:It uses the unique principle of anti-infiltration to produce purified water and can reduce inorganic salt, organisms and bacteria in water considerably. It is mainly used for bottled purified water, living water, residntial domestic water and far-ocean fresh drinking water.Reverse osmosi......
Send Inquiry
Product Description
It uses the unique principle of anti-infiltration to produce purified water and can reduce inorganic salt, organisms and bacteria in water considerably. It is mainly used for bottled purified water, living water, residntial domestic water and far-ocean fresh drinking water.
Reverse osmosis is a kind of membrane separation techniques which was developed in 1980s, it mainly uses the osmosis principle of the semi-permeable membrane, and brings a kind of pressure that opposite to the force in natural osmosis direction in a certain way, then the water in the strong solution osmosis into the thin solution, this is reverse osmosis. The unit which is made up of reverse osmosis components is reverse osmosis unit. It uses the unique principle of reverse osmosis to produce purified water and can reduce inorganic salt, organisms and bacteria in water considerably. It is mainly used for bottled purified water, living water, residential domestic water and far ocean fresh drinking water.
The pre-treatment equipment provided by Qirui Company can be rinsed by the hot water of 85 ºC temperature (if the customers have special requirement, active carbon filter can design as the pure steam washing for sterilization at the most certain), assure and control the index of the microbe. The filtration tank with stainless steel adopts 4mm without pollution glue inside the tank, preventing the inside wall of the stainless steel tank being corrupted.
Features:
1. Applied in the areas where the raw water contains little salt
2. Low total quantity of carbon(organism)
3. Non-contamination emission
4. Simple structure
5. Running persistently
6. Very stable output water quality
7. No need acid and alkali to regenerate.
8. No need stop system to make regeneration
9. Save back wash and cleaning water
10. High recovery rate (95%)
11. Very safe, no acid and alkali, to avoid operators being injured
12. Low maintenance and installation cost
Brief Process Chart:
Raw Water --- Raw Water Tank --- Raw Water Pump --- Quartz Sand Filter --- Activated Carbon Filter --- Chemical Dosing Device --- Precision Filter --- High Pressure Pump --- Reverse Osmosis Device --- Cleaning Device --- Fresh Water Tank --- Chemical Dosing Device --- Pure Water Tank --- Ultraviolet System --- Water Using Point
Main Technical Parameters:
1. Output Water Flow: 250L/h -100000L/h
2. Working Temperature: 5 - 35 ºC
3. PH Value Range: 3 -10
4. Working Pressure: 0.5 -1.55MPa
Main Technical Data Table:
| Model | Water Output (m3/h) | Minimum Water Intake | Desalination | Temperature of |
FSJ41X-0.3XB-2 | 0.3 | 1.6 | 98 | 5-35 |
FSJ41X-0.5XB-2 | 0.5 | 2.2 | 98 | 5-35 |
FSJ42X-1XB-2 | 1 | 2.8 | 98 | 5-35 |
FSJ42R-2XB-2 | 2 | 4.1 | 97 | 5-35 |
FSJ43R-3XB-2 | 3 | 6.5 | 97 | 5-35 |
FSJ43R-4XB-2 | 4 | 7.8 | 97 | 5-35 |
FSJ82R-6XB-2 | 6 | 12.5 | 97 | 5-35 |
FSJ82R-8XB-2 | 8 | 15 | 97 | 5-35 |
FSJ83R-10XB-2 | 10 | 15 | 97 | 5-35 |
FSJ83R-15GB-2 | 15 | 31 | 97 | 5-35 |
FSJ84R-20GB-2 | 20 | 38 | 97 | 5-35 |
FSJ85R-25GB-2 | 25 | 41.25 | 97 | 5-35 |
FSJ86R-30G-2 | 30 | 47.5 | 97 | 5-35 |
FSJ86R-50G-2 | 50 | 79.5 | 97 | 5-35 |
FSJ86R-100G-2 | 100 | 155 | 97 | 5-35 |

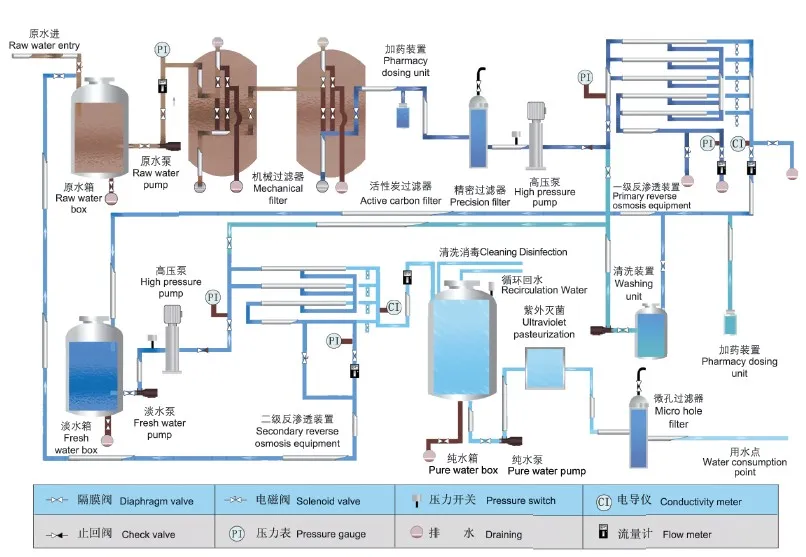

Process Flow Chart:
