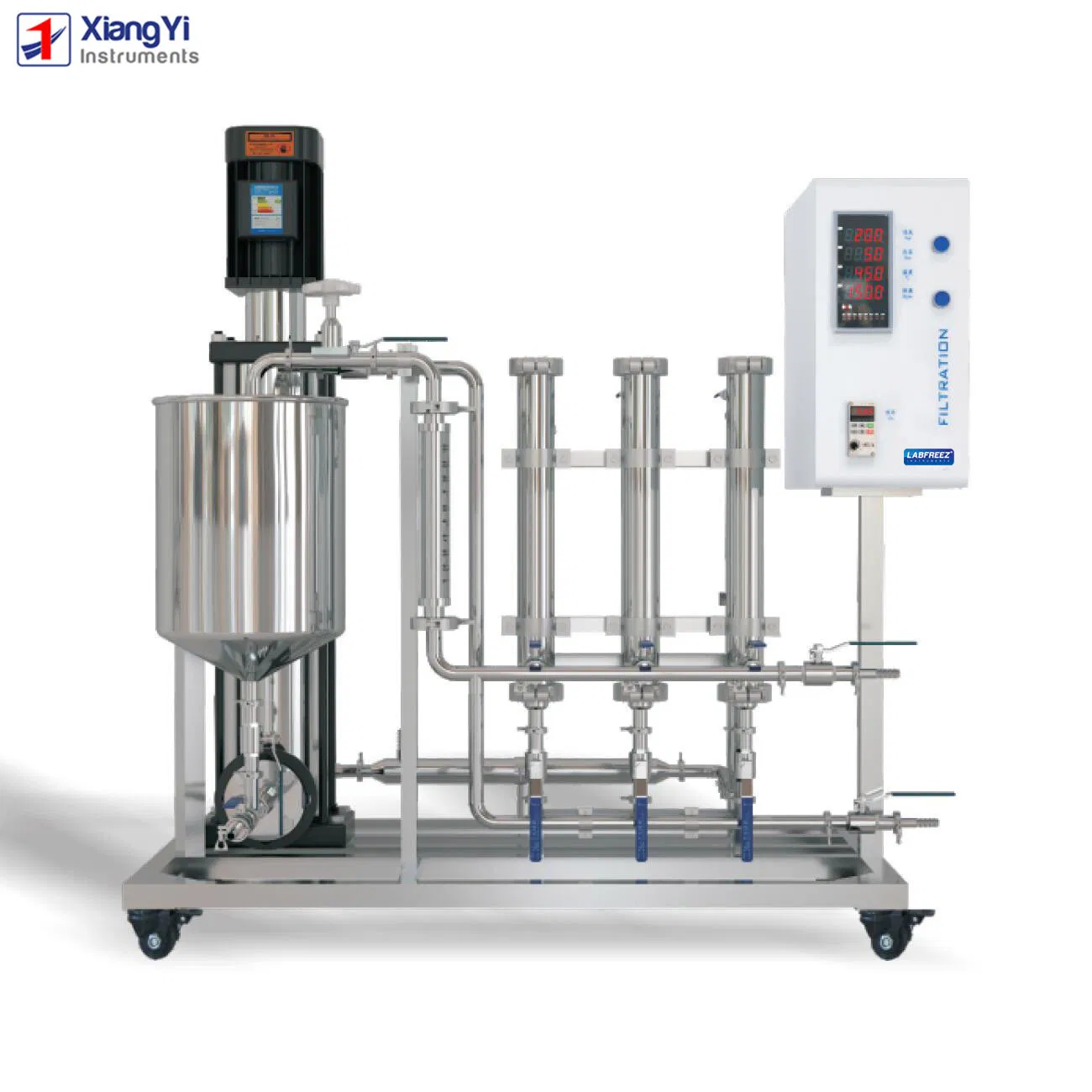

Multifunctional Membrane Separation Device (manual)

Product Description

Multifunctional membrane separation device (manual)

Basic information
Model: MSE-1812
Processing capacity: 3 ~ 20L/H
Membrane element: GE imported roll type membrane, Single membrane area 0.26
Power unit: Imported GRUNDFOS pump,0 ~ 16.8Bar(Frequency adjustable)
Material circulation tank: Effective volume V=16L

System overview
Laboratory type LABFREEZ^®MSE-1812 (manual) mainly used in separation and purification of ultrafiltration (UF), nanofiltration (NF) and reverse osmosis (RO), can be used for filtration, decoloration, desalination, purification and concentration
According to the size of the molecular weight of the separation material, the membrane is selected; The material from 0.03 mu m to 100daltion can be separated.
With the advantages of easy cleaning, maintenance and high freedom of use.

Power unit
Imported GRUNDFOS pump
Variable frequency control, adjustable from 20 to 50Hz, with wide range of use
Rate of flow: 200 ~ 1100L/H
Pressure: 0 ~ 16.8Bar adjustable

Membrane Shell
3 parallel membrane wall
Connection: High pressure clamp quick release connection, pressure 20Mpa
Material: AISI 304
Surface treatment: External surface brushed treatment, inner surface mirror polishing, with food hygiene grade

Roll type membrane elements
3 pieces GE imported roll membrane
Model No.: 1812 industrial separation membrane, anti fouling membrane
Scope of application: microfiltration, ultrafiltration, nanofiltration, reverse osmosis
According to the user process, can select different brand 1812 membrane with the same specifications, including domestic roll membrane

Control cabinet
Field instrument control cabinet
Control mode: PID instrument control, automatic adjustment
Sensor: Temperature electrode, pressure sensor, frequency conversion motor
Flow meter: Field flow meter, manual adjustment
Instrument: Four in one display + control instrument, frequency conversion regulator

Material standard
Contact material part: Material AISI 304, sanitary hose
Non contact material part: Material AISI 304, carbon + spray paint
pipeline: Sanitary seamless stainless steel pipe
Valve: Food grade sanitary direct pass ball valve, diaphragm valve

Specification parameter

Processing capacity	3 ~ 20L/h
Power unit	Imported GRUNDFOS pump, frequency conversion control, with high voltage protection settings
Working pressure	0 ~ 16.8bar adjustable
Membrane element	Membrane species: GE imported roll type separation membrane - roll type ultrafiltration, nanofiltration, RO membrane Quantity: 3 Single membrane area: 0.26 Membrane element length: 298.5mm Membrane shell: Material AISI 304,high pressure clamp quick disconnect,Anti-pressure : 20Mpa Membrane aperture: Interception accuracy >95%( Standard material test) MWCO 200KD,100KD, 10KD,5KD, 2K,1K,600D,300D,150D,100D, RO, customized
Valves, flowmeter	Sanitary ball valve and rotor flowmeter
pipeline	Material AISI 304, sanitary inside and outside polishing, with stainless steel pipe heat exchanger
Electric control cabinet	Online monitoring of temperature, pressure and liquid flow rate Pump frequency conversion controller, real-time display of speed and frequency Temperature and pressure preset alarm
Material circulation tank	AISI 304, effective volume =16L
System upgrade	Material, heat exchanger, flowmeter, valve, pump, etc., can be customized according to the user's environment Semi automatic and automatic control system can be customized according to user requirements Remote control, mobile iPad control system can be customized according to user requirements
Size	870x650x1200mm
Weight	60kg
