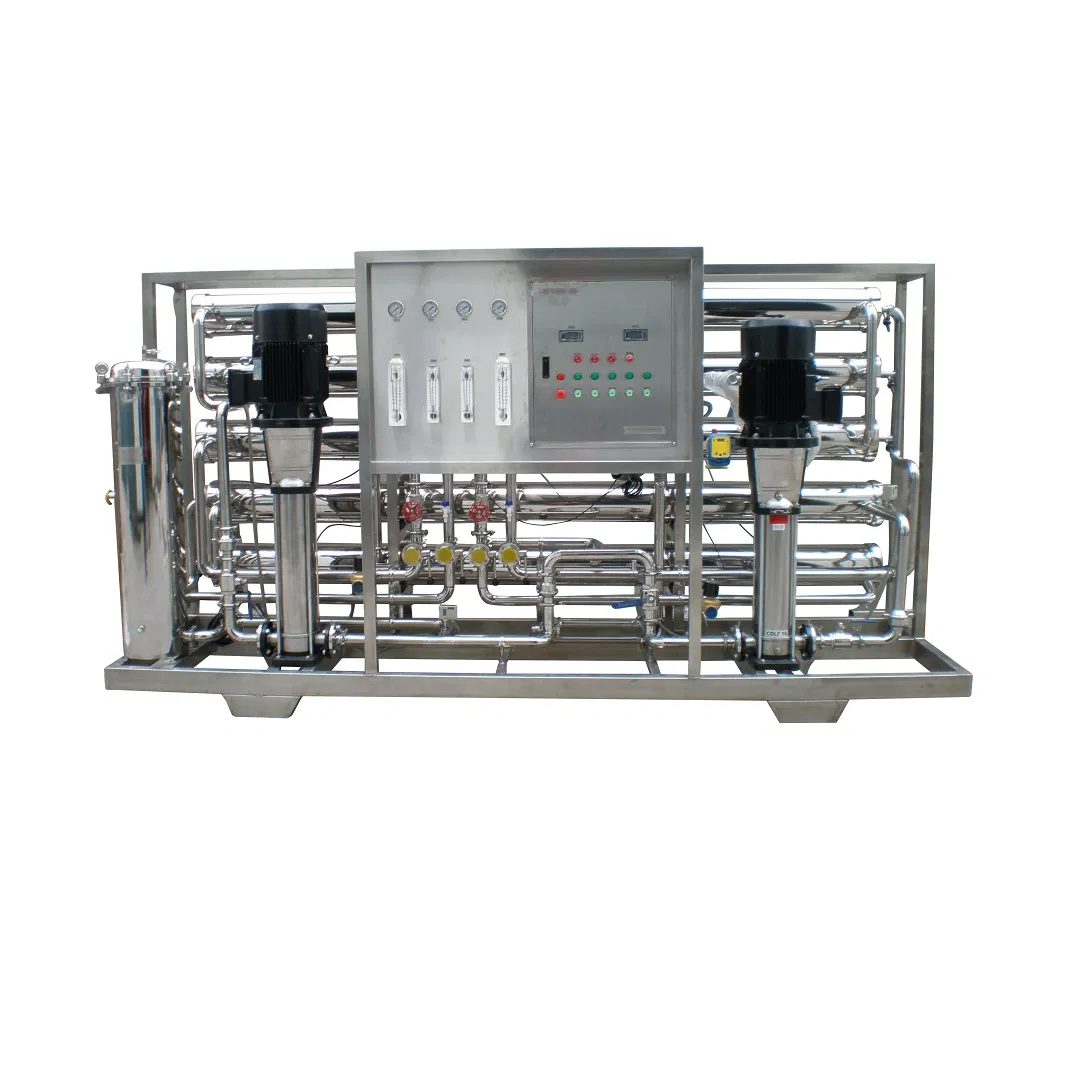

              Reverse Osmosis Potable Water Treatment System (RO membrane)
              • Reverse Osmosis Potable Water Treatment System (RO membrane)Reverse Osmosis Potable Water Treatment System (RO membrane)
              • Reverse Osmosis Potable Water Treatment System (RO membrane)Reverse Osmosis Potable Water Treatment System (RO membrane)
              • Reverse Osmosis Potable Water Treatment System (RO membrane)Reverse Osmosis Potable Water Treatment System (RO membrane)
              • Reverse Osmosis Potable Water Treatment System (RO membrane)Reverse Osmosis Potable Water Treatment System (RO membrane)

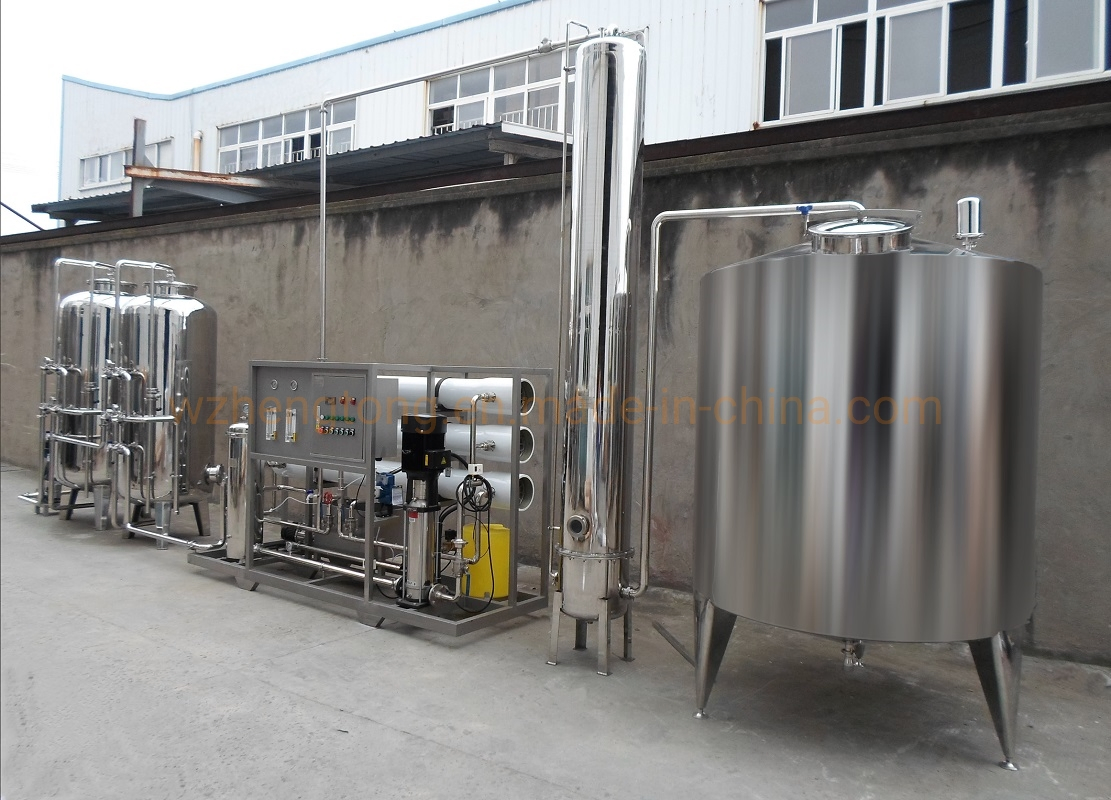

              Reverse Osmosis Potable Water Treatment System (RO membrane)

              Potable water treatment system (RO system)Product namePotable water treatment systemSizeAccording to requirementsConfiguration (optional)raw water tank,water pump,multi media filter,activated carbon filter,softener,cartridge filter,high pressure pump,UF unit,RO unit,dosing system,washing pump and ta......

              Send Inquiry

              Product Description

              Potable water treatment system (RO system)
              Product namePotable water treatment system
              SizeAccording to requirements

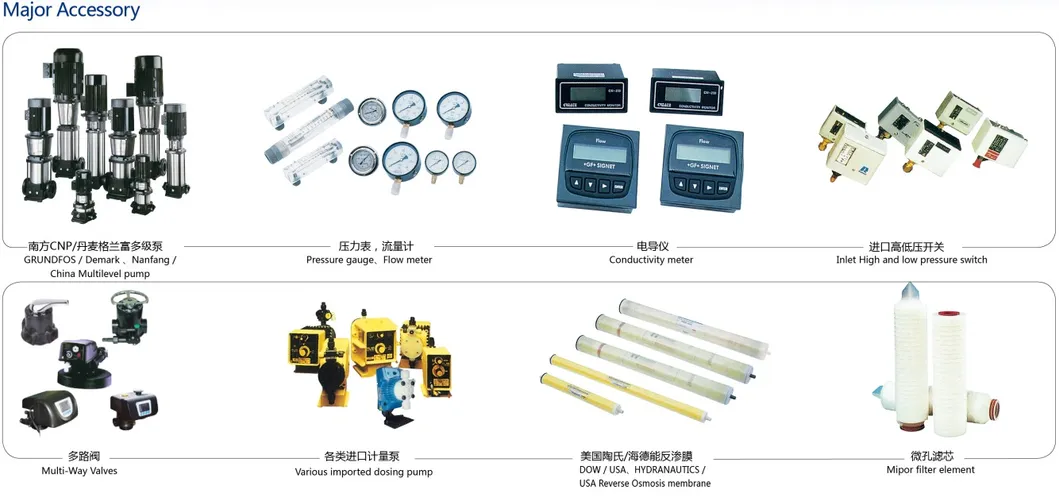

              Configuration (optional)raw water tank,water pump,multi media filter,activated carbon filter,softener,cartridge filter,high pressure pump,UF unit,RO unit,dosing system,washing pump and tank,pure water tank,UV sterilizer,Ozone sterilizer, instruments and other accessories.
              MaterialUPVC + Stainless steel,FRP

              Specification
              ModelFlow rate (L/h)Power(KW)Water use efficiencyRO membraneDimension
              L X W X H(mm)
              RO-500L5001.5≥ 50%40401650X630X1800
              RO-750L7502.5≥ 50%40401870X630X1850
              RO-1000L10002.5≥ 50%40401870X650X1850
              RO-2000L20003.5≥ 50%40402440X650X1750
              RO-3000L30004≥ 50%40402440X620X1850
              RO-5000L50007.5≥ 50%80402000X900X1800
              RO-6000L60009.5≥ 60%80403000X900X1800
              RO-8000L800013.5≥ 60%80403000×900×1800
              RO-9000L900014≥ 60%80404000X900X1800
              RO-10T10T/H19≥ 60%80403000X900X1800
              RO-12T12T/H19.5≥ 60%80404000X900X1800
              RO-15T15T/H23≥ 60%80404000X900X1950
              RO-20T20T/H28≥ 60%80405000X900X1950
              RO-30T30T/H55≥ 60%80407000X900X1950

              Reverse Osmosis Potable Water Treatment System (RO membrane)
              Reverse Osmosis Potable Water Treatment System (RO membrane)

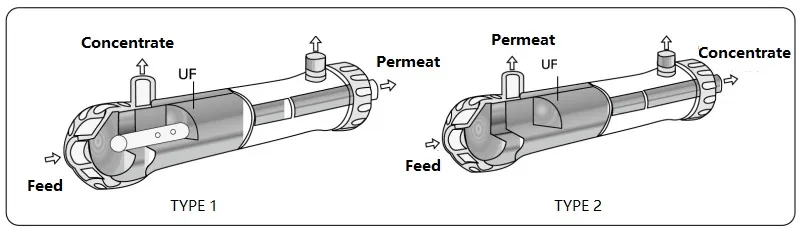

              Ultrafiltration film technology introduction
              Ultrafiltration film is a film filtering between micro-filtering and nanometer-filtering, which is applied to separation,concentration and purfication of substance.
              It is generally characterized by the retention component in practical applications, and is mainly used to separate macromolecules, colloids and particles in solution from small molecular substances such as solvents.
              Macromolecules, colloids and particles are trapped on the surface of the membrane, and are taken away by the circulation of the substance to form a concentrated solution, which achieves the purpose of substance separation, concentration and purification.

              Reverse Osmosis Potable Water Treatment System (RO membrane)

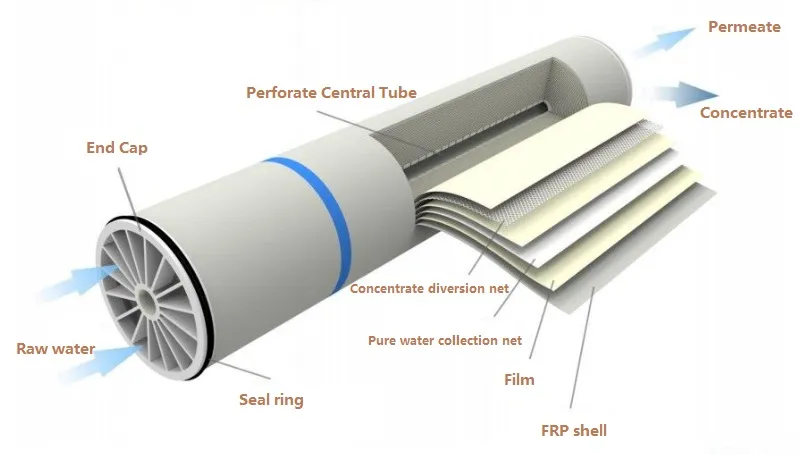

              RO membrane technology introduction
              Reverse osmosis is to separate the solvent (usually water) in the solution through a reverse osmosis membrane (or semi-permeable membrane) with sufficient pressure, so it is called reverse osmosis.
              Reverse osmosis, as an efficient desalination technology, can remove impurities such as inorganic ions, bacteria, viruses, organic matter and colloids in raw water to obtain high-quality purified water.
              According to the different osmotic pressure of various materials, the reverse osmosis method can be used to achieve the purpose of separation, extraction, purification and concentration.


              Reverse Osmosis Potable Water Treatment System (RO membrane)

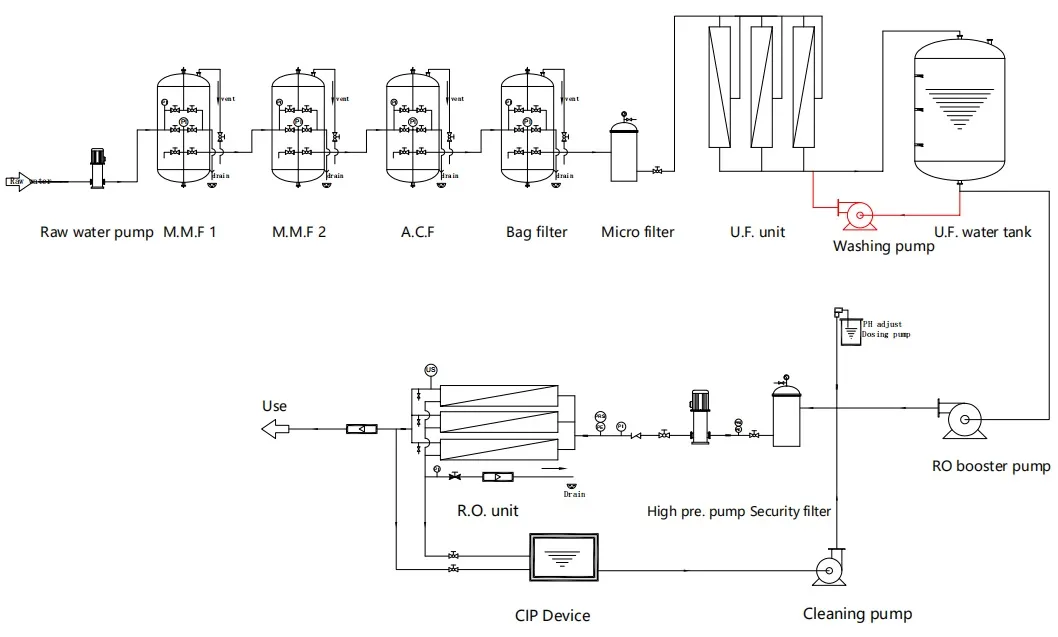

              System process flow
              Raw water → pre-treatment → fine treatment (UF and RO system)→ post treatment (UV or ozone sterilizer)→ Use
              Reverse Osmosis Potable Water Treatment System (RO membrane)

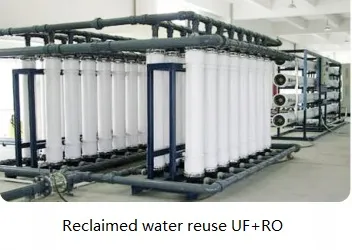

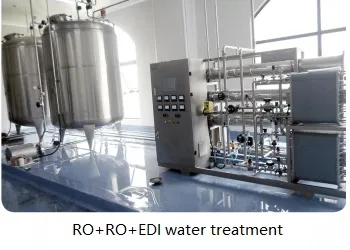

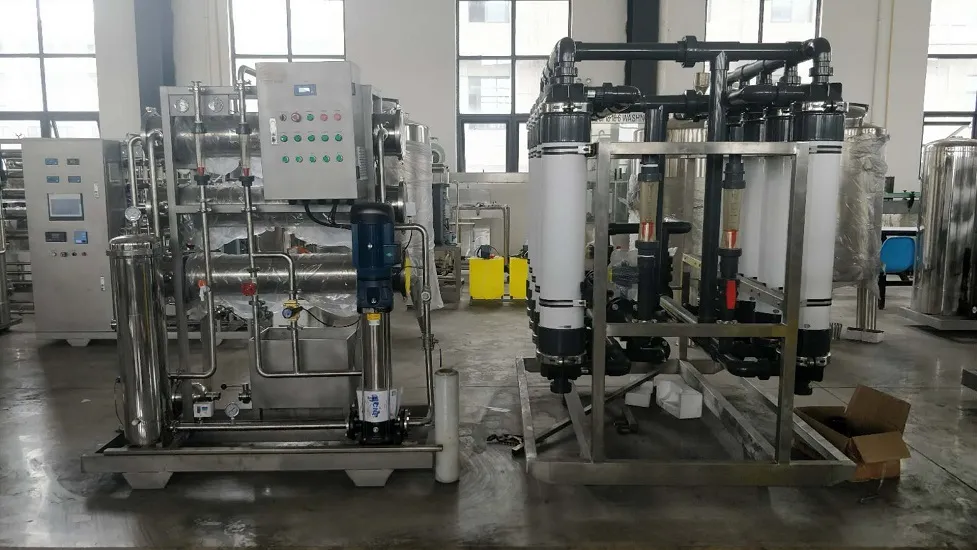

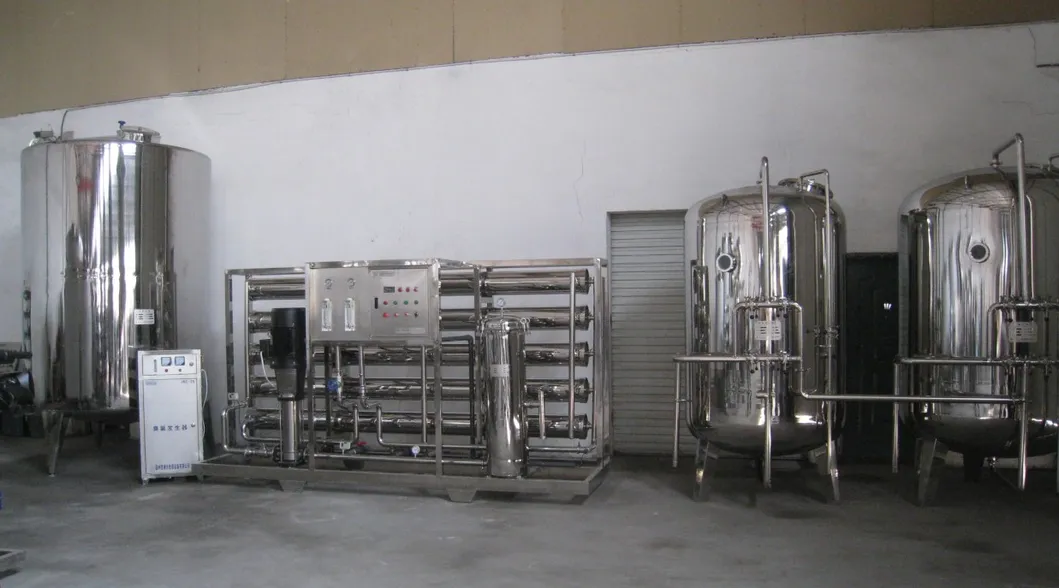

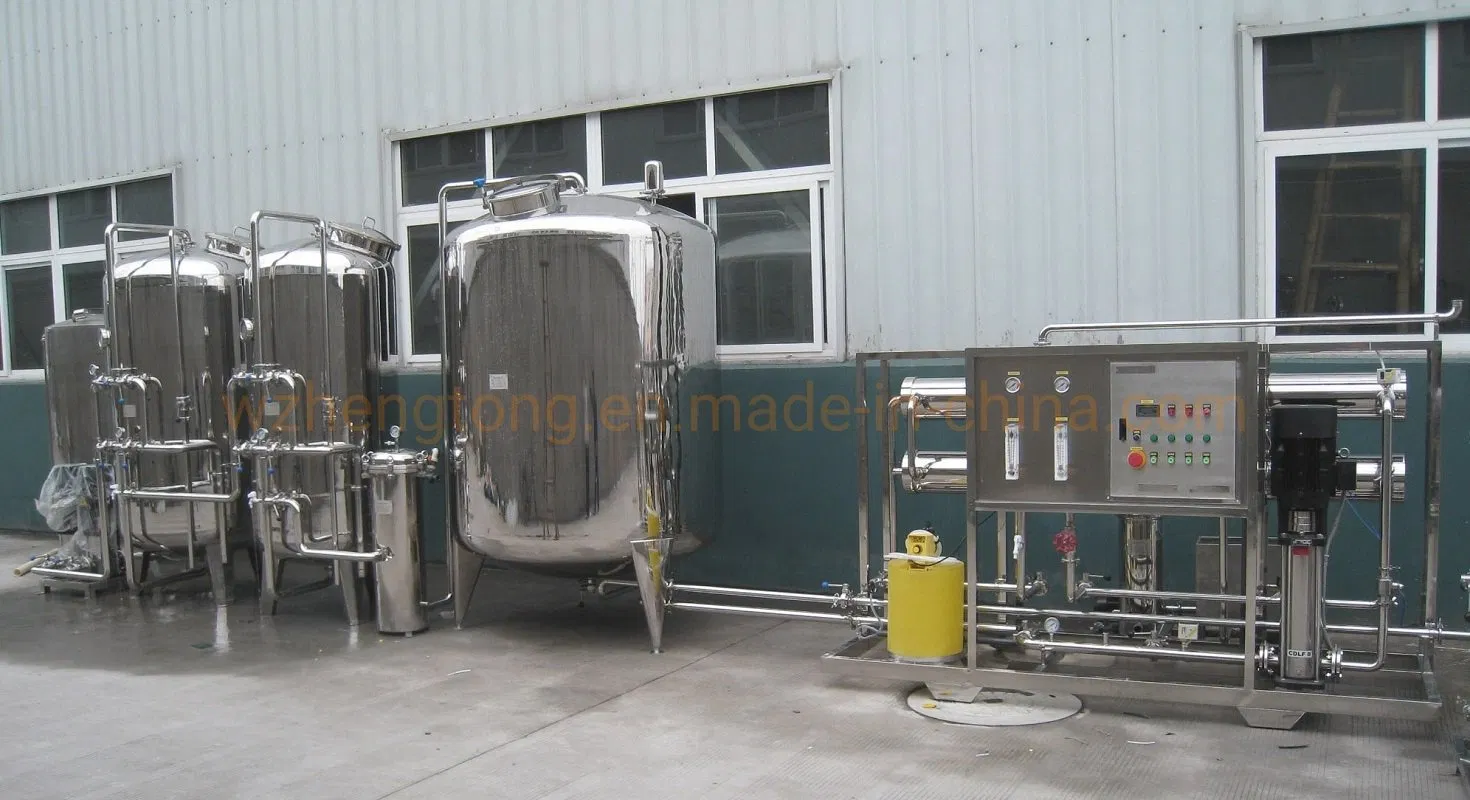

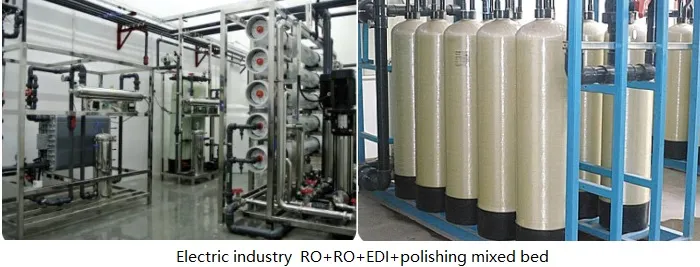

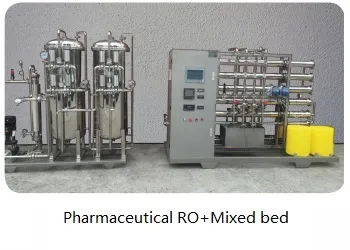

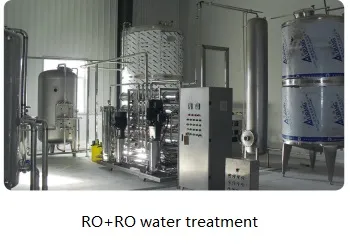

              Water treatment equipment show
              Reverse Osmosis Potable Water Treatment System (RO membrane)Reverse Osmosis Potable Water Treatment System (RO membrane)Reverse Osmosis Potable Water Treatment System (RO membrane)




              Reverse Osmosis Potable Water Treatment System (RO membrane)Reverse Osmosis Potable Water Treatment System (RO membrane)


              Reverse Osmosis Potable Water Treatment System (RO membrane)

              FAQ
              1. Q: What products you provide?
                  A: We are specialized in RO system, EDI system, UF system,Water softener, Sewage water treatment equipment, etc.
              2. Q: What's the information you need before order?
                  A1: what's your raw water ?
                  A2: what's the capacity per hour of the equipment ?
                  A3: What's the application of purifier water ?
              3. Q: How long is your delivery time?
                  A: Generally it is 30 days, Depends on your project.
