Reverse Osmosis RO Neat Water Plant 6tph

Product Description

Reverse osmosis RO neat water plant 6tph

Technological Process
Raw water(inlet water) → raw water tank → feed pump → sand filter → activated carbon filter → cartridge filter,precision filter → high pressure pump →RO unit → pure water tank → (UV light sterilizer or ozone sterilizer) use

Raw water(inlet water) → raw water tank → feed pump → sand filter → activated carbon filter → cartridge filter,precision filter → high pressure pump →Stage I RO unit → Stage II RO unit →middle water tank → EDI system → pure water tank → use

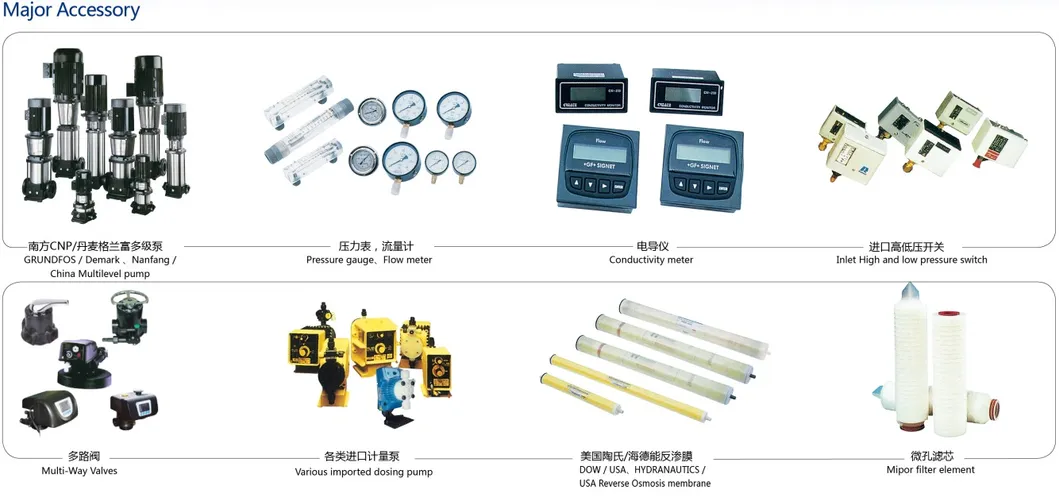

Components
Raw Water Pump
Multiple Media Filter Filter Media
Activated Carbon Filter Filter Media
Dosing Device Dosing Pump Dosing tank
Cartridge Filter Filter element
RO Unit High Pressure Pump RO Membrane Membrane Housing Pressure Gauge Flow Meter Assembly Valve
Frame
Washing System Washing Pump Washing Tank
Pipes & Fitting

Electric Control System Control Panel PLC Programmable High&Low Pressure Switch Conductivity Meter
Electrical instrument Wire & cable

Optional items
Raw Water Tank
Pure Water Pump
Ozone Generator
Oxygen generator,Ozone Generator and Air compressor All-In-One
Ozone Mixer Tower
Purified Water Tank
UV Sterilizer

Application
water stores,beverage bottlting,spot free make-up water,boiler feed
car wash,hydroponics,window and solar panel washing
manufacturing process
potable water from wells,pharmaceutical makeup,cosmetic product feed water,food manufacturing,coffee makeup

Technical parameters

Model	Flow rate (L/h)	Power(KW)	Water use efficiency	RO membrane	Dimension
Model	Flow rate (L/h)	Power(KW)	Water use efficiency	RO membrane	L X W X H(mm)
RO-500L	500	1.5	≥ 50%	4040	1650X630X1800
RO-750L	750	2.5	≥ 50%	4040	1870X630X1850
RO-1000L	1000	2.5	≥ 50%	4040	1870X650X1850
RO-2000L	2000	3.5	≥ 50%	4040	2440X650X1750
RO-3000L	3000	4	≥ 50%	4040	2440X620X1850
RO-5000L	5000	7.5	≥ 50%	8040	2000X900X1800
RO-6000L	6000	9.5	≥ 60%	8040	3000X900X1800
RO-8000L	8000	13.5	≥ 60%	8040	3000×900×1800
RO-9000L	9000	14	≥ 60%	8040	4000X900X1800
RO-10T	10T/H	19	≥ 60%	8040	3000X900X1800
RO-12T	12T/H	19.5	≥ 60%	8040	4000X900X1800
RO-15T	15T/H	23	≥ 60%	8040	4000X900X1950
RO-20T	20T/H	28	≥ 60%	8040	5000X900X1950
RO-30T	30T/H	55	≥ 60%	8040	7000X900X1950

RO system flow diagram

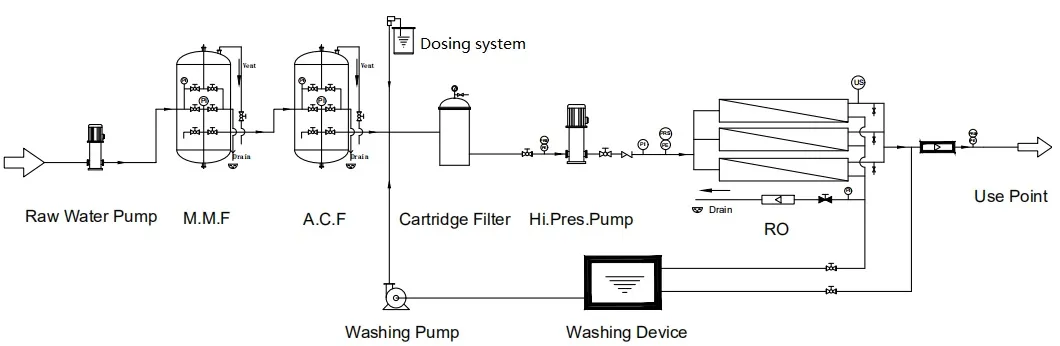

Single stage RO system

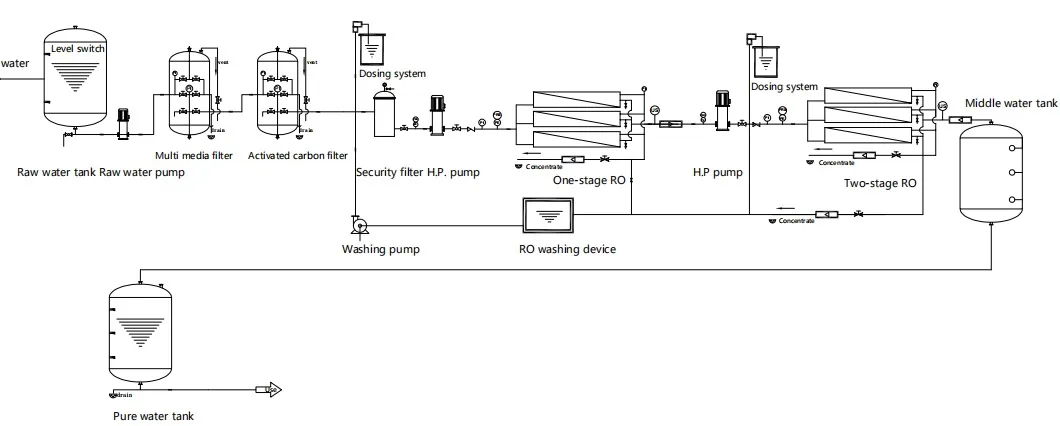

Two-stage RO system

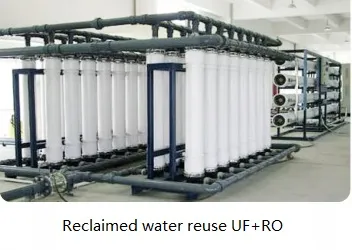

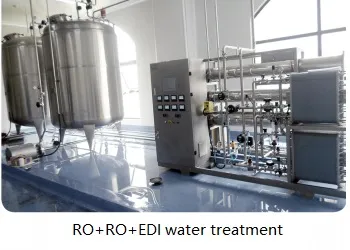

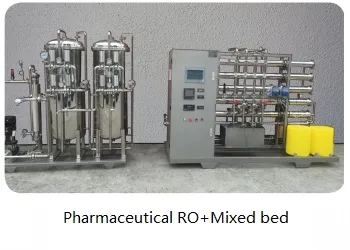

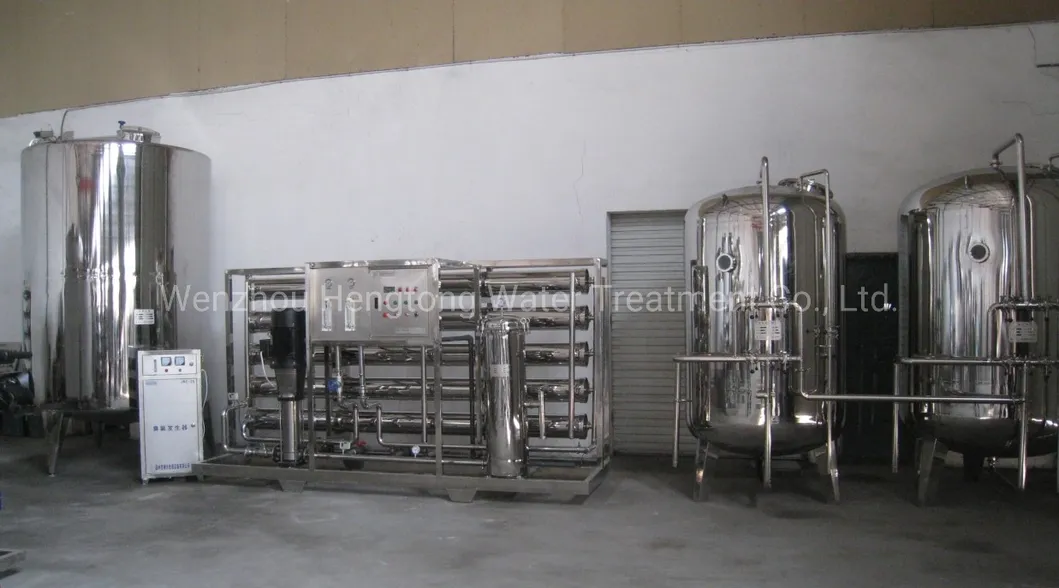

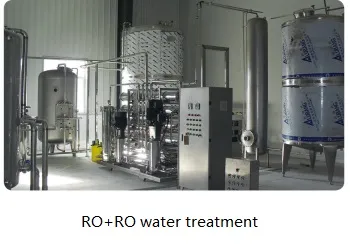

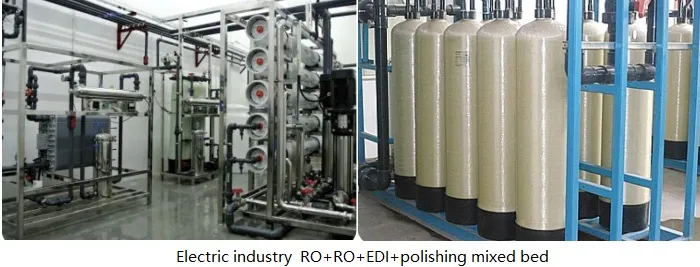

Water treatment equipment show

Reverse Osmosis RO Neat Water Plant 6tph

FAQ

1. Q: What products you provide?
    A: We are specialized in RO system, EDI system, UF system, Sewage water treatment equipment, etc.
2. Q: What's the information you need before order?
    A1: what's your raw water ?
    A2: what's the capacity per hour of the equipment ?
    A3: What's the application of purifier water ?
3. Q: How long is your delivery time?
    A: Generally it is 30 days, Depends on your project.
